Specifications
AMP |
450 amperes |
Min Wire Dia. |
.035 inches |
Max Wire Dia. |
.062 inches |
Dimensions |
17.3 W X 22.5 D X 31 TALL |
Weight |
180 pounds |
Equipped With
MANUFACTURER............... MILLER

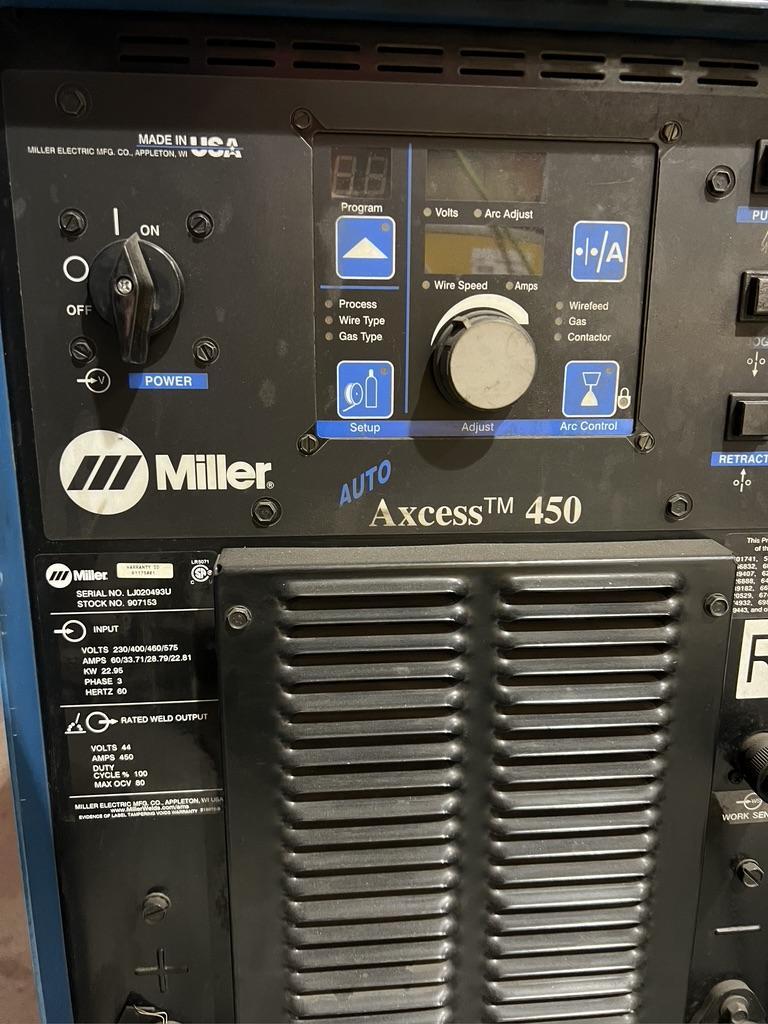

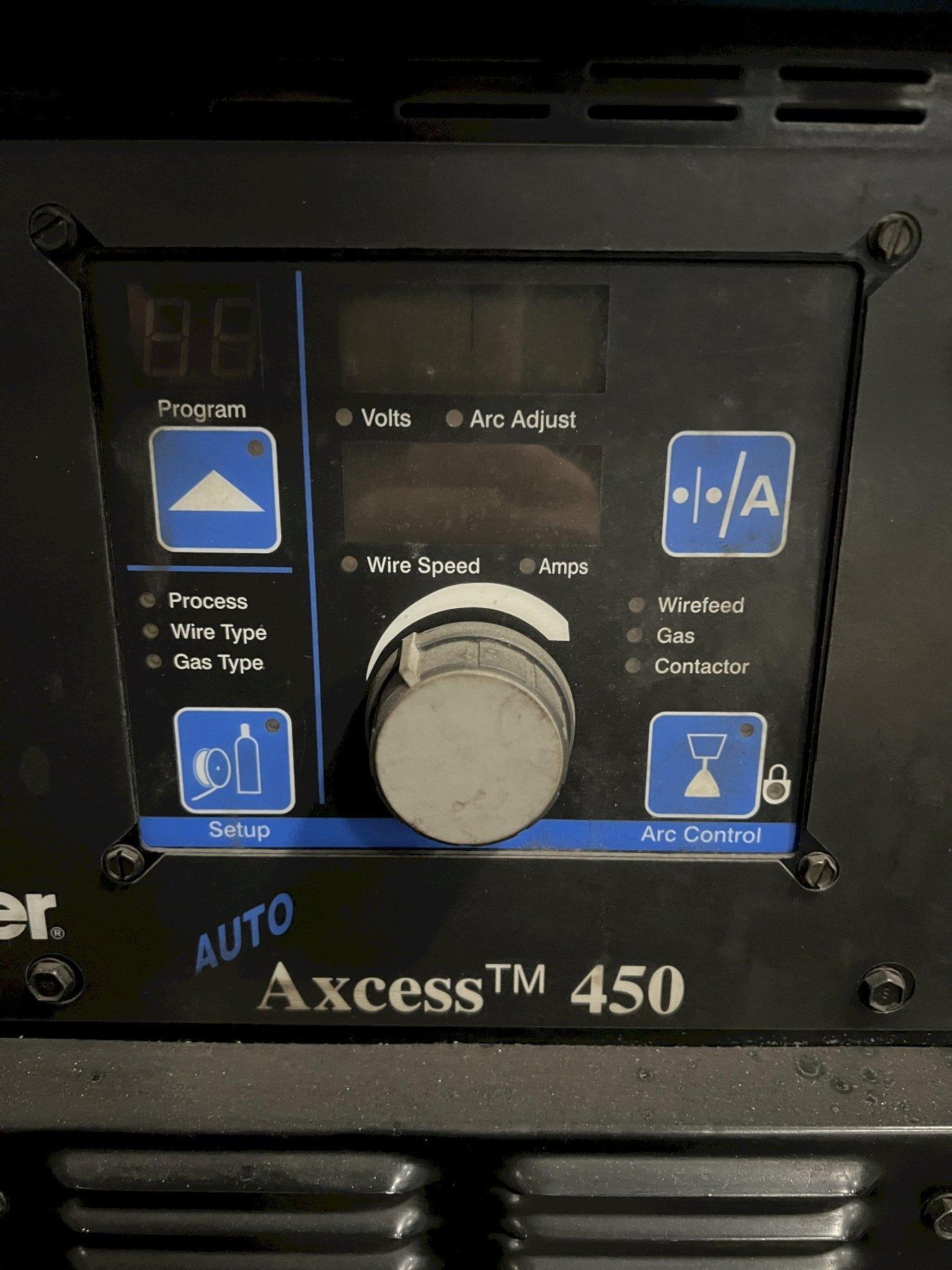

MODEL...................... AXCESS 450 (AUTO)

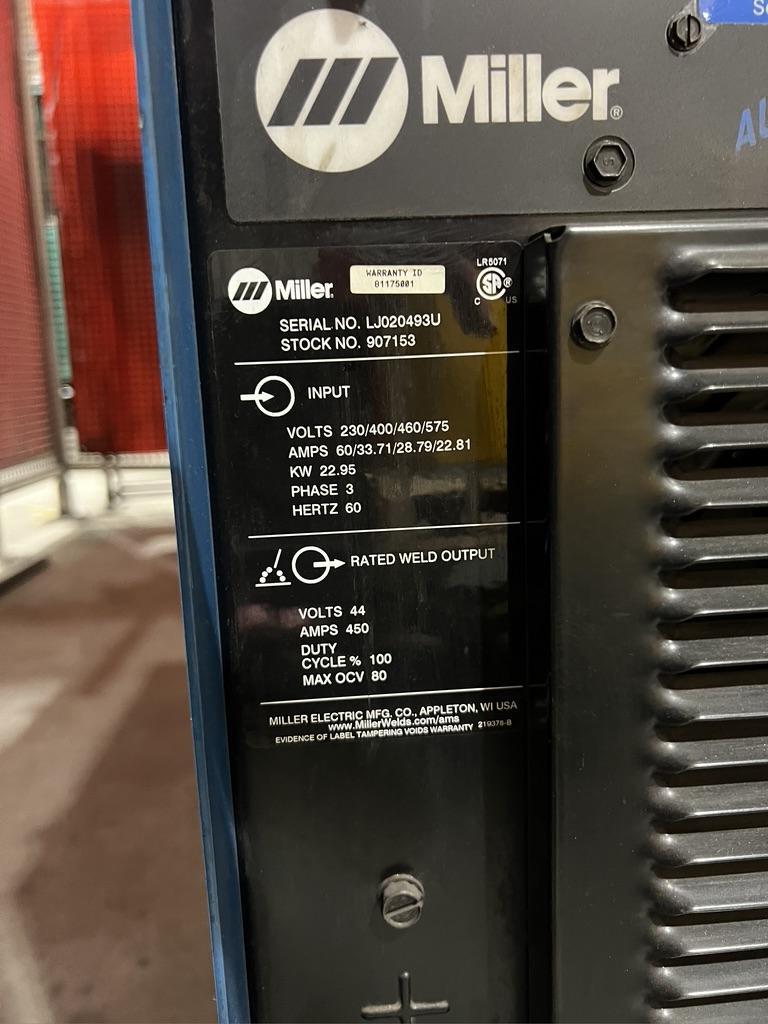

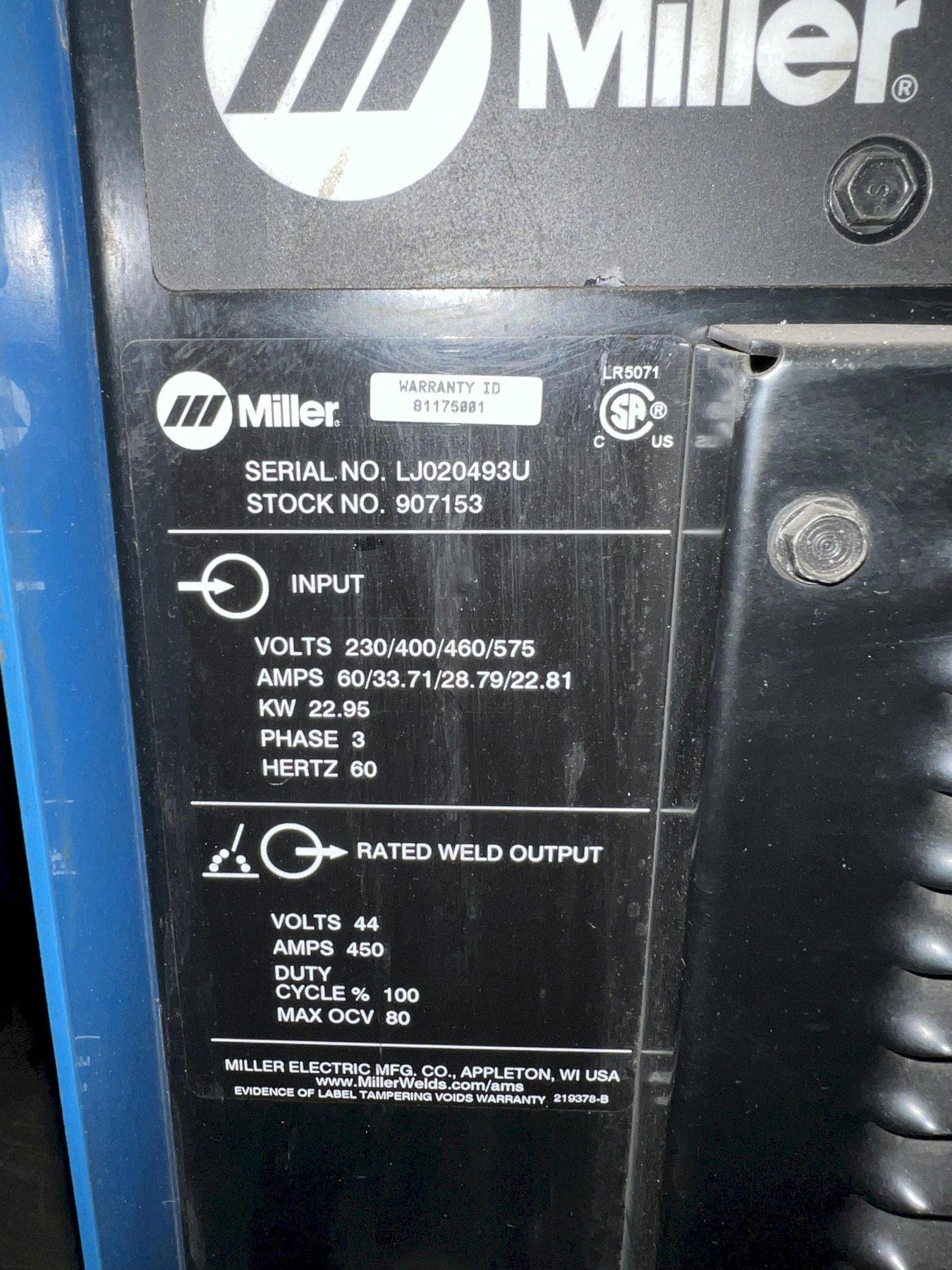

SERIAL NUMBER.............. LJ020493U
STOCK NUMBER............... 907153
INPUT POWER ............... THREE PHASE
VOLTAGE RANGE.............. 10 - 44
WIRE FEED SPEED RANGE...... 50 - 1400 IPM
MAX. OPEN CIRCUIT VOLTAGE.. 80 DC
AMPERES INPUT AT RATED LOAD
OUTPUT 60 HZ., THREE PHASE
208V.................... 67.0
230V.................... 59.0
400V.................... 34.0
460V.................... 29.0
575V.................... 23.0
INPUT KVA.................. 23.8
INPUT KW................... 22.9
