Specifications
Equipped With
MANUFACTURER.................... MILLER

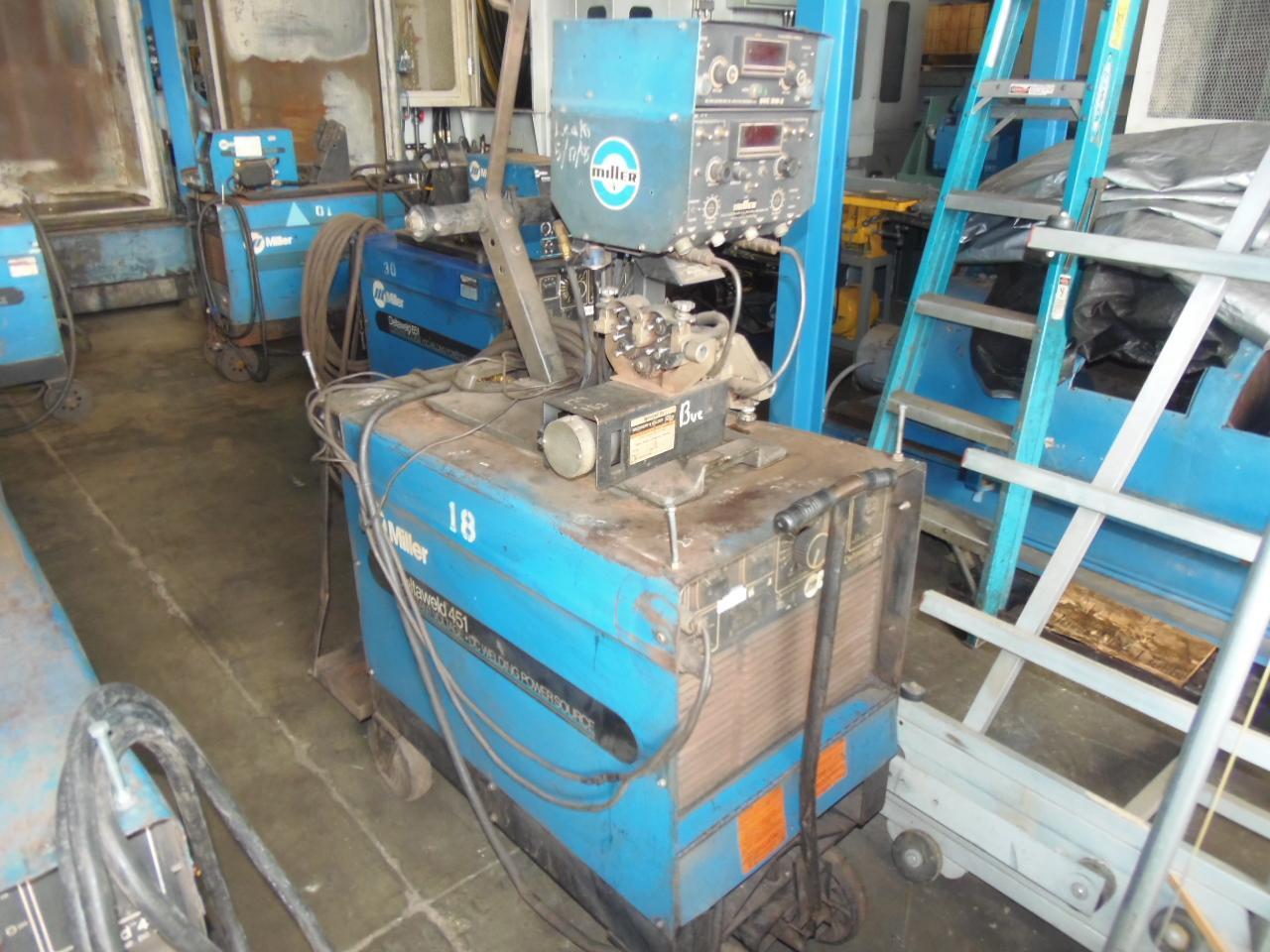

MODEL........................... DELTAWELD 651
SERIAL NUMBER................... JJ501756
SPECIFICATIONS:
TYPE OF OUTPUT-CONSTANT VOLTAGE OR DIRECT CURRENT
WELDING PROCESSES- GAS METAL ARC, FLUX CORED ARC, SUBMERGED ARC, AIR CARBON ARC CUTTING AND GOUGING
INPUT POWER-3 PHASE
INPUT AMPS AT RATED OUTPUT-118 AMPS@230 VOLTS, 59A@460V, 47A@575V
KVA/KW AT RATED OUTPUT-46.6 KVA
VOLTAGE RANGE 14-46 VOLTS DC
MAXIMUM OPEN CIRCUIT VOLTAGE-60 VOLTS DC
WEIGHT WITHOUT FEEDER 575 LBS
MODEL D54D DUAL WIRE FEEDER #JJ490137
