Specifications
Equipped With
GENERAL SPECIFICATIONS:
TABLE SIZE 59" x 25"
MAXIMUM TABLE LOAD 3,000 LBS
SPINDLE NOSE TO TABLE TOP 5" - 29"
X AXIS TRAVEL 55"
Y AXIS TRAVEL 27"
Z AXIS TRAVEL 24"
RAPID TRAVERSE RATE X, Y & Z AXES 590 IPM
CUTTING FEED RATE 0.1 - 276 IPM
SPINDLE SPEEDS 50 - 4,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 20 HP

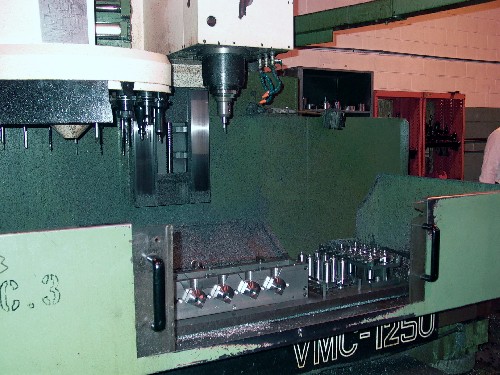

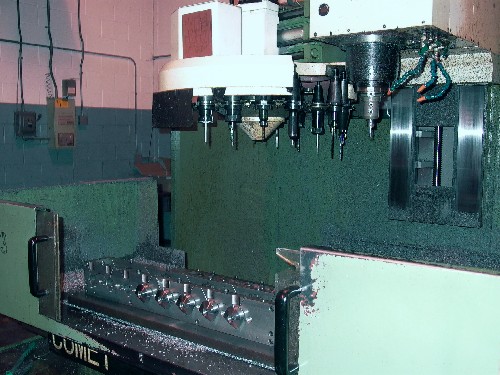

TOOL CHANGER CAPACITY 20 STATION ATC
MAXIMUM TOOL WEIGHT 33 LBS
MAXIMUM TOOL LENGTH 12"
EQUIPPED WITH:

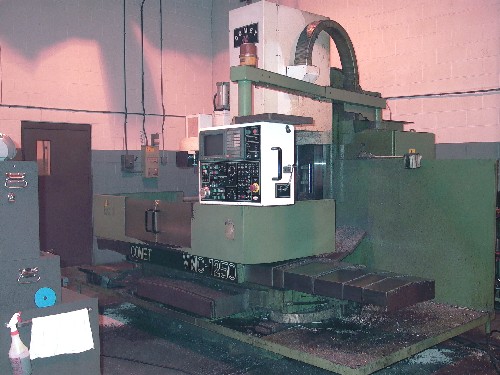

MITSUBISHI MELDAS 330M CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPPING)
STANDARD COOLANT SYSTEM WITH TANK & PUMP
SPLASH GUARDING & ENCLOSURES, ALL AVAILABLE MANUALS
