Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER MICROSTAR
MODEL TNC-L02-NCL
SERIAL NUMBER TUS10092
NEW (APPROX.) 1997
SWING OVER BED (SLIDING COVER) 7.08"
SWING OVER BED 3.937"
MAX. TURNABLE DIA. 4.72"
MAX. TURNABLE LENGTH 4.72"
X-AXIS TRAVEL 9.84"
Z-AXIS TRAVEL 9.84"
SPINDLE SPEED 80 - 8,000 RPM
NOSE CONFIGURATION A2-3
ID OF SPINDLE BEARING 2.16"
THRU-HOLE DIA. 1.33"

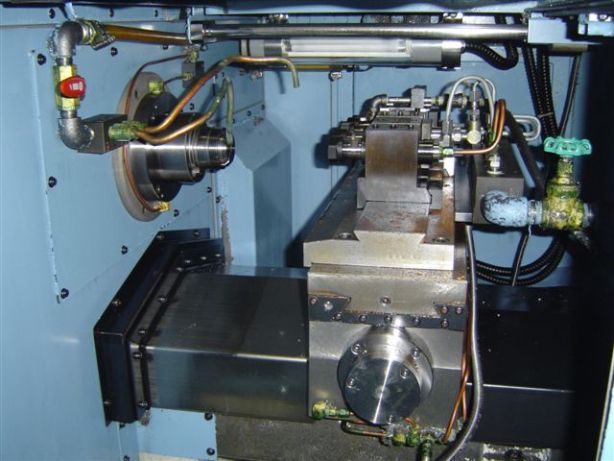

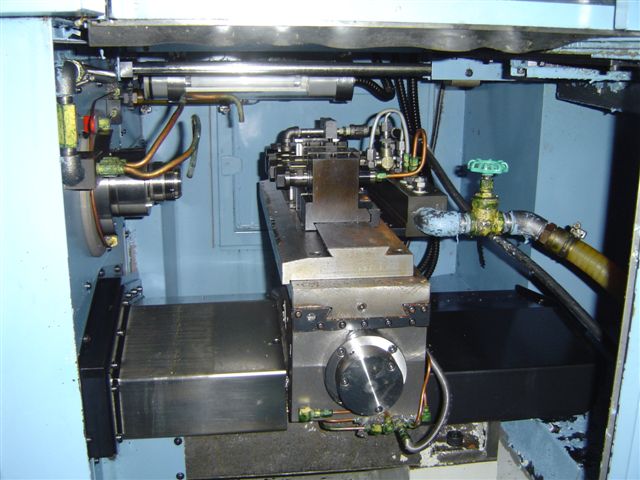

TOOL POST (GANG STYLE TOOLING SLIDE) 8 MAX.
DIA. OF BORING BAR SHANK 0.984" MAX.
RAPID X FEED RATE 472 IPM
RAPID Z FEED RATE 629 IPM
SPINDLE MOTOR 3/5 HP (30 MINUTES)
DIMENSIONS(APPROX.) 72"Dx101"Wx94"H
WEIGHT (APPROX.) 3,600 LBS.
CURRENTLY RUNNING 220V/3 PHASE/ 60 CYCLE
EQUIPPED WITH:

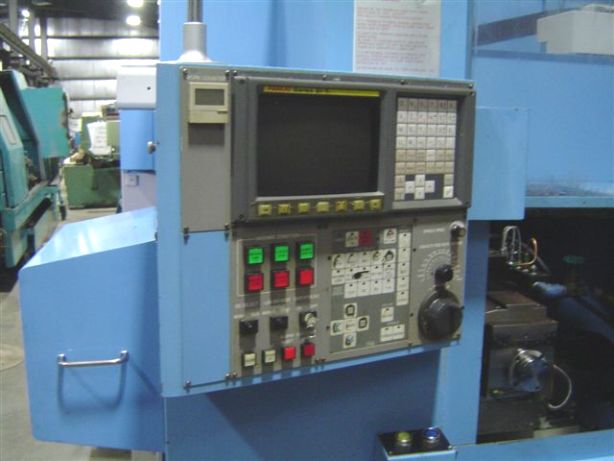

FANUC 21T CONTROL
GANTRY LOADER WITH LOAD/UNLOAD WRIST
5C COLLET CHUCK
AUTOLUBE
8 TOOL BLOCKS

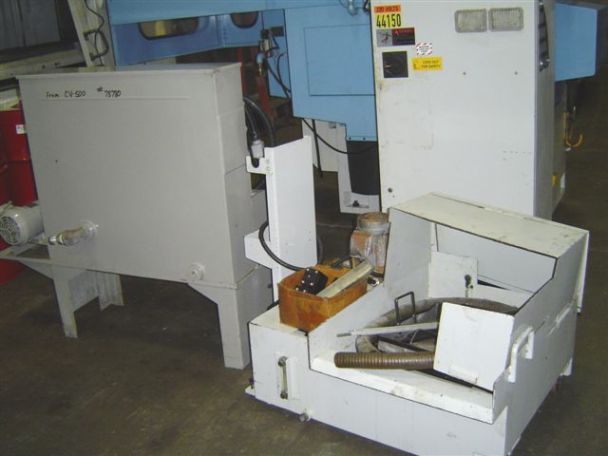

COOLANT TANK WITH PUMP
