Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY--------------------------- 1975

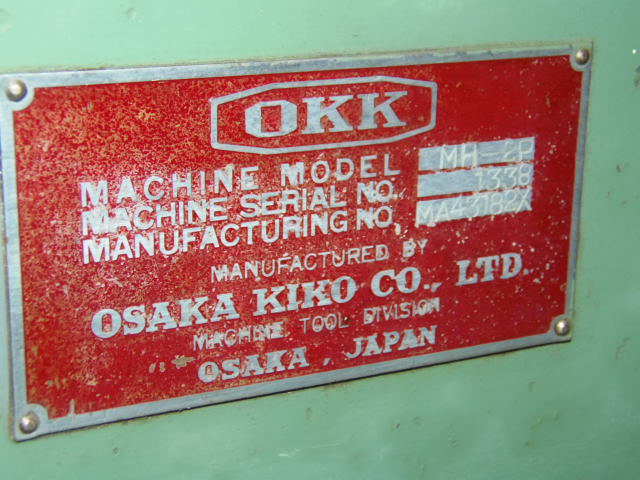

SERIAL NUMBER------------------------------- 1338

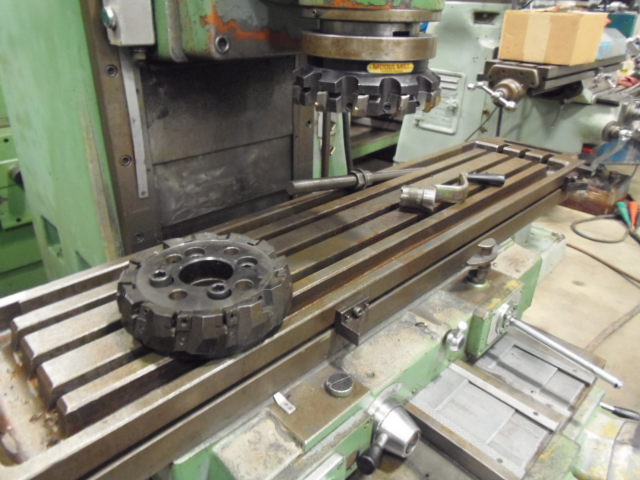

TABLE--------------------------------------- 11" x 51"
TRAVELS: LONGITUDINAL----------------------- 28 3/8"
---------CROSS------------------------------ 10 1/4"
TABLE FEED (LONG & CROSS)------------------- 7/16 TO 69 IPM
VERTICAL FEED------------------------------- 40 PERCENT OF ABOVE
RAPID TRAVERSE (LONG & CROSS)--------------- 125 IPM
RAPID TRAVERSE OF THE HEAD------------------ 50 IPM
VERTICAL TRAVEL OF HEAD--------------------- 14.25"
SPINDLE NOSE TO TABLE----------------------- 3" TO 17 3/8"
SPINDLE CENTER TO COLUMN-------------------- 12.25"
SPINDLE------------------------------------- #50 TAPER
NUMBER & RANGE OF SPINDLE SPEEDS: (12)------ 60-1800 RPM
SPINDLE MOTOR------------------------------- 7.5 HP
FEED MOTOR---------------------------------- 1 HP
WEIGHT APPROXIMATELY------------------------ 6,200 LBS.
EQUIPPED WITH:

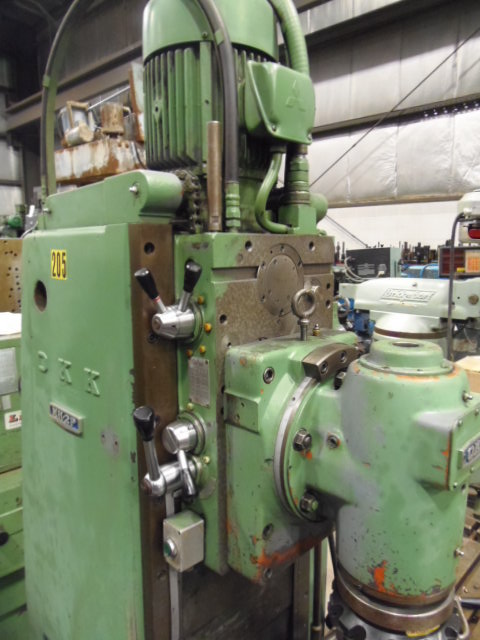

HORIZONTAL WITH UNIVERSAL VERTICAL HEAD
COOLANT
POWER FEEDS AND RAPIDS
