Specifications
Equipped With
GENERAL SPECIFICATIONS:

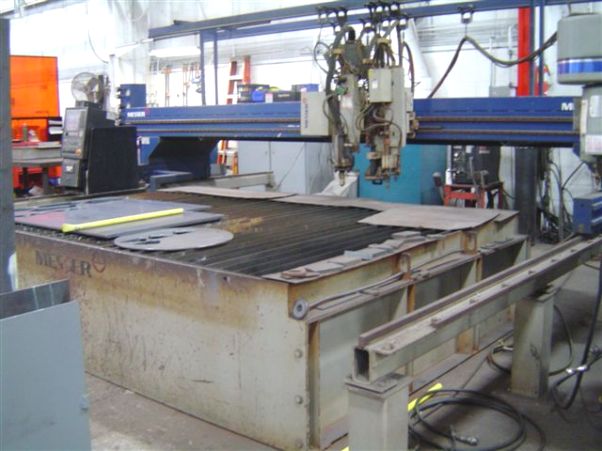

MANUFACTURER MG/MESSER
MODEL GEMINI
NEW APPROX. 2006
TABLE SIZE (DOWN DRAFT) 96" X 132"
TYPE BRIDGE TYPE

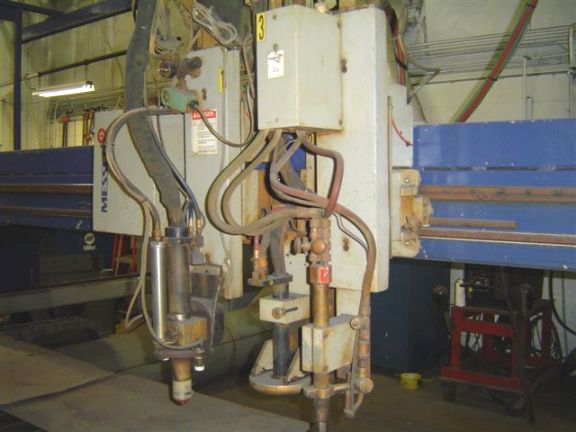

TORCHES 1 PLASMA
2 OXY

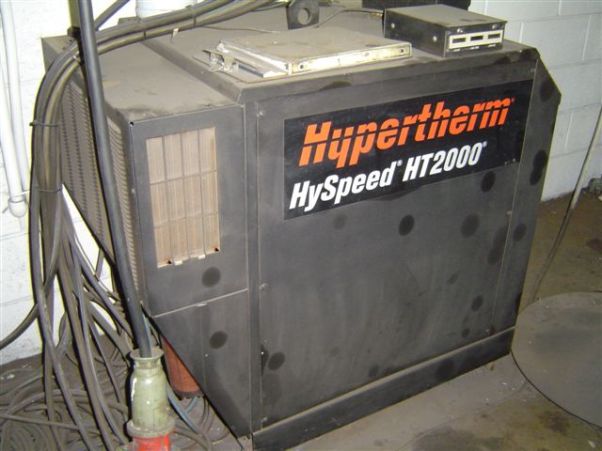

HIGH SPEED PLASMA POWER SUPPLY HT 2000
SPEED AT 18 GA 50 AMP 160 IPM
10 GA 50 AMP 60 IPM
.125 100 AMP 240 IPM
.625 100 AMP 45 IPM
.250 200 AMP 160 IPM
1" 200 AMP 35 IPM
EQUIPPED WITH:

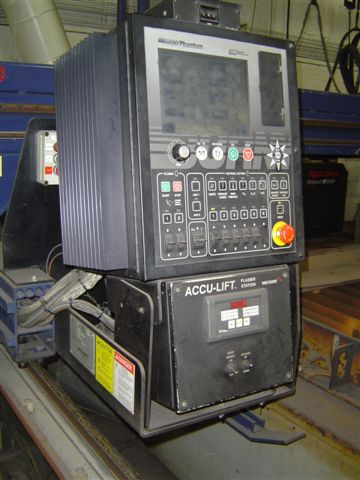

BURNY 10 (PHANTOM) CONTROL WITH BLOCK NESTING, EXPANDABLE SHAPE LIBRARY, PROCESS CONTROL, DXF FILE CONVERSION, MONITOR AND TRACK CONSUMABLES, 10.4" TOUCH SCREEN, HIGH RESOLUTION FULL COLOR GRAPHICS, AND JOB INTERRUPT ROUTINE
ACCU LIFT PLASMA STATION TO MAINTAIN CONSTANT DISTANCE BETWEEN TORCH AND WORK PIECE

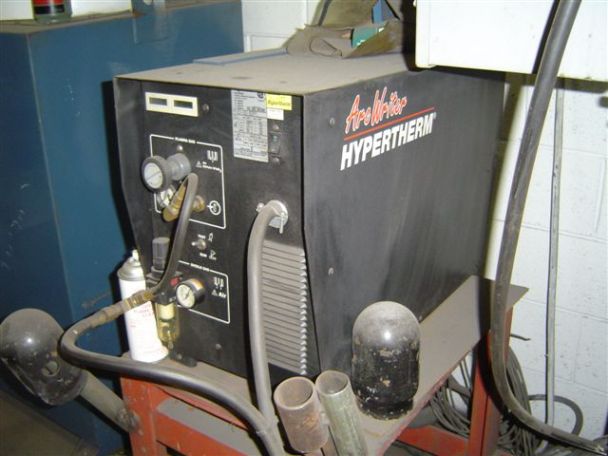

HYPERTHERM ARC WRITER MARKING HEAD
MG SLAGGER DD11-8 CUTTING TABLE

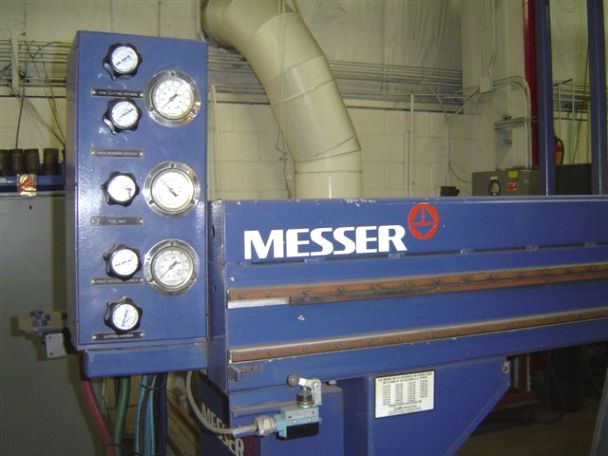

QUICK-SET GAS CONTOL SYSTEM FOR AUTO PIERCING
OL-1 TORCH LIFTER
TORCH IGNITORS
AUTO HEIGHT SENSING
DUAL DC DRIVES

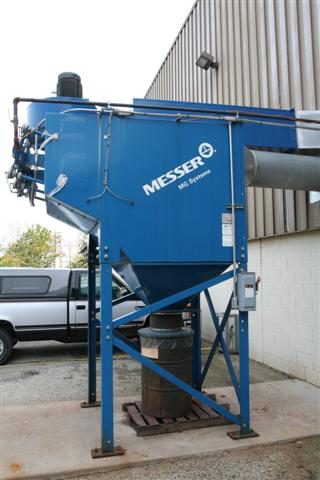

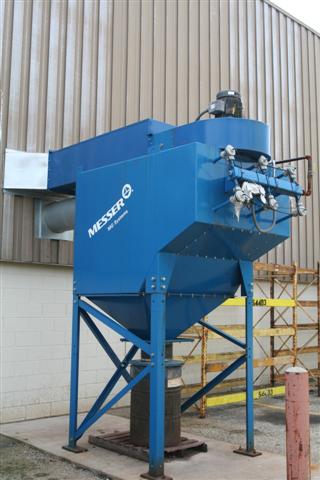

DUST COLLECTOR WITH SPARK ARRESTER AND NOISE REDUCTION
