Specifications
Equipped With
SPECIFICATIONS;

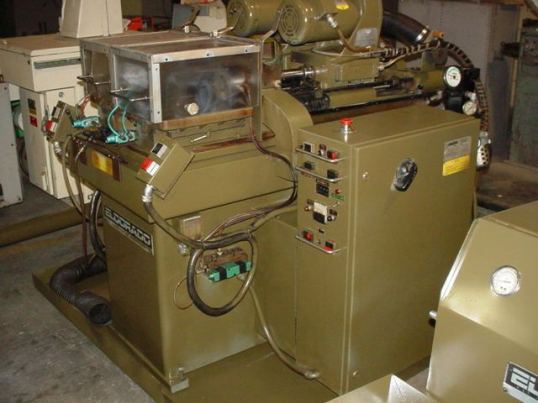

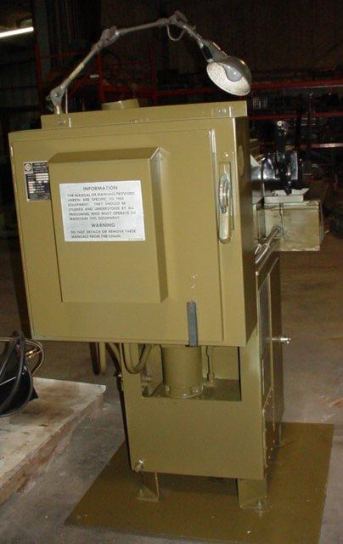

MODEL................................. F18-1101
Number of Gun Drilling Spindles:...... 2
Serial number on drill heads.......... 1412 and 1411
Capacity:............................. 1/2" Dia x 15" Stroke
Gun Drilling Diameter Capacity:...... .055" to .50 Mild Steel
Ball Screw Stroke Length:............. 15-5/8"
Fixture Table Area:................... 12" x 14"
Center Line of Spindle to Table:...... 8"
Spindle Speeds (18) Increments:....... 1445, 11740 RPM
Ball Screw Feed Rate:................ .1 - 99.9 IPM
Jog Reverse & Forward Feed Rate:...... 200 IPM
Spindle Horsepower (each):............ 2 HP
Machine Dimensions:................... 86" x 34" x 57"
Machine Weight:....................... 4,000 Lbs.

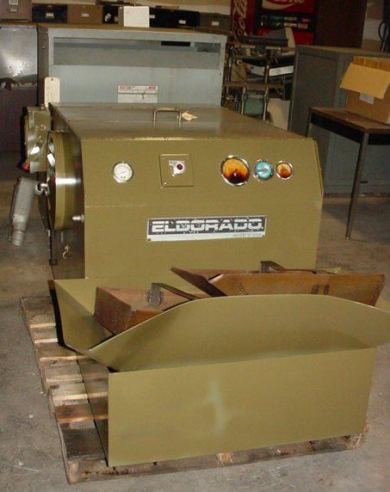

Coolant Specifications:
Coolant Pressure, Variable 200 - 2000 PSI
Coolant Volume, Variable 0 - 10 GPM
Coolant Reservoir, Capacity 65 Gal.
Coolant Dimensions 48" x 32" x 35"
Coolant Dry Weight 1,000 Lbs.
EQUIPPED WITH:
Eldorado Model #F18-1101 High Pressure Coolant System
Mega-Flo-Minder, Whip Guide, Misc. Gun Drills.
7.5 HP Motor, 3450 RPM
Electrics 230/460/3/60
