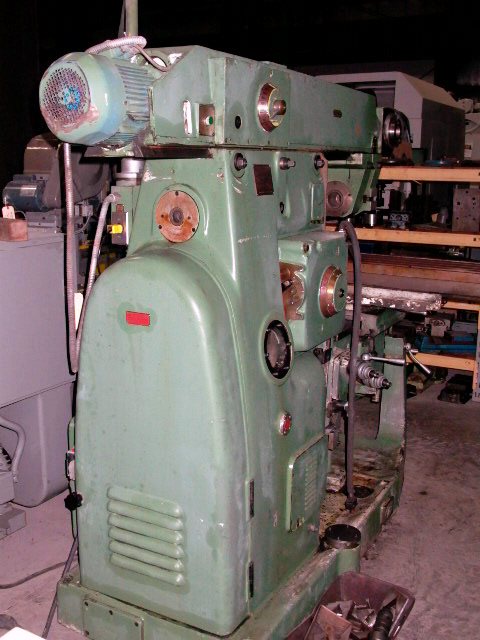

Mechanicy FWA41MU Universal Milling Machine with Motorized Overarm, 15" x 78" table, 50 taper, 45 degree table swivel

SERIAL NUMBER: 13/14 Year: 1986

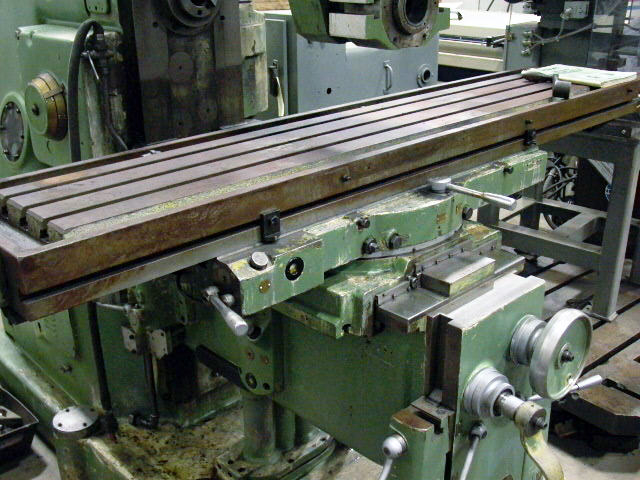

Table size............................... 15 3/4" x 78 3/4"
Tableswivel.............................. 45 deg.
Travel X................................. 41 3/4"
Travel Y................................. 14 1/2"
Travel Z................................. 17"
Travel Quill............................. 3"
Spindle to table Hor..................... 17 1/4" Max
Spindle to table Vert.................... 1/2" - 24"
Vert. Spindle to Column.................. 6" - 50"
Feeds Longitudinal....................... 1/2" to 40 IPM
Feeds Cross.............................. 11/32" to 29 1/2 IPM
Feeds Vertical........................... 1/4" to 20 IPM
Rapid traverse X......................... 99 IPM
Raid travese Y........................... 75 IPM
Raid travese............................. 49 IPM
Spindle taper............................ ISO 50
Hor. Spindle Speeds...................... 28-1300 RPM
Vert Spindle Speeds...................... 38-2360 RPM
Vert Head Pivot.......................... 90 deg
Horizontal Motor......................... 14 HP
Vertical Motor........................... 4 HP
Feed Motor............................... 3 HP
Dimensions............................... 90"x88"x82"H
Approximate Weight....................... 10,900 lbs
Voltage.................................. 550/3/60

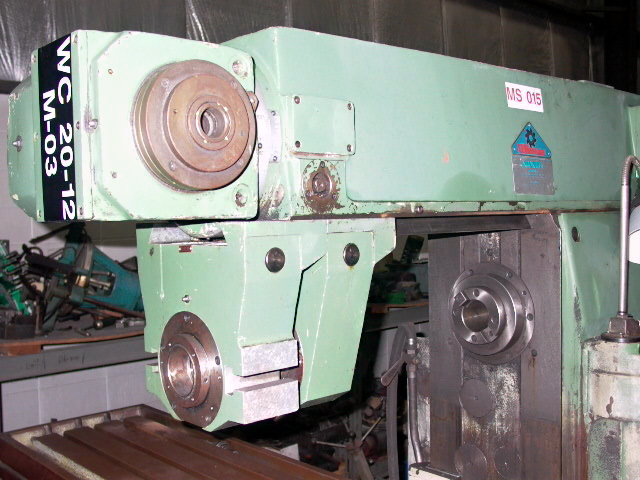

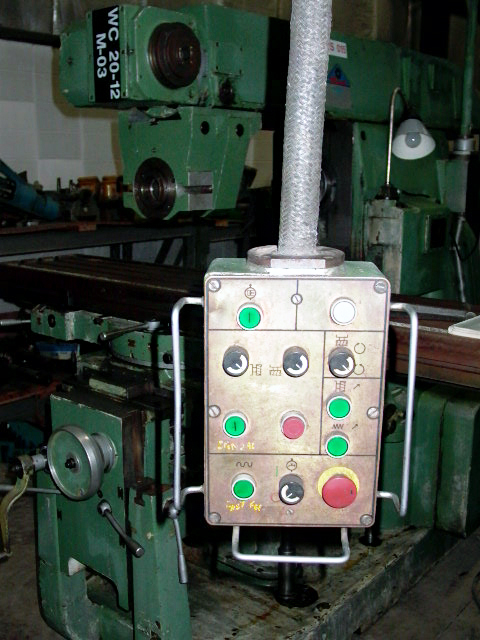

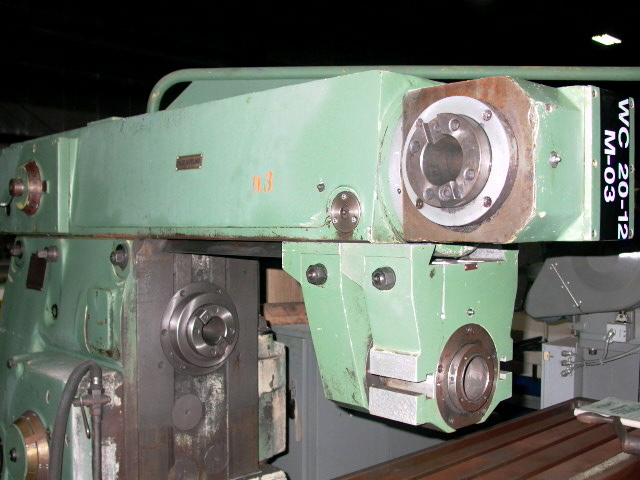

Equipped with: Motorized overarm with swivel head, Coolant, Pendant Control, Power feed X & Z, Manual feed on the knee up/down.
