Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 22"
MAXIMUM DISTANCE BETWEEN CENTERS 81.10"
TURRET TOOL POSITIONS 2
TURRET TRAVEL AXIS: X 24.21"
Z 83.54"
C AXIS INDEXING 0.001 DEG
AUTOMATIC TOOL CHANGER 30 STATION ATC
SPINDLE TAPER (LIVE TOOLING) BT 50
LIVE TOOLING SPEEDS 3000 RPM
LIVE TOOLING MOTOR 15 HP
MAIN SPINDLE SPEEDS (3 SPEED GEARED) 5 - 3000 RPM
RAPID SPEED AXIS: X 473 IPM
Z 591 IPM
MAIN DRIVE MOTOR 40 HP
TAILSTOCK TYPE PROGRAMMABLE N/C
DIMENSIONS APPROXIMATELY 17' x 6' x 7'
WEIGHT APPROXIMATELY 29,000 LBS.
EQUIPPED WITH:

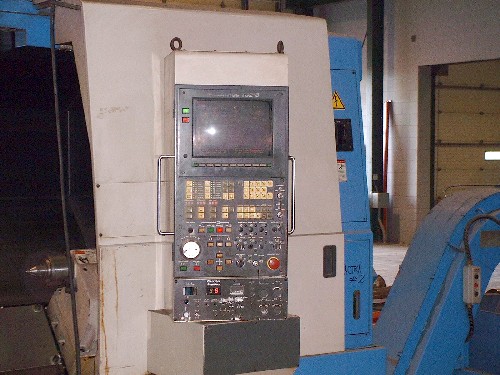

MAZATROL T32-3 CONVERSATIONAL CNC CONTROL WITH 10" COLOR CRT
15" KITAGAWA 3-JAW HYDRAULIC CHUCK, RS-232C PORT INTERFACE
TOOL EYE (TOOL PRESETTER), 3 POINT STEADY REST
FULLY PROGRAMMABLE TAILSTOCK (BODY & QUILL TRAVELS)
RIGHT HAND DISCHARGE CHIP CONVEYOR, COOLANT SYSTEM
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
