GENERAL SPECIFICATIONS:

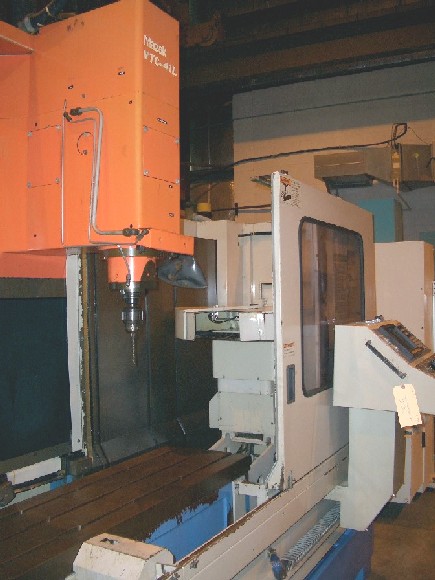

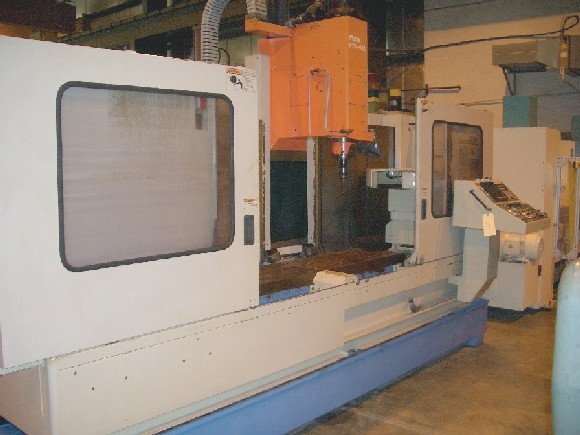

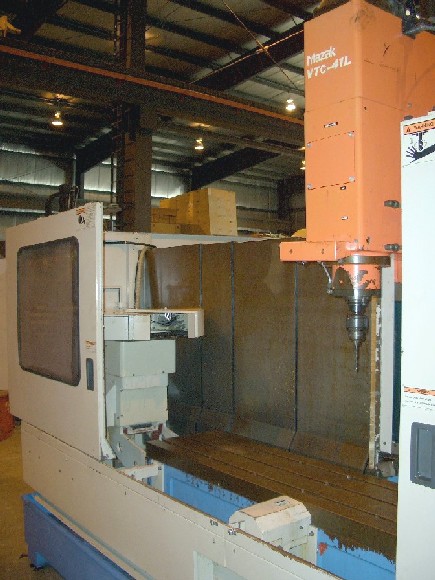

MANUFACTURER MAZAK
MODEL VTC-41L
NEW (APPROX.) 1994
SERIAL # 109987
TABLE SIZE 78.74" x 16.14"
TABLE LOAD CAPACITY 1,764 LBS.
X-AXIS TRAVEL 65.35"
Y-AXIS TRAVEL 16.14"
Z-AXIS TRAVEL 20.07"
DISTANCE TBL TOP TO SPDL NOSE 24.40"
DISTANCE COLUMN FRONT TO SPDL CNTR 18.11"
SPINDLE SPEED 40 - 7000 RPM
SPINDLE TAPER NO. 40
X & Y RAPID TRAVERSE 787 IPM
Z RAPID TRAVERSE 590 IPM
CUTTING FEED RATE 0.04" - 196.85"/MIN.
WEIGHT (APPROX.) 13,230 LBS.
DIMENSIONS (APPROX.) 153.5" x 120.1" x 113.4"
EQUIPPED WITH:
MAZATROL EIA CONTROL
2-24 AUTOMATIC TOOL CHANGERS
COOLANT SYSTEM
CHIP AUGER TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
