MAZAK VTC-20B, 20"-Y, 20"-Z, 44"-X, MAZATROL M-PLUS CTRL, 40 TAPER, RIGID TAPPING, 1996

GENERAL SPECIFICATIONS
MANUFACTURER MAZAK
MODEL VTC-20B
NEW (APPROX.) 1996

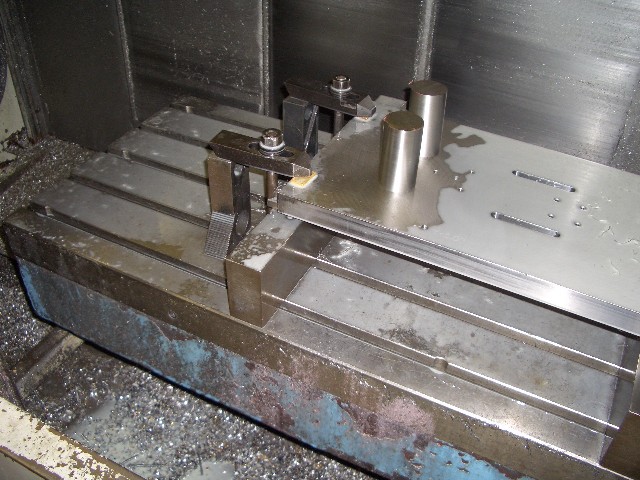

TABLE SIZE 20.08" x 57.4"
TABLE LOAD CAPACITY 1764 LBS.
X-AXIS TRAVEL 44"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
TABLE TO SPINDLE NOSE (MIN.) 4.3"
TABLE TO SPINDLE NOSE (MAX.) 24.4"
SPINDLE SPEEDS 60 - 7000 RPM
SPINDLE TAPER #40
X & Y FEED RATE 787 IPM
Z FEED RATE 590 IPM
CUTTING FEED RATE 0.04 - 196.9 IPM
JOG FEED RATE 0.08 - 78.7 IPM

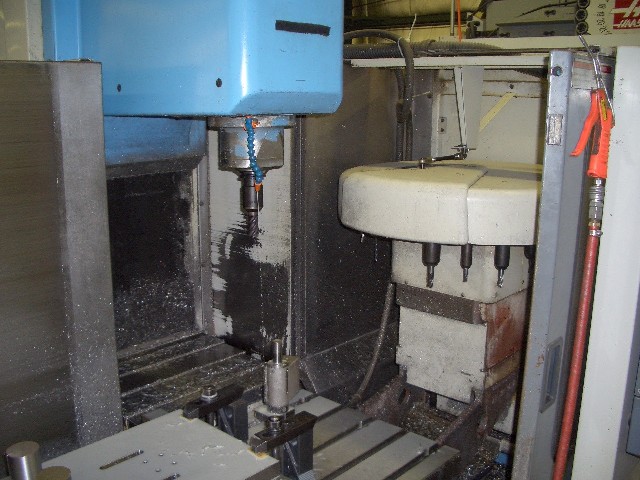

TOOL CHANGER 24
MAX. TOOL DIAMETER 3.1"
MAX. TOOL LENGTH 13.8"
MAX. TOOL WEIGHT 17.6 KG
MAIN MOTOR 15 HP/30 MIN.
CUTTING DIMENSIONS 119.7" x 105.9" x 106"
WEIGHT (APPROX.) 12,000 LBS.

EQUIPPED WITH:

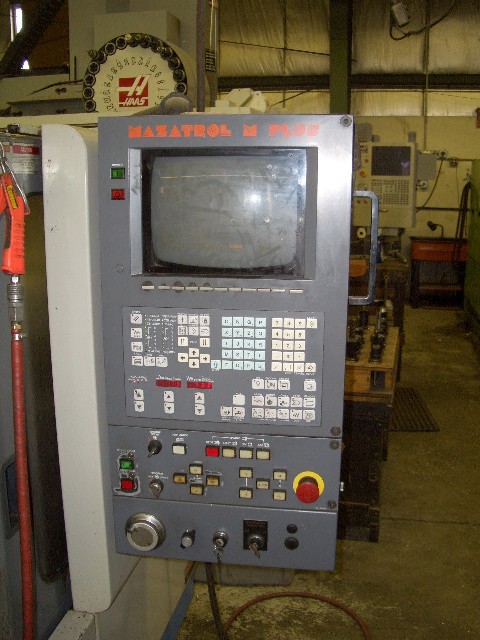

MAZATROL M PLUS CONTROL
RIGID TAPPING
COOLANT TANK & PUMP
LARGER BUFFER
G60.1 HIGH SPEED MACHINING OPTION
