Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER......................... MAZAK

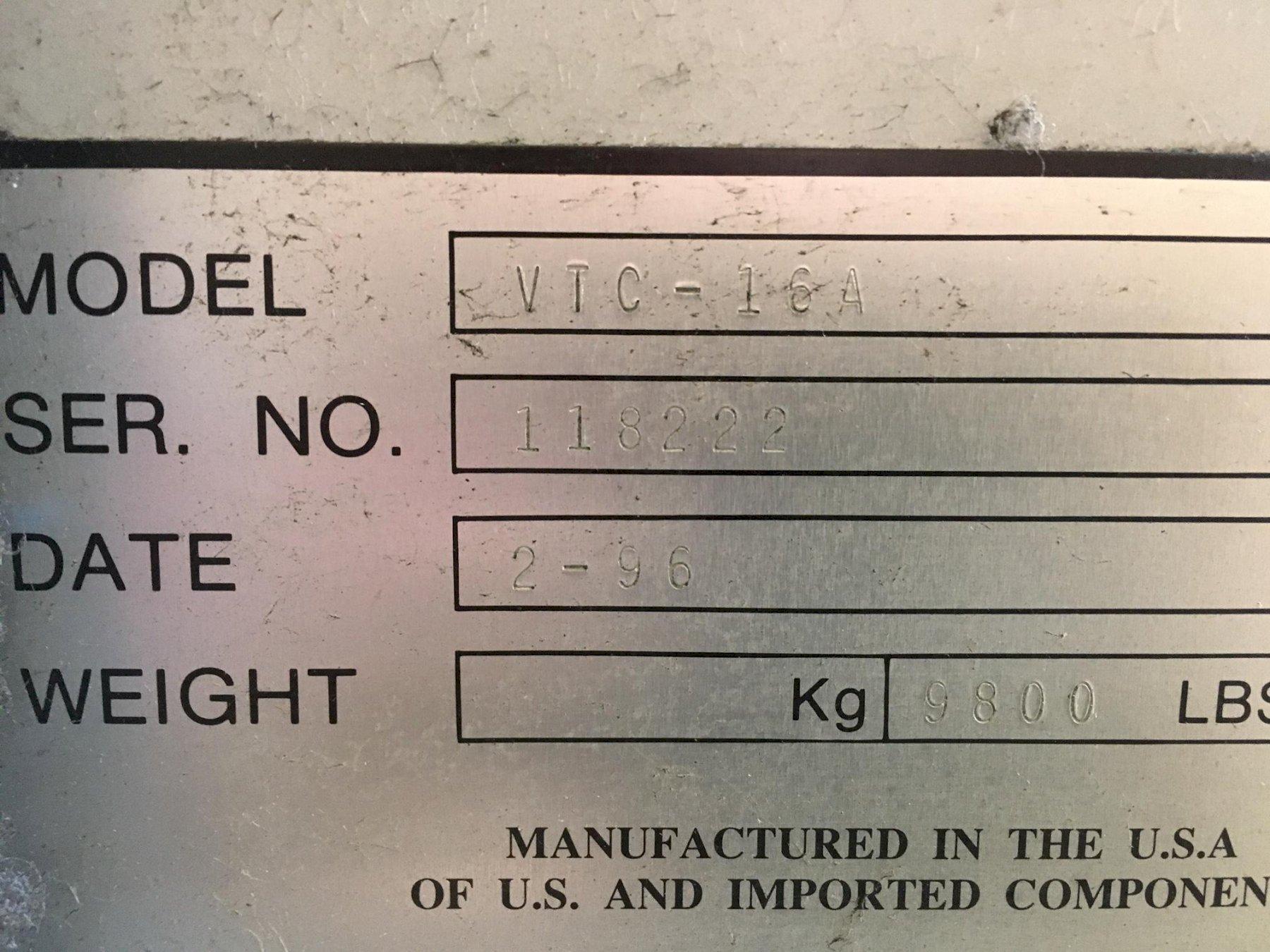

MODEL................................ VTC-16A
SERIAL NUMBER........................ 118222
AGE.................................. 1996
TABLE SIZE........................... 44.8" X 16.1"
TRAVELS
X................................. 44"
Y................................. 16"
Z................................. 20.8"
TABLE LOAD CAPACITY.................. 1760 LBS
MAX. TOOL DIAMETER................... 3/14/4.33"
MAX. TOOL WEIGHT..................... 13.78 LBS
SPINDLE MOTOR........................ 15 HP
SPINDLE NOSE TO TABLE TOP............ 4.3 TO 24.4"
SPINDLE SPEED........................ 7000 RPM
SPINDLE TAPER........................ CAT 40
TOOL MAGAZINE........................ 24 ATC
DIMENSIONS........................... 118" X 116" X 106" TALL
WEIGHT............................... 11,000 LBS
EQUIPPED WITH:

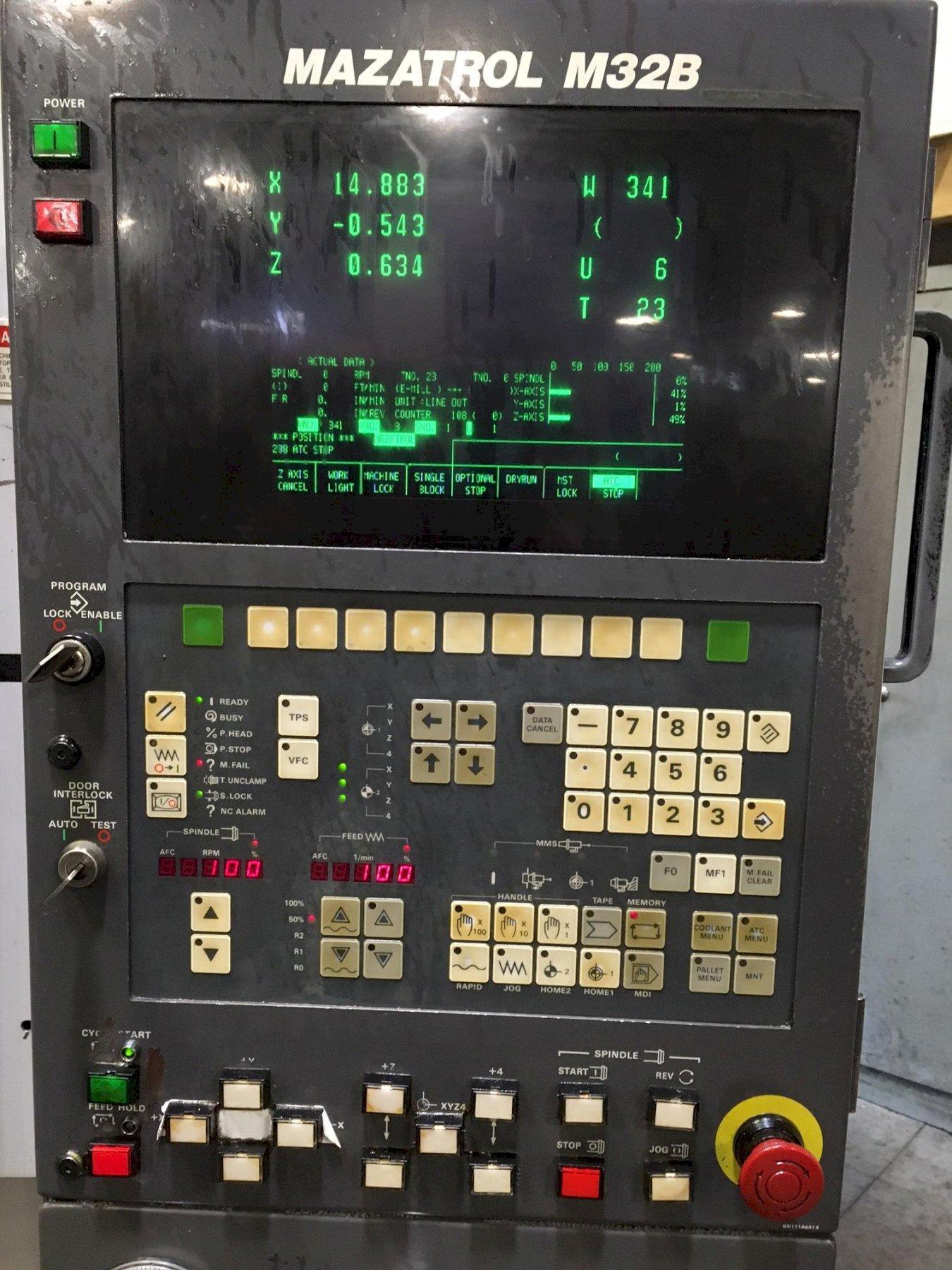

MAZATROL M-32 CNC CONTROL WITH CRT AND GRAPHICS
MISC. MANUALS
MISC. TOOLHOLDERS
