Specifications
| CNC Control |
yes |
| Type of CNC Control |
MAZATROL 640 M |
| # Axis |
3 |

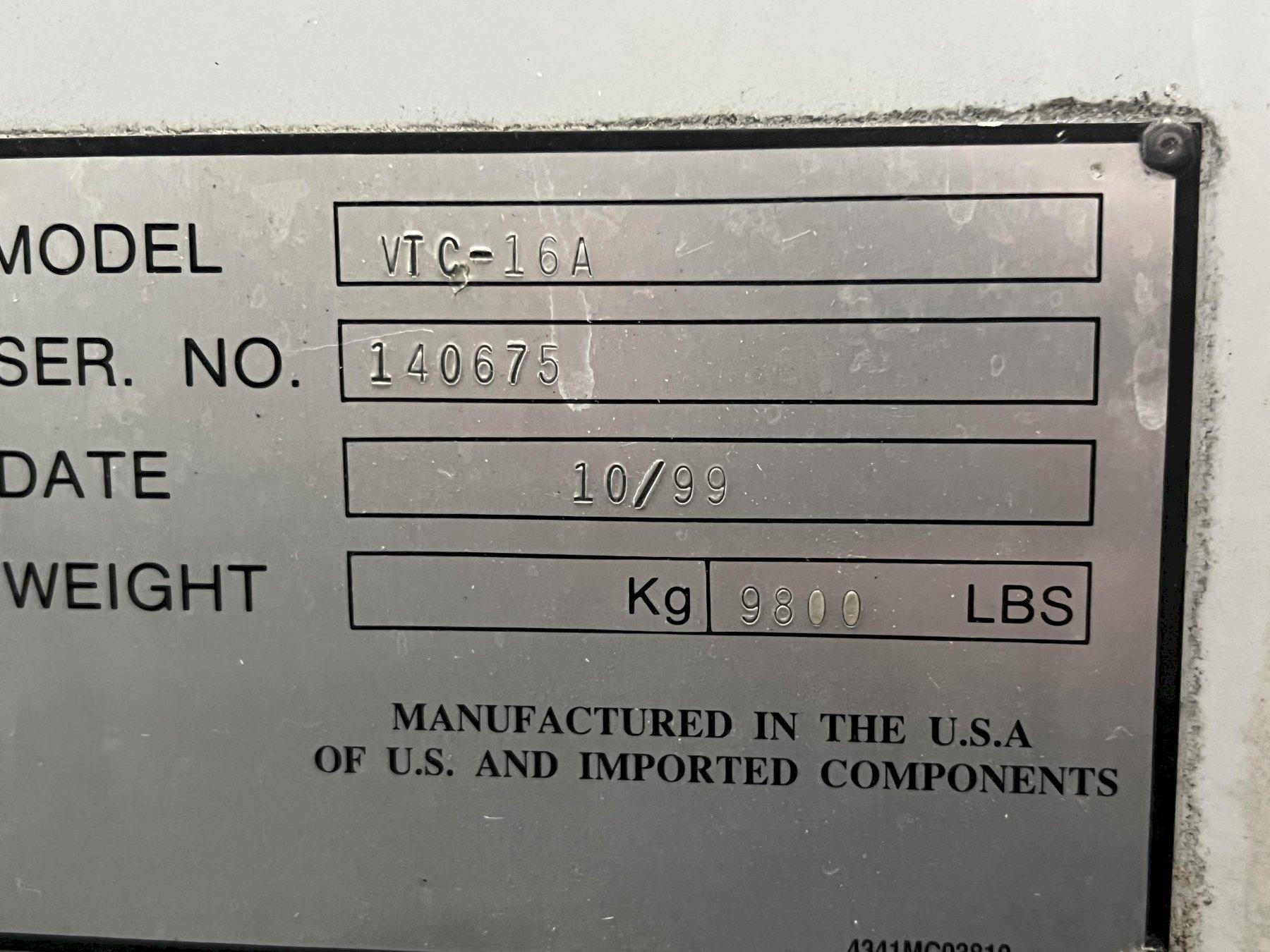

| Weight |
9800 pounds |
Equipped With
GENERAL SPECIFICATIONS:

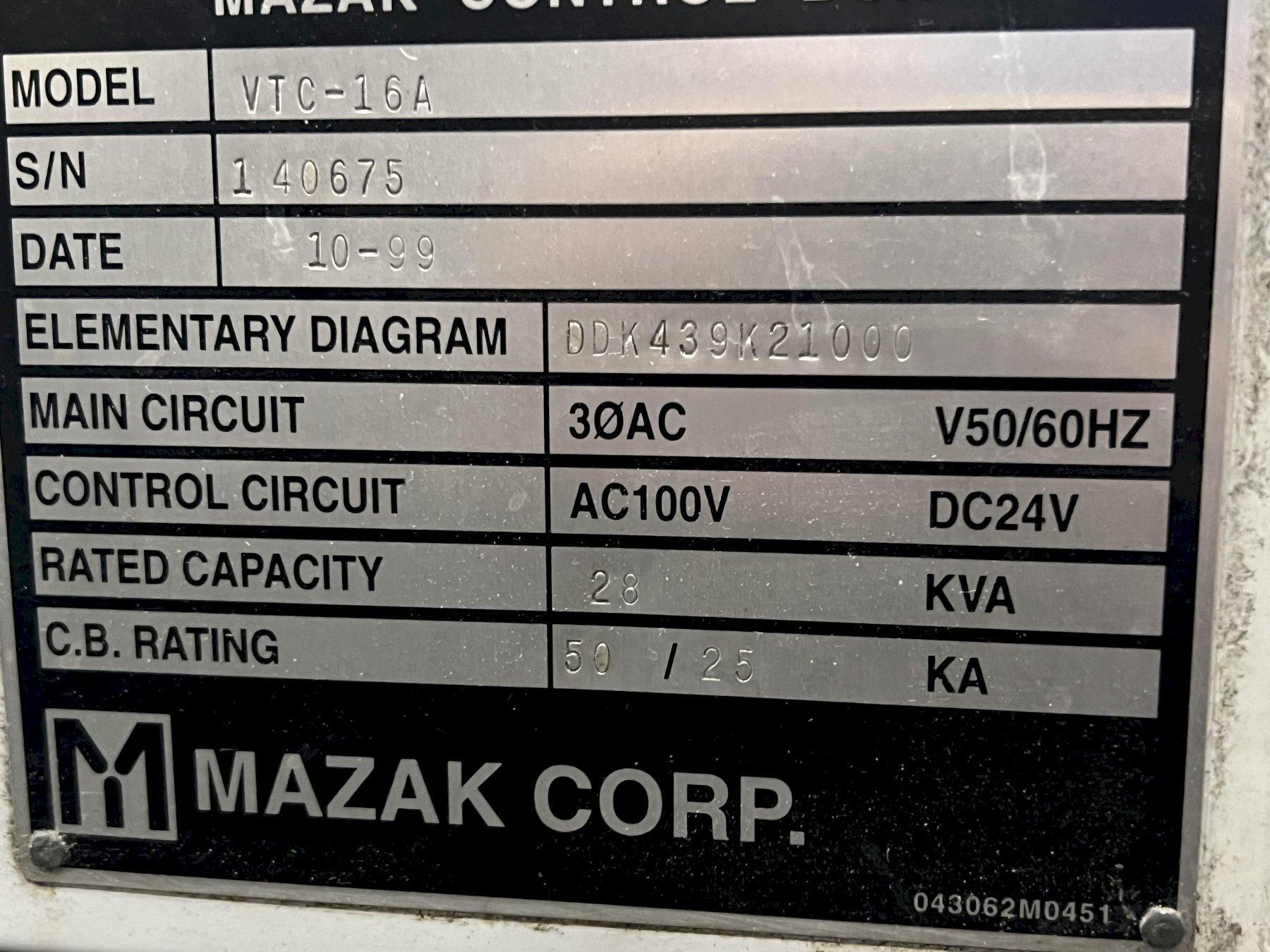

MAKE........................ MAZAK
MODEL....................... VTC-16A
SERIAL NUMBER............... 140675
AGE (YEAR).................. 1999
X AXIS TRAVEL............... 22"
Y AXIS TRAVEL............... 16.14"
Z AXIS TRAVEL............... 20.79"
TABLE TOP TO SPINDLE NOSE... 4.33" - 24.4"
FROM COLUMN TO SPINDLE CENT. 18.1"

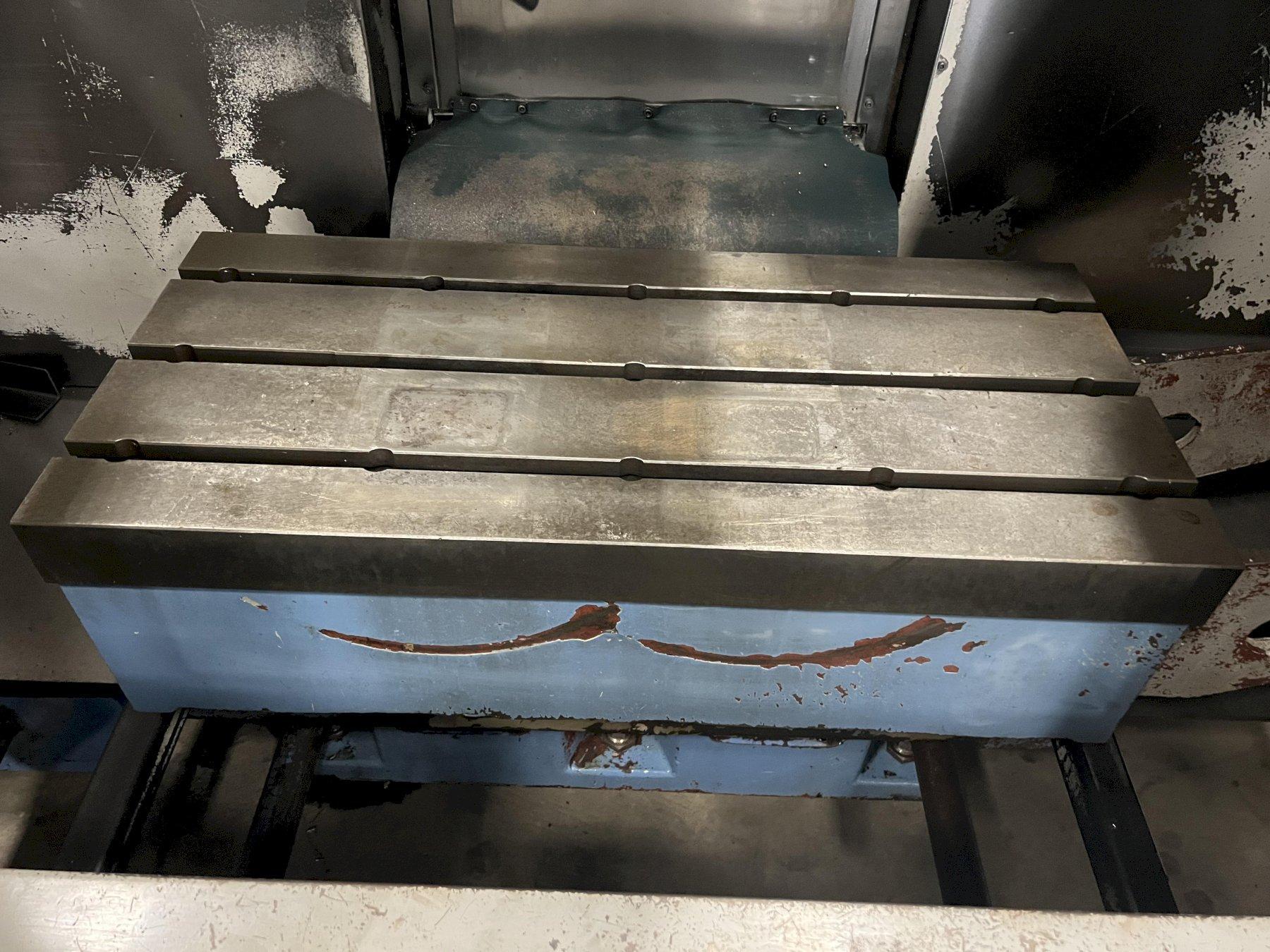

TABLE SIZE.................. 35"X 16"
TABLE LOAD CAPACITY......... 660 LBS
SPINDLE SPEED RANGE......... 60-8,000 RPM
SPINDLE TAPER............... NO. 40 TAPER
FEED RATES (X, Y)........... 787 IPM
FEED RATE (Z)............... 590 IPM
CUTTING FEED RATE........... .04-196 IPM
TOOL CAPACITY............... 24 TOOLS
DIMENSIONS.................. 90" X 106" X 104" H
WEIGHT...................... 10,000 LBS.
EQUIPPED WITH:

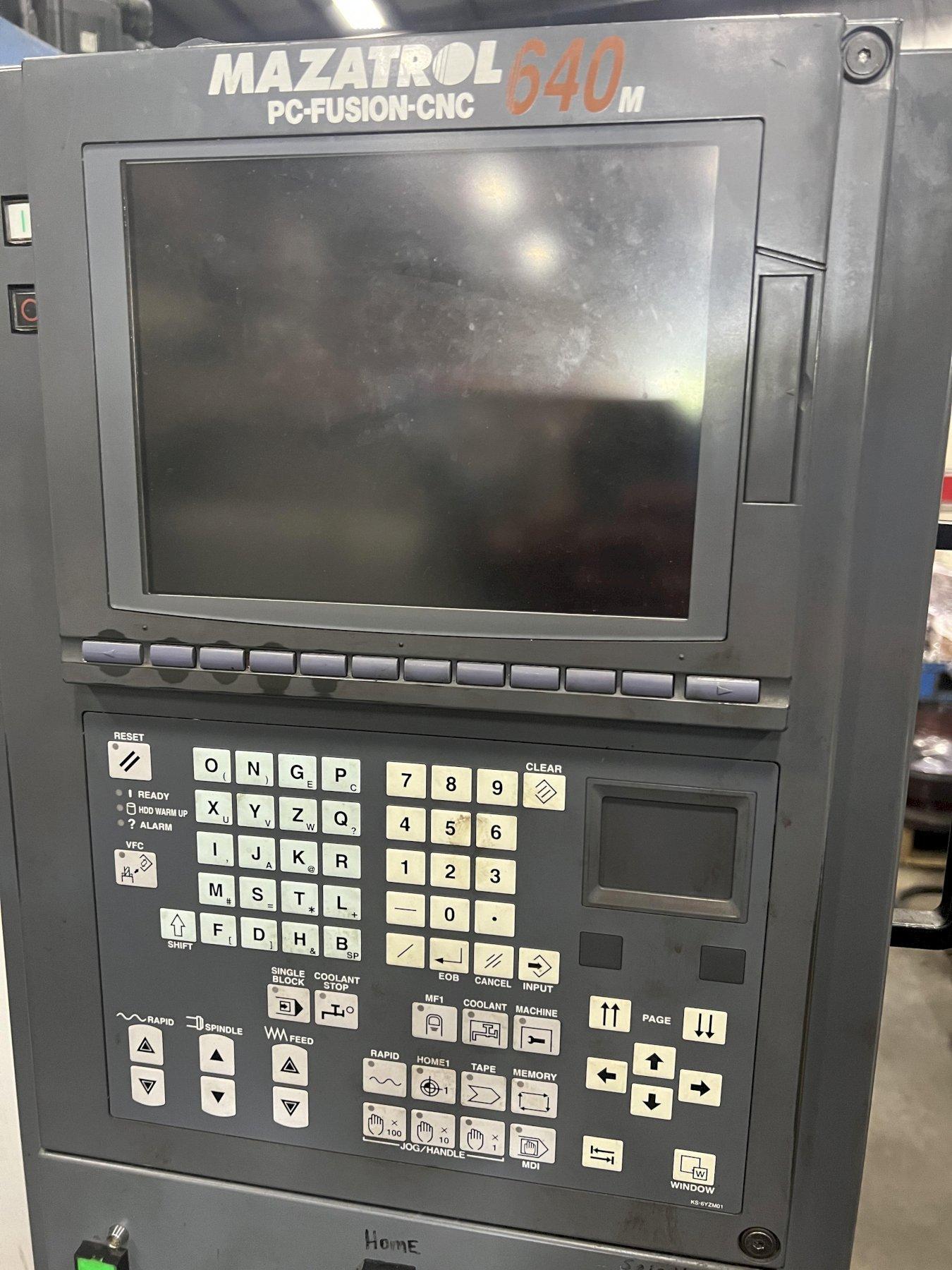

MAZATROL 640M PC FUSION CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
