Specifications
Equipped With
GENERAL SPECIFICATIONS:

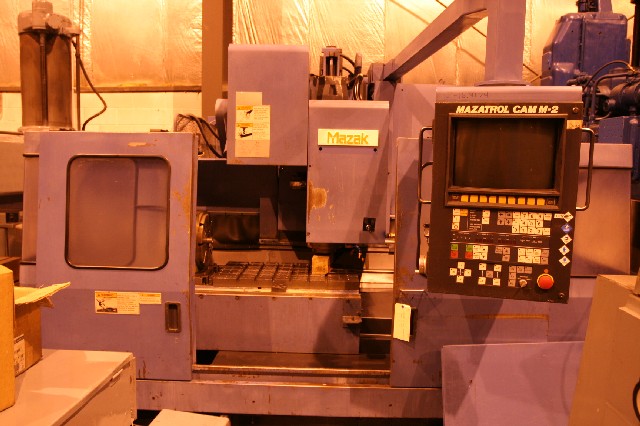

MANUFACTURER.......................................MAZAK
MODEL..............................................V-10N
AGE................................................1986
SERIAL NUMBER......................................71230
Table Working Surface............................. 45.3" x 19.7"
Longitudinal Travel (X-Axis)...................... 30"
Cross Travel (Y-Axis)............................. 19.29"
Vertical Travel (Z-Axis).......................... 20"
Maximum Clearance Table Top to Spindle Nose....... 23.94"
Rapid Traverse Rate, (X & Y Axes)................. 945 IPM
Rapid Traverse Rate, (Z Axis)..................... 590 IPM
Tool Storage Capacity............................. 60
Spindle Horsepower................................ 10 HP
Spindle Speeds Range.............................. 28-4500 RPM
Spindle Taper..................................... CAT 40
Approximate Machine Dimensions.................... 124.5" x 145"
Approximate Machine Height........................ 101.5"
EQUIPPED WITH

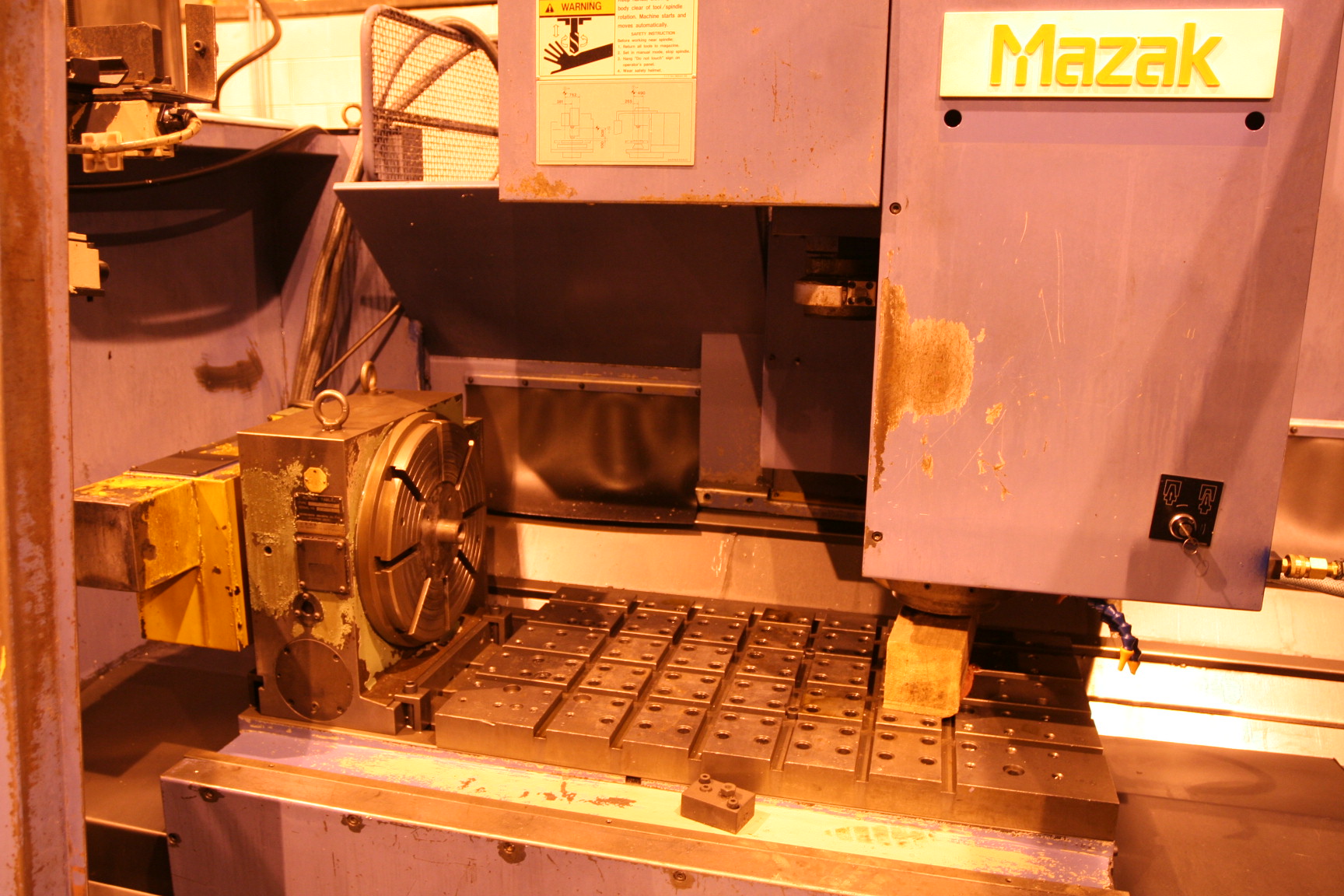

M&M 4TH AXIS ROTARY TABLE

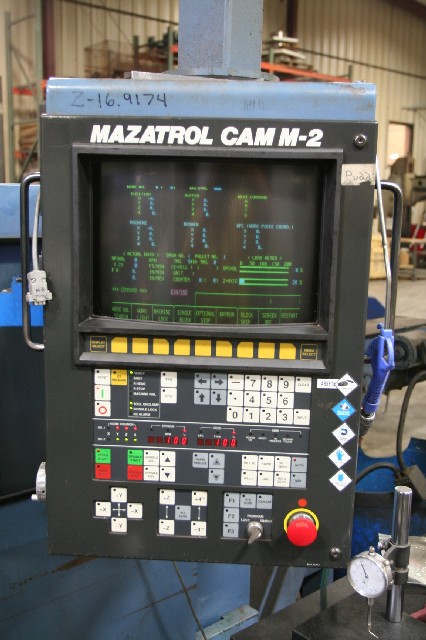

MAZATROL M-2 CONTROL
COOLANT SYSTEM
CHIP CONVEYOR
VISES IN PICTURE ARE NOT INCLUDED TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
