Specifications
Equipped With
GENERAL SPECIFICATIONS:

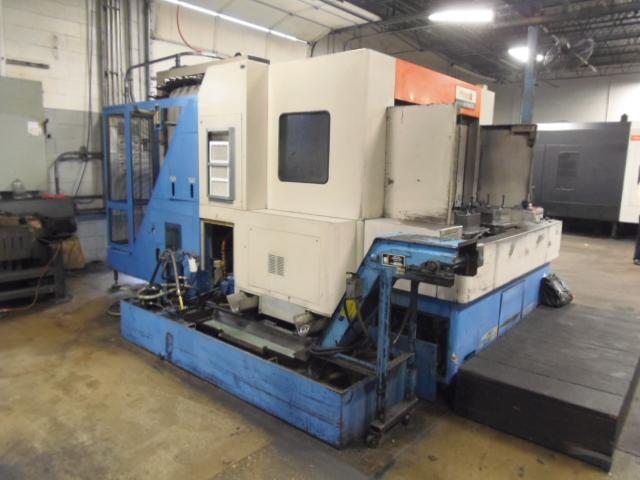

MANUFACTURER....................... MAZAK
MODEL.............................. ULTRA 550
SERIAL NUMBER...................... 114464
YEAR............................... 1995
PALLET SIZE........................ 19.7" x 19.7"
NUMBER OF PALLETS.................. 2
MAXIMUM TABLE LOAD................. 2,205 LBS
SPINDLE CENTER TO PALLET SURFACE... 5.91" - 31.5"
X AXIS TRAVEL...................... 28.35"
Y AXIS TRAVEL...................... 25.59"
Z AXIS TRAVEL...................... 25.59"
B AXIS INDEXING.................... 1 DEG.
RAPID TRAVERSE RATE X,Y,& Z AXIS... 945 IPM
CUTTING FEED RATE X,Y, & Z ........ 315 IPM
SPINDLE SPEEDS..................... 35 - 6,000 RPM
SPINDLE TAPER...................... CAT 50
SPINDLE MOTOR (2 SPEED GEARED)..... 20 HP

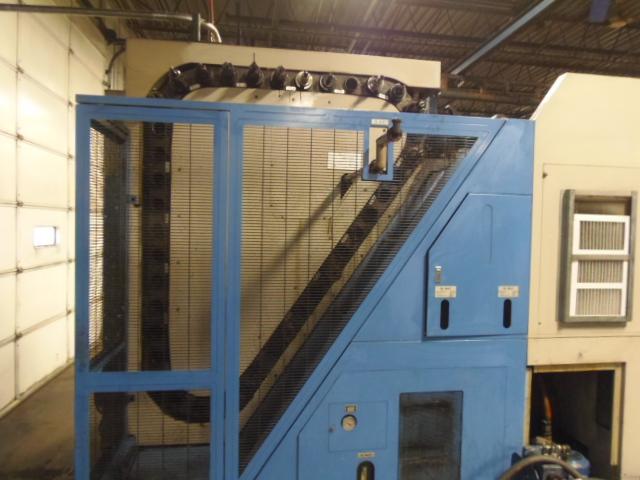

TOOL CHANGER CAPACITY.............. 40 STATION ATC
MAXIMUM TOOL WEIGHT................ 44 LBS
EQUIPPED WITH:

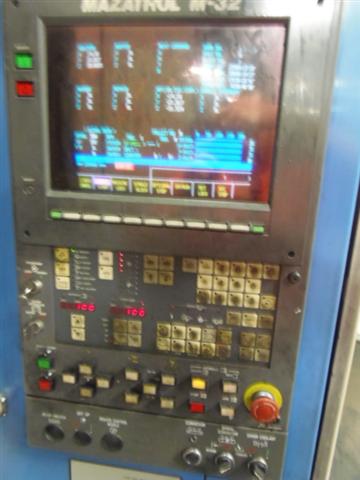

MAZAK M-32 FULL CONVERSATIONAL CNC CONTROL
RS-232C PORT INTERFACE
RIGID TAPPING
SPINDLE AIR BLAST
AUTO DOOR
FLOOD COOLANT
COOLANT THROUGH THE SPINDLE
STANDARD COOLANT SYSTEM WITH TANK & PUMP
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
