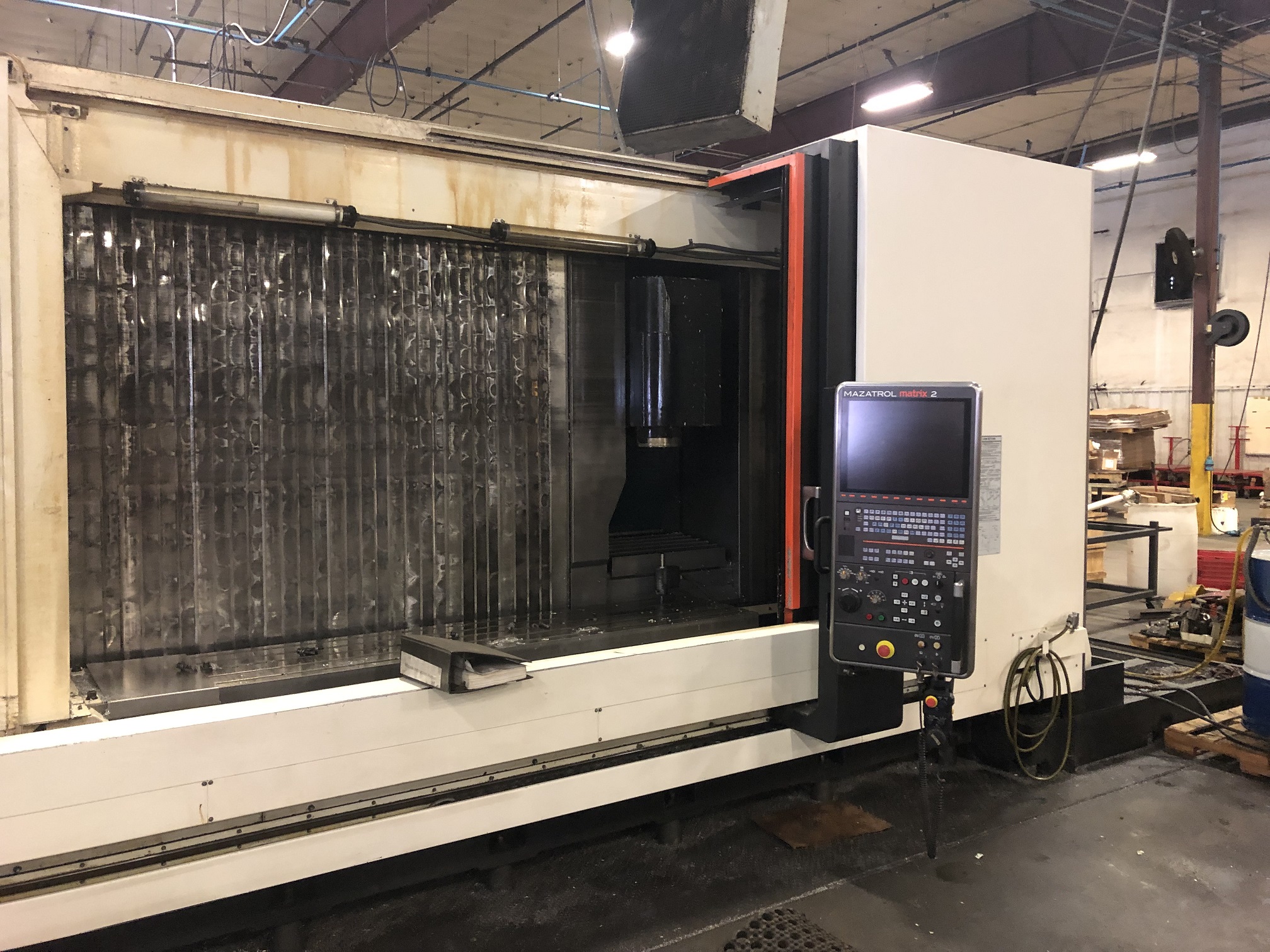

GENERAL SPECIFICATIONS:

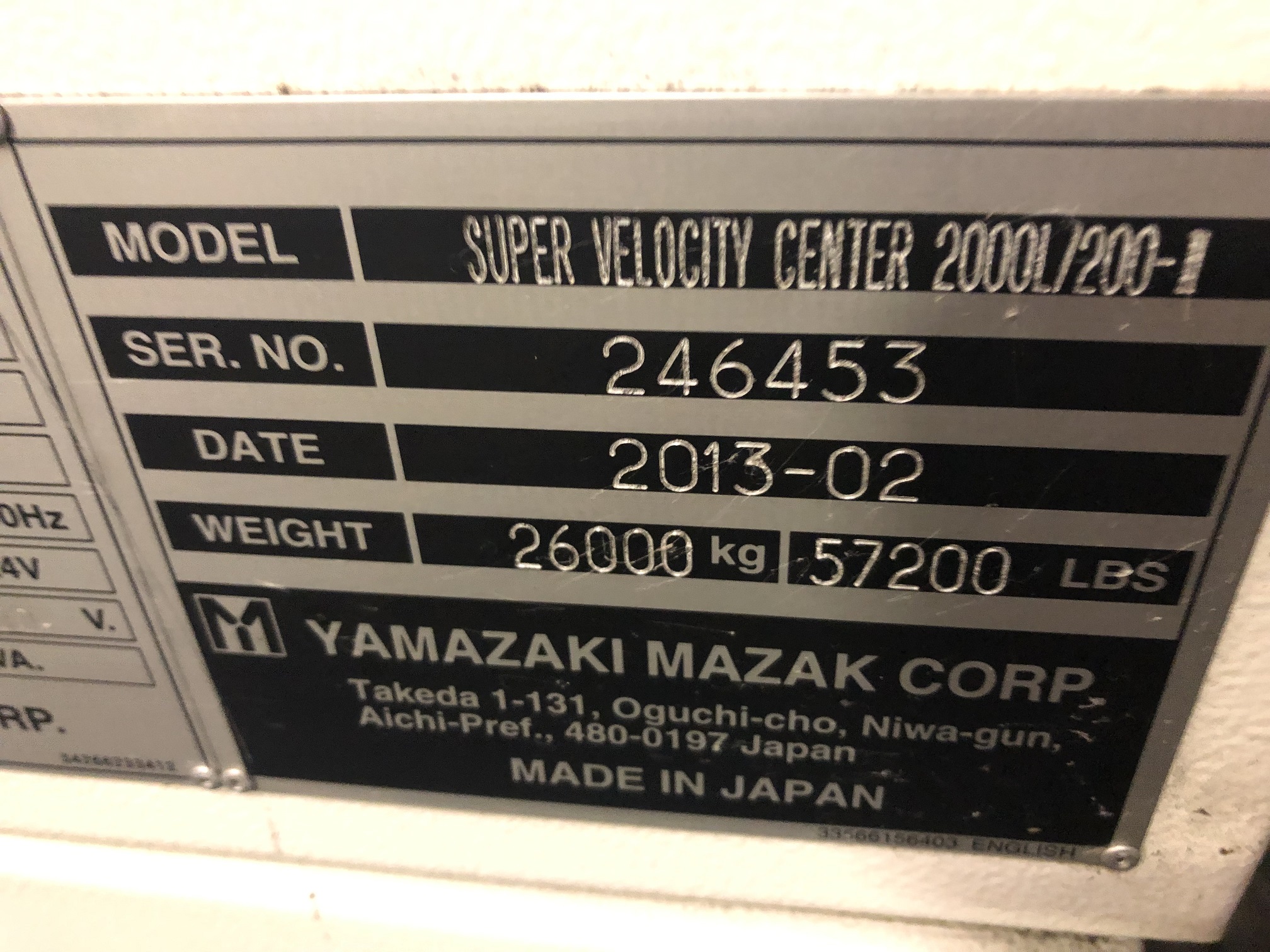

MAKE.................. MAZAK
MODEL................. SUPER VELOCIY SV2000L 200
SERIAL NUMBER......... 246453
AGE................... 2012

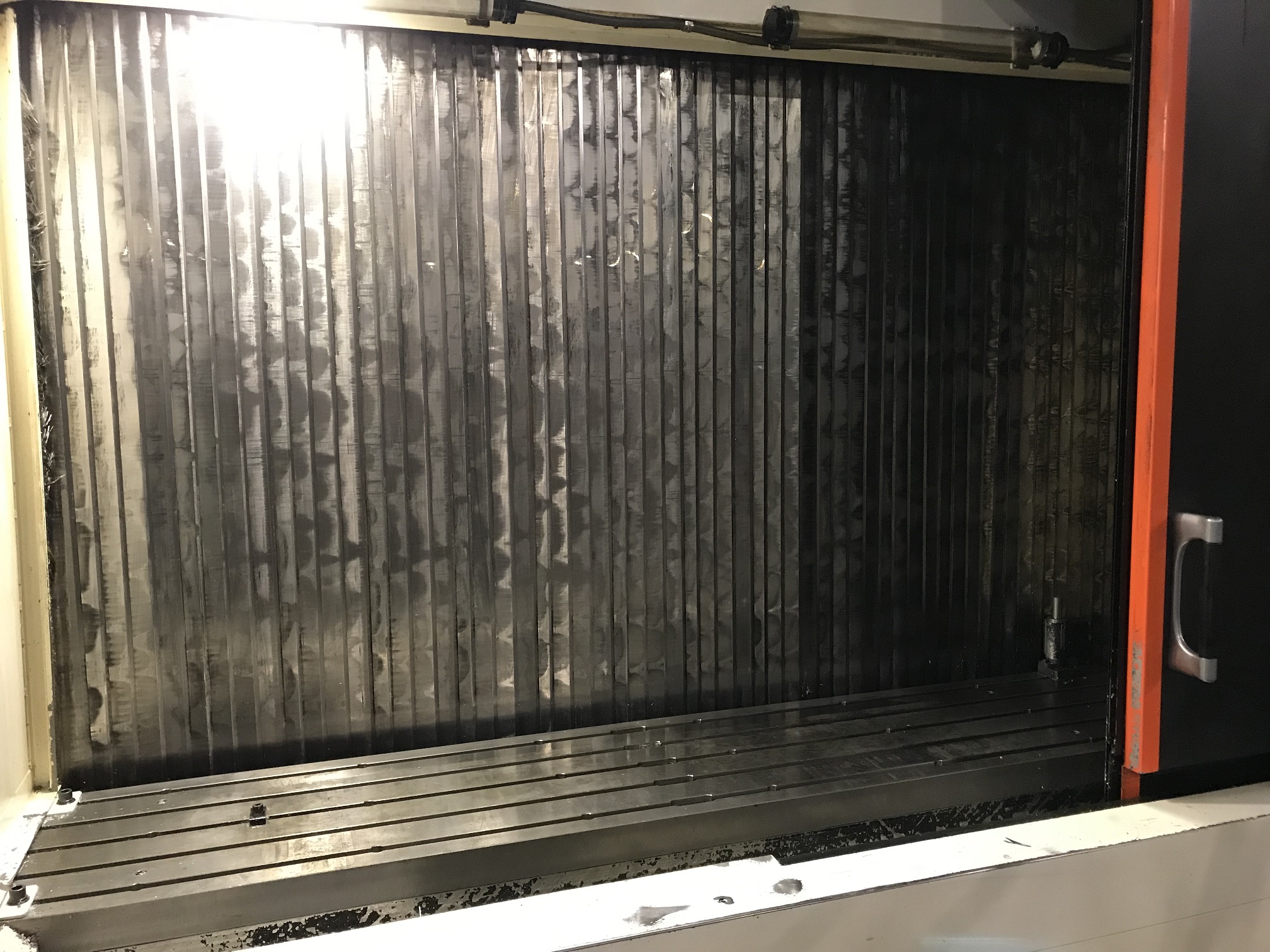

TABLE SIZE............ 212" X 20"
TRAVELS X............. 200"
TRAVELS Y............. 20.8"
TRAVELS Z............. 20.8"
SPINDLE TAPER......... CAT 40
SPINDLE SPEED......... 15000 RPM
RAPID TRAVEL RATE..... 4724 IPM
TOOL CHANGER.......... 30 ATC
SPINDLE MOTOR......... 30 HP
WEIGHT APPROX......... 57,200 LBS.
FLOOR SPACE
MACHINE............ 354" X 128" X 113" HIGH
COOLANT TANK....... 84" X 180" X 24" HIGH
SUPER FLOW......... 24" X 48" X 48"
CHILLER............ 24" X 24" X 72"
EQUIPPED WITH:

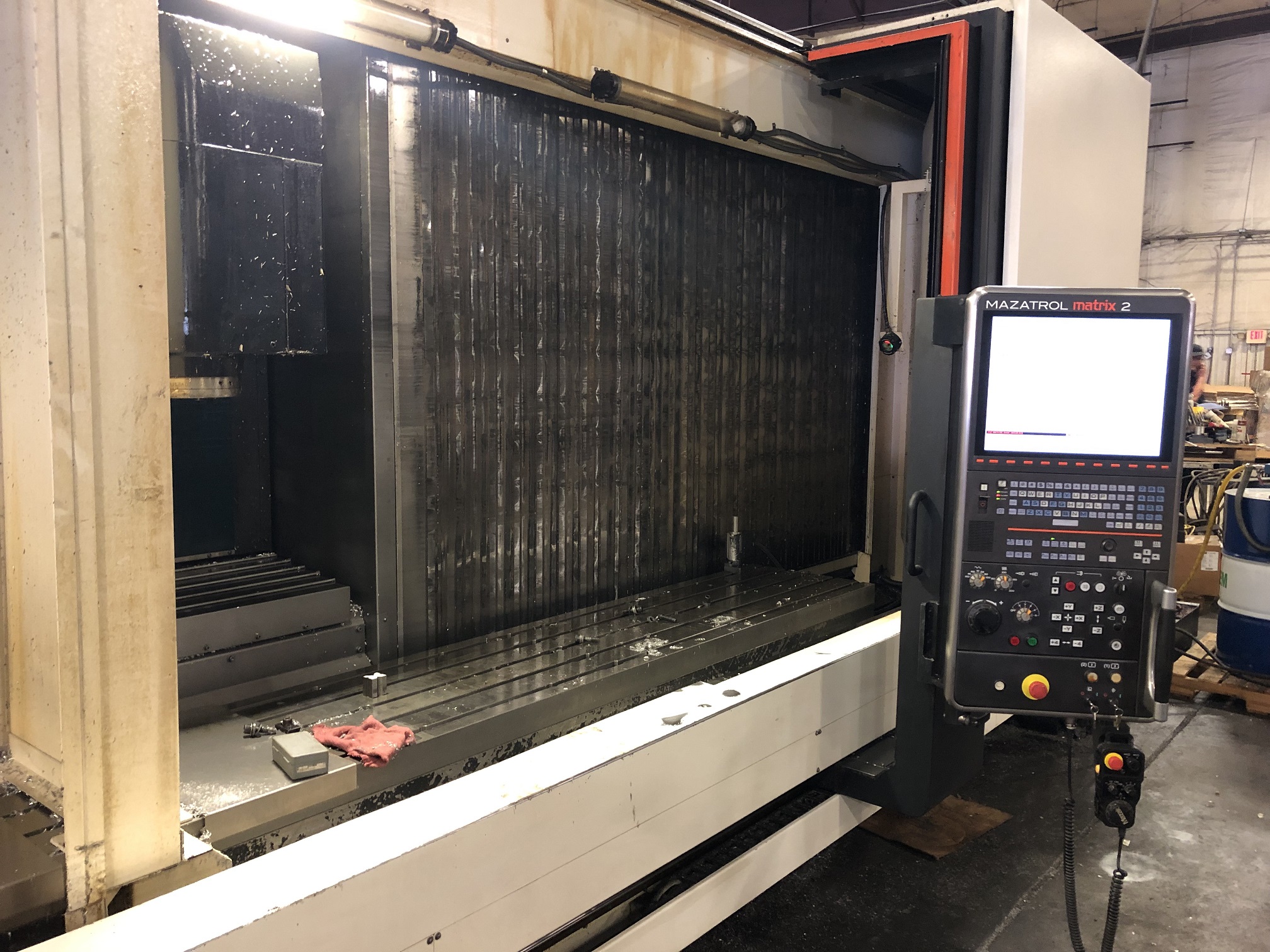

MAZATROL MATRIX 2 CONTROL WITH 19" COLOR MONITOR, MAZACC-2D SOFTWARE (SHAPE COMPENSATION), INCH/METRIC CONVERSION, WINDOWS 7 OPERATING SYSTEM, EIA/ISO CODE INPUT FUNCTION, ETHERNET/LAN, SYNCHRONIZED TAPPING, USB
RENISHAW OMP60M OPTICAL PROBE
MAZAK SUPER FLOW V8M VARIABLE HIGH PRESSURE COOLANT
CHIP CONVEYOR
COMPLETE COOLANT SYSTEM
ABSOLUTE POSITIONING SYSTEM (Y&Z AXES)
SCALE FEEDBACK SYSTEM (X AXIS)
AUTO TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
COOLERS FOR BALL SCREW (Y&Z AXES)
NEWLY REBUILT SPINDLE WITH ONE YEAR WARRANTY

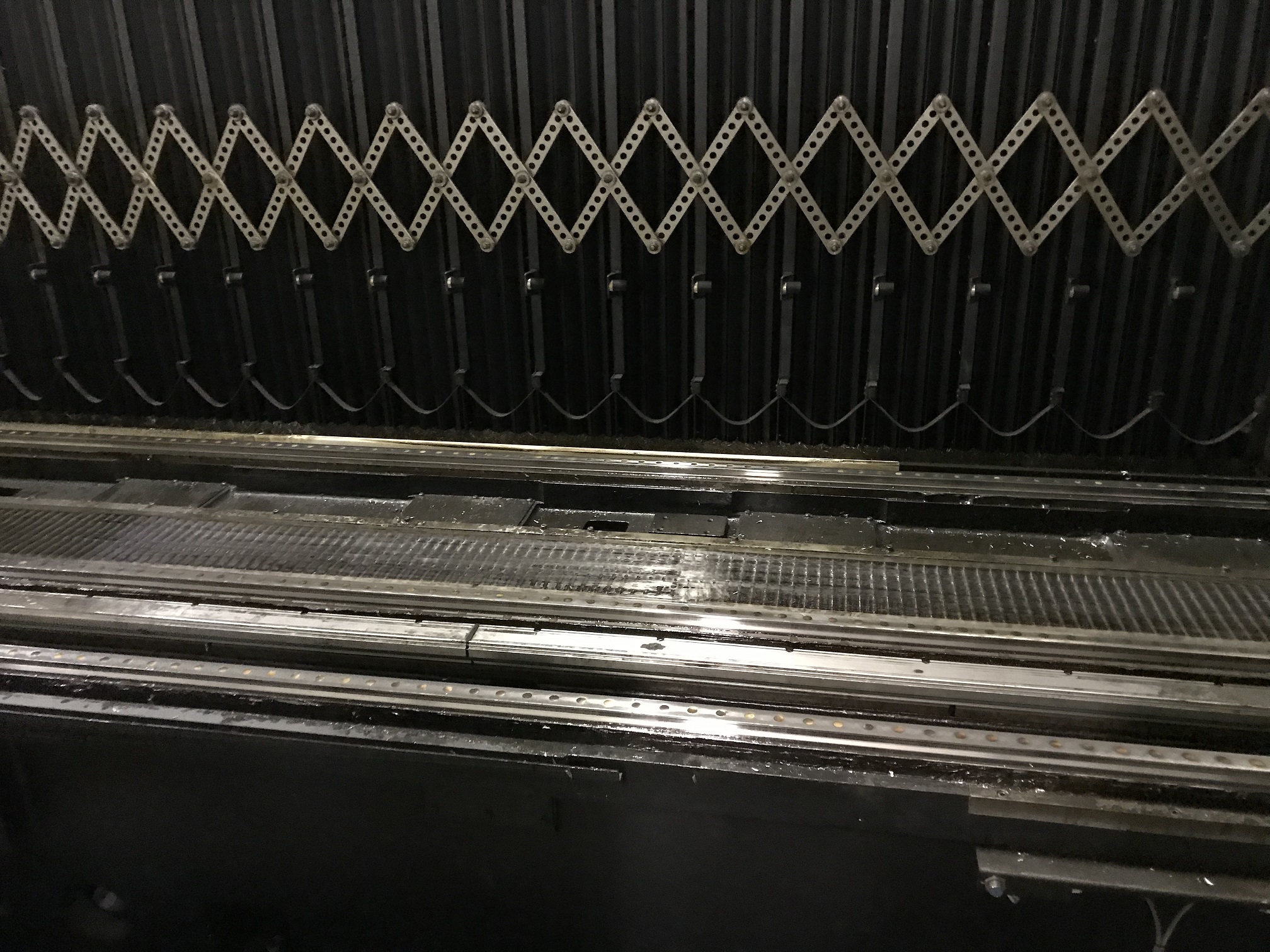

WAY COVERS
PREPARATION FOR MMS-B OPTICAL OMP60 ANGLE TOOL BLOCK
MT CONNECT PREPARATION
CENTRAL DIVIDING FOR TABLE
MANUAL PULSE GENERATOR
HAND HELD COOLANT NOZZLES AT EACH END
MAYFRAN VARIABLE SPEED INTERVERTER DRIVE
AUTO PECKING CYCLE WITH LOAD DETECTION
SPINDLE MULTI-POINT ORIENT (M-CODE/1 DEC.)
2 KAISER RIGHT ANGLE TAPPING HEADS (NEED REPAIR)
