Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK

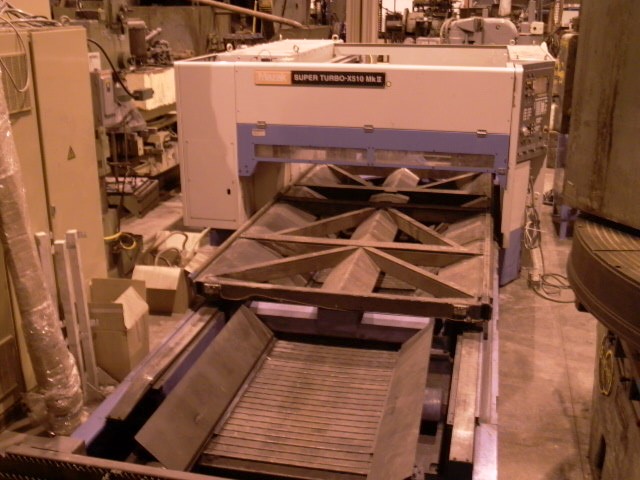

MODEL SUPER TURBO 510 MKII
SERIAL # 155201
NEW (APPROX.) 2001
POWER CAPACITY 4000 WATT
TOTAL HOURS 7000
SHEET SIZE 5' x 10'
X AXIS TRAVEL 127.4"
Y AXIS TRAVEL 60.8"
Z AXIS TRAVEL 3.9"
MAX. CUTTING SPEED 788 IPM
LASER RESONATOR PANASONIC YB-L250A 8M
PULSING 5000 WATT
CONTROL MAZATROL L32B
PALLET SHUTTLE FOOTPRINT 7' X 12'
LASER FOOT PRINT 10' X 23'
OVERALL LENGTH 35'
HOURS (APPROX.) 7,800
EQUIPPED WITH:
2 CUTTING HEADS
1 AUTO FOCUS HEAD
1 HIGH SPEED PIERCE READY

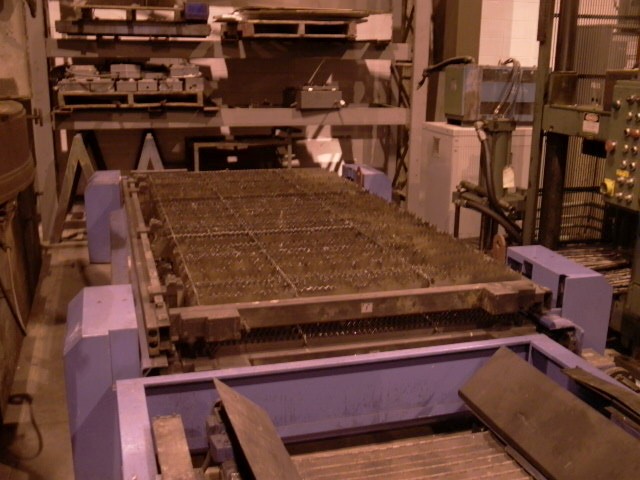

DUAL TABLE
AUTO PALLET CHANGER
PRICE IS INSTALLED WITH 30 DAY PARTS AND LABOR WARRANTY
