Specifications
Equipped With
GENERAL SPECIFICATIONS:'
MANUFACTURER MAZAK

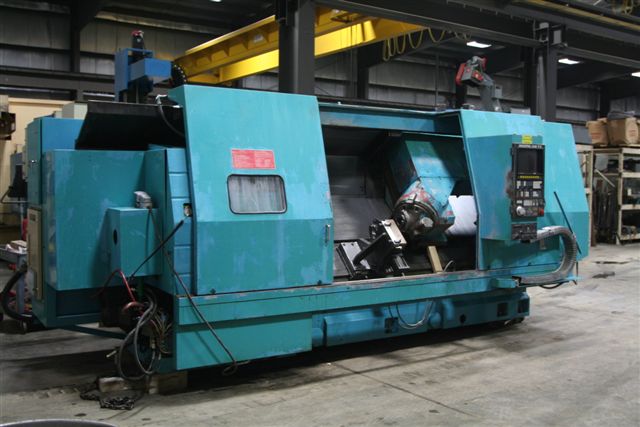

MODEL SLANT TURN 40 ATC/2000
SERIAL NUMBER 61363
NEW (APPROX.) 1985
MAXIMUM SWING 21.25" 540MM
MAXIMUM DIA. OF SHAFT WORK 14.5" 370MM
DISTANCE BETWEEN CENTERS 80.75" 2060MM
X - AXIS TOOL STROKE 21.625" 550MM
Z - AXIS TOOL STROKE 83.4" 2122MM

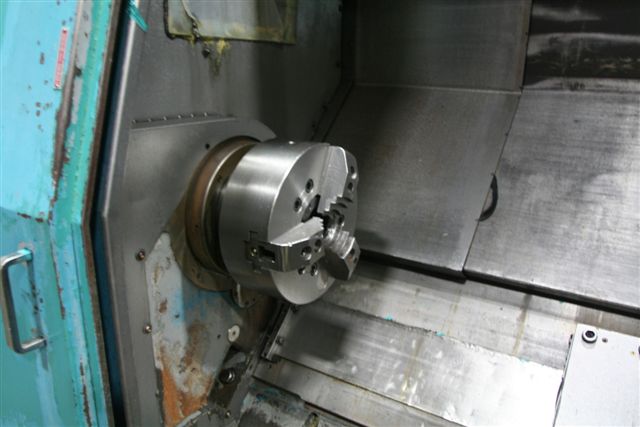

CHUCK SIZE 12" HYD 3 JAW
SPINDLE BORE 3.15" 80MM

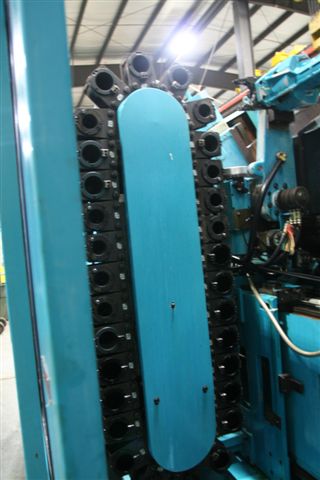

TOOL CHANGER CAPACITY 30 ATC
ROTARY TOOL SPINDLE NT NO.50
RAPID TRAVERSE RATE 400 IPM
C-AXIS SPINDLE INDEXING 1 DEGREE
MAIN SPINDLE DRIVE MOTOR 20 HP CONT./ 30 HP 30 MIN.
ROTARY TOOL DRIVE MOTOR 5 HP
MAIN SPINDLE SPEED RANGE 4-2200 RPM
ROTARY TOOL SPEED RANGE 20-3000 RPM
EQUIPPED WITH:

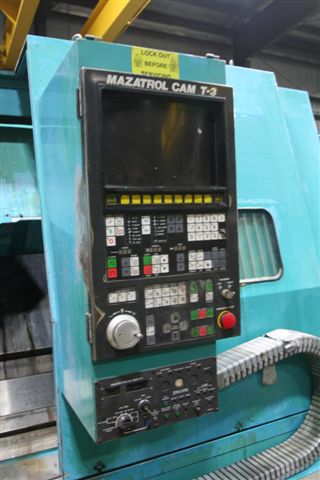

MAZATROL CAM T-3 CONVERSATIONAL CONTROL
CHIP CONVEYOR
SMW CNC CONTROLED OMNIREST
CNC CONTROLLED TAILSTOCK
