Specifications
Equipped With
GENERAL SPECIFICATIONS:

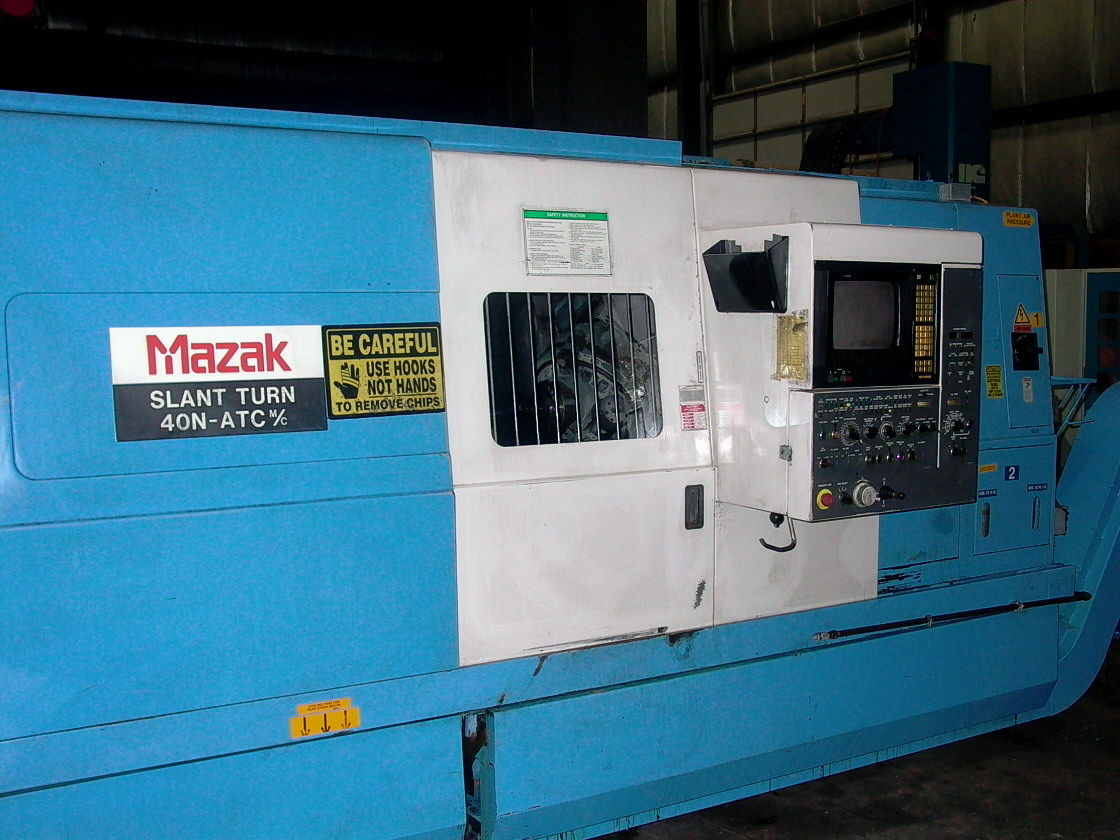

MANUFACTURER.......................... MAZAK
MODEL................................. SLANT TURN 40 ATC/2000
SERIAL NUMBER......................... 79904
NEW (APPROX.)......................... 1988
MAXIMUM SWING......................... 21.25" (540MM)
MAXIMUM DIA. OF SHAFT WORK............ 14.5" (370MM)
BED LENGTH............................ 80.75" (2060MM)
X - AXIS TOOL STROKE.................. 21.625" (550MM)
Z - AXIS TOOL STROKE.................. 40" (1000MM)

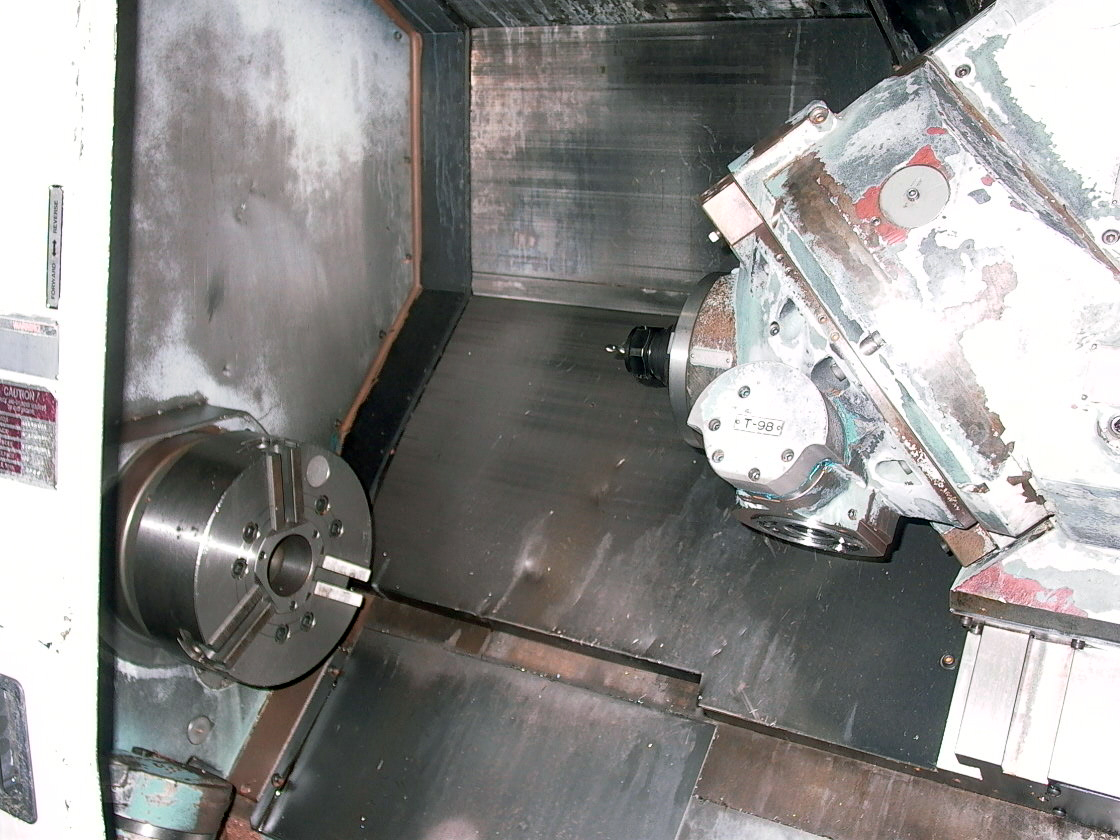

CHUCK SIZE............................ 12" HYD 3 JAW
SPINDLE BORE.......................... 3.15" (80MM)

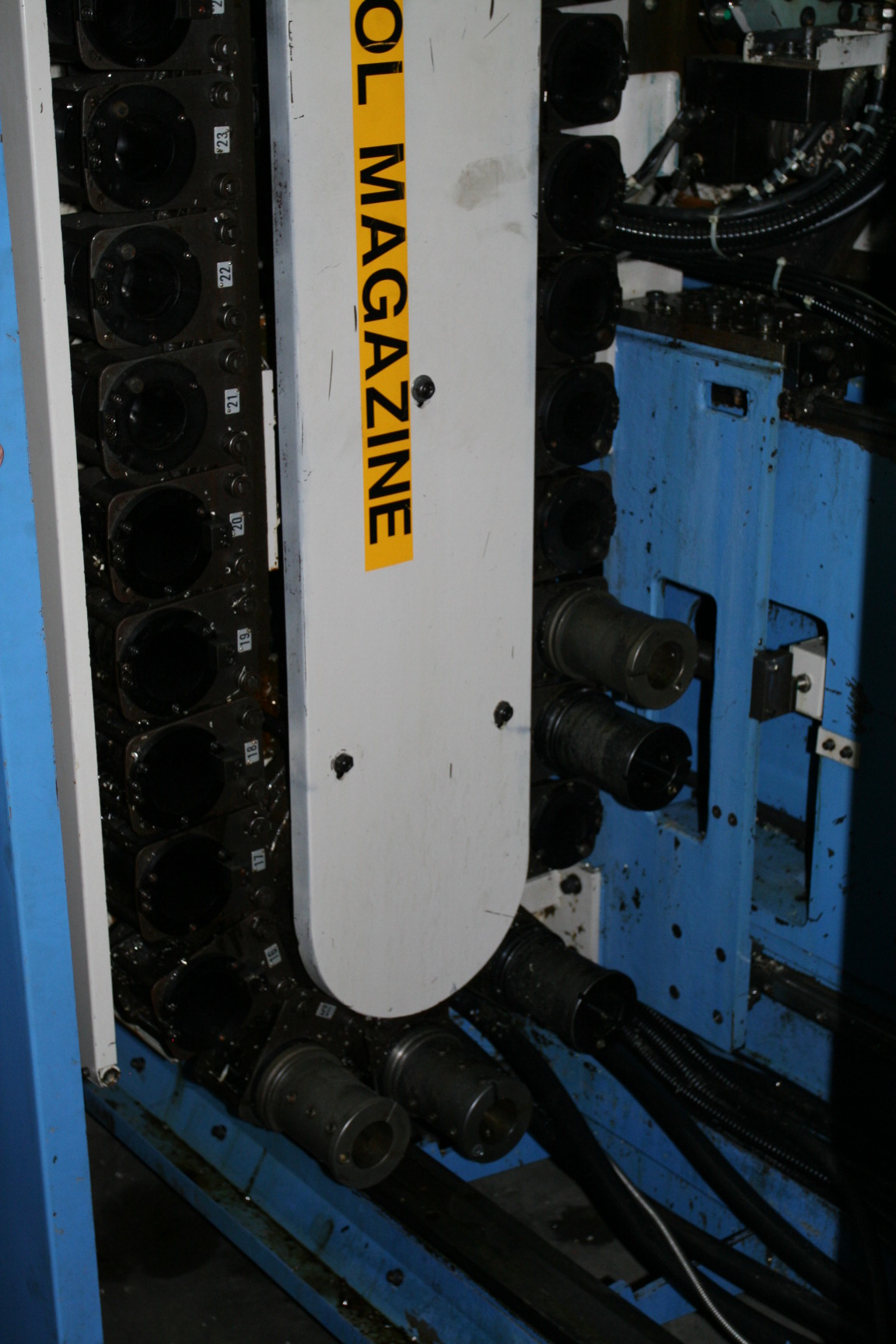

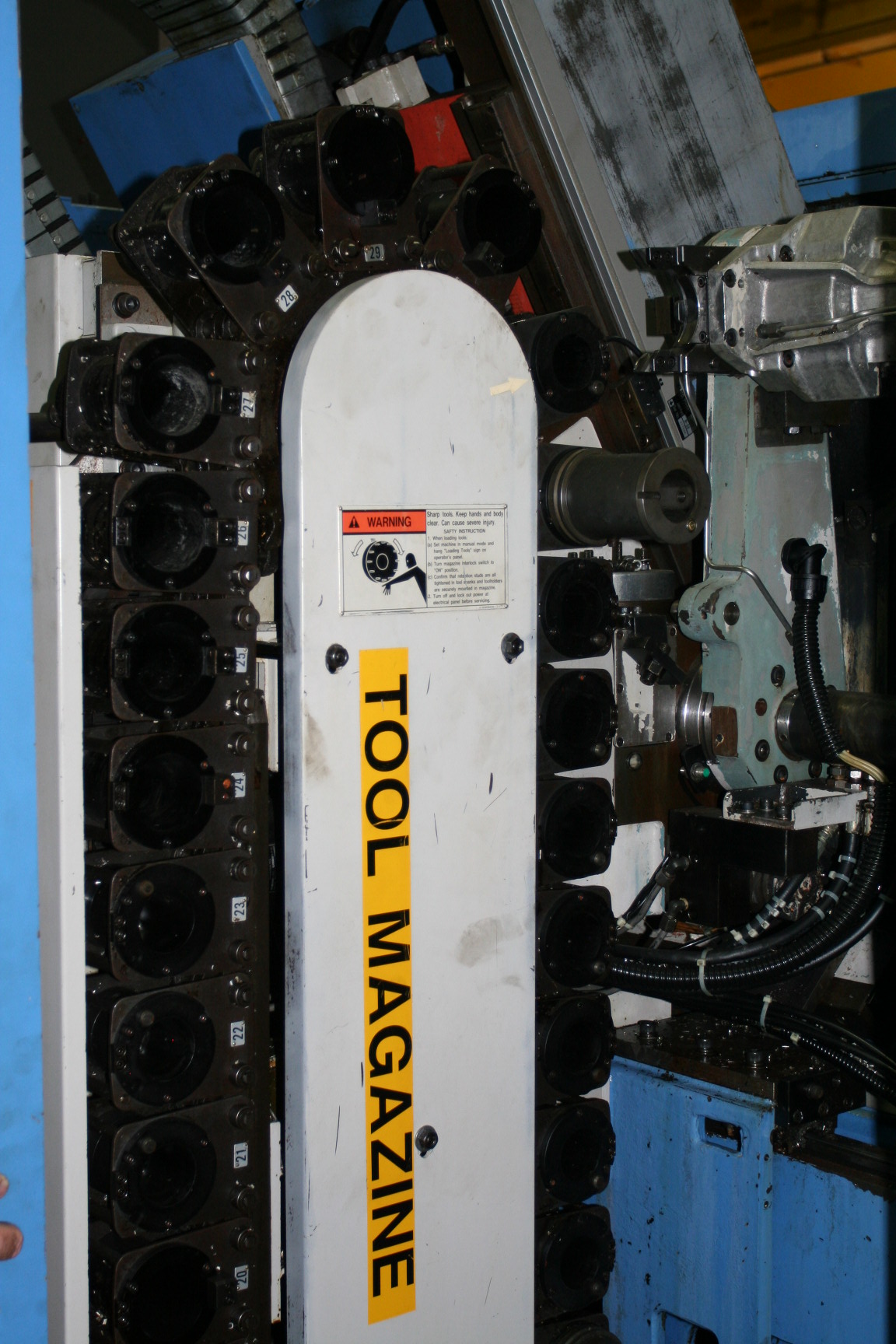

TOOL CHANGER CAPACITY................. 30 ATC

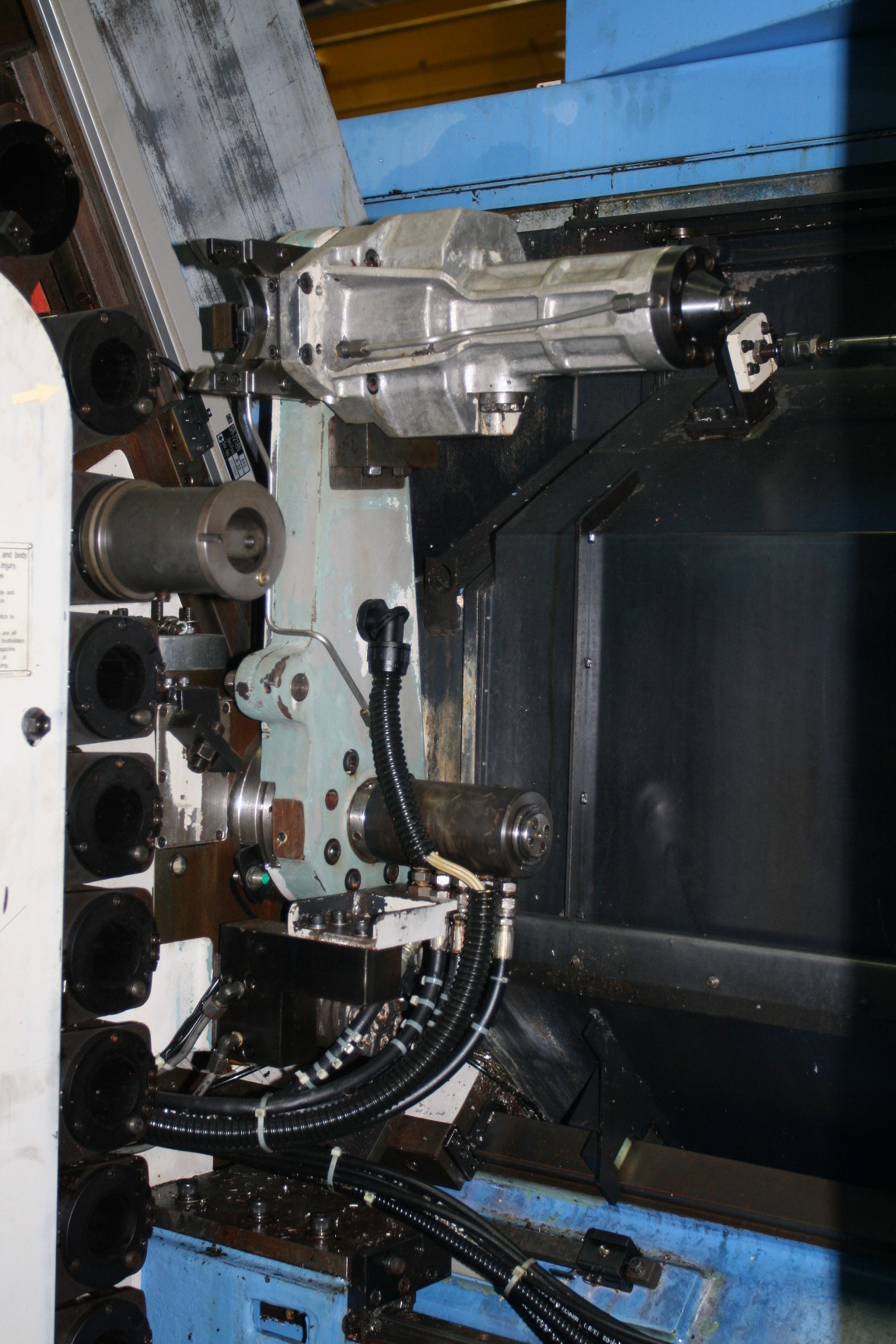

ROTARY TOOL SPINDLE................... NT NO.50
RAPID TRAVERSE RATE................... 400 IPM
C-AXIS SPINDLE INDEXING............... 1 DEGREE
MAIN SPINDLE DRIVE MOTOR ............. 20 HP CONT./ 30 HP 30 MIN.
ROTARY TOOL DRIVE MOTOR............... 5 HP
MAIN SPINDLE SPEED RANGE.............. 4-2200 RPM
ROTARY TOOL SPEED RANGE............... 20-3000 RPM
ELECTRICS............................. 230/460 VOLTS
60 HZ
63 KVA 123/174 AMPS
19/10 CB RATING
WEIGHT OF MACHINE (APPROX)............ 20,240 LBS (9200 KG)
EQUIPPED WITH:

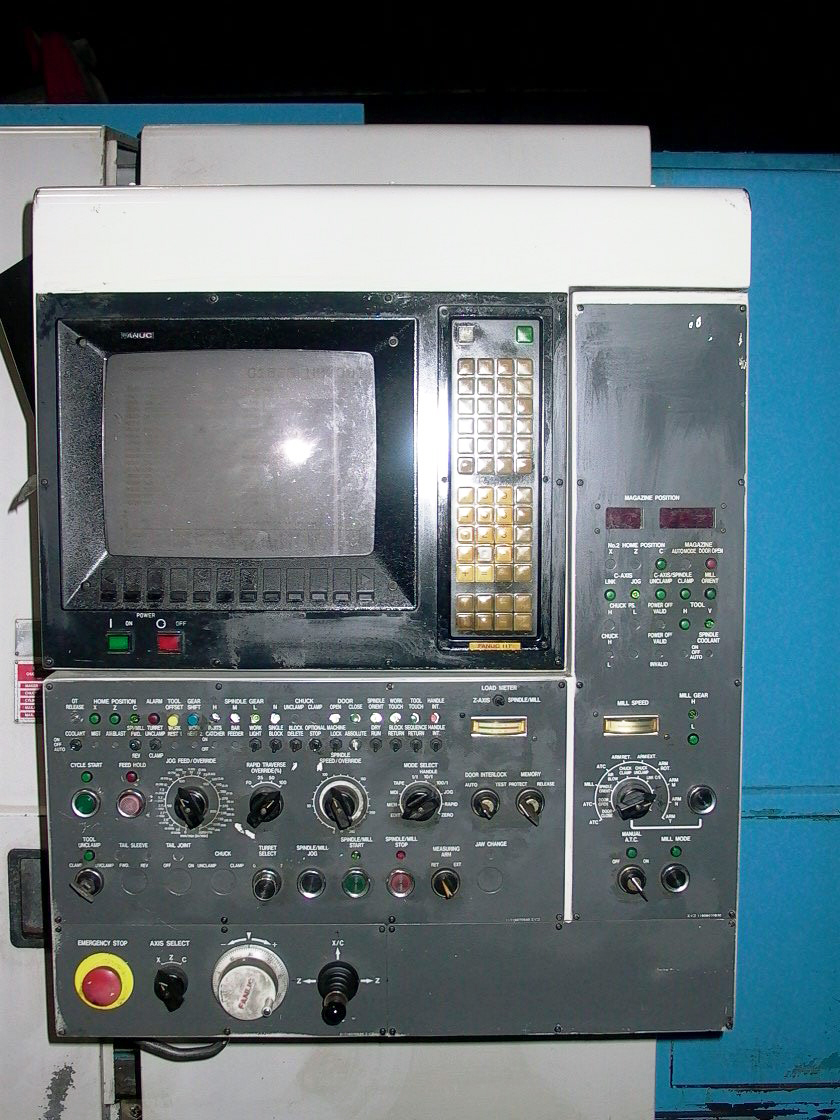

FANUC 11T

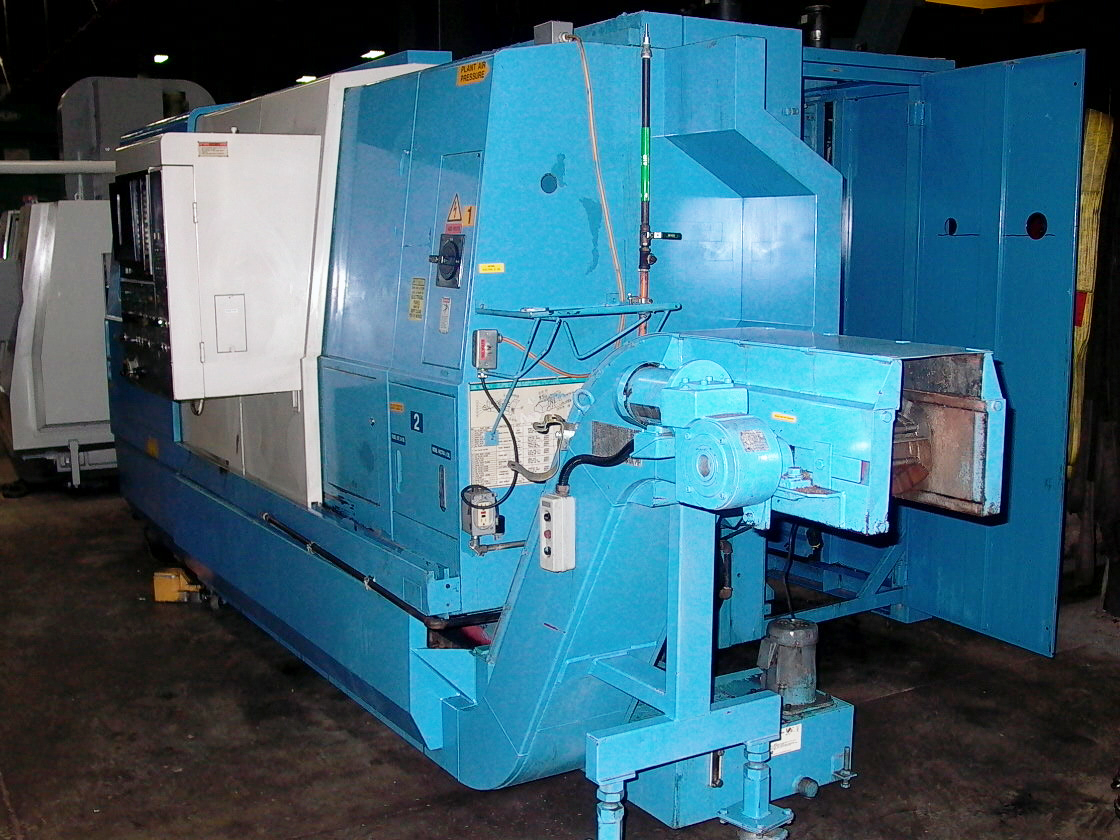

CHIP CONVEYOR
