Specifications
Equipped With
GENERAL SPECIFICATIONS:

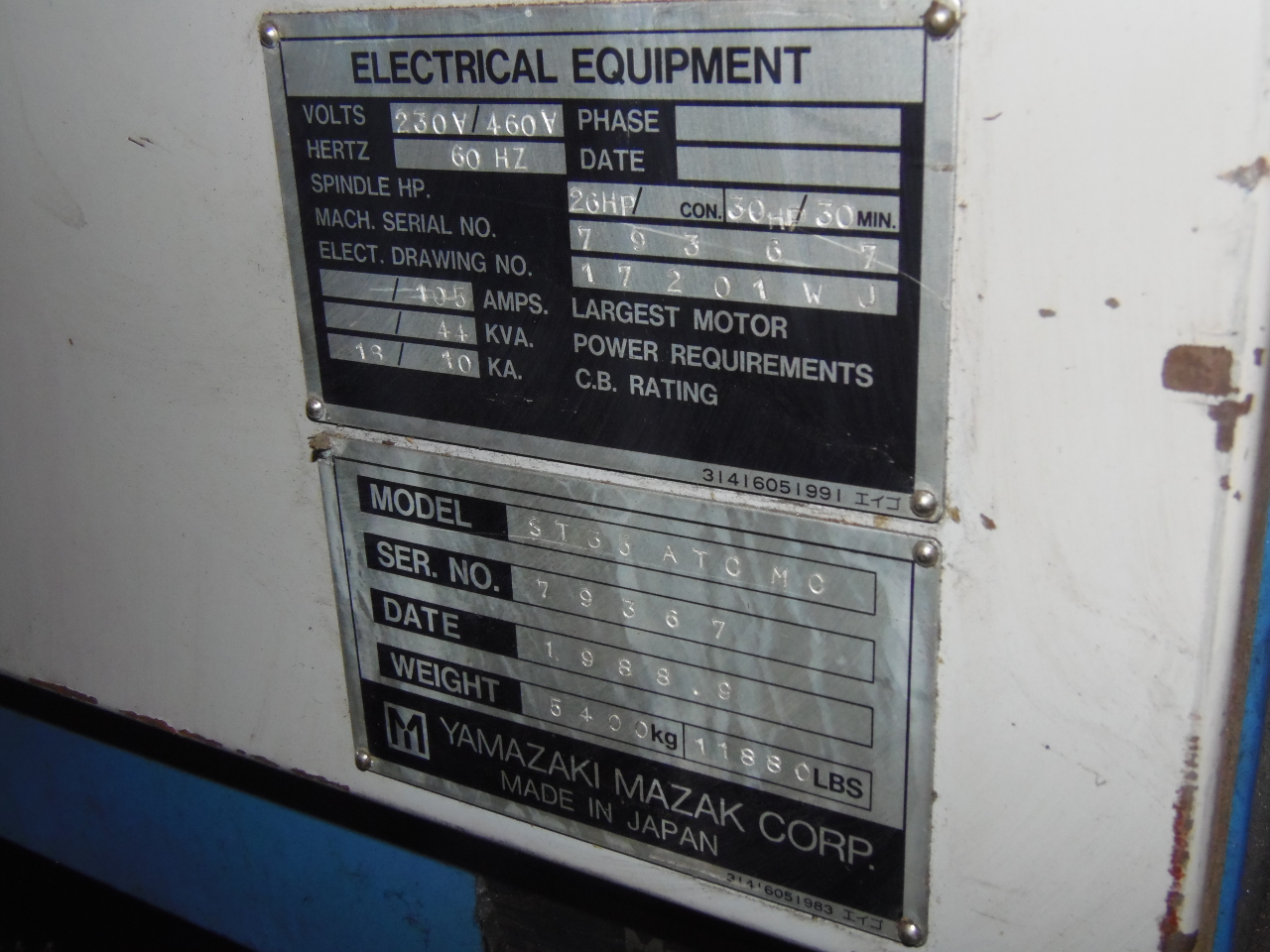

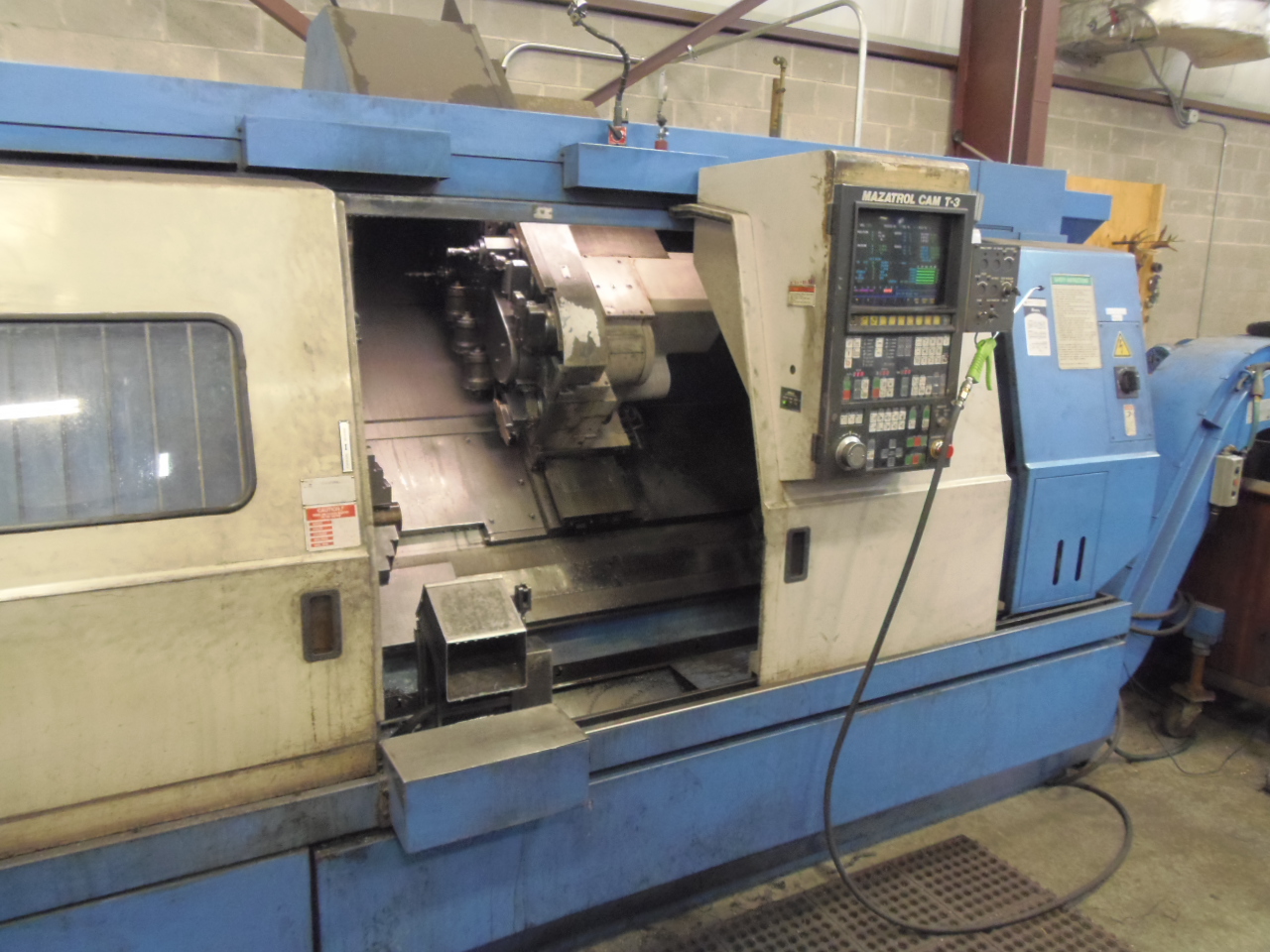

MAKE.................... MAZAK
MODEL................... ST-35 ATC MC
SERIAL NUMBER........... 79367
AGE (YEAR).............. 1988
MAX SWING............... 18.11" (460 MM)
MAX MACHINABLE DIA...... 18.11" (460 MM)
MAX MACHINABLE LENGTH... 59" (1500 MM)
X AXIS TRAVEL........... 13.18" (335 MM)
Z AXIS TRAVEL........... 60" (1538 MM)
SPINDLE END SHAPE....... JIS A2-6
SPINDLE THRU HOLE DIA... 3.14" (80 MM)
SPINDLE HOLE TAPER...... AST NO. 350
SPINDLE SPEEDS.......... 4 - 2200 RPM
TAILSTOCK TRAVEL........ 5.11" (MM)
RAPIDS X AXIS........... 393"/MIN (10,000 MM/MIN)
RAPIDS Z AXIS........... 590"/MIN (15,000 MM/MIN)
MAIN MOTOR.............. 26/30 HP (19.5/22 KW)

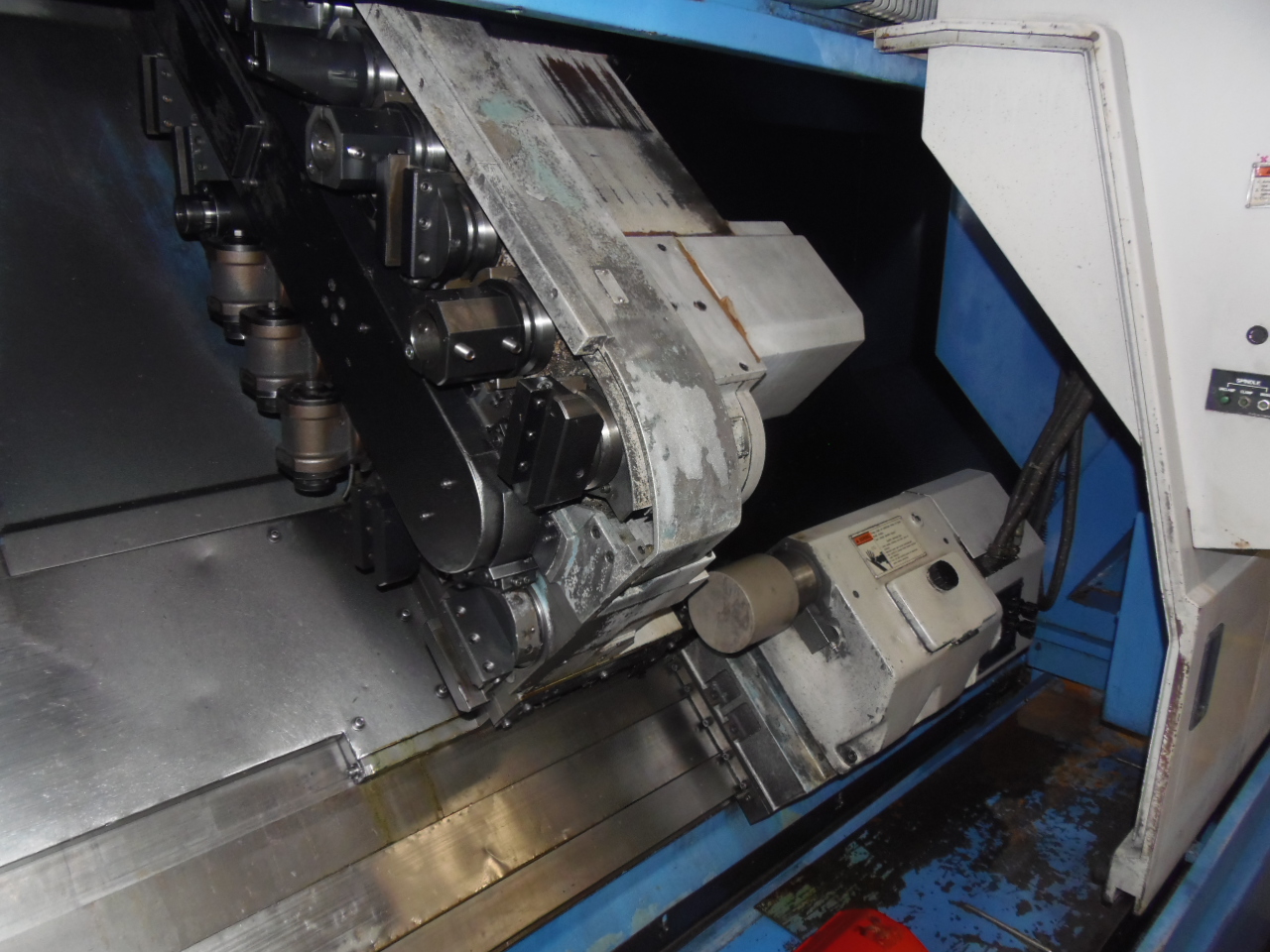

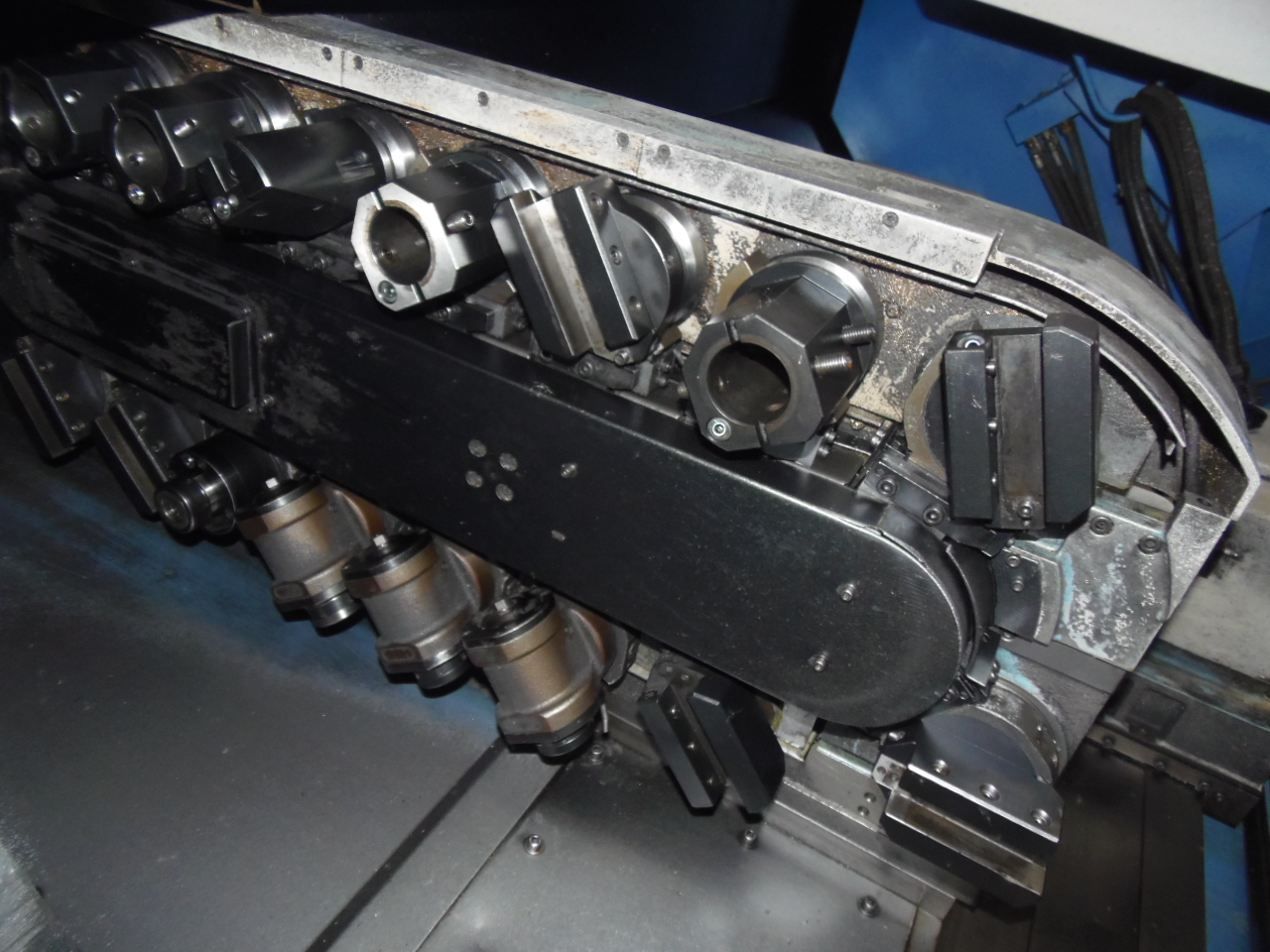

TOOL CHANGER............

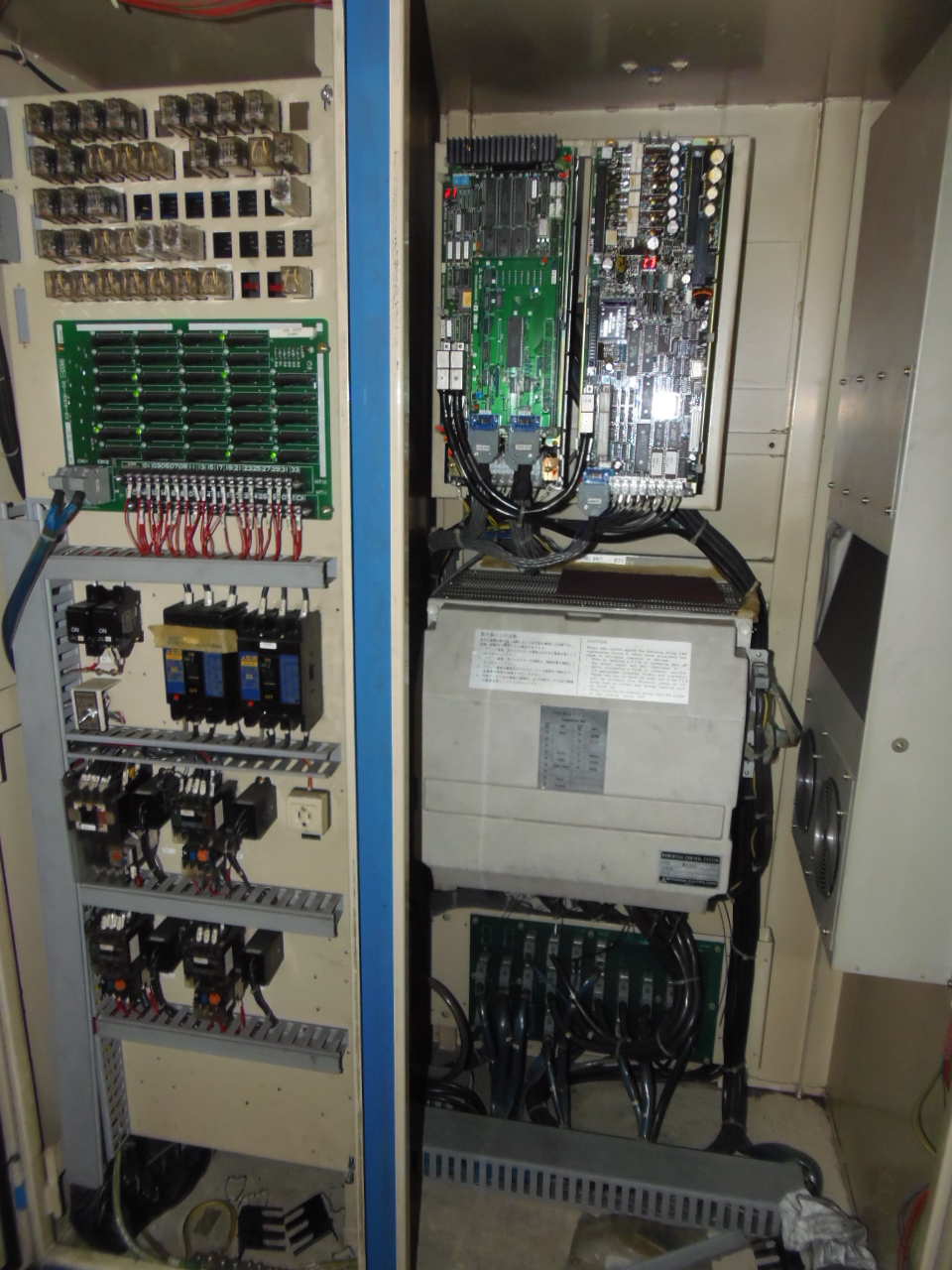

ELECTRICS............... 230/460 V
WEIGHT.................. 12000 LBS.
EQUIPPED WITH:
LIVE MILLING/TOOLING

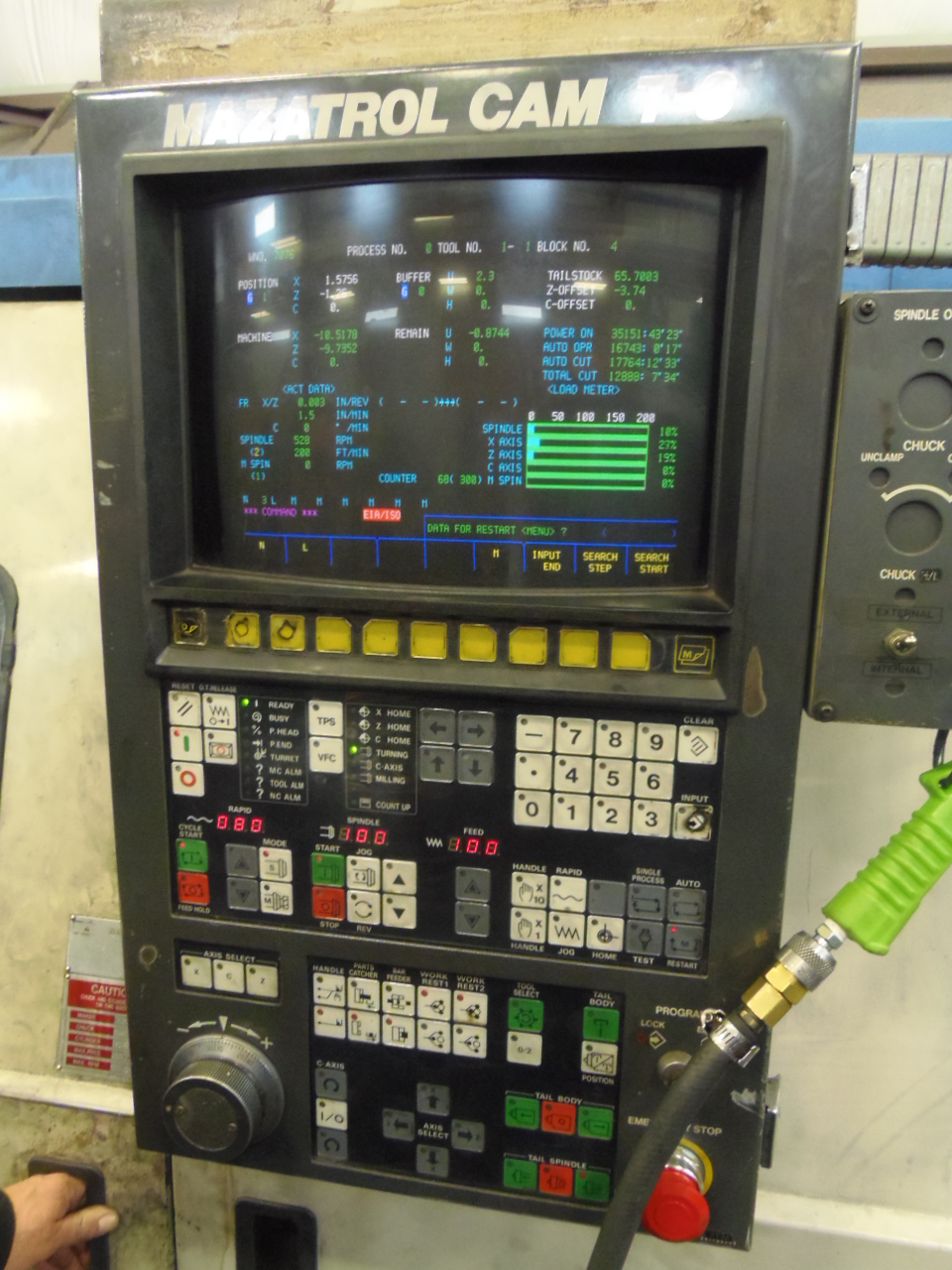

T-3 CONTROL
MANUALS

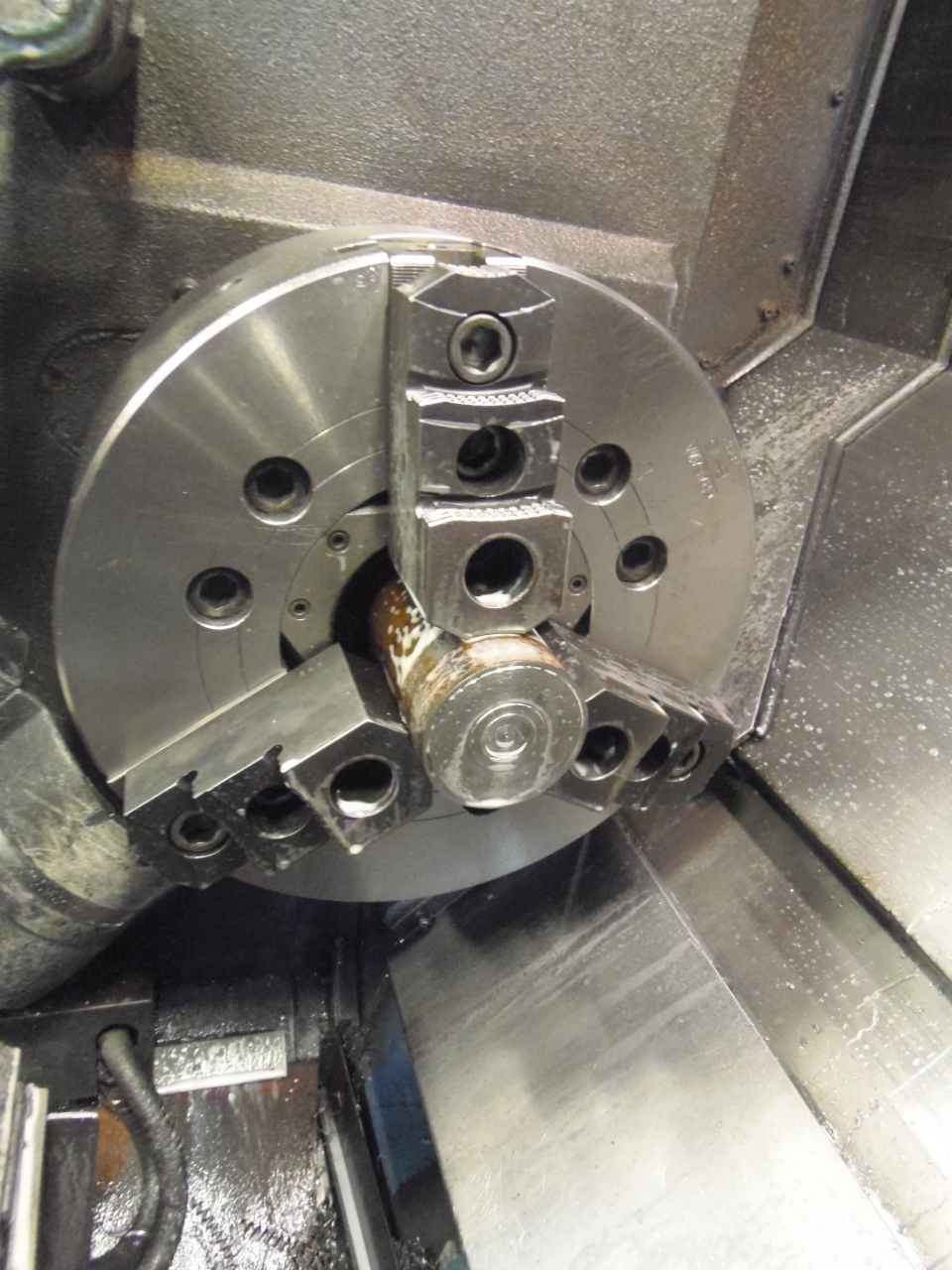

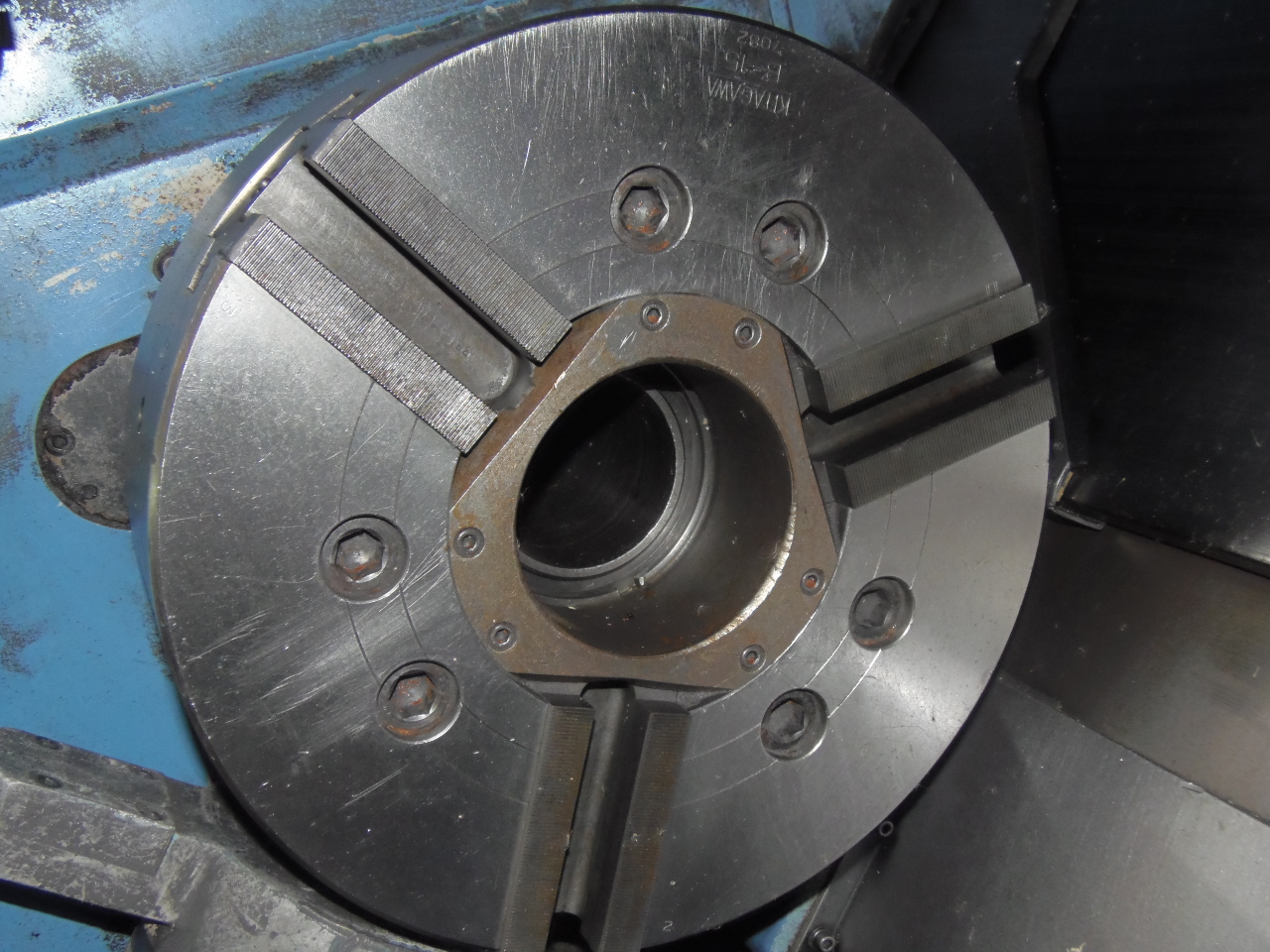

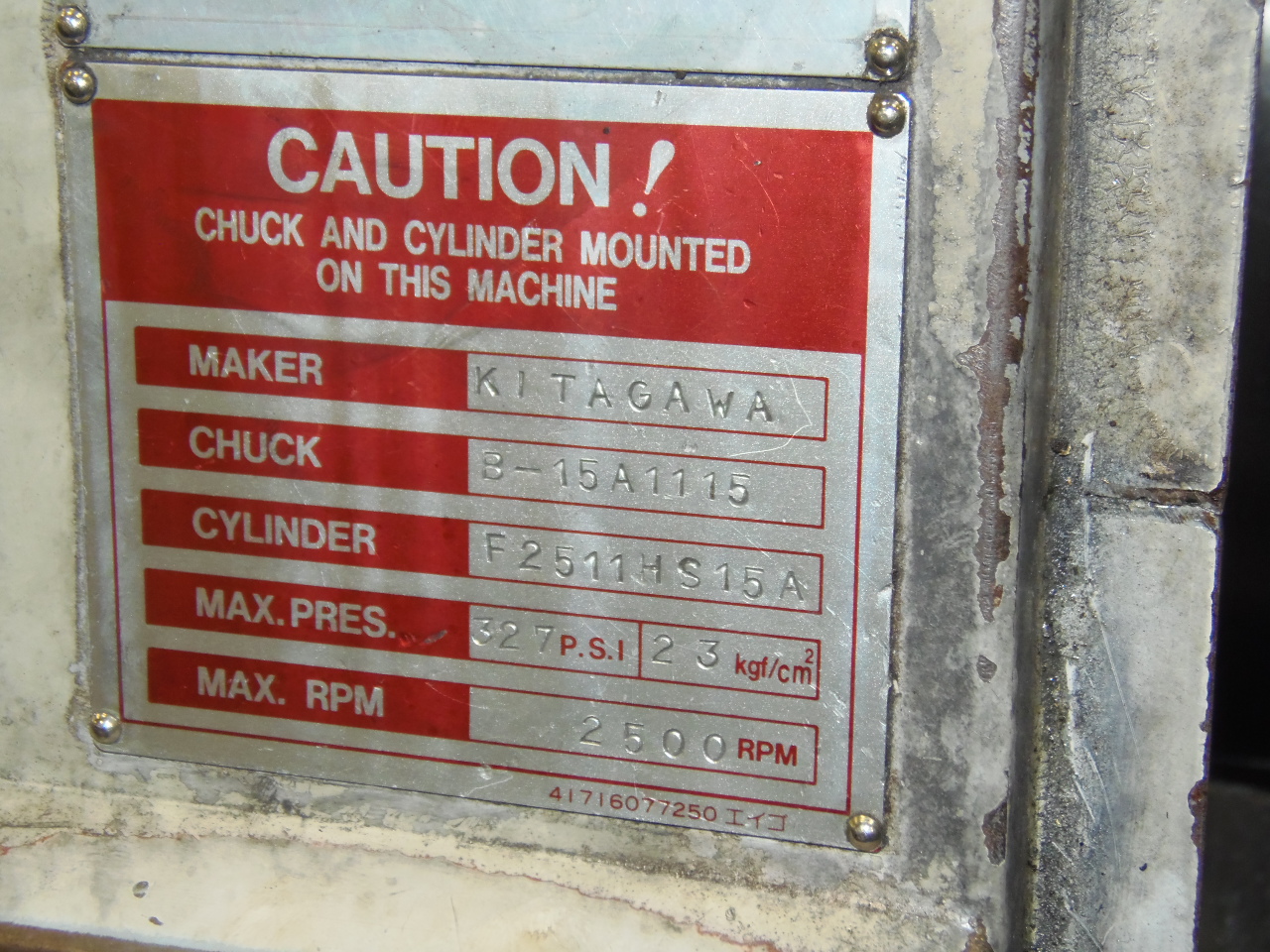

KITAGAWA B-15 3 JAW HYDRAULIC 15" CHUCK

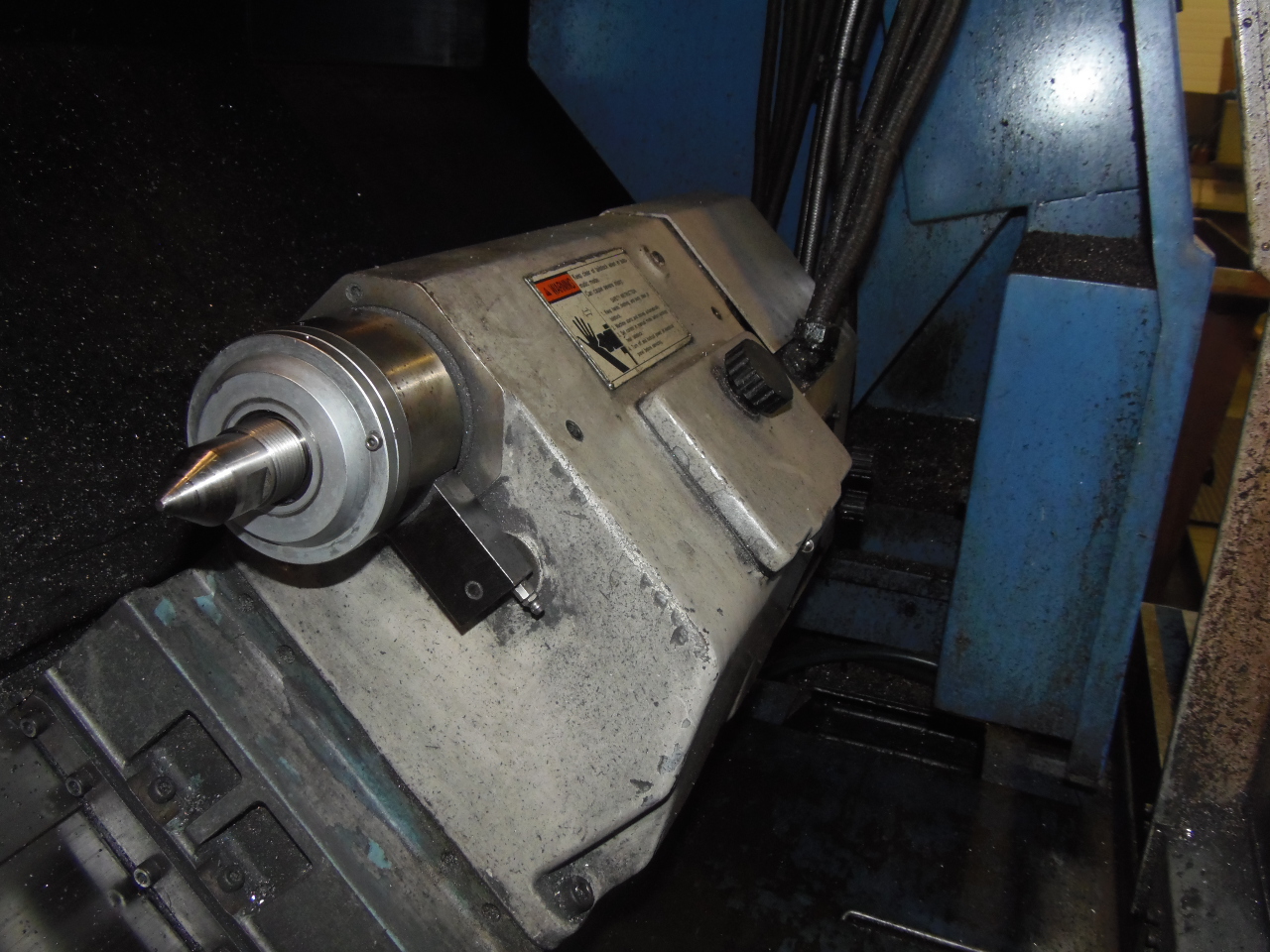

TAILSTOCK

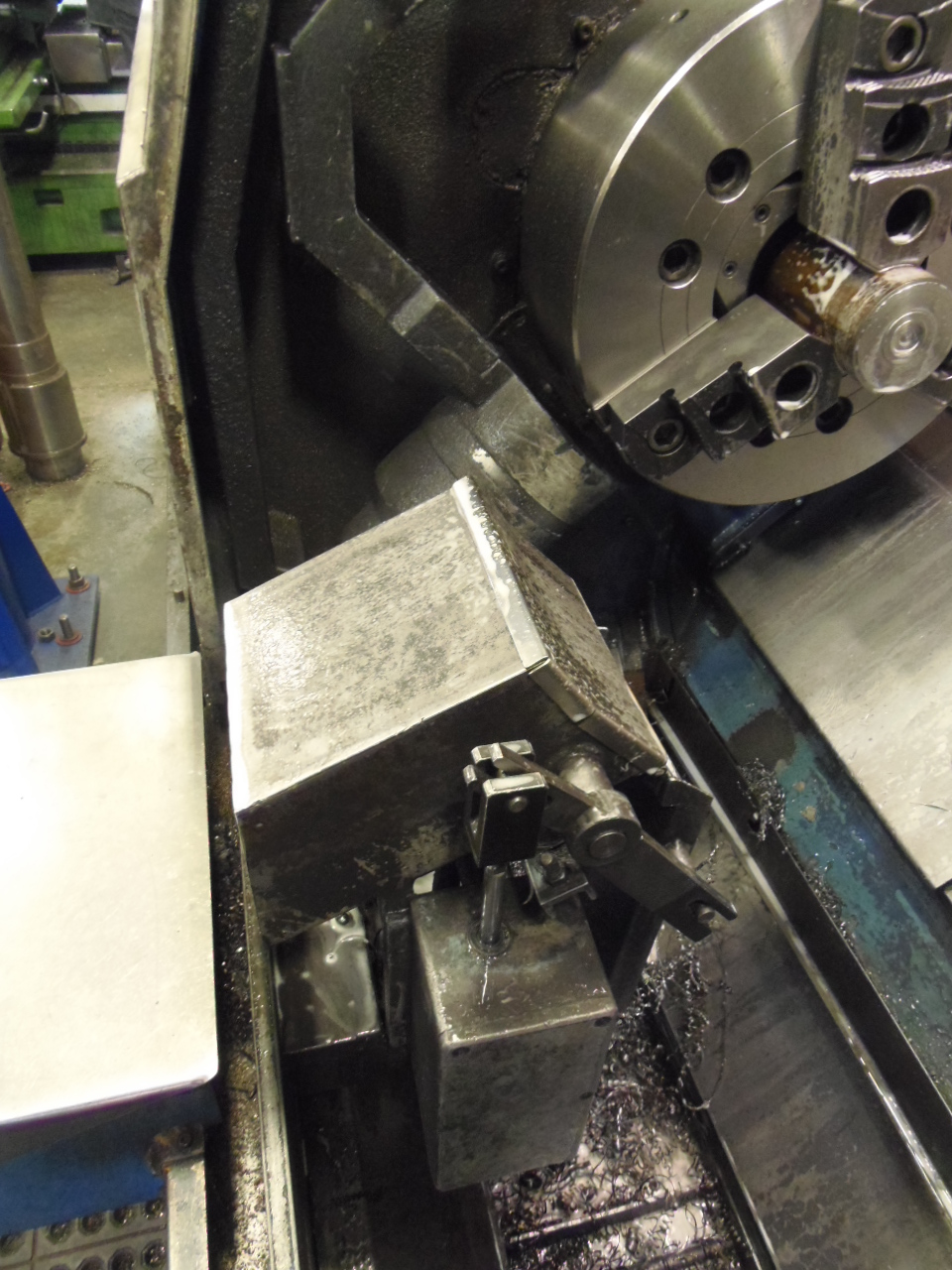

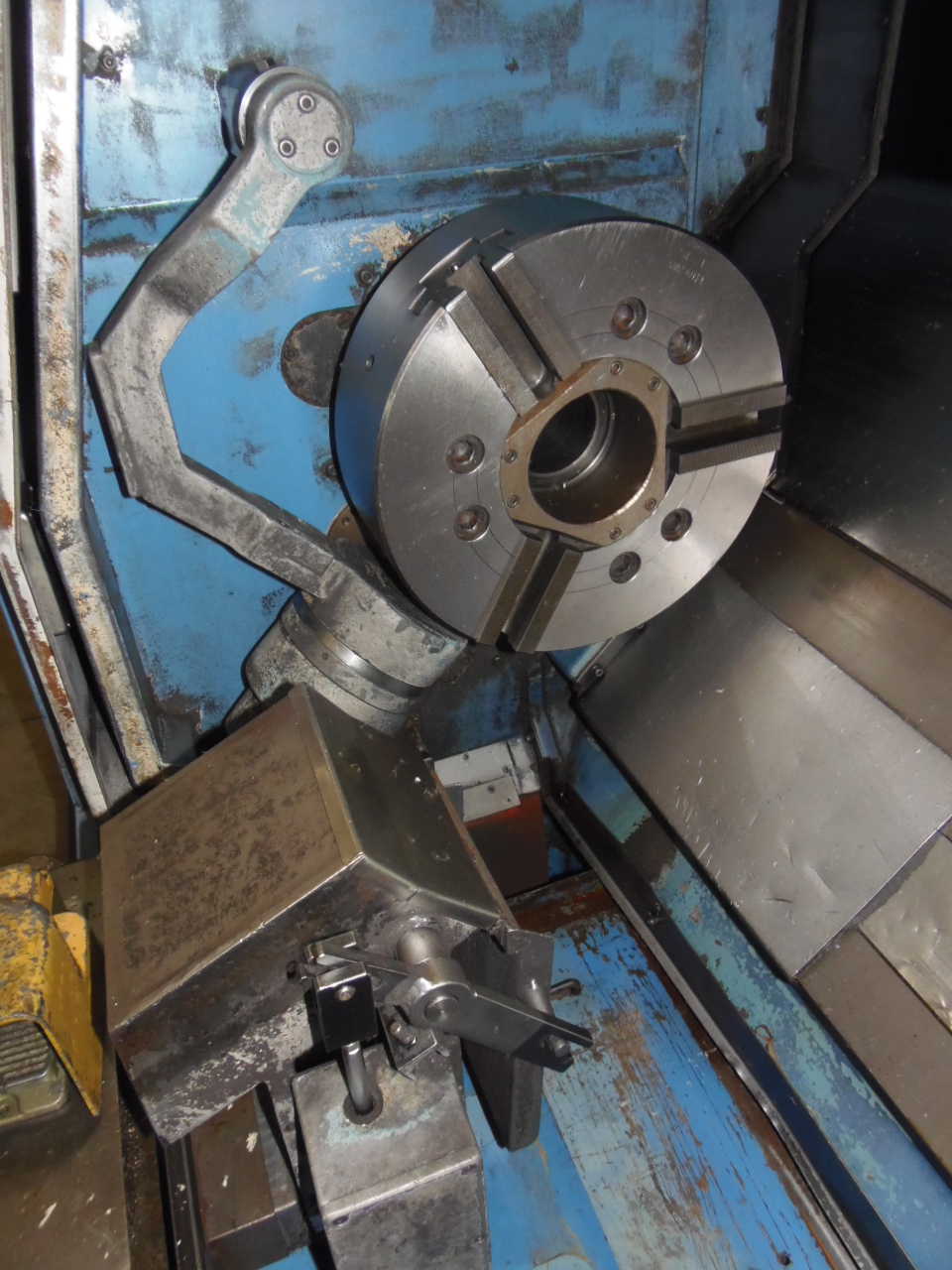

PARTS CATCHER
CHIP CONVEYOR
SPECIFICATIONS SUBJECT TO VERIFICATION
