Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED / OVER CARRIAGE 17.13" / 14.56"
MAXIMUM TURNING DIAMETER 9.00"
MAXIMUM DISTANCE BETWEEN SPINDLES 27.75"
X AXIS TRAVEL 7.09"
Z AXIS TRAVEL 20.08"
B AXIS TRAVEL (SUB SPINDLE STROKE) 21.25"
C AXIS INDEXING (FULL CONTOURING) 0.001º
RAPID TRAVERSE RATE X & Z AXES 1180 IPM
SPINDLE NOSE A2-5
SPINDLE BORE 2.00"
MAXIMUM BAR CAPACITY (ROUND) 1.65"
MAIN & SUB SPINDLE SPEEDS 60 - 6,000 RPM
MAIN SPINDLE MOTOR 15 HP AC
SUB SPINDLE MOTOR 7.5 HP AC
TURRET CAPACITY 12 STATION TURRET
LIVE TOOLING MOTOR 3 HP
LIVE TOOLING SPEEDS 100 - 3000 RPM
EQUIPPED WITH:

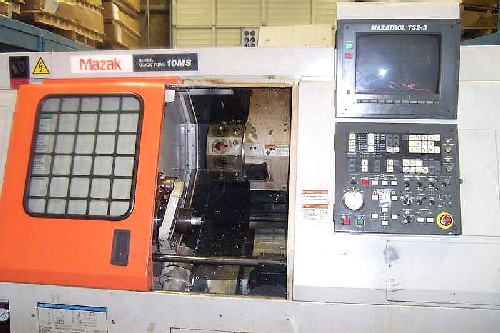

MAZATROL T-32-3 CONVERSATIONAL CNC CONTROL W/12" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
COLLET CHUCKS ON BOTH MAIN & SUB SPINDLES

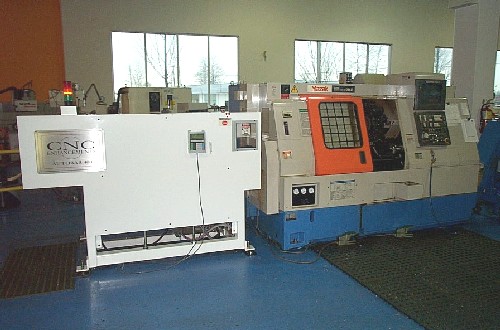

CNC ENHANCEMENTS AUTOBAR 400 MAGAZINE BARFEED
TOOL EYE / TOOL PRESETTER, AUTO PARTS CATCHER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
