Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.......................... MAZAK

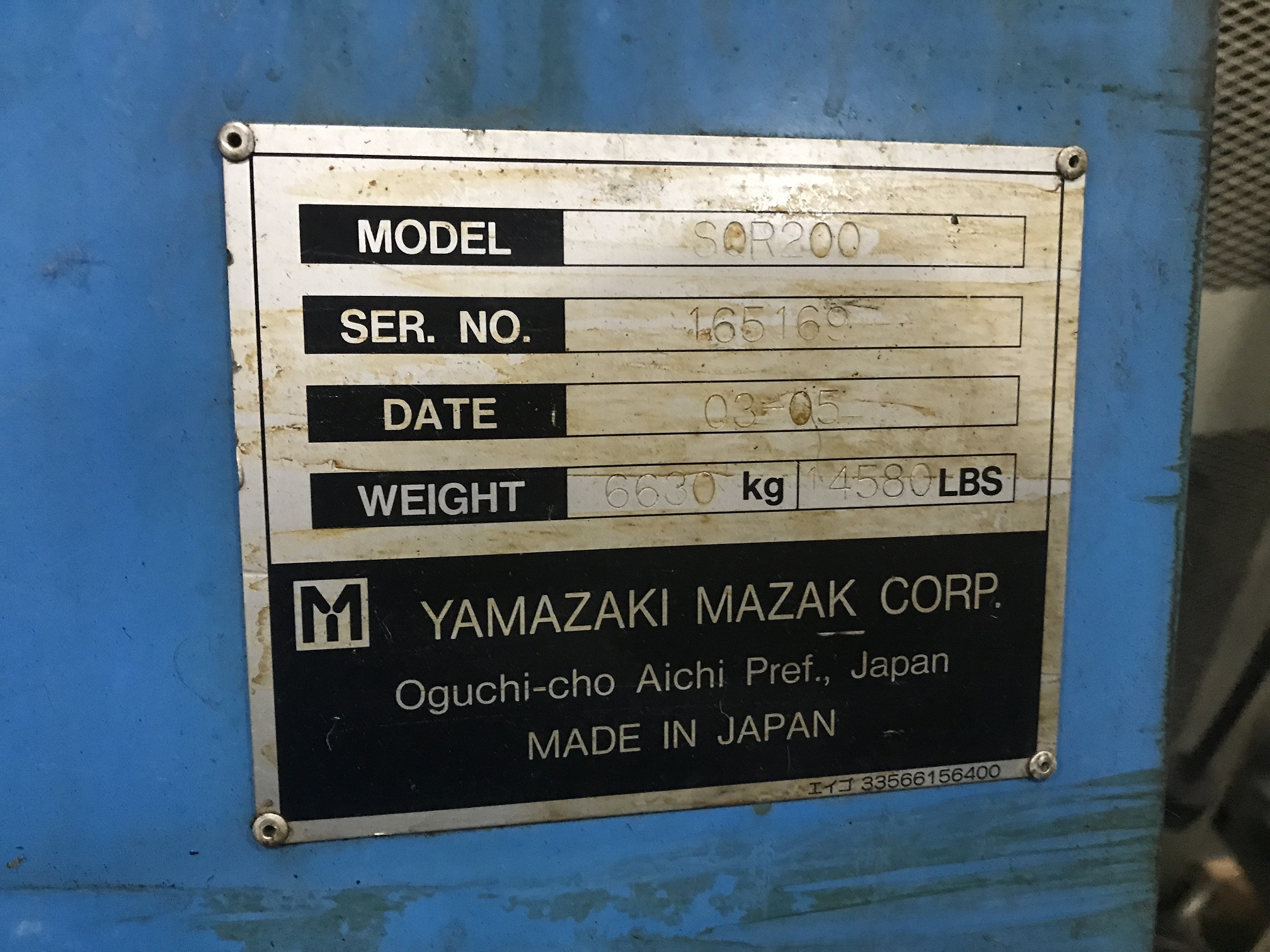

MODEL................................. SQR-200
AGE................................... 2005
SERIAL NUMBER......................... 165169
MAX. SWING............................ 23"
MAX. MACHINING DIA.................... 14"
MAX. BAR WORK......................... 2"
MAX. MACHINING LENGTH................. 24"
CHUCK CAPACITY........................ 8"
SPINDLE MOUNT......................... A2-6
MAX. SPINDLE SPEED.................... 5000 RPM
MAIN MOTOR............................ 30 HP

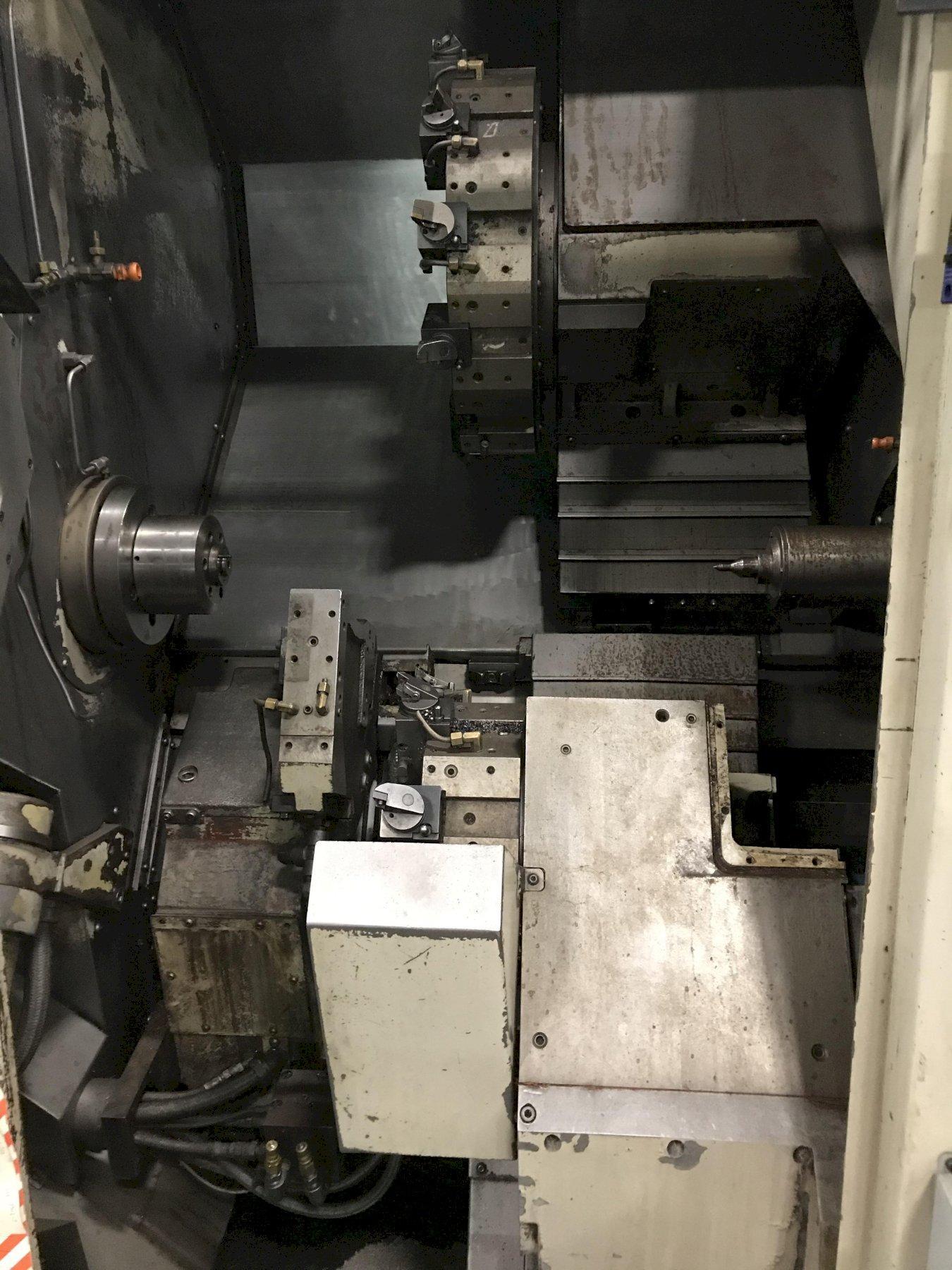

UPPER TURRET.......................... 12 POSITIONS
LOWER TURRET.......................... 8 POSITIONS
X1-AXIS STROKE........................ 7.5"
X2-AXIS STROKE........................ 6.8"
Z1-AXIS STROKE........................ 25.8"
W-AXIS STROKE......................... 20"
EQUIPPED WITH:

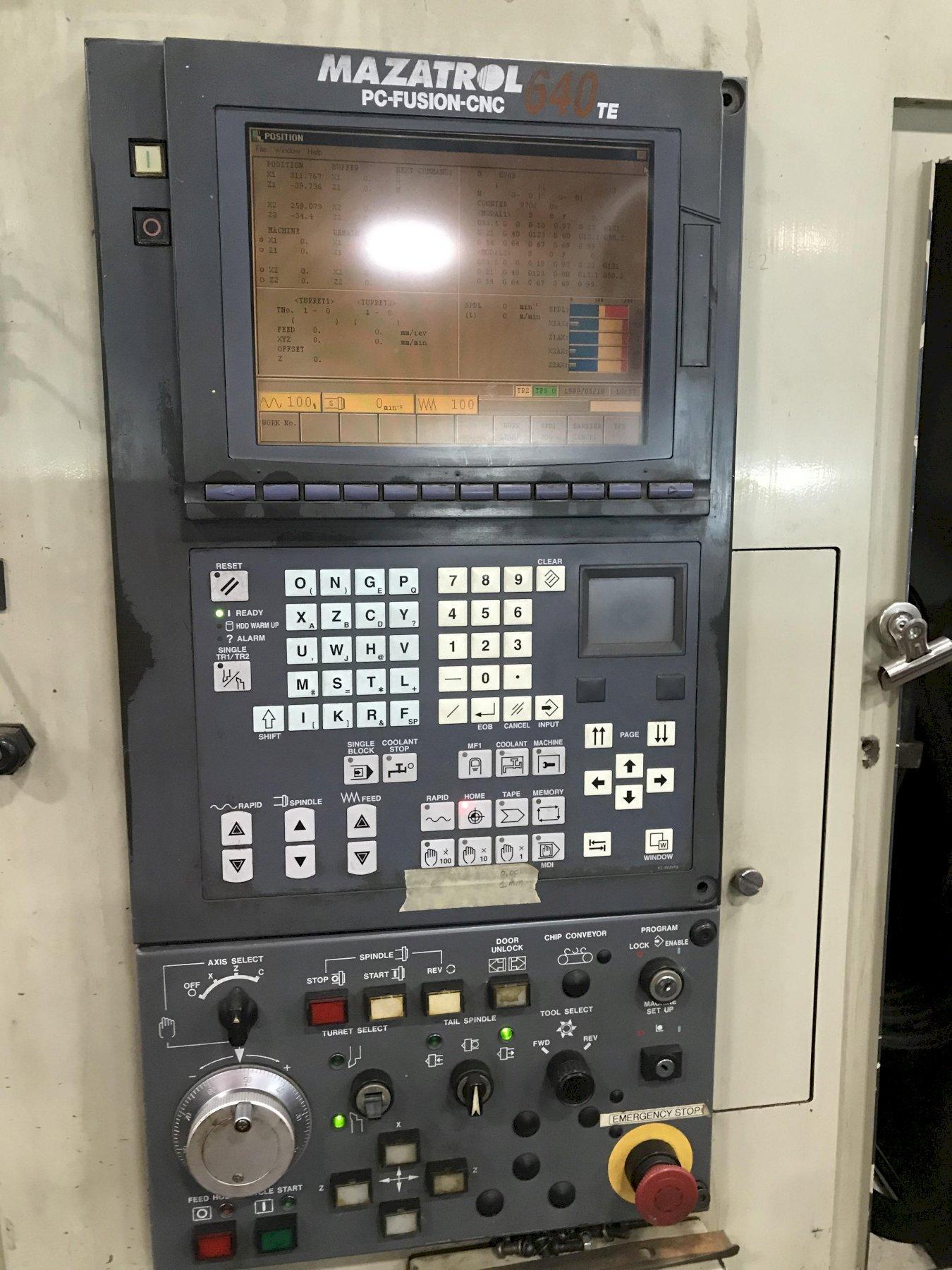

MAZATROL PC-FUSION 640TE CONTROL
PROGRAMMABLE TAILSTOCK
EIA-PC INTERFACE
V12 UPPER TURRET
V8 LOWER TURRET
SMW AUTOREST
AUTO DOOR
MISC TOOL HOLDERS
COOLANT SYSTEM
CHIP CONVEYOR
