Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.......................... MAZAK
MODEL................................. SQR-200
AGE................................... 2005

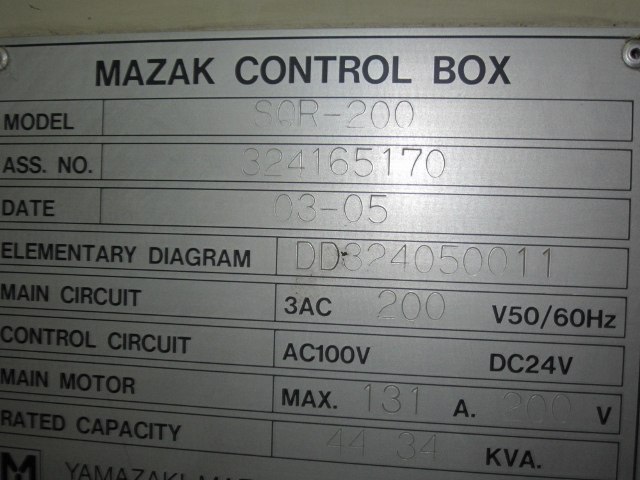

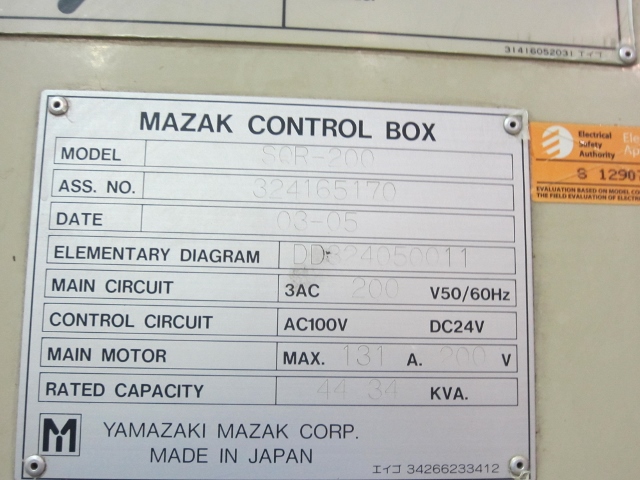

SERIAL NUMBER......................... 165170
MAX. SWING............................ 23" (585 mm)
MAX. MACHINING DIA.................... 11.75" (300 mm)
MAX. BAR WORK......................... 2" (51 mm)
MAX. MACHINING LENGTH................. 24" (610 mm)
CHUCK CAPACITY........................ 8"
SPINDLE MOUNT......................... A2-6
MAX. SPINDLE SPEED.................... 5000 RPM
MAIN MOTOR............................ 30 HP (22 kw)

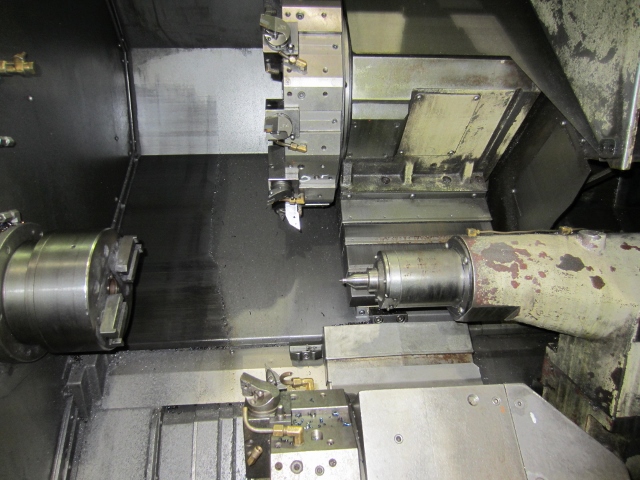

UPPER TURRET.......................... 12 POSITIONS
LOWER TURRET.......................... 8 POSITIONS
X1-AXIS STROKE........................ 7.5" (190 mm)
X2-AXIS STROKE........................ 5.88" (150 mm)
Z1-AXIS STROKE........................ 25.5" (630 mm)
W-AXIS STROKE......................... 20.5" (520 mm)
EQUIPPED WITH:
MAZATROL PC-FUSION 640TE CONTROL
8" KITAGAWA 2 JAW HYDRAULIC CHUCK WITH A S1552 (15Y) ACTUATOR
PROGRAMMABLE TAILSTOCK
EIA-PC INTERFACE
V12 UPPER TURRET
V8 LOWER TURRET

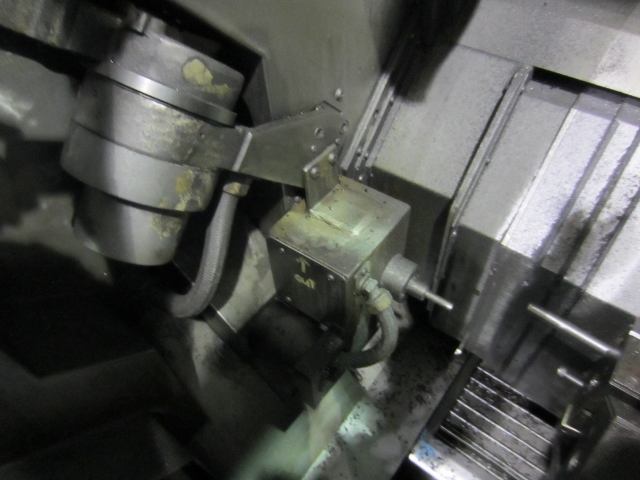

DUAL TOOL SETTING PROBES
MISC TOOL HOLDERS

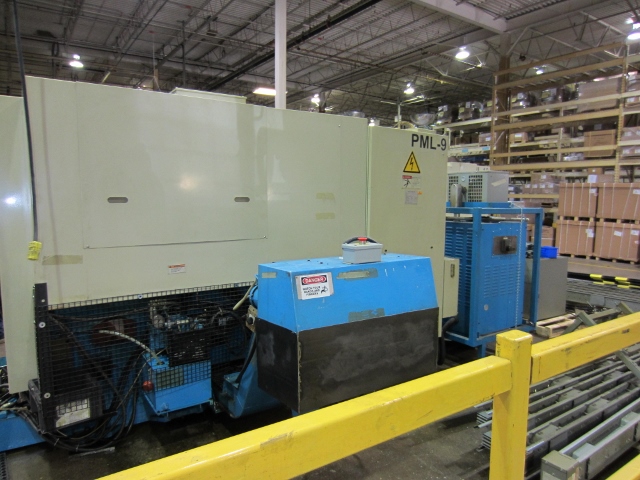

CHIP CONVEYOR
COOLANT SYSTEM
SMW AUTOREST (NOT ON MACHINE)
