Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 21.25"
MAXIMUM TURNING DIA. (CHUCK/SHAFT) 21.25" / 13.1"
MAXIMUM TURNING LENGTH (SHAFT WORK) 38.9"
X AXIS TRAVEL 19.4"
Z AXIS TRAVEL 41.25"
RAPID TRAVERSE RATE X AXIS 400 IPM
RAPID TRAVERSE RATE Z AXIS 400 IPM
SPINDLE NOSE A1-8
SPINDLE BORE 3.15"
SPINDLE SPEEDS (3 SPEED GEARED) 4 - 2,200 RPM
SPINDLE MOTOR 30 HP

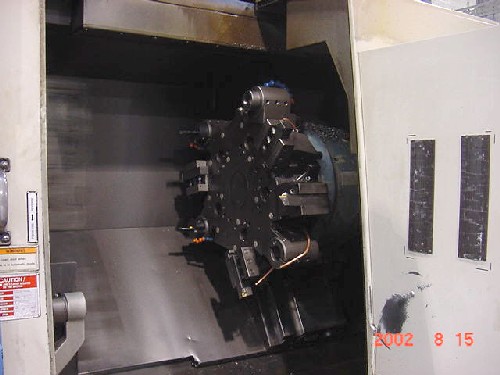

TURRET CAPACITY 15 STATION TURRET
TAILSTOCK BODY TRAVEL 32.5"
TAILSTOCK QUILL TRAVEL / DIAMETER 5.1" / 3.9"
EQUIPPED WITH:

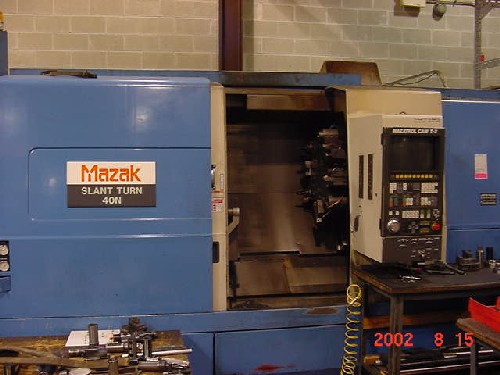

MAZATROL T-2 CONVERSATIONAL CNC CONTROL W/9" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

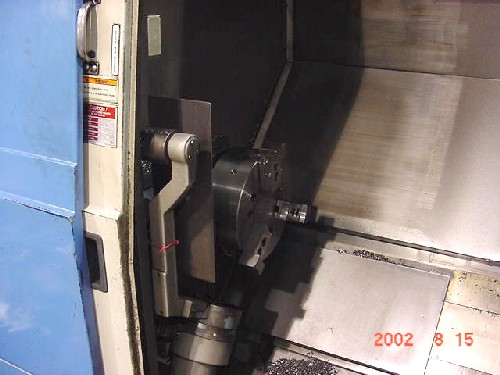

12" 3-JAW HYDRAULIC CHUCK WITH JAWS
TOOL EYE (AUTOMATIC TOOL LENGTH MEASUREMENT)
STANDARD COOLANT SYSTEM WITH TANK & PUMP

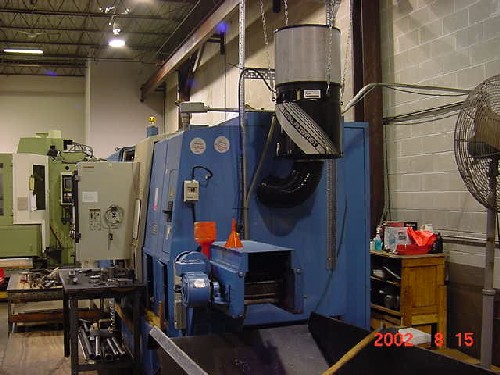

RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
