Specifications
| CNC Control |
yes |
| Type of CNC Control |
MAZATROL 640T NEXUS |
| Chuck Size |
12 inches |
| Swing |
26.77 inches |
| Turning Diameter |
16.54 inches |
| Center Distance |
56 inches |
| Spindle Bore |
3.46 inches |
| Spindle Speed (RPM) |
4000 |
| Turret Capacity |
12 |
| Tailstock |
yes |
| Y Axis |
yes |
| Weight |
15500 pounds |
| Live Tooling |
yes |
| Sub Spindle |
yes |
Equipped With
GENERAL SPECIFICATIONS:

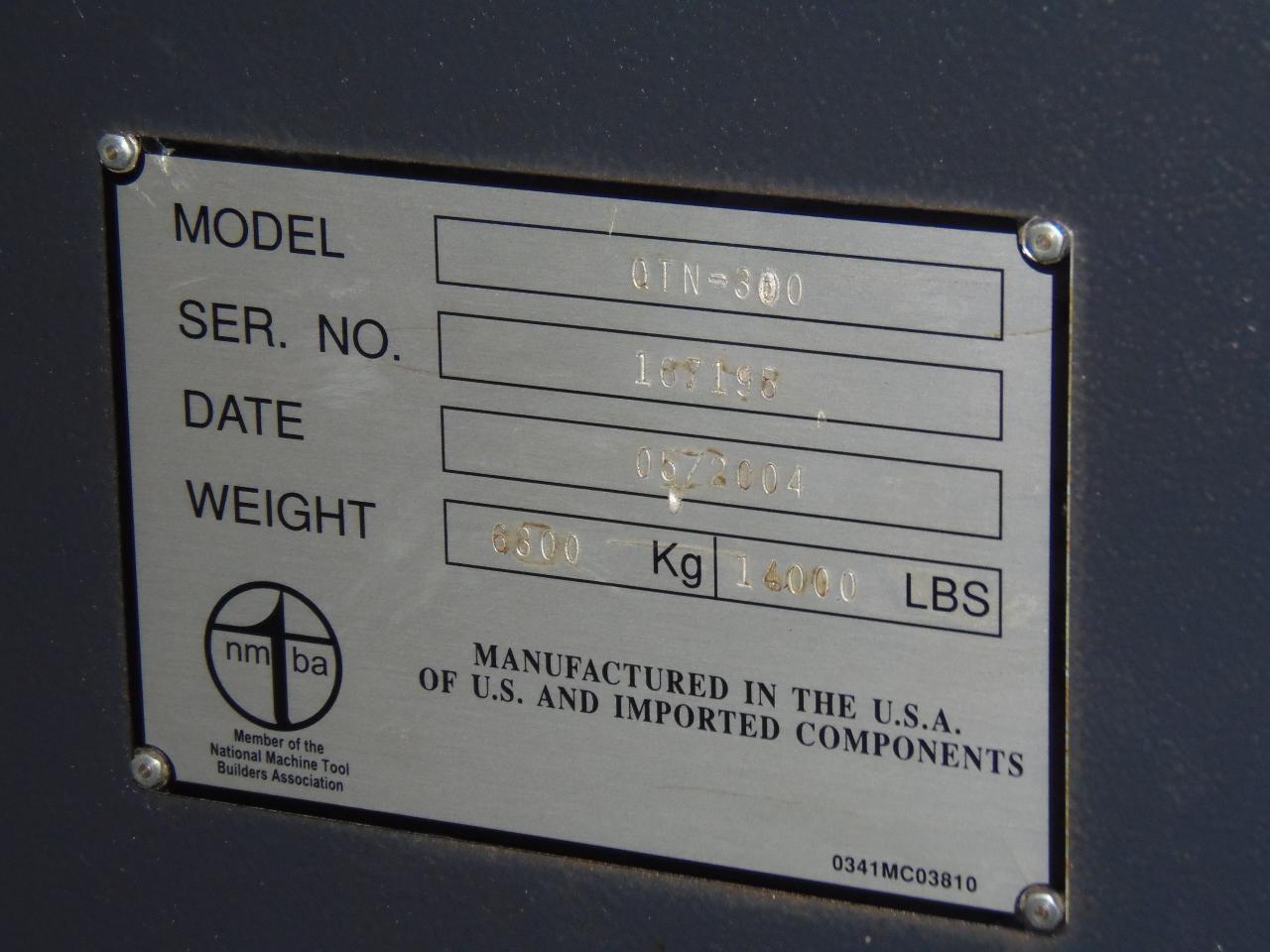

MAKE.......................... MAZAK
MODEL......................... QTN-300
SERIAL NUMBER................. 167195
AGE (YEAR).................... 2004
MAX SWING..................... 26.77" (680 MM)
STANDARD MACHINING DIA........ 16.54" (420 MM)
MAX. MACHINING DIA............ 16.54" (420 MM)
BAR WORK CAPACITY............. 3.03" (77 MM)
DIST. BTWN SPINDLE/ END FACE.. 5.59"-54.90" (142-1392 MM)
TRAVEL X...................... 8.87" (225 MM)
TRAVEL Z...................... 49.125" (1250 MM)
MAX. SUPPORT WEIGHT (CHUCK)... 880 LBS
MAX. SUPPORT WEIGHT (SHAFT)... 1540 LBS
SPEED RANGE................... 35-4000 RPM
SPINDLE BORE.................. 3.46" (88 MM)
MOTOR OUTPUT.................. 35 HP
# OF TOOLS (TURRET)........... 12
DIMENSIONS.................... 135" X 81" X 78" H
WEIGHT........................ 16000 LBS.
EQUIPPED WITH:

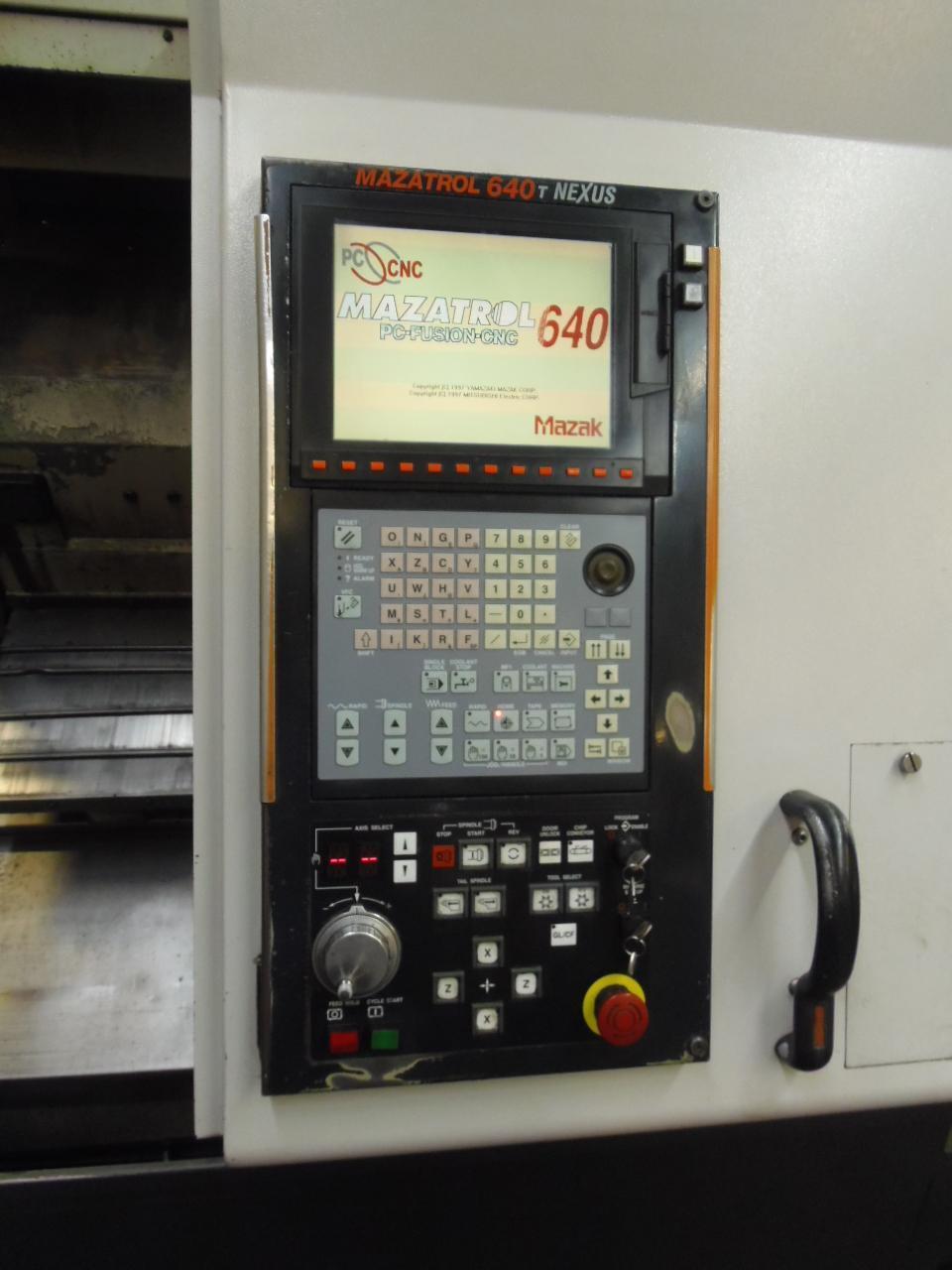

MAZATROL 640T NEXUS CONTROL

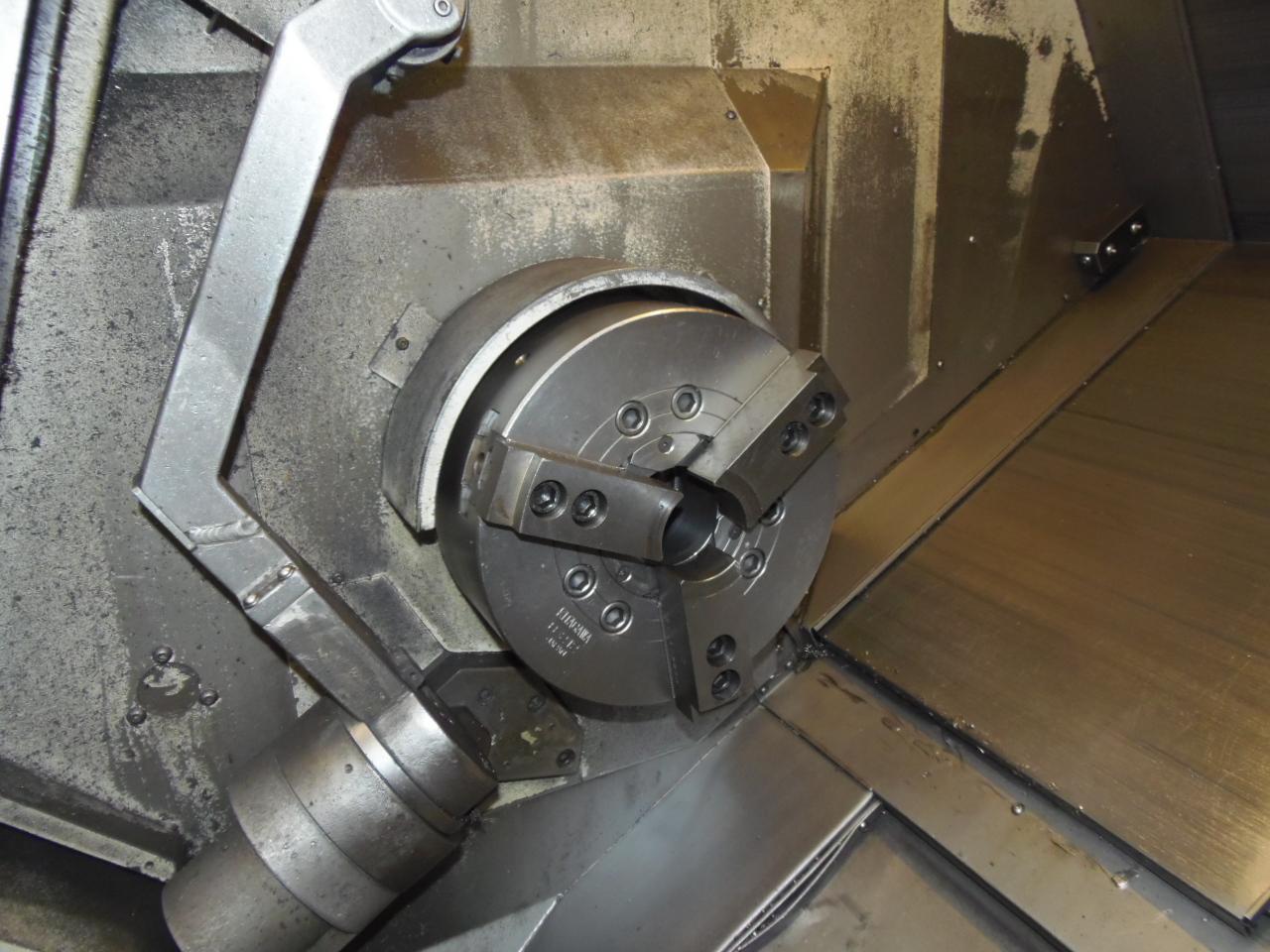

12" KITAGAWA B-212 3 JAW CHUCK
TAILSTOCK
CHIP CONVEYOR, COOLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
