General Speciifications
Manufacturer...................... Mazak

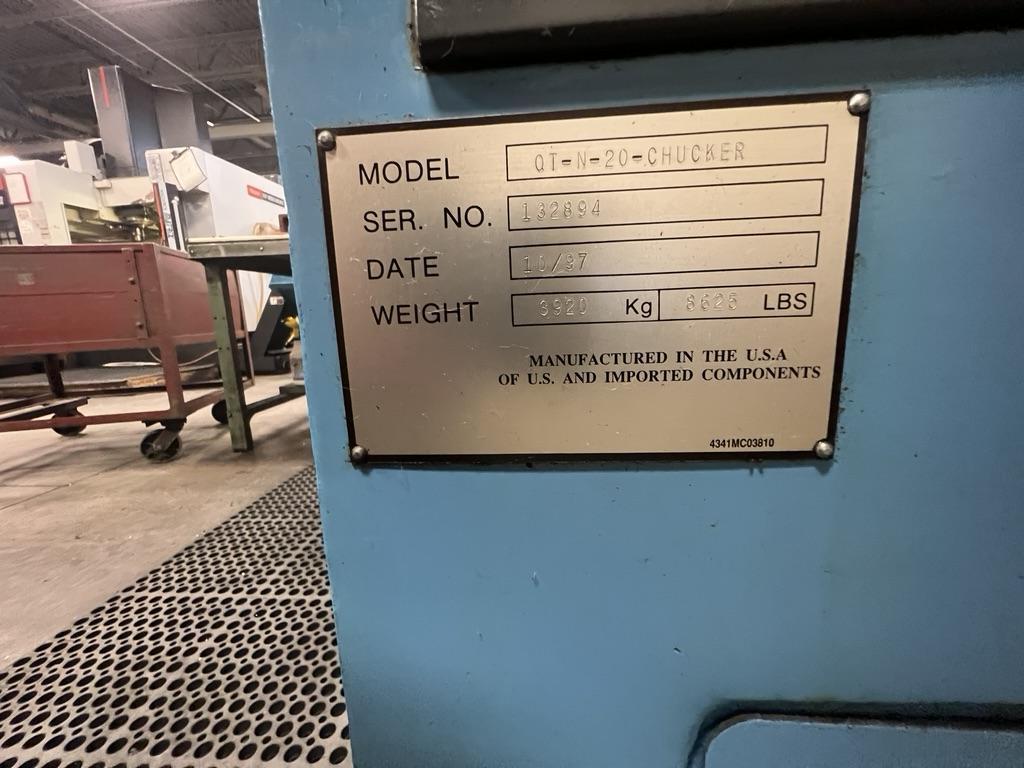

Model............................. QT-N-20 Chucker
Serial Number..................... 132894
Age............................... 1997

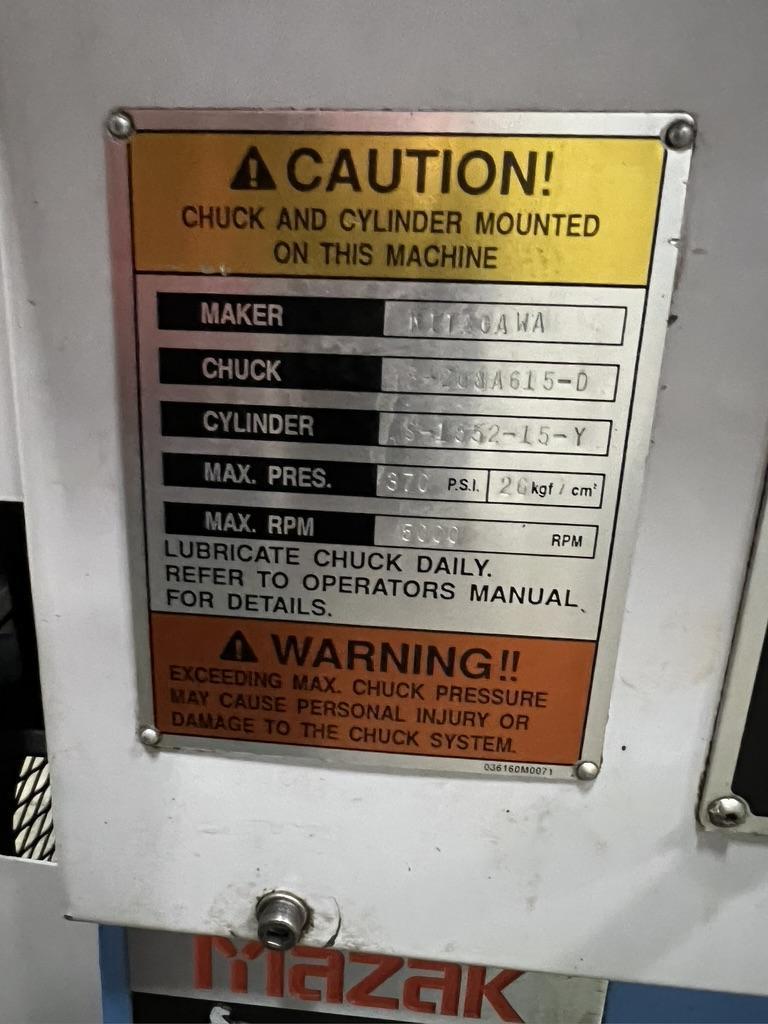

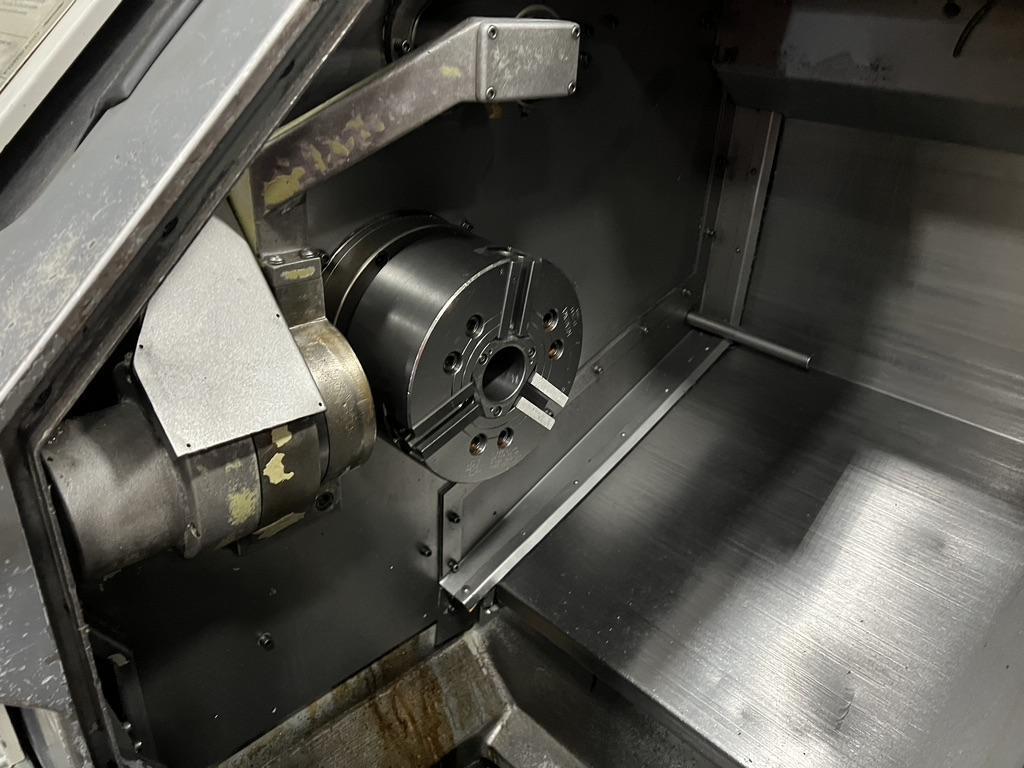

Chuck Size........................ 8"
Spindle Speed..................... 4,000 RPM

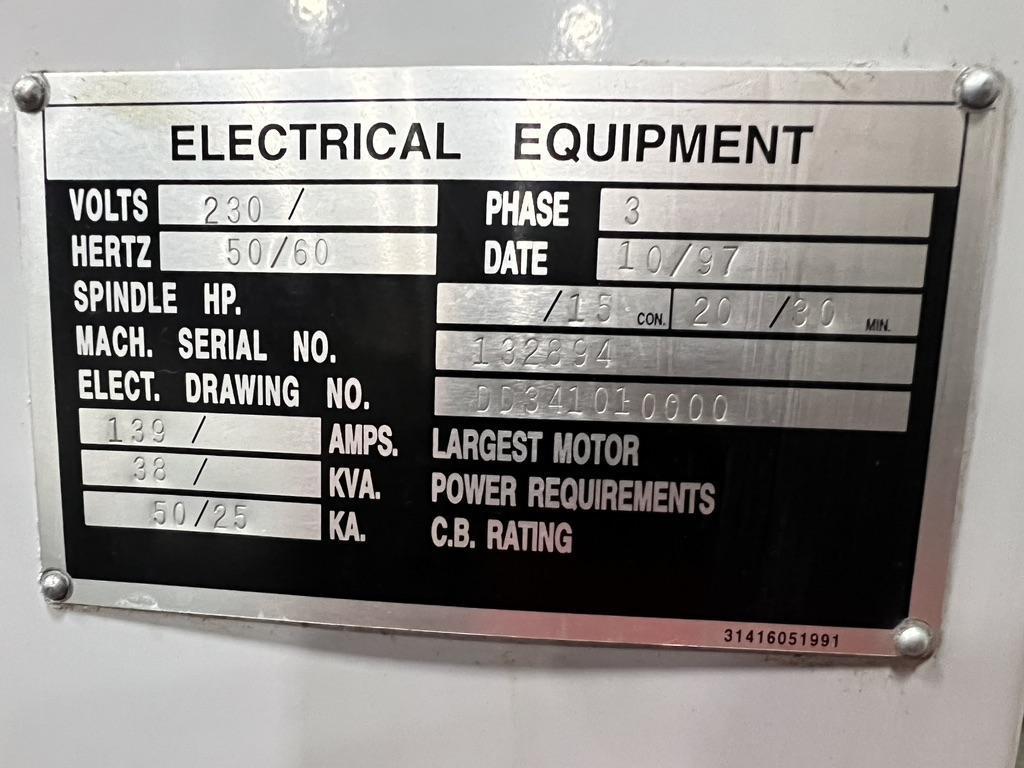

Spindle Motor..................... 20 HP
X Axis Travel..................... 7.125"
Z Axis Travel..................... 20.125"
Rapid Rate Z Axis................. 1,300 IPM

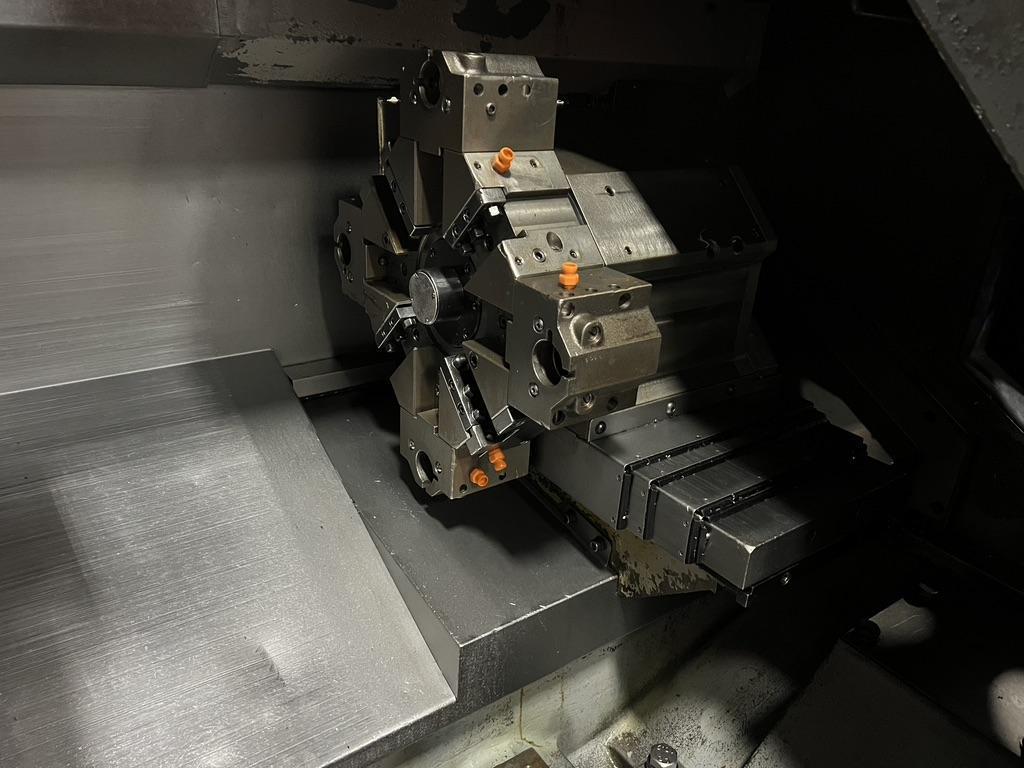

Turret Tools...................... 8 Station
Rapid Rate X Axis................. 1,200 IPM
Max Turning Diameter.............. 11.81"
Max Turning Length................ 17.5"
Max Swing......................... 17.32"
Dimensions........................ 105" x 68.5" x 73.1"
Weight............................ 9,600 LBS
Including

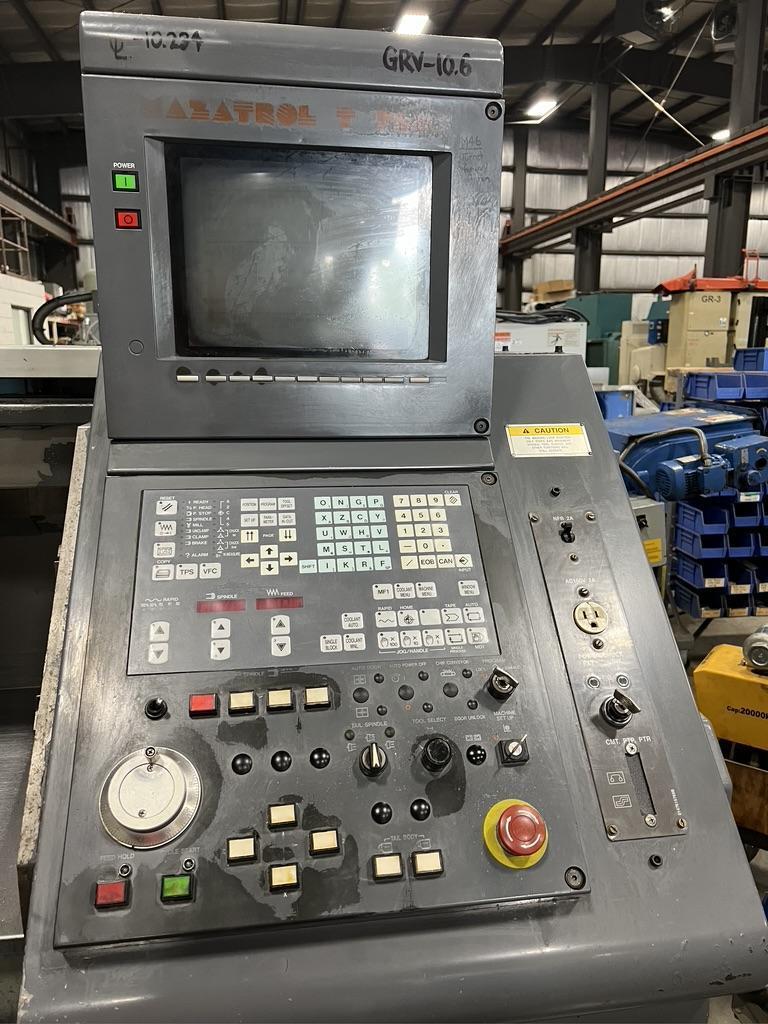

Mazatrol T Plus
