GENERAL SPECIFICATIONS:

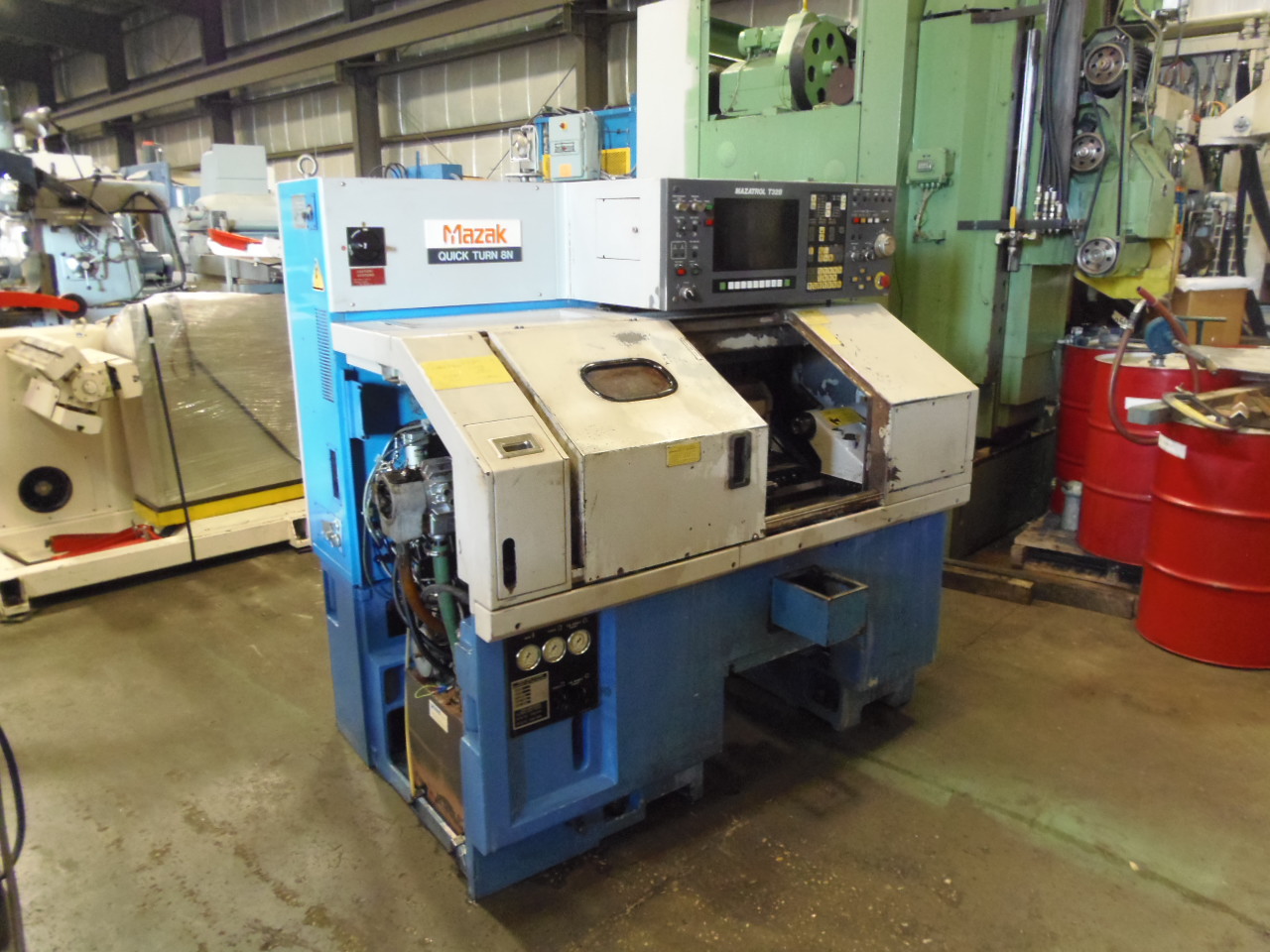

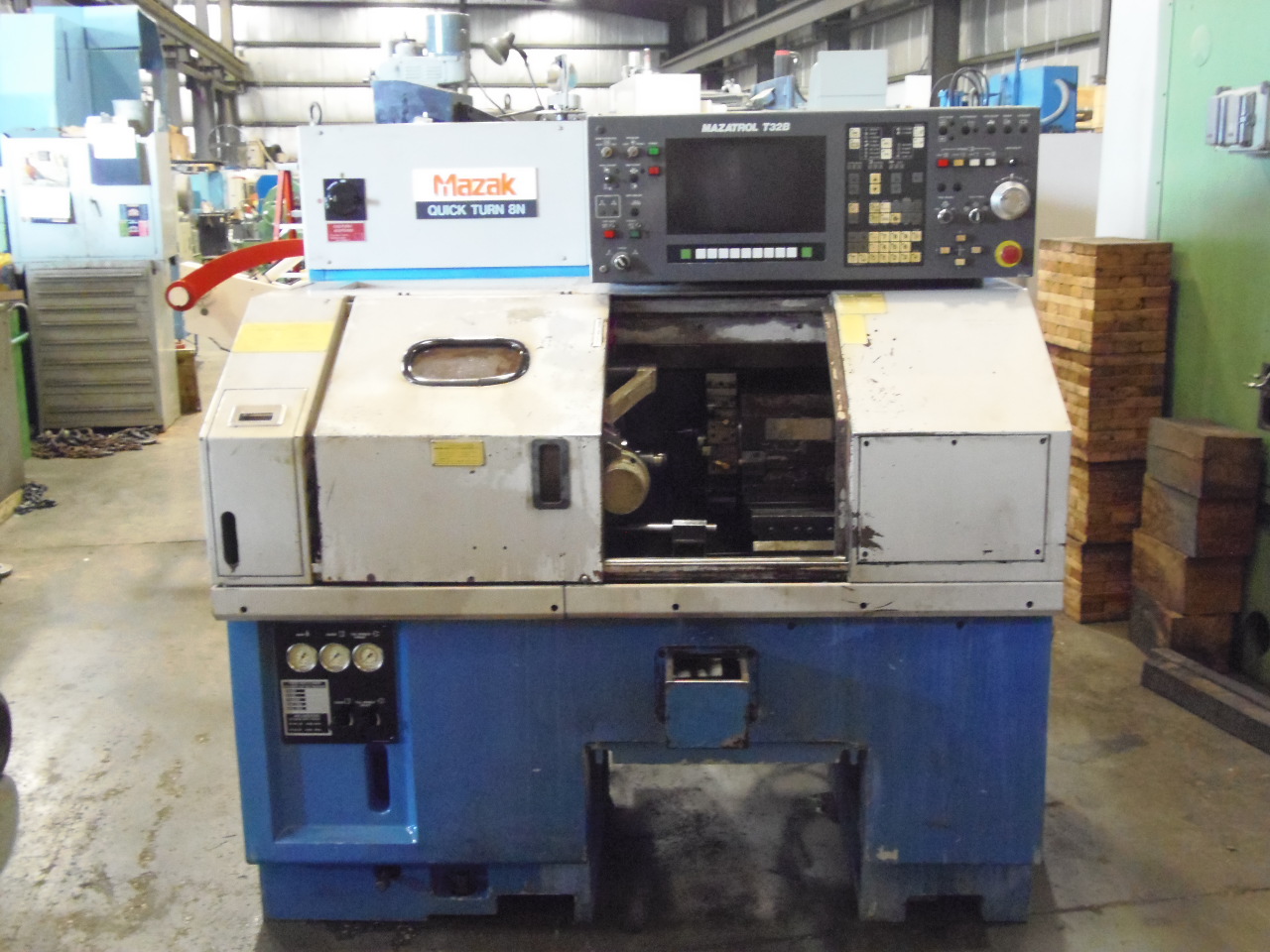

MANUFACTURER........................ MAZAK

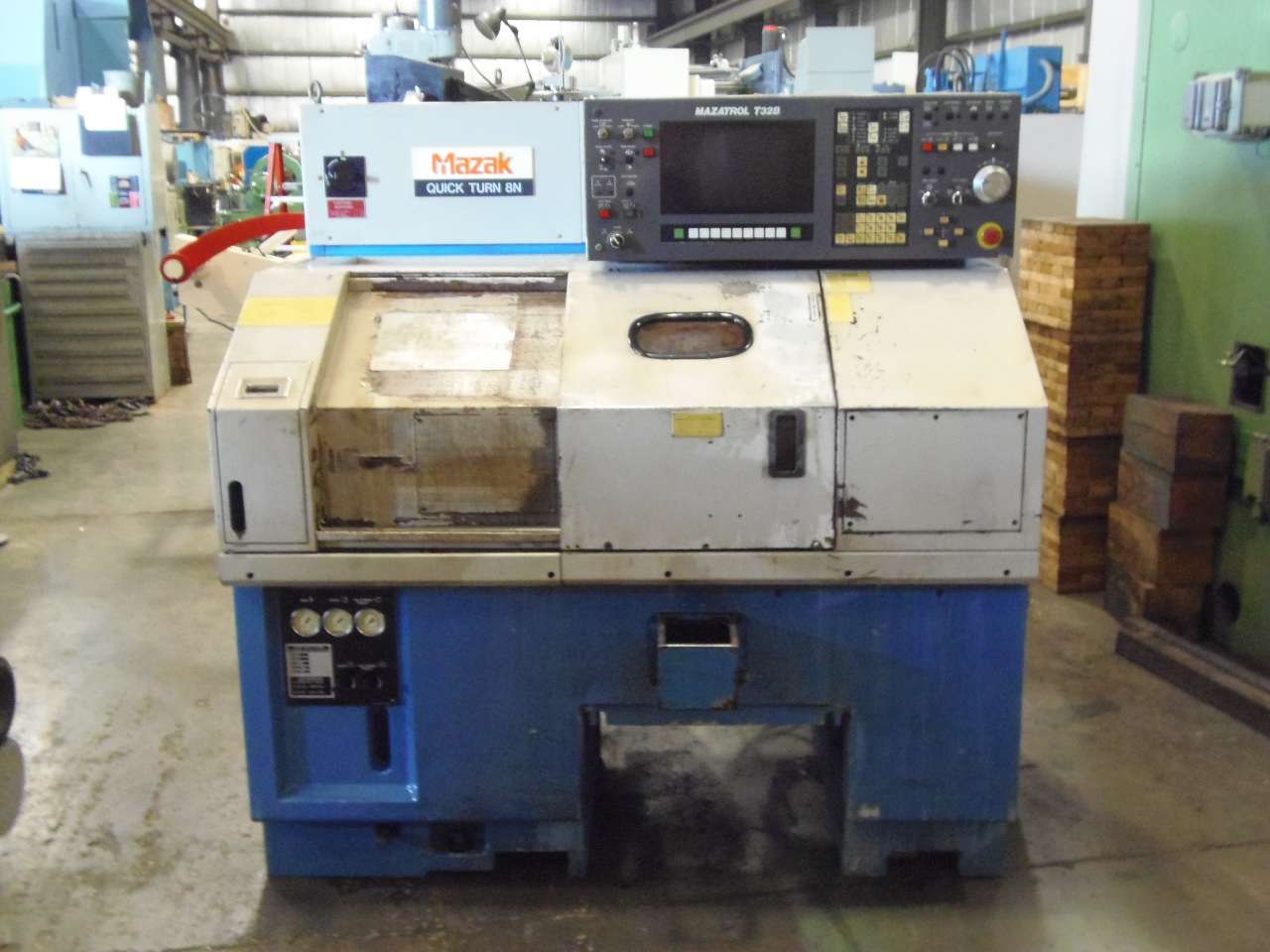

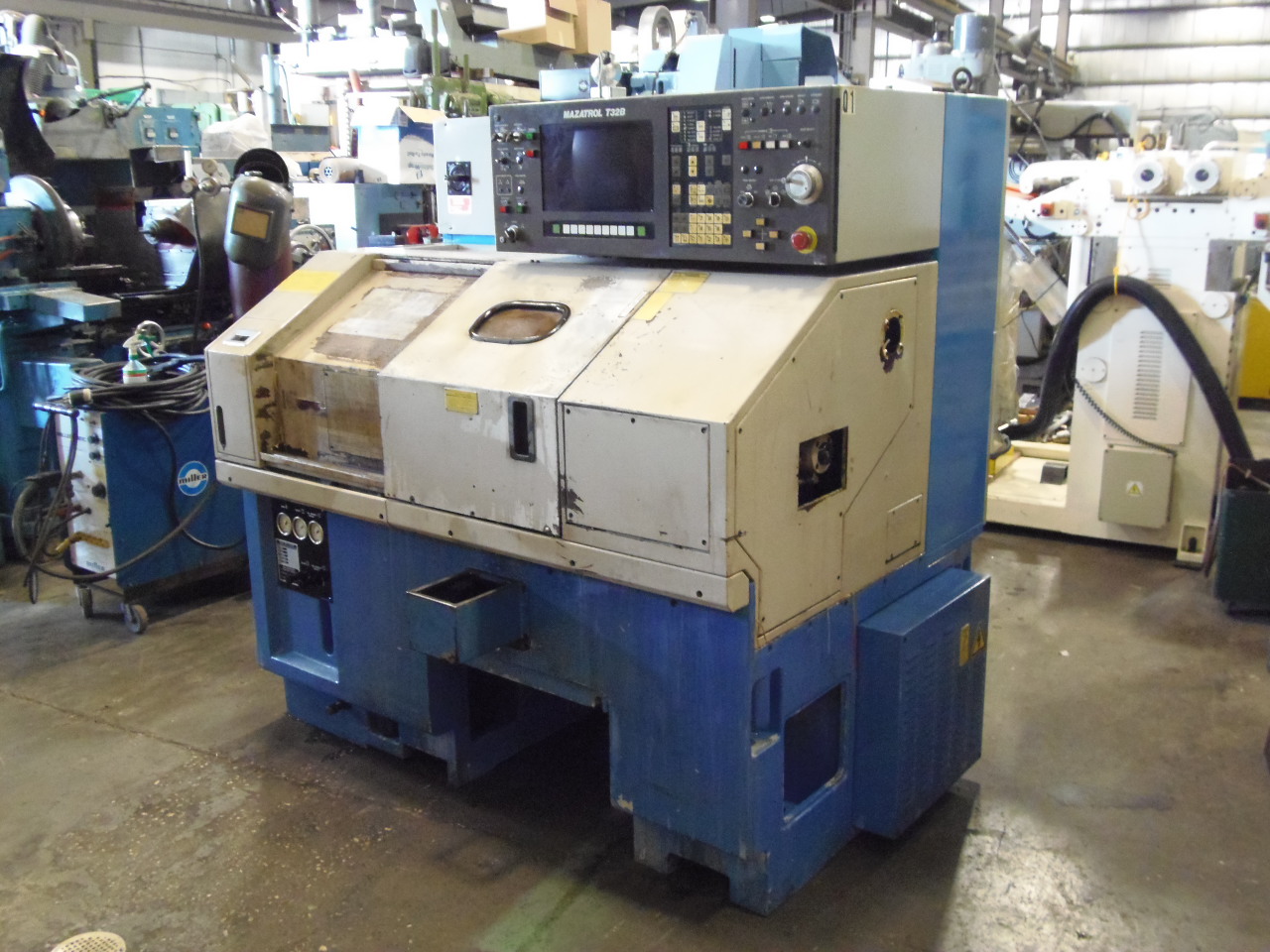

MODEL............................... QUICK TURN 8N
NEW ................................ 1992
SERIAL.............................. N103013U
MAXIMUM SWING....................... 11"
MAXIMUM TURNING DIAMETER............ 6.3"
MAXIMUM TURNING LENGTH.............. 11.91"
X AXIS TRAVEL....................... 4.33"
Z AXIS TRAVEL....................... 11.22"
RAPID TRAVERSE RATE X AXIS.......... 945 IPM
RAPID TRAVERSE RATE Z AXIS.......... 945 IPM
SPINDLE NOSE........................ A2-5
SPINDLE BORE........................ 1.96"
SPINDLE SPEEDS...................... 60 - 6,000 RPM
SPINDLE MOTOR....................... 10 HP AC

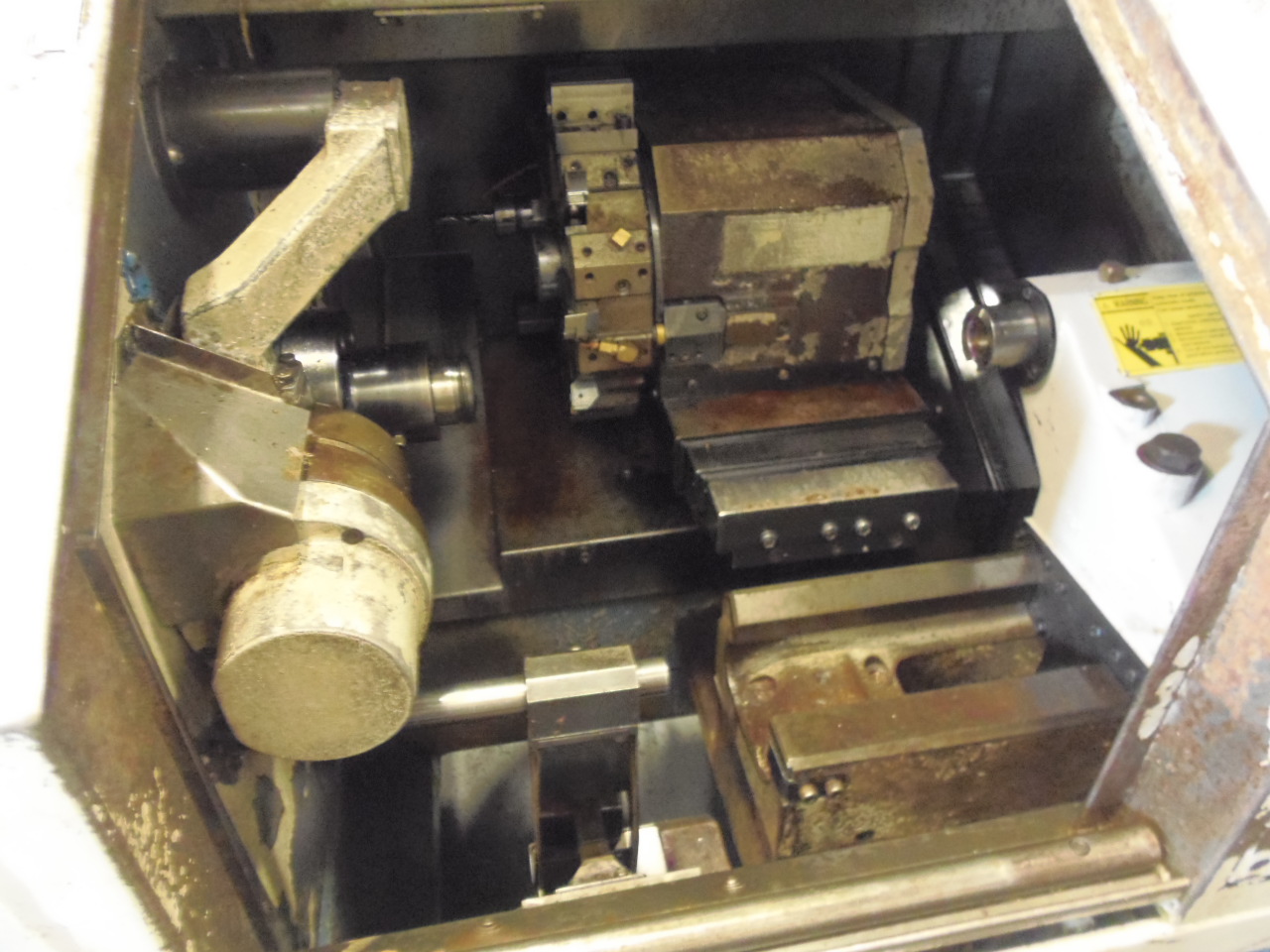

TURRET CAPACITY..................... 8 STATION TURRET

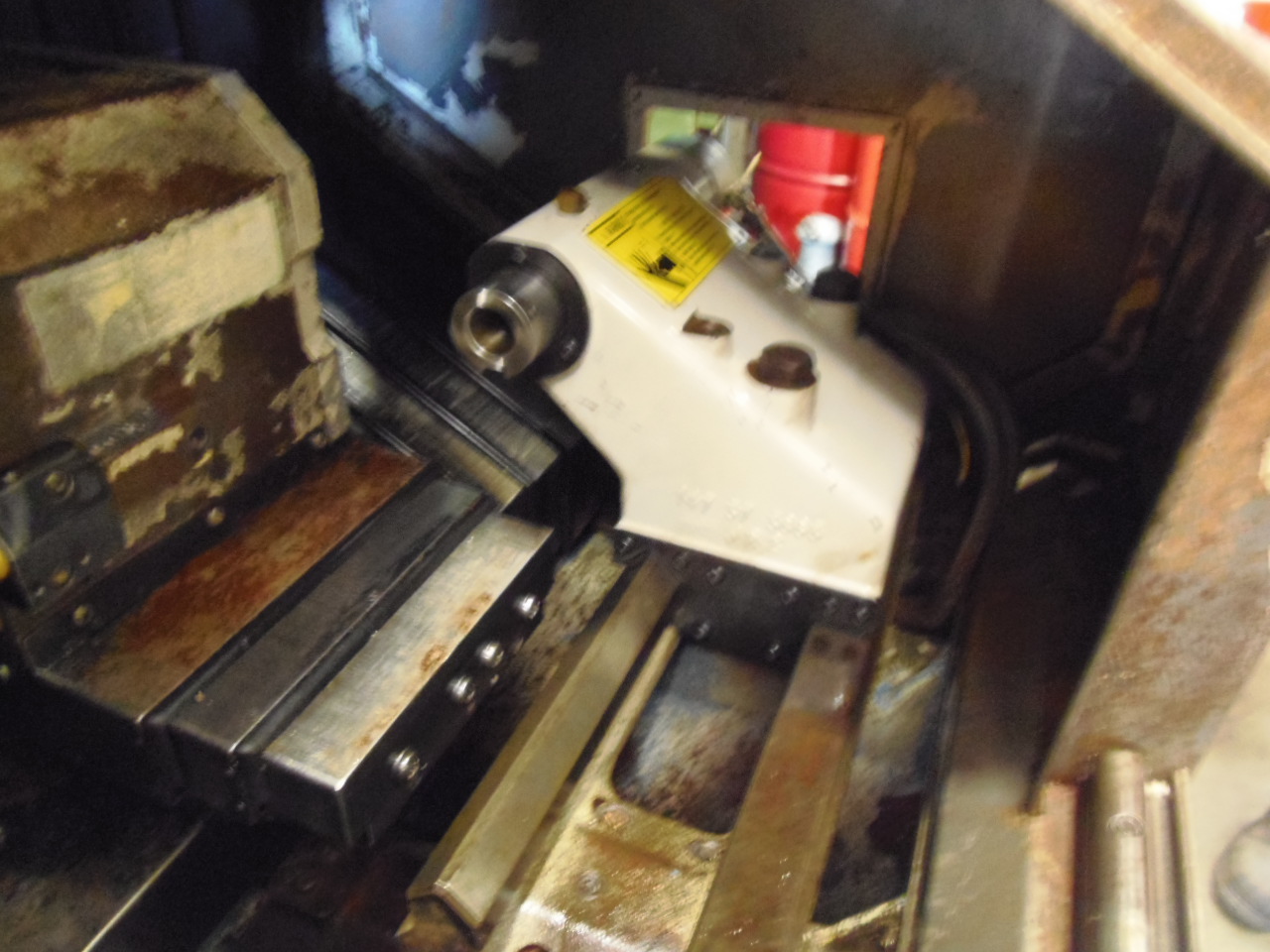

TAILSTOCK BODY TRAVEL............... 9"
TAILSTOCK QUILL TAPER............... MT #3
TAILSTOCK QUILL TRAVEL.............. 3.74"
ELECTRICS........................... 230 / 460 VOLTS
WEIGHT APPROXIMATELY................ 6700 LBS.
EQUIPPED WITH:

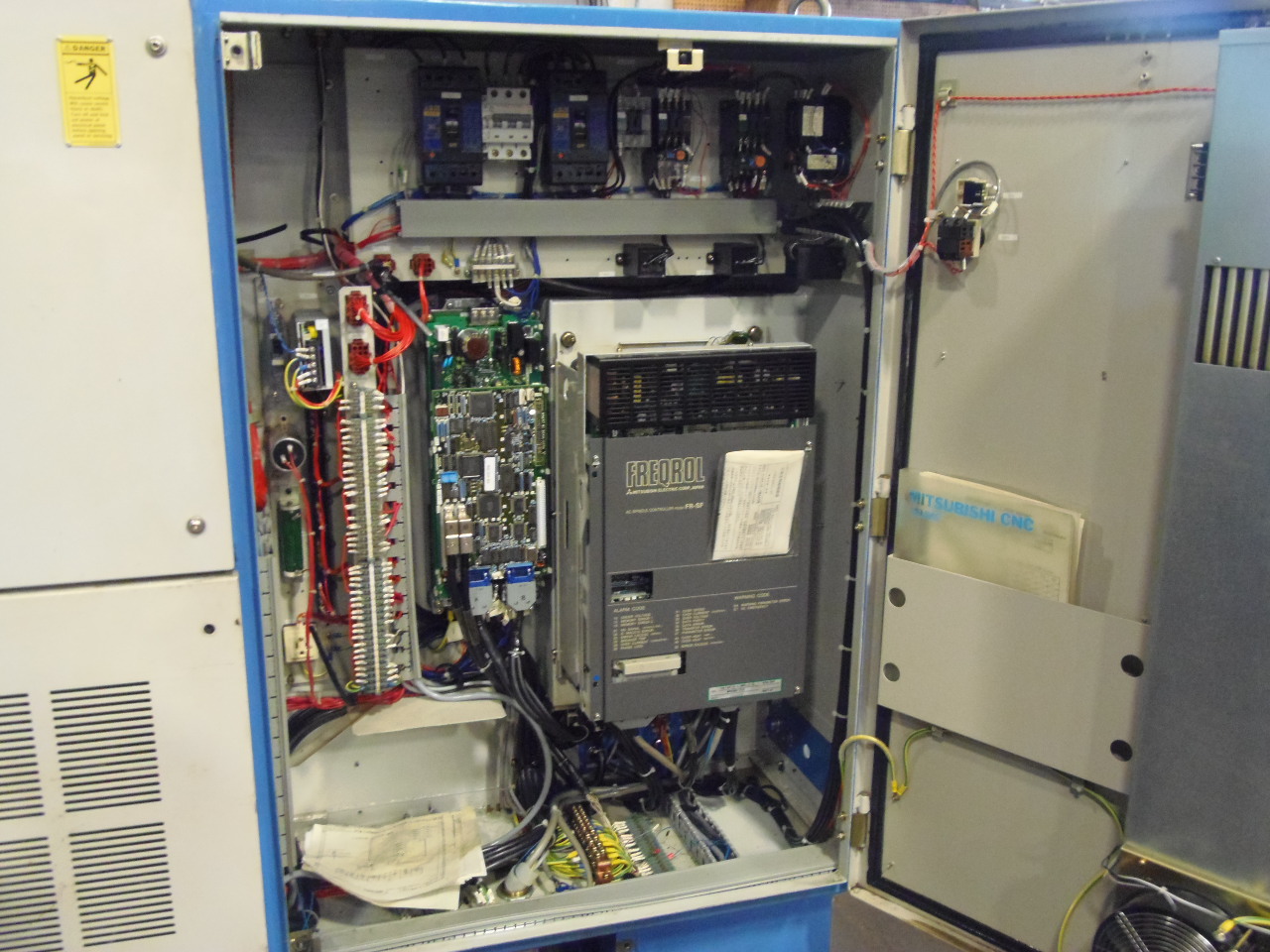

MAZATROL T-32-2 CONVERSATIONAL CNC CONTROL WITH 9" CRT
STANDARD COOLANT SYSTEM WITH TANK & PUMP
TAILSTOCK, BUT NOT CURRENTLY WIRED TO THE MACHINE. IT WAS USED FOR BAR FEED ONLY

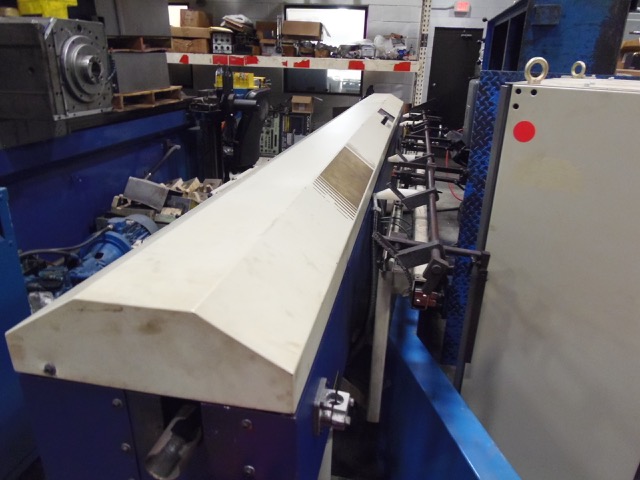

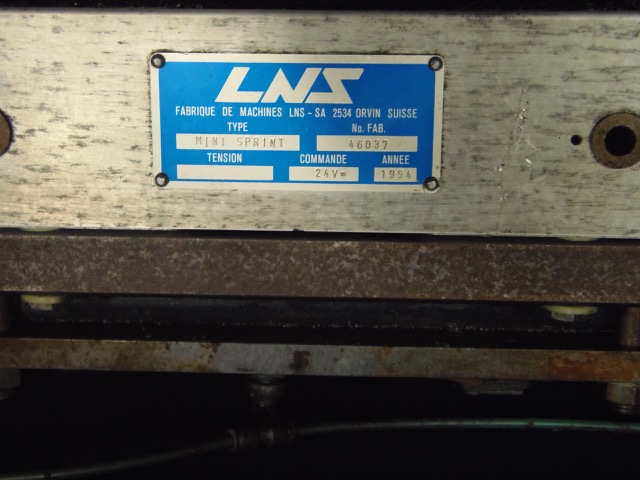

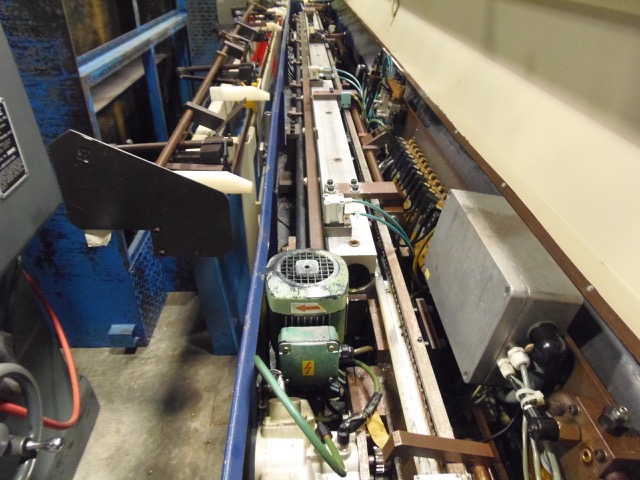

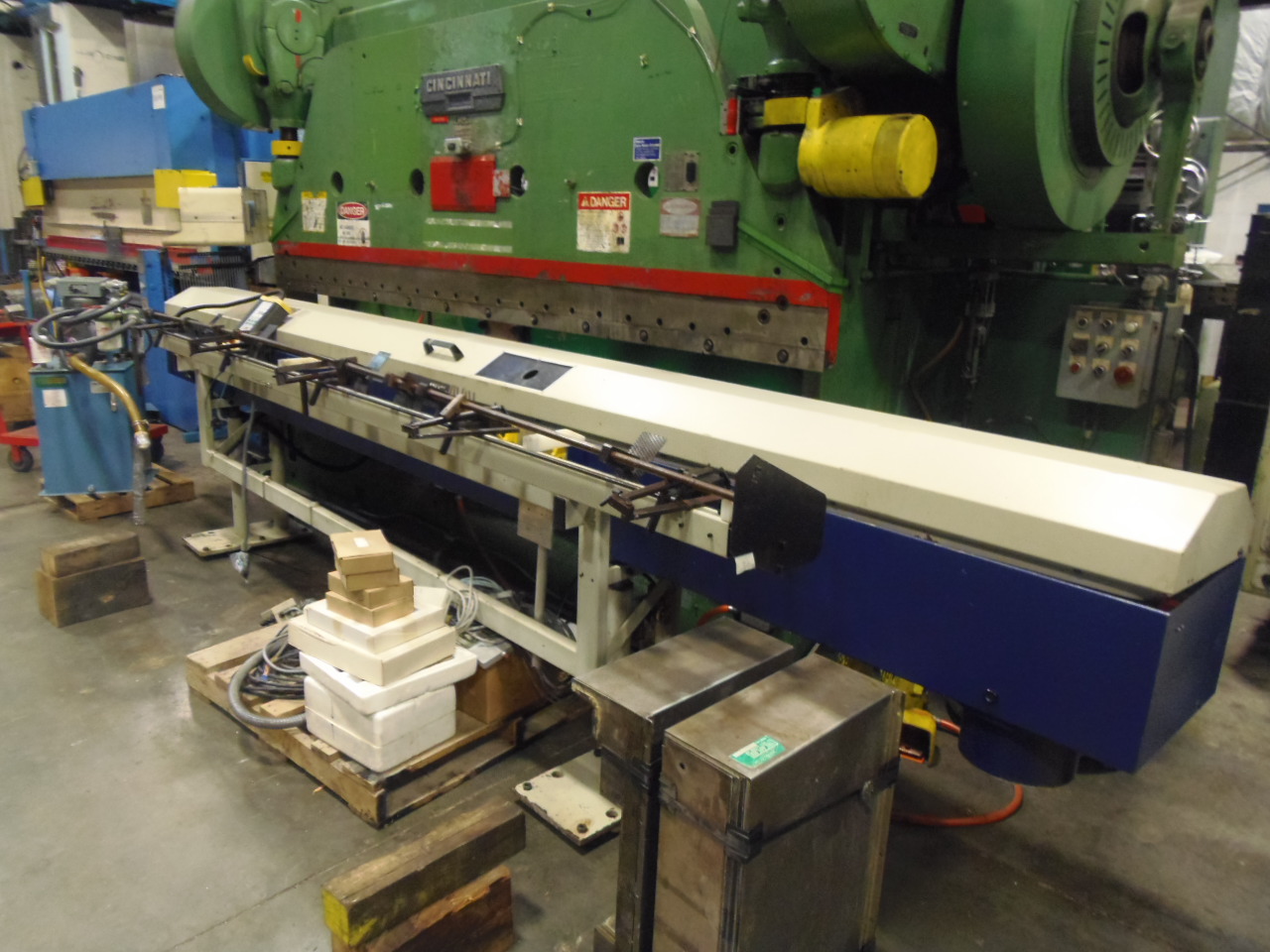

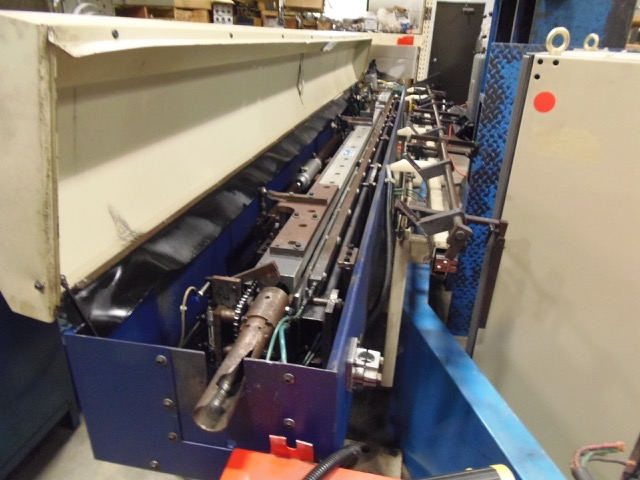

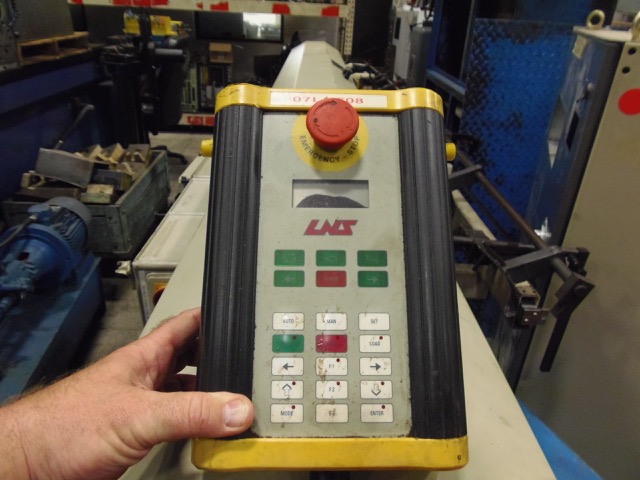

LNS HYDRAULIC BAR FEED

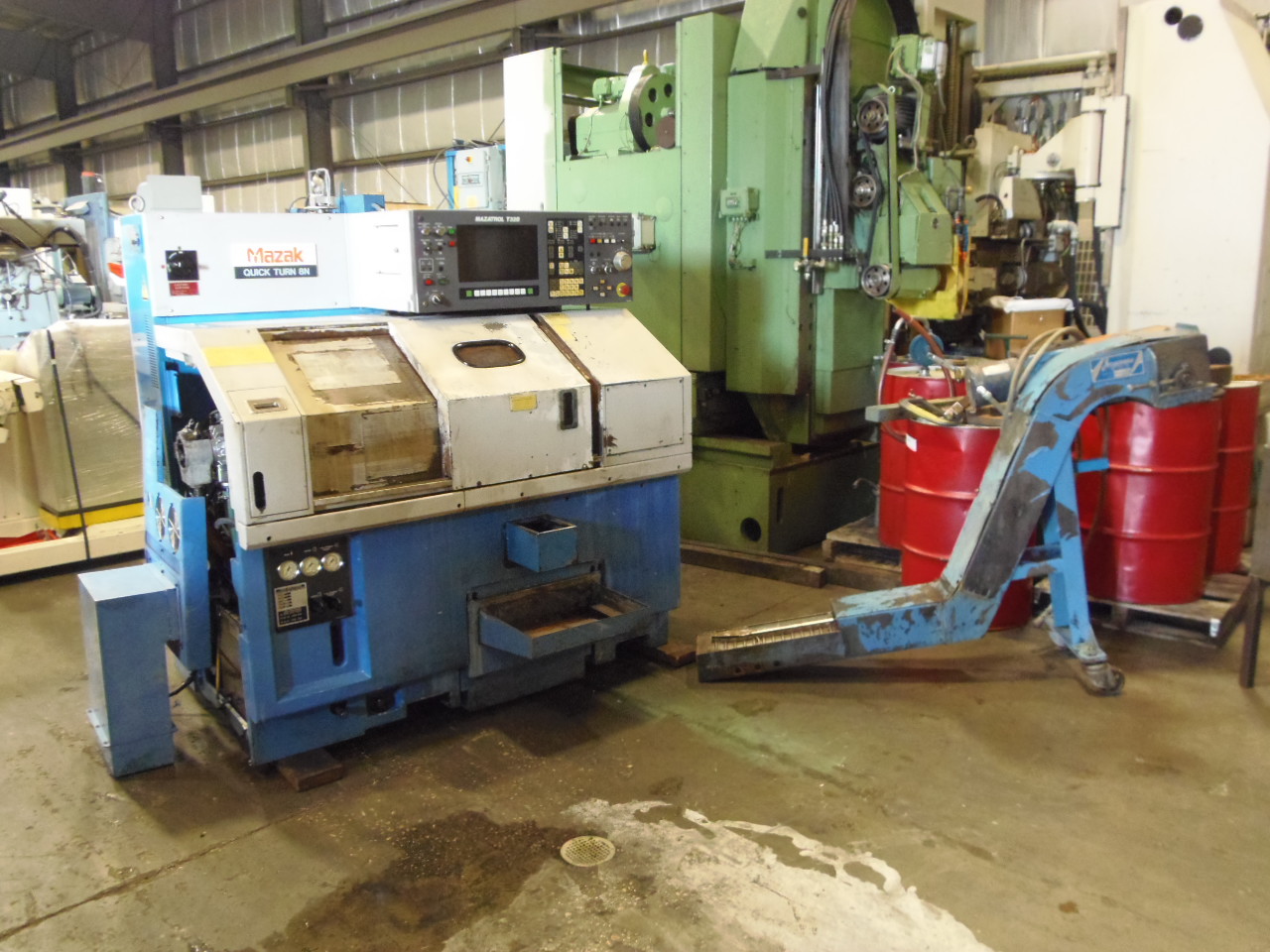

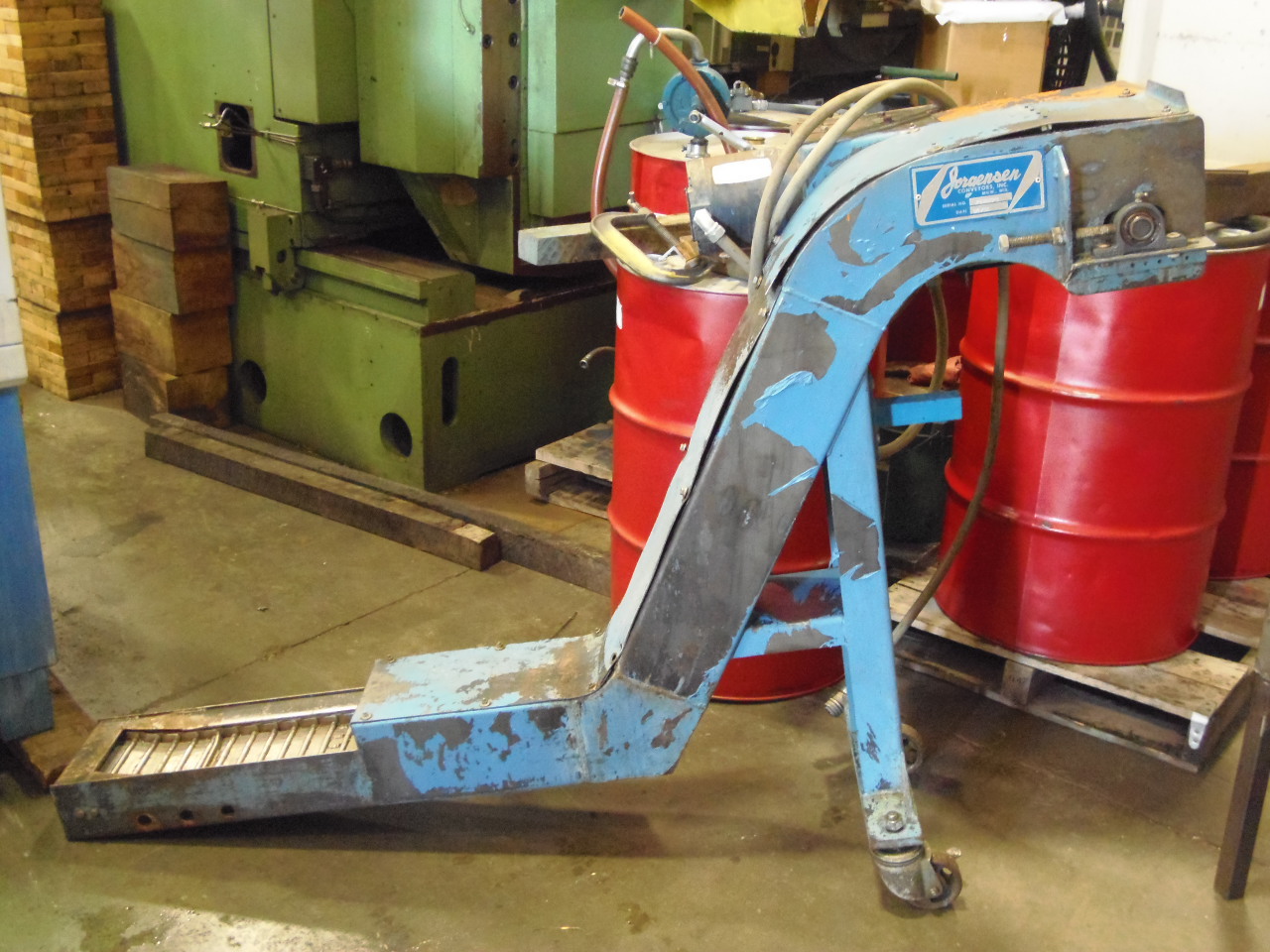

CHIP CONVEYOR
