GENERAL SPECIFICATIONS:

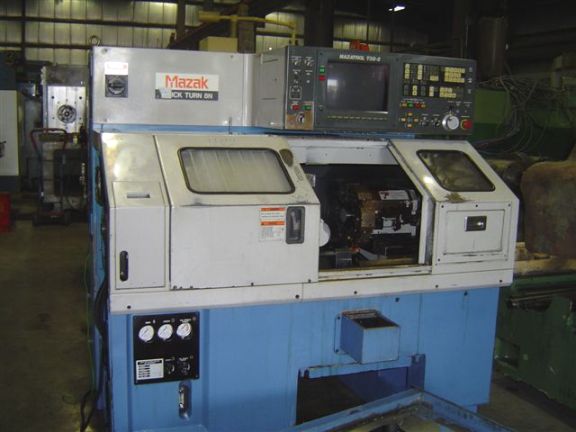

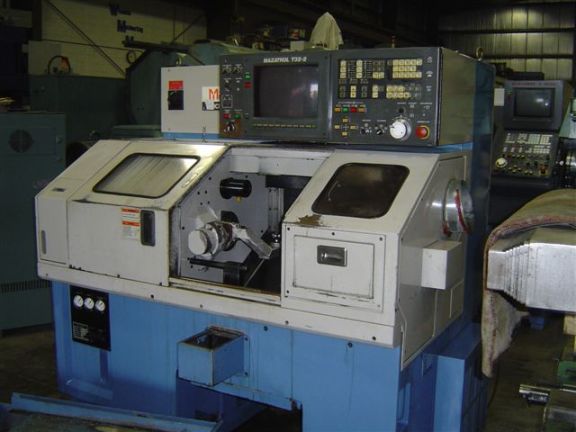

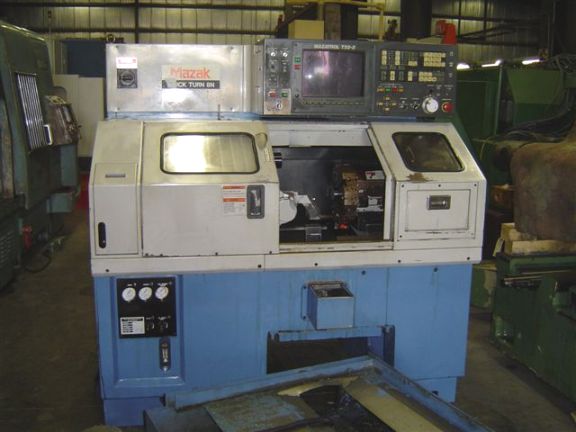

MODEL # QUICK TURN 8N
NEW APPROXIMATELY 1990
SERIAL# 86037
MAXIMUM SWING 11"
MAXIMUM TURNING DIAMETER 6.3"
MAXIMUM TURNING LENGTH 11.91"
X AXIS TRAVEL 4.33"
Z AXIS TRAVEL 11.22"
RAPID TRAVERSE RATE X AXIS 945 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
SPINDLE NOSE A2-5
SPINDLE BORE 1.96"
SPINDLE SPEEDS 60 - 6,000 RPM
SPINDLE MOTOR 10 HP AC
TURRET CAPACITY 8 STATION TURRET
TAILSTOCK BODY TRAVEL 9"
TAILSTOCK QUILL TAPER MT #3
TAILSTOCK QUILL TRAVEL 3.74"
ELECTRICS 230 / 460 VOLTS
WEIGHT APPROXIMATELY 6700 LBS.
EQUIPPED WITH:
MAZATROL T-32-2 CONVERSATIONAL CNC CONTROL WITH 9" CRT
TOOL SETTER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
TAILSTOCK
PARTS CATCHER
