MAZAK QT-20 UNIVERSAL LATHE, 20 INCH SWING, 3.15 INCH BORE, 40.75 INCH CUTTING LENGTH, MAZOTROL T-1 CONTROL

GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK
MODEL QT-20
SERIAL # 5-6487
NEW (APPROX.) 1984
MAX. SWING 20"
MAX. CUTTING DIA. 12"
MAX. CUTTING LENGTH 40.75"
SPINDLE BORE DIA. 3.15"
SPINDLE NOSE JIS A2-8
SPINDLE SPEEDS 12 - 3000 RPM

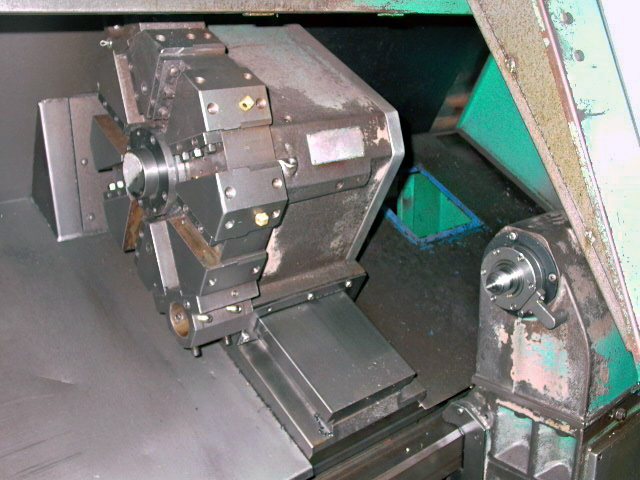

TURRET CONFIGURATION SQUARE MULTI-TOOL
X-AXIS 7.1"
Z-AXIS 41.14"
RAPID TRAVERSE X 390 IPM
RAPID TRAVERSE Z 590 IPM
TAILSTOCK DIA. 3.94"
TAILSTOCK CENTER MT. NO. 4
TAILSTOCK STROKE 5.12"
TAILSTOCK BODY 34.5"
MAIN MOTOR 20 HP
ELECTRICAL CAP. 34.7 KVA
VOLTS 480
MACHINE WEIGHT 11,700 LBS.

EQUIPPED WITH:

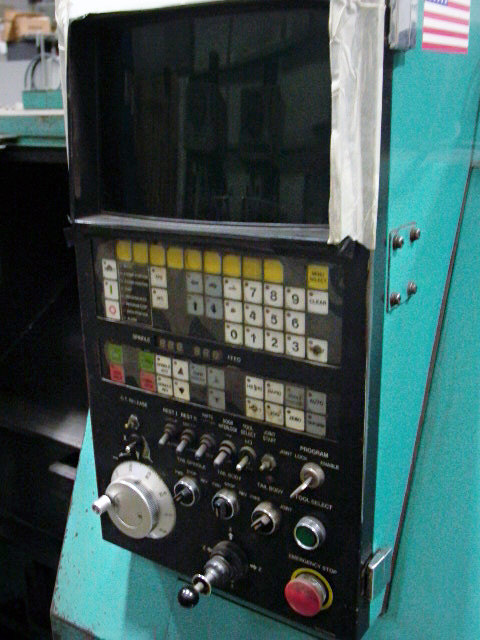

MAZATROL T-1 CNC CONTROL
PROGRAMMABLE TAILSTOCK (BODY & QUILL)

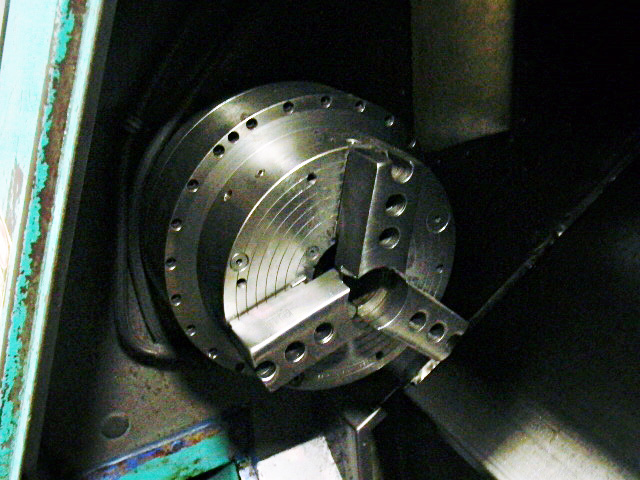

10" 3-JAW CHUCK - AIR OPERATED/FOOT PEDAL
CHIP PAN
