Specifications
Equipped With
GENERAL SPECIFICATIONS:

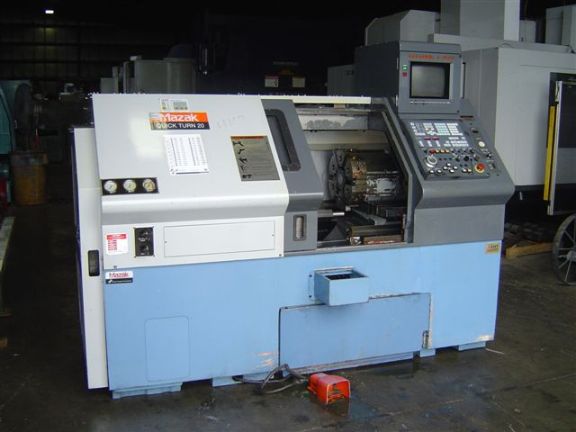

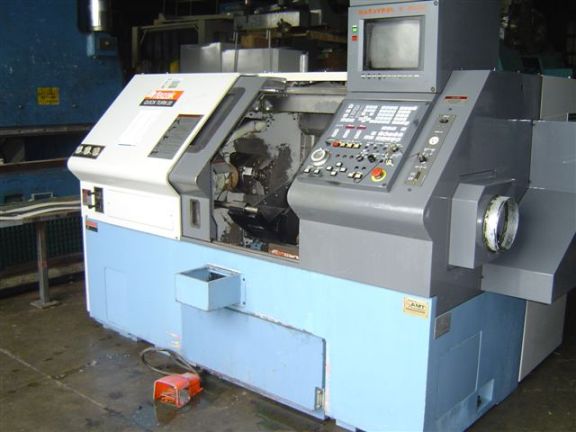

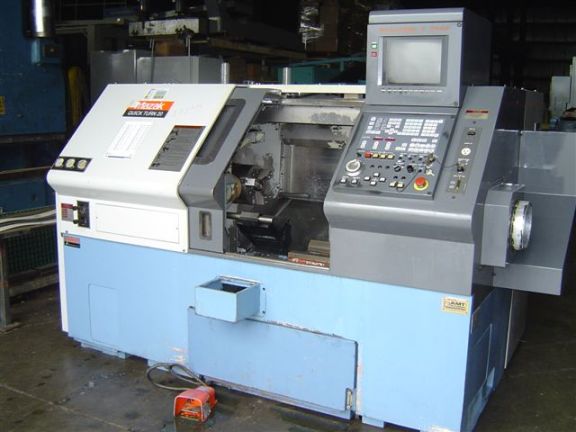

MANUFACTURER MAZAK
MODEL QTN-20
SERIAL# 115923
AGE APPROXIMATELY 1995
SWING OVER BED 17.32"
MAXIMUM TURNING DIAMETER 10.81"
MAXIMUM TURNING LENGTH (SHAFT WORK) 20.08"
X AXIS TRAVEL 7.09"
Z AXIS TRAVEL 20.08"
RAPID TRAVERSE RATE X AXIS 1200 IPM
RAPID TRAVERSE RATE Z AXIS 1300 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.44"
SPINDLE SPEEDS 50 - 5,000 RPM
SPINDLE MOTOR 20 HP AC

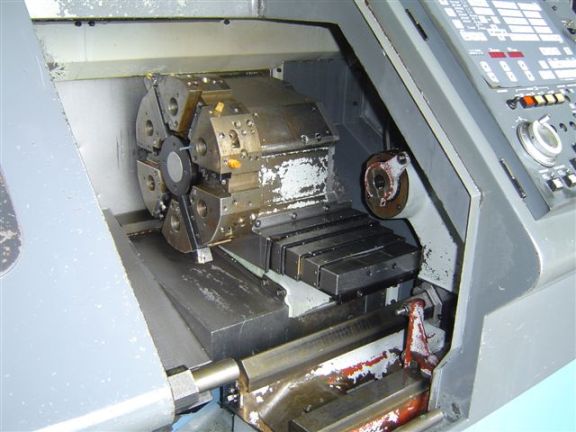

TURRET CAPACITY 12 STATION TURRET
TAILSTOCK BODY TRAVEL 18.1"
TAILSTOCK QUILL TRAVEL / DIAMETER 5.12" / 3.15"
EQUIPPED WITH:

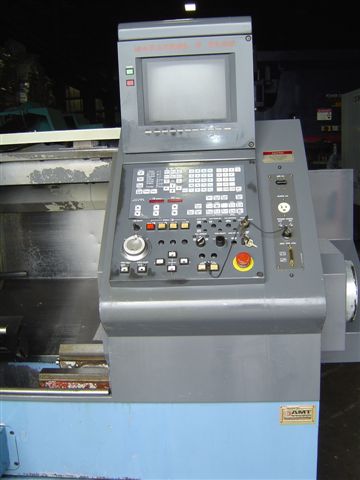

MAZATROL T-PLUS CONVERSATIONAL CNC CONTROL W/9" COLOR CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

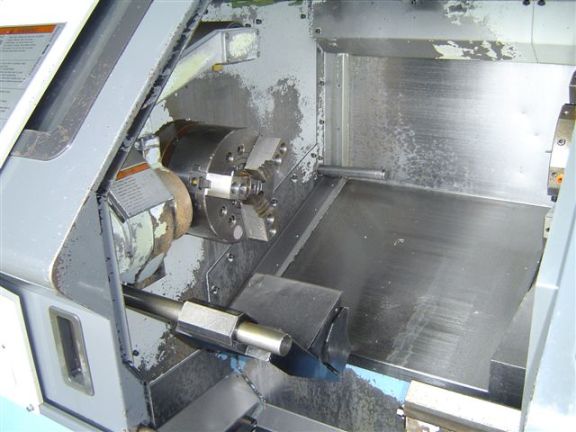

8" 3-JAW HYDRAULIC CHUCK WITH JAWS
MULTI-TAP TRANSFORMER
PARTS CATCHER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
