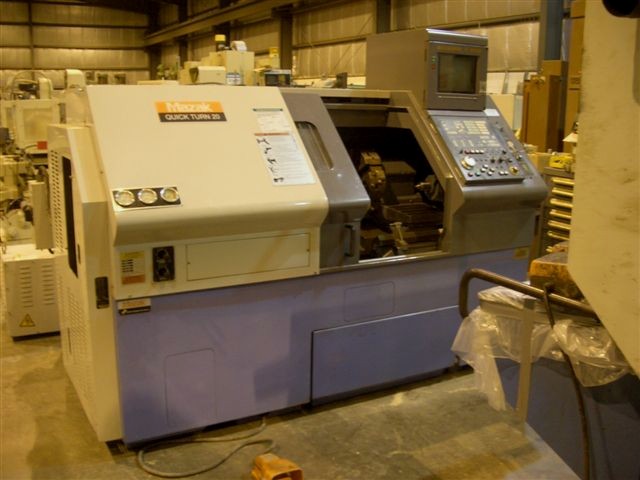

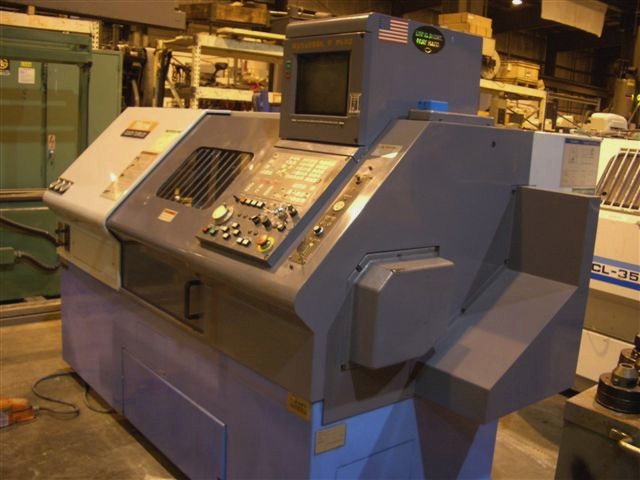

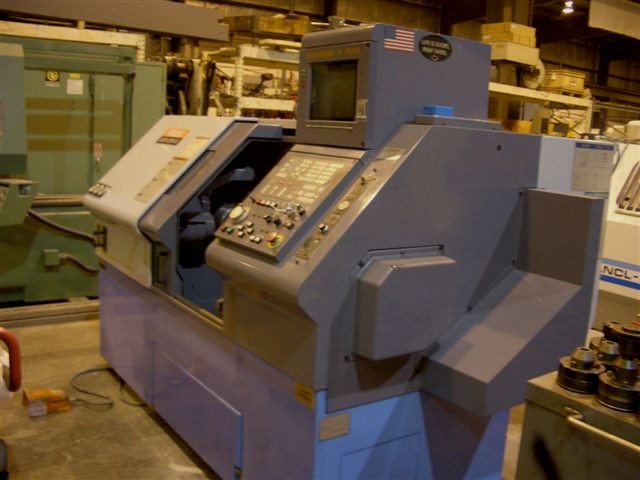

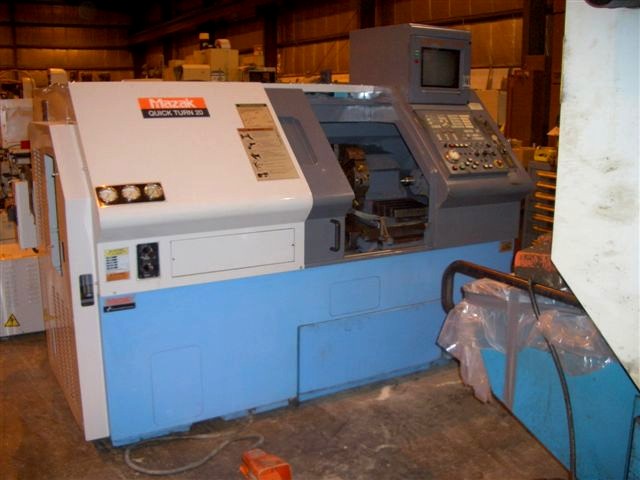

MAZAK QT-20, 17.32" SW, 10.81" TURNING DIA., 2.4" BORE, A2-6 SPDL NOSE, 7.09"-X, 20.08"-Z, 20 HP, 1997

GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK
MODEL QT-20
SERIAL # 128873
NEW (APPROX.) 1997
MAX. SWING 17.32"
MAX. TURNING DIA. 10.81"
MAX. SHAFT LENGTH 20.08"
SPINDLE BORE DIA. 2.8"
MAX. BAR CAPACITY 2"
SPINDLE NOSE A2-6
SPINDLE SPEEDS 50 - 5000 RPM

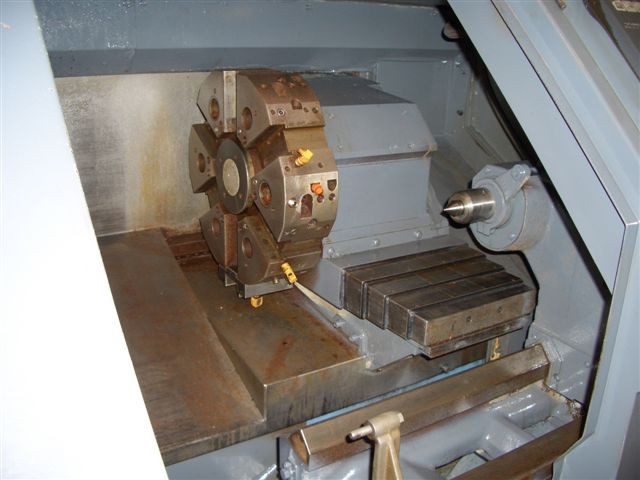

TURRET CONFIGURATION 8 POSITION
X-AXIS 7.09"
Z-AXIS 20.08"
RAPID TRAVERSE X 1200 IPM
RAPID TRAVERSE Z 1300 IPM
TAILSTOCK DIA. 3.15"
TAILSTOCK STROKE 5.12"
TAILSTOCK BODY 18.1"
MAIN MOTOR 20 HP

EQUIPPED WITH:

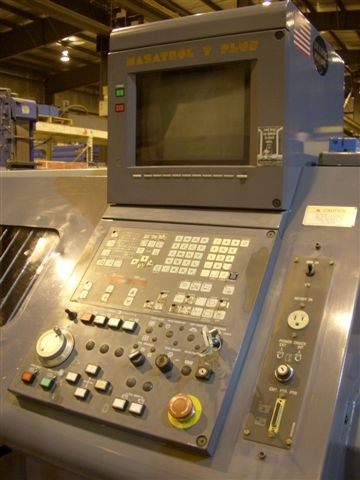

MAZATROL T-PLUS CNC CONVERSATIONAL CONTROL
PROGRAMMABLE TOOL EYE
PROGRAMMABLE TAILSTOCK (BODY & QUILL)
8" 3-JAW HYD. CHUCK
CHIP COVNEYOR
