GENERAL SPECIFICATIONS:

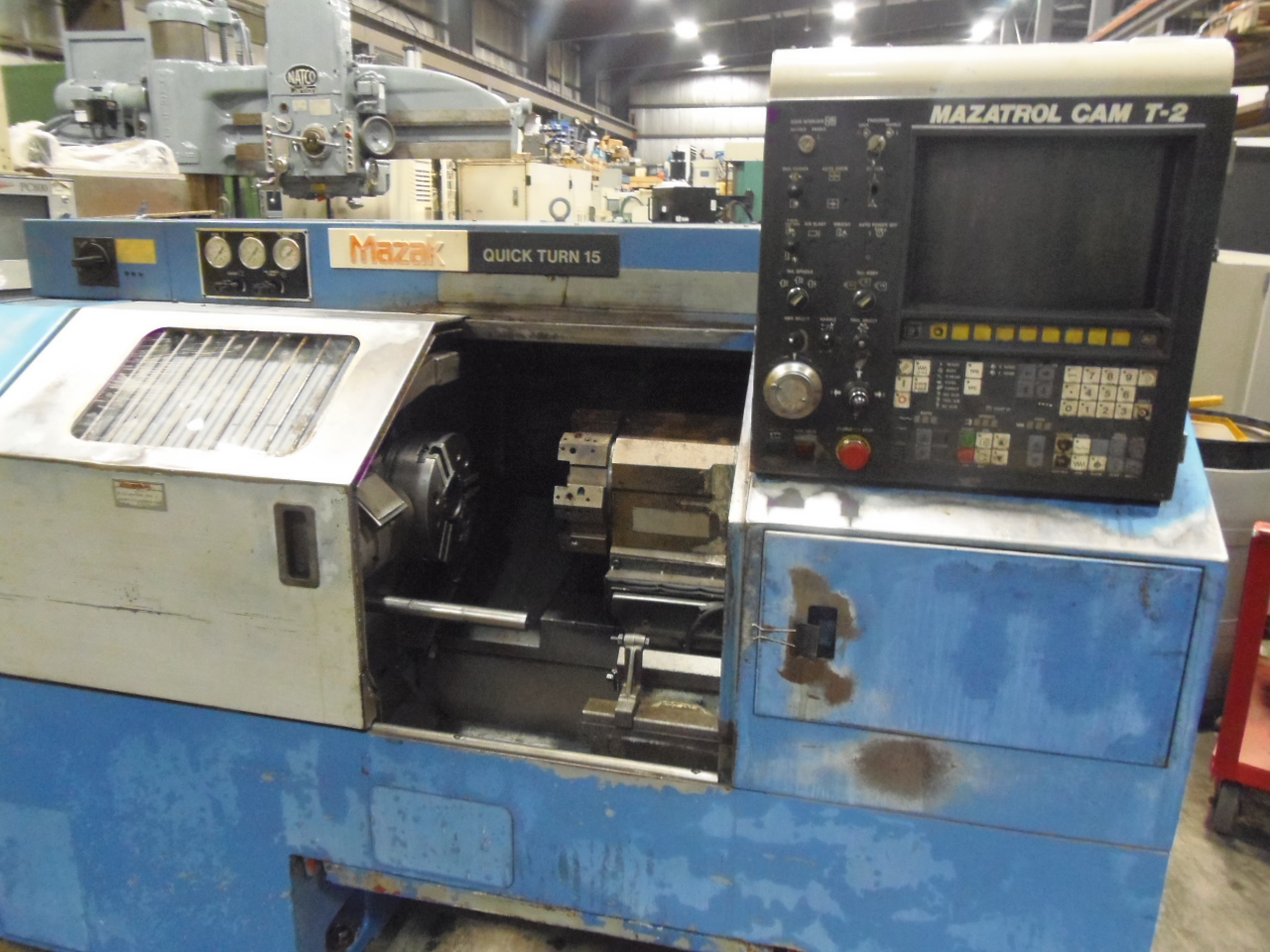

MANUFACTURER....................... MAZAK
MODEL.............................. QT 15 UNIVERSAL
AGE APPROXIMATELY.................. 1989

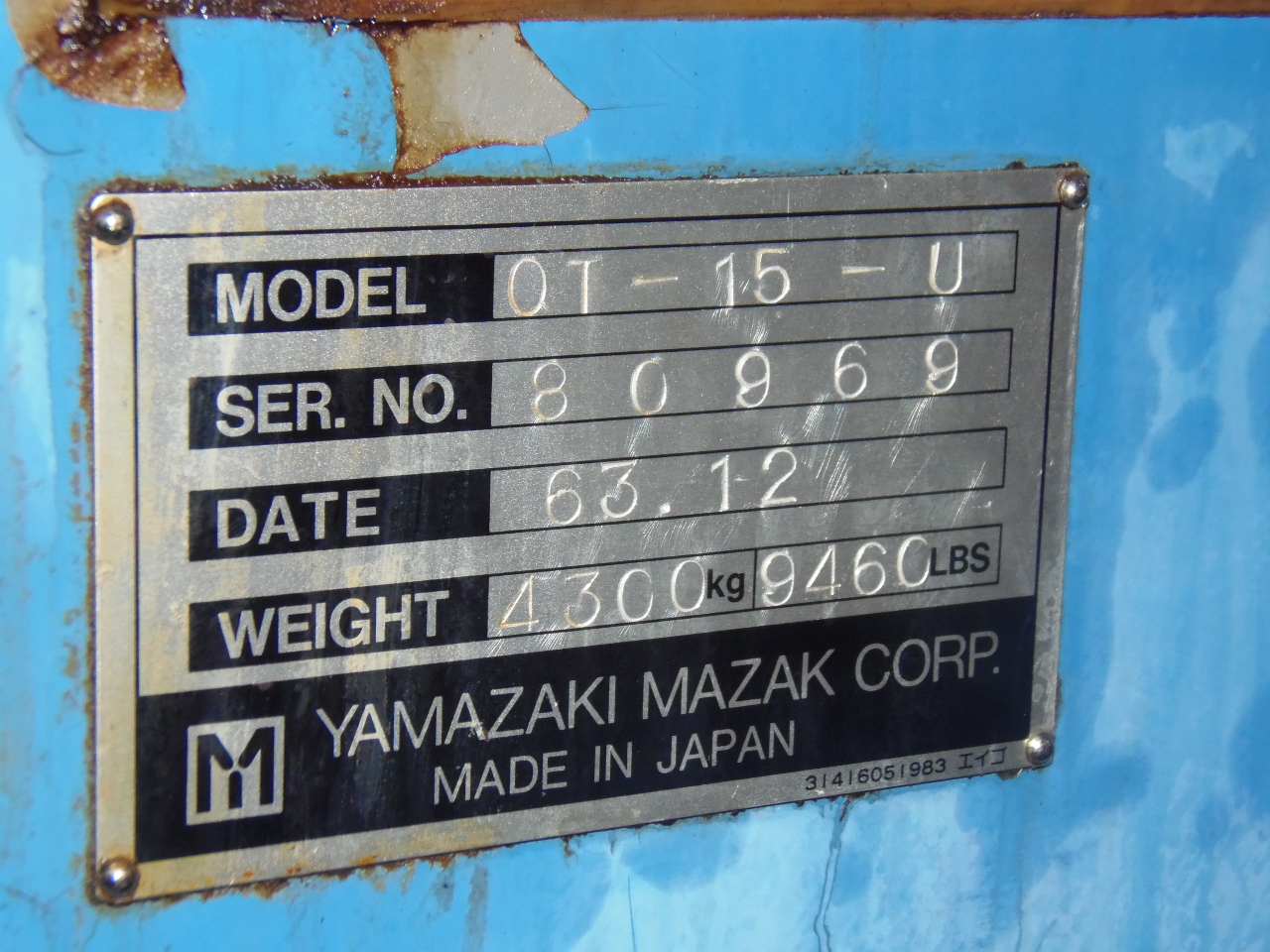

SERIAL#............................ 80969
SWING OVER BED..................... 17.3"
MAXIMUM TURNING DIAMETER........... 10.6"
SIZE OF HYDRAULIC CHUCK............ 10"
MAXIMUM TURNING LENGTH............. 20"
X AXIS TRAVEL...................... 6.1"
Z AXIS TRAVEL...................... 20.1"
RAPID TRAVERSE RATE X AXIS......... 472 IPM
RAPID TRAVERSE RATE Z AXIS......... 944 IPM
SPINDLE NOSE....................... A2-6
SPINDLE BORE....................... 2.44"
SPINDLE SPEEDS (FOR 10" CHUCK)..... 36 - 3,000 RPM
SPINDLE MOTOR...................... 20 HP AC

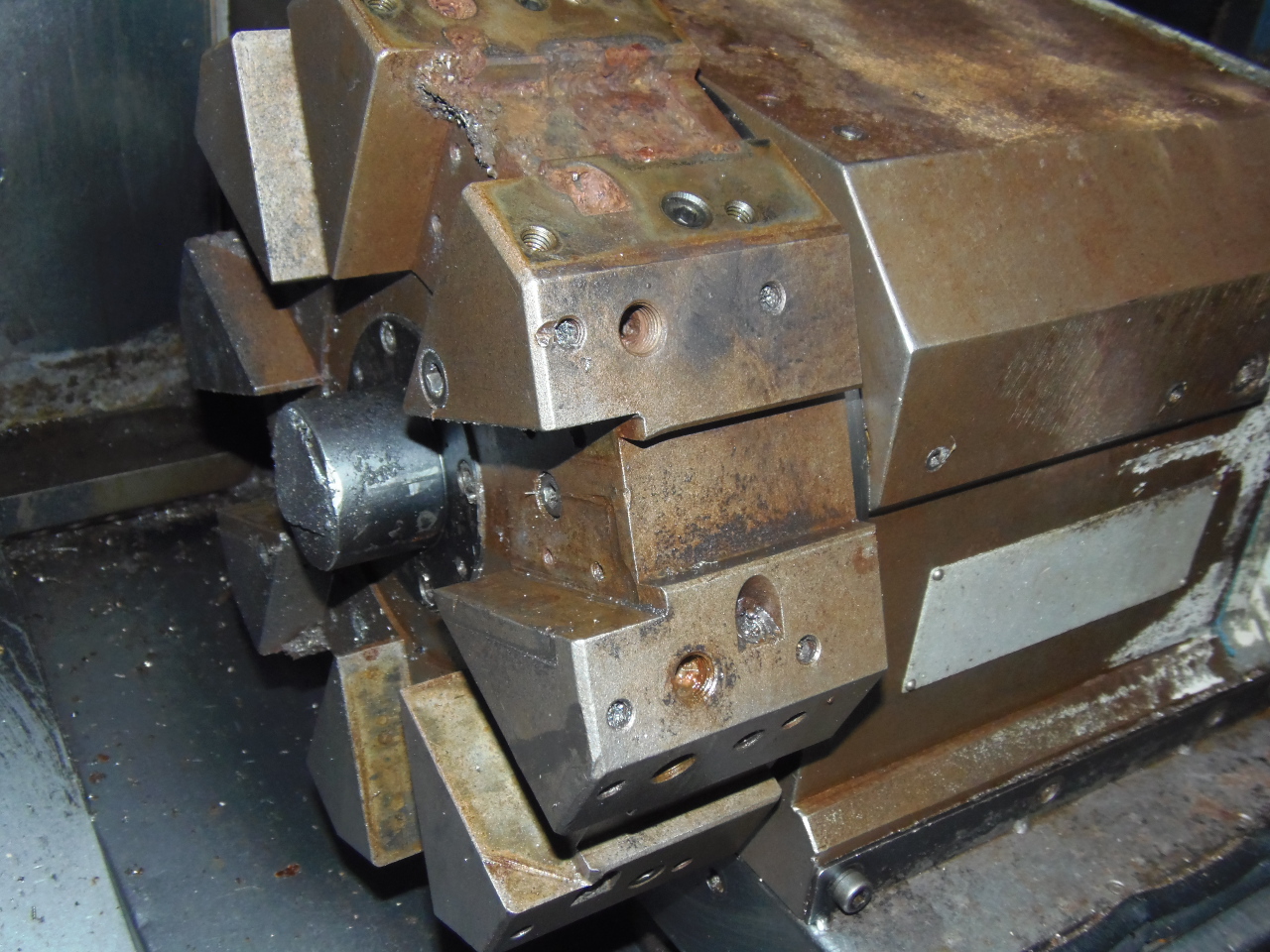

TURRET CAPACITY.................... 8 STATION TURRET

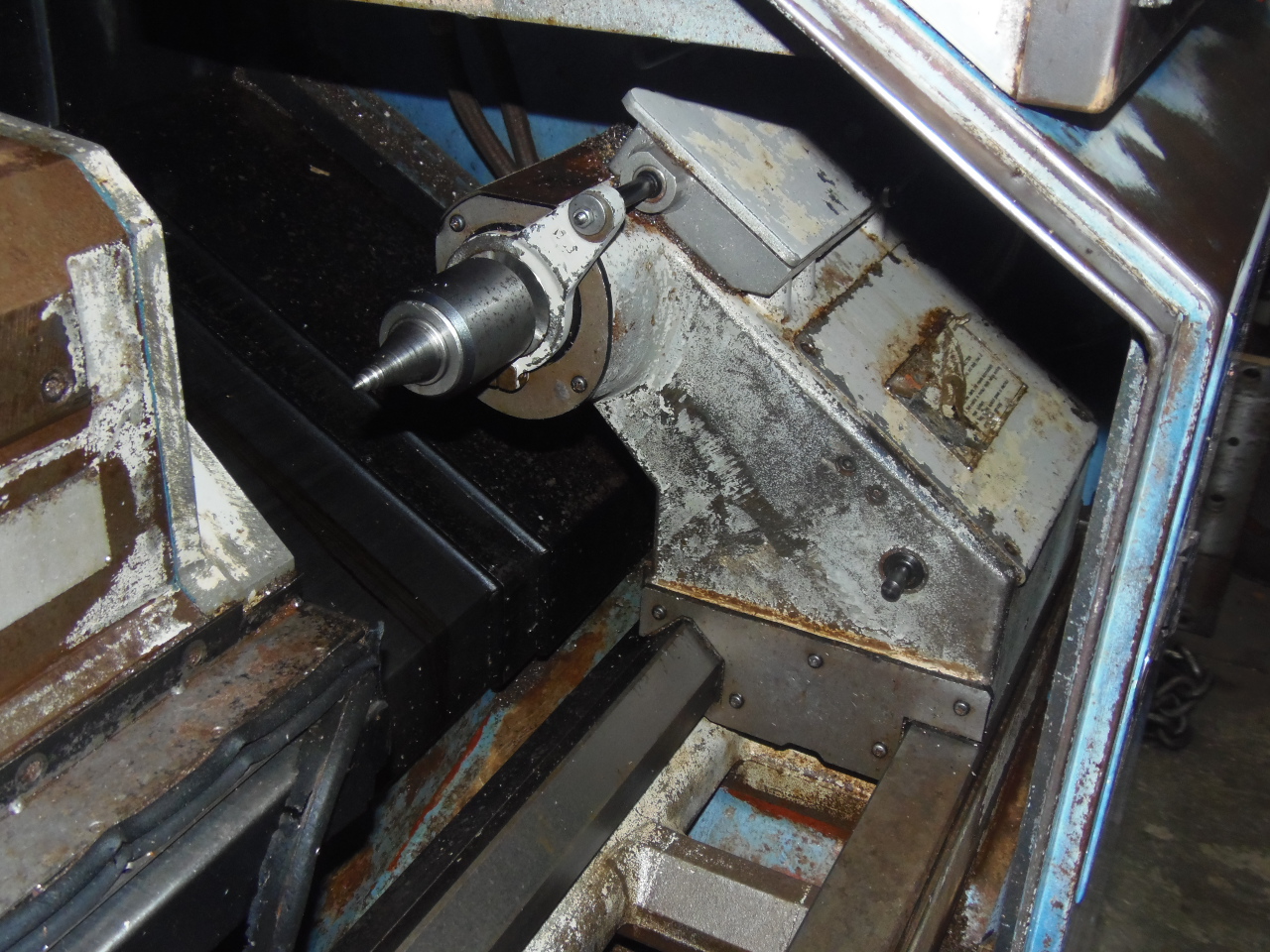

TAIL STOCK BODY TRAVEL............. 18.9"
TAIL STOCK QUILL TRAVEL............ 3.15"
WEIGHT APPROXIMATELY............... 9500 LBS
* SOLD AS IS *
EQUIPPED WITH:

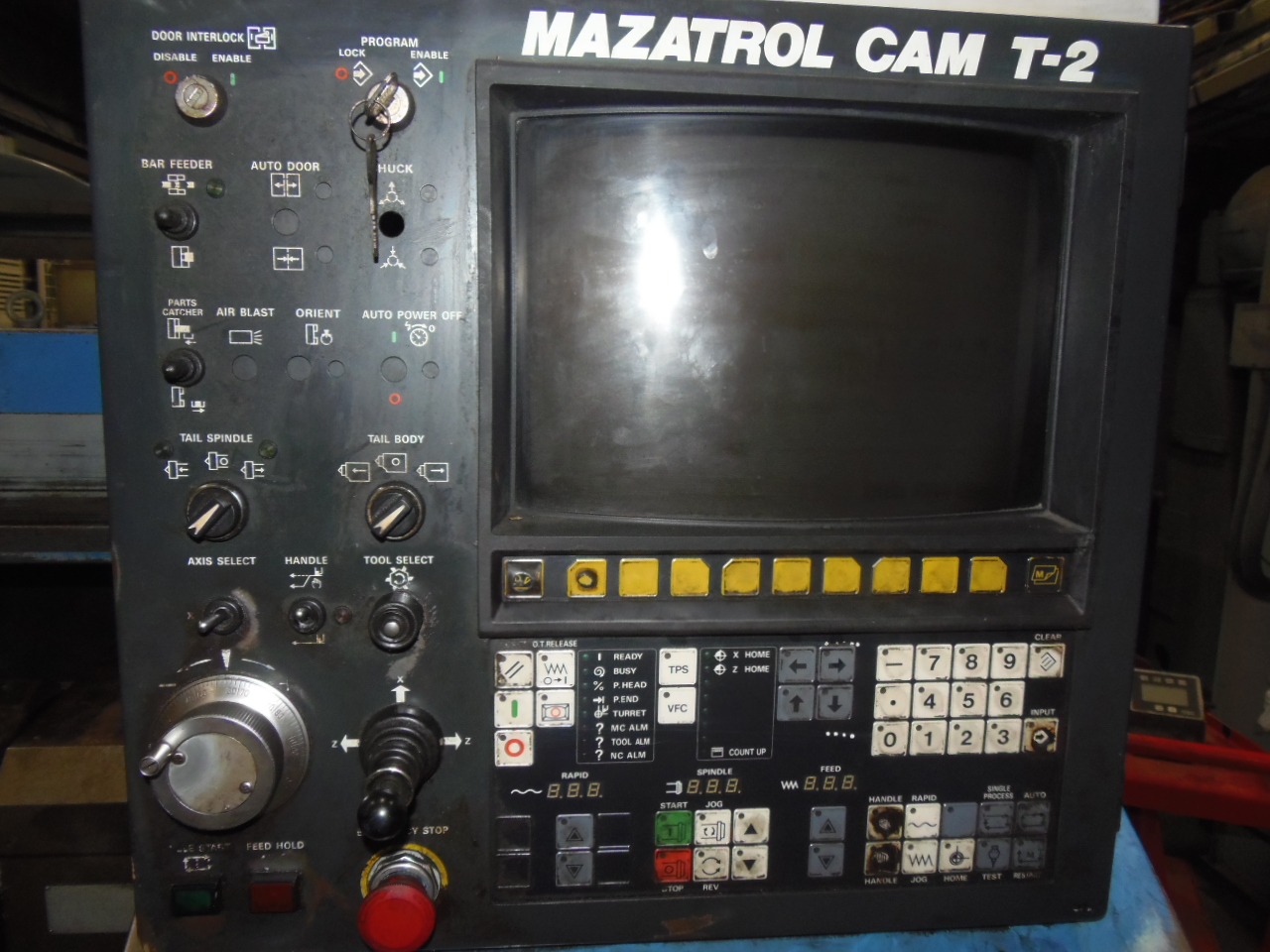

MAZATROL CAM T-2 CONVERSATIONAL CNC CONTROL W/12" CRT

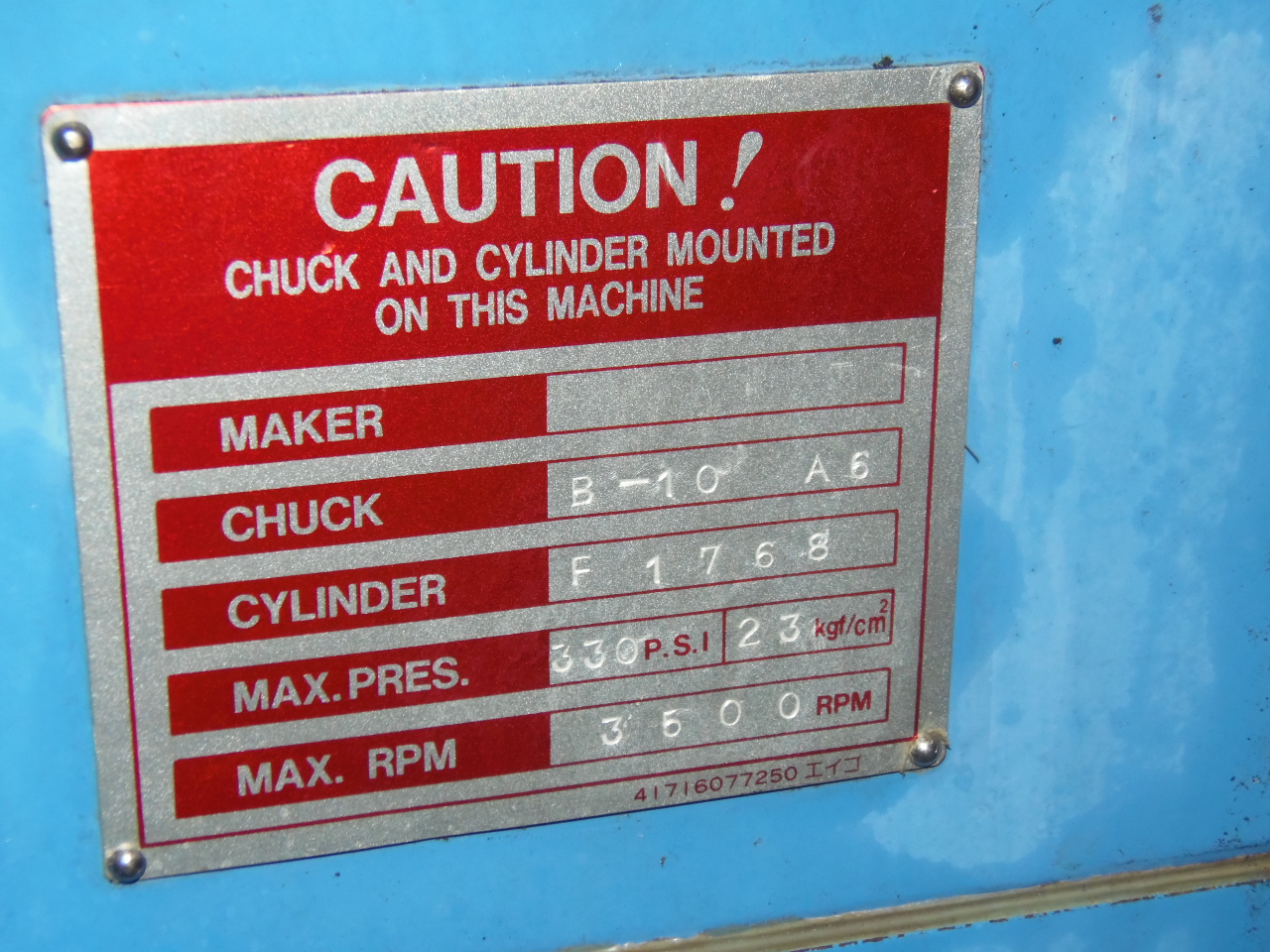

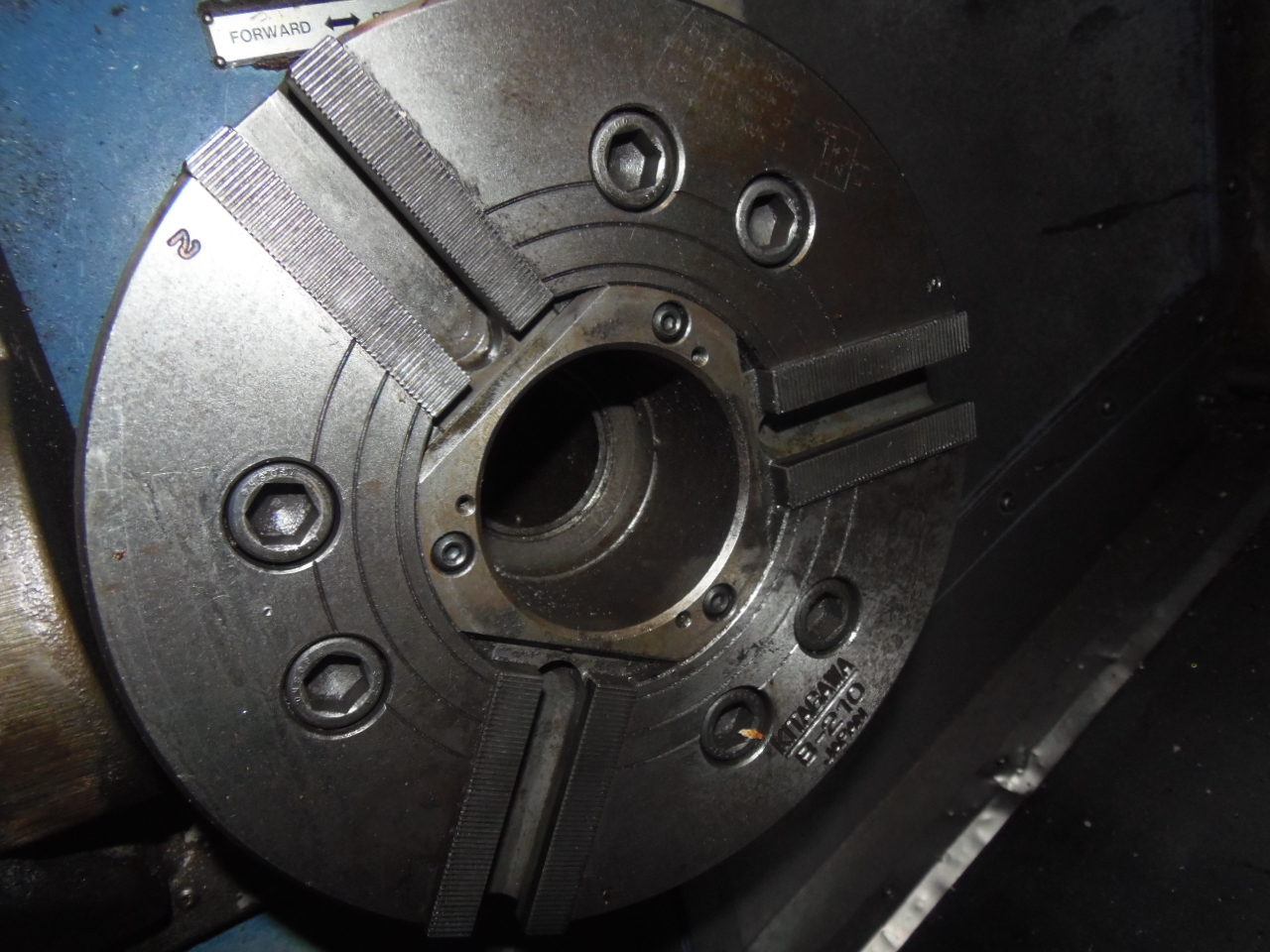

10" KITAGAWA B-210 HYDRAULIC 3 JAW CHUCK
STANDARD COOLANT SYSTEM WITH TANK & PUMP
