Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK
MODEL QT 15 UNIVERSAL
AGE APPROXIMATELY 1989
SERIAL# 83439
SWING OVER BED 17.3"
MAXIMUM TURNING DIAMETER 10.6"
MAXIMUM TURNING LENGTH (SHAFT WORK) 20"
X AXIS TRAVEL 6.1"
Z AXIS TRAVEL 20.1"
RAPID TRAVERSE RATE X AXIS 472 IPM
RAPID TRAVERSE RATE Z AXIS 944 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.44"
SPINDLE SPEEDS (FOR 10" CHUCK) 36 - 3,000 RPM
SPINDLE MOTOR 20 HP AC

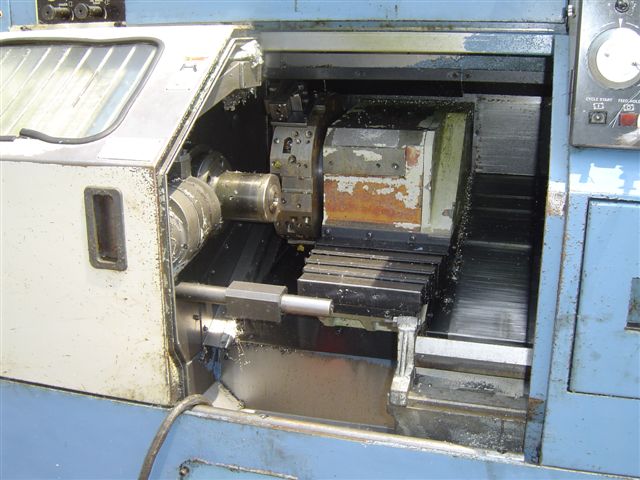

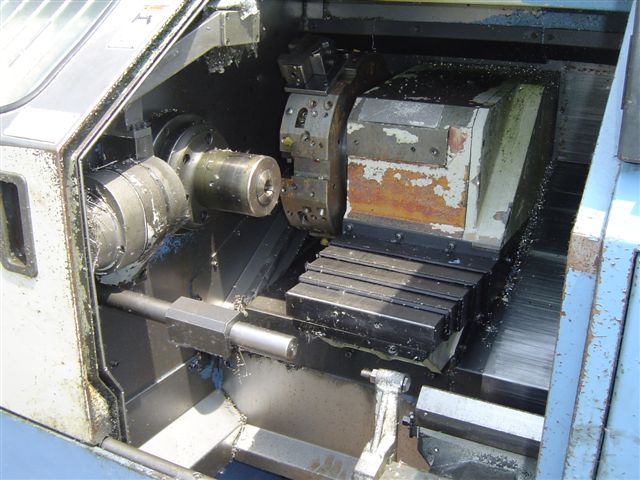

TURRET CAPACITY 8 STATION TURRET

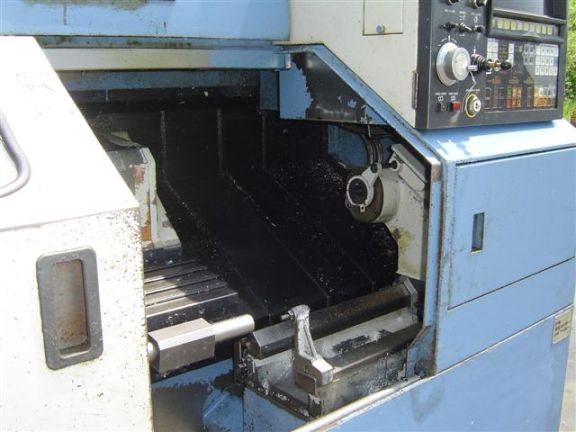

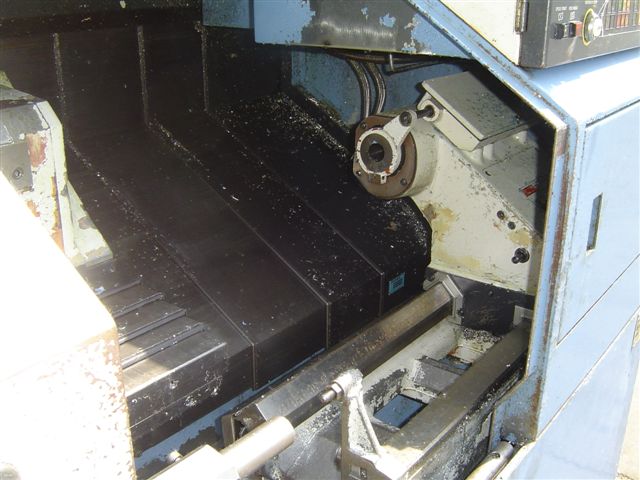

TAILSTOCK BODY TRAVEL 18.9"
TAILSTOCK QUILL TRAVEL / DIAMETER 5.12" / 3.15"
WEIGHT APPROXIMATELY 9020 LBS
EQUIPPED WITH:

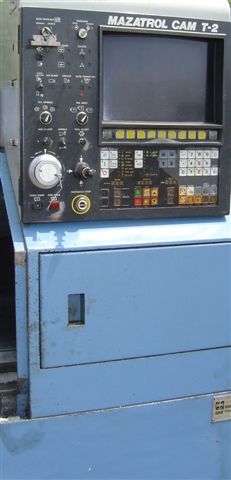

MAZATROL T-2 CONVERSATIONAL CNC CONTROL W/12" COLOR CRT
AUTO PARTS CATCHER
STANDARD COOLANT SYSTEM WITH TANK & PUMP
COLLET NOSE
