GENERAL SPECIFICATIONS:

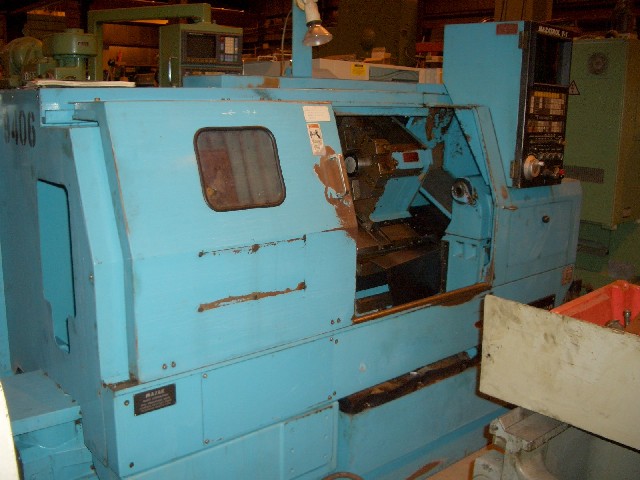

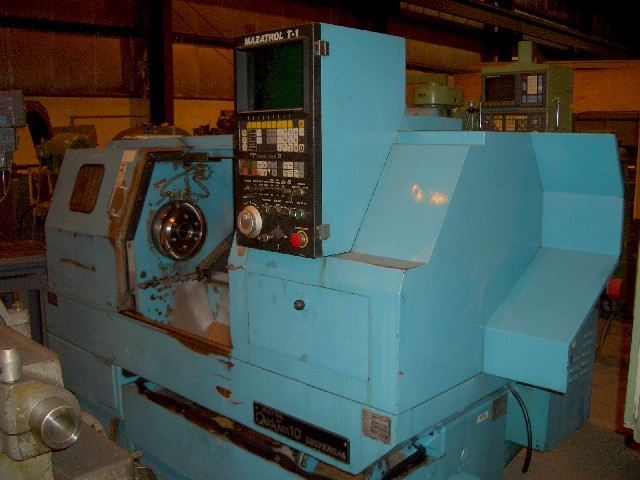

MODEL QT-10 UNIVERSAL
SERIAL 58093
AGE 1984
SWING OVER BED 17.32"
MAXIMUM TURNING DIAMETER 9.8"
MAXIMUM TURNING LENGTH 19.69"
X AXIS TRAVEL 6.1"
Z AXIS TRAVEL 21.4"
RAPID TRAVERSE RATE X AXIS 393.7 IPM
RAPID TRAVERSE RATE Z AXIS 393.7 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.2"
SPINDLE SPEEDS 30 - 3,600 RPM
SPINDLE MOTOR 10 HP AC

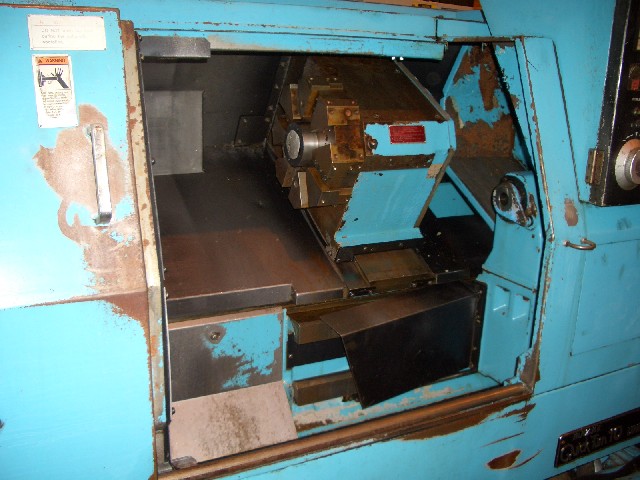

TURRET CAPACITY 8 STATION TURRET
TAILSTOCK QUILL DIAMETER 3.15"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 3.93"
EQUIPPED WITH:

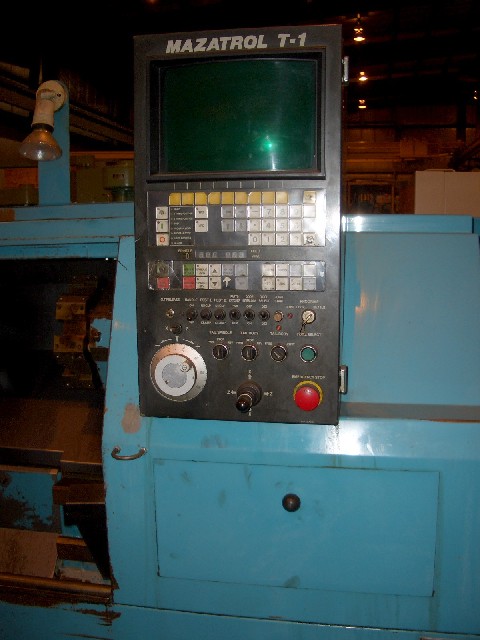

MAZATROL T-1 CONVERSATIONAL CNC CONTROL WITH 9" CRT
STANDARD COOLANT SYSTEM WITH TANK & PUMP
ALL AVAILABLE MANUALS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
