GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK
MODEL PMC1600
NEW (APPROX.) 1982 (RETRO-FIT 2007)
SWING OVER BED 42"
SWING OVER GAP 50"
WIDTH OF GAP 20"
MAX. WORK DIAMETER 38"
MAX. DIST. BETWEEN TURRET/SPDL 63"
HOLE THRU SPINDLE 12.5"
SPINDLE NOSE A2-20
SPINDLE SPEED 1 - 500 RPM
MAX. WEIGHT OF WORK PIECE 2,650 LBS.
TURRET 8 SIDES
STROKE OF TURRET (X) 24.5"
STROKE OF TURRET (Z) 45"
BED WIDTH 23.62"
MAIN MOTOR 60 HP
WEIGHT (APPROX.) 22,500 LBS.
EQUIPPED WITH:

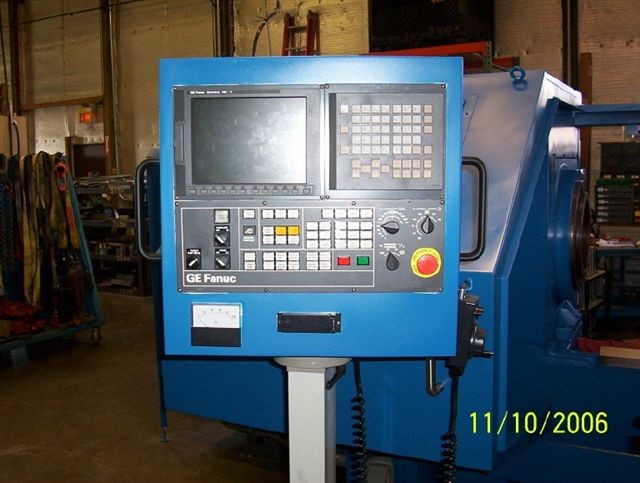

FANUC 18Ti CONTROL
AXIS DRIVE
HAND WHEEL
SPINDLE DRIVE
X & Z WAYS GROUND AND SCRAPPED
X & Z BALL SCREWS RECONDITIONED

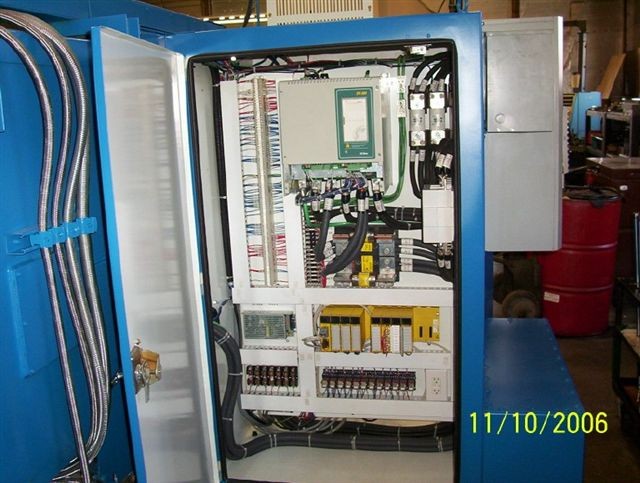

NEWLY FABRICATED MAG PANEL
AC UNIT FOR CONTROL

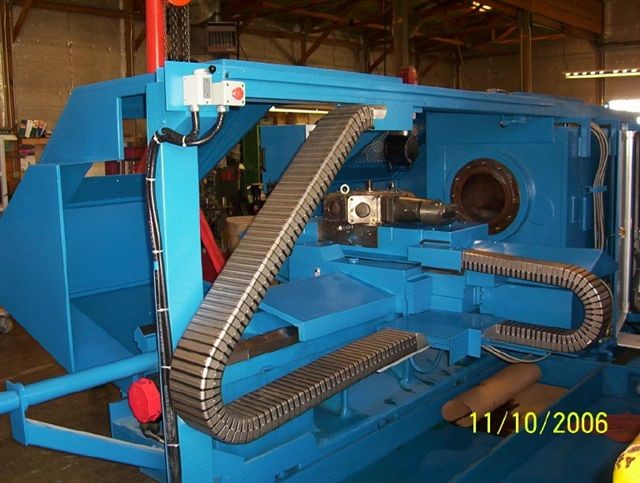

REBUILT X & Z AXIS

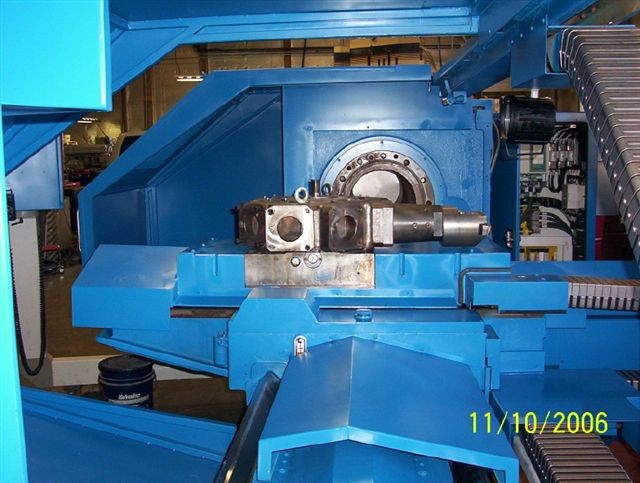

RECONDITIONED TURRET

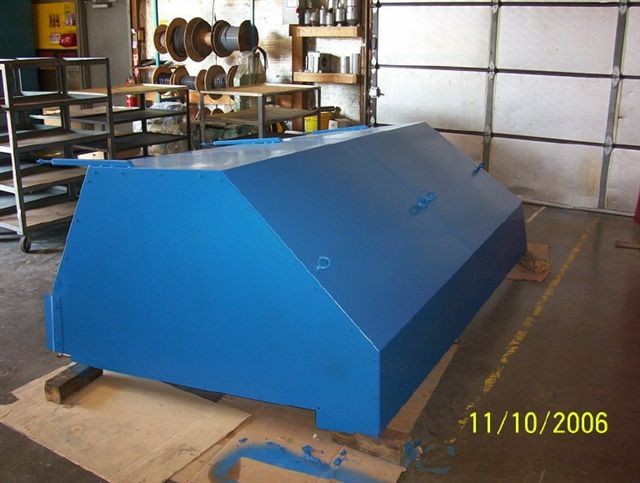

NEWLY FABRICATED SHEET METAL
HYDRAULIC PUMP
LASER TEST RESULTS
32" 3 JAW MANUAL CHUCK 4" CENTER HOLE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
