Specifications
Equipped With
GENERAL SPECIFICATIONS:
SWING OVER BED 36"
SWING IN GAP 42"
SWING OVER CARRIAGE WING 31"
TURRET FACE TO SPINDLE DIST. (MAX.) 63"
MAXIMUM TURNING DIAMETER 42"
X AXIS TRAVEL 24.5"
Z AXIS TRAVEL 45"
RAPID TRAVERSE RATE X AXIS 263 IPM
RAPID TRAVERSE RATE Z AXIS 263 IPM
SPINDLE NOSE A1-11
SPINDLE BORE 4.625"
SPINDLE SPEEDS 1 - 500 RPM
SPINDLE MOTOR 60 HP AC
TURRET CAPACITY 8 STATION TURRET
EQUIPPED WITH:
FANUC 6TA CNC CONTROL WITH 9" CRT

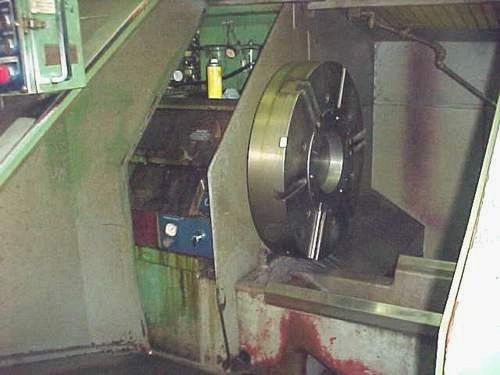

34" 3-JAW HYDRAULIC CHUCK WITH JAWS
PENDANT SYTLE OPERATOR CONTROL STATION
STANDARD COOLANT SYSTEM WITH TANK & PUMP
FULLY ENCLOSED SPLASH GUARDING
ALL AVAILABLE TOOL BLOCK HOLDERS
ALL AVAILABLE MANUALS
15' 6" LONG X 91" WIDE X 77" HIGH AND 17,500 LBS
