GENERAL SPECIFICATIONS:

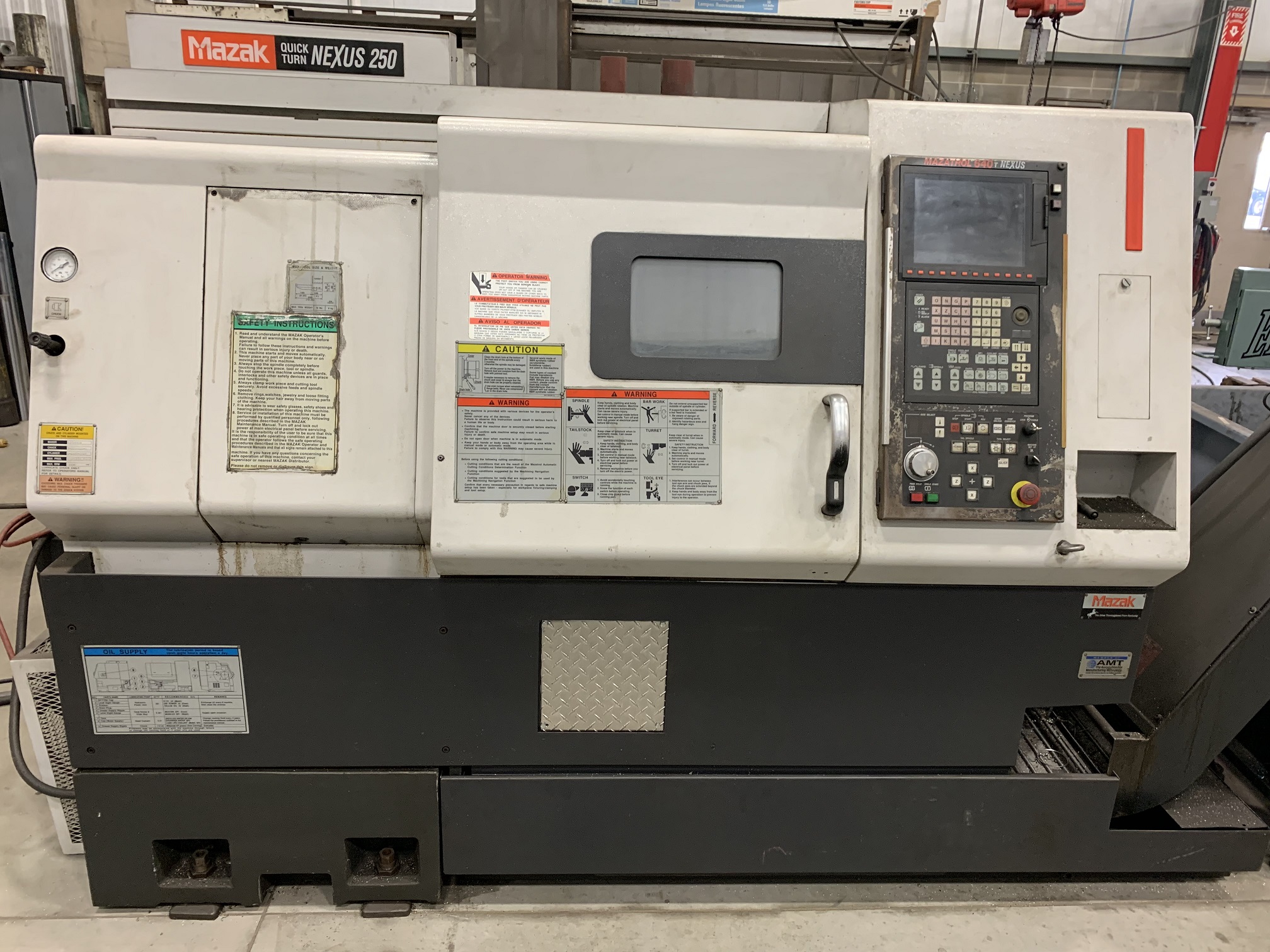

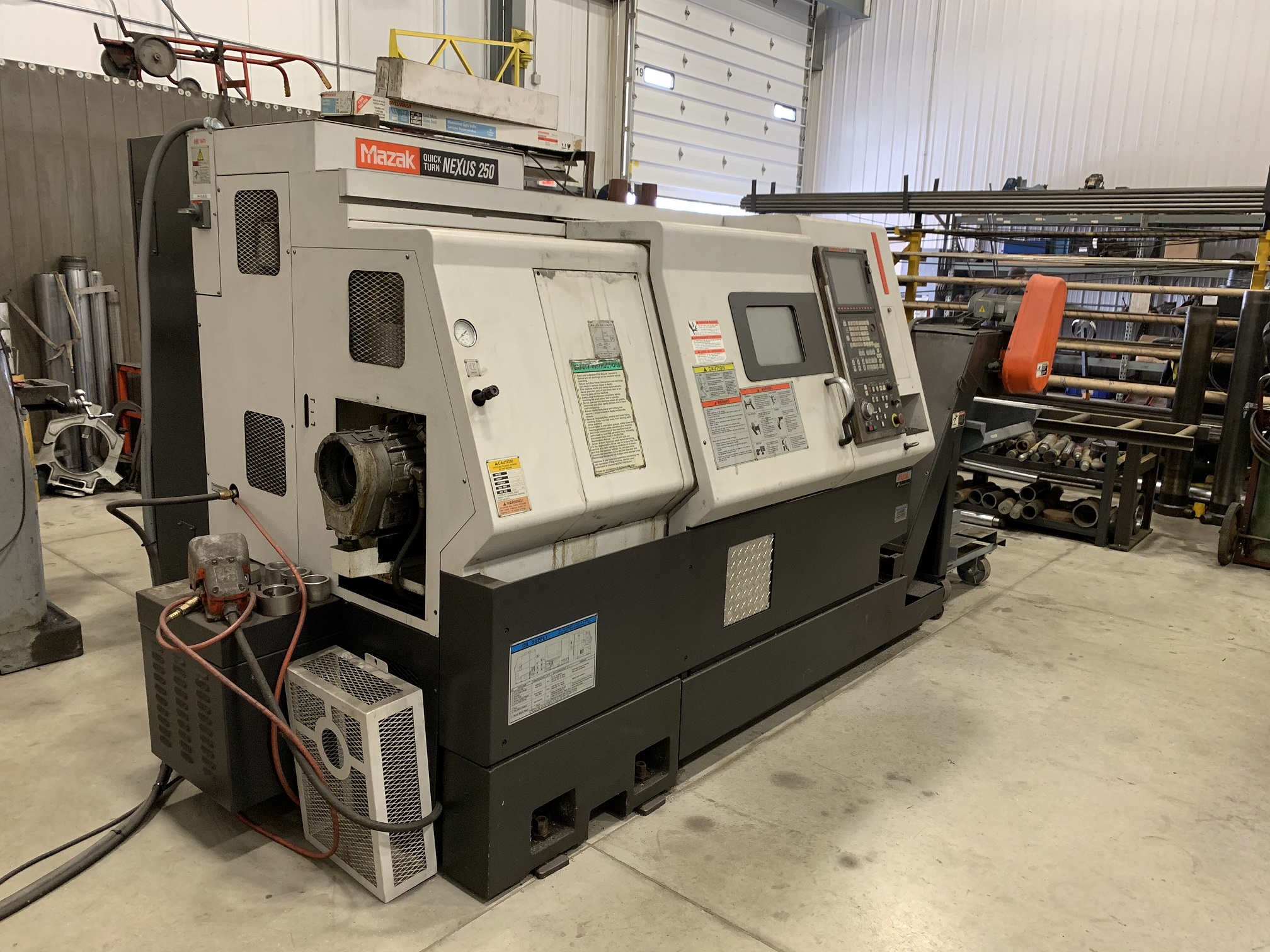

MANUFACTURER....................... MAZAK
MODEL.............................. NEXUS QT-250
AGE APPROXIMATELY.................. 2004
SWING OVER BED..................... 24"
MAXIMUM TURNING DIAMETER........... 14"

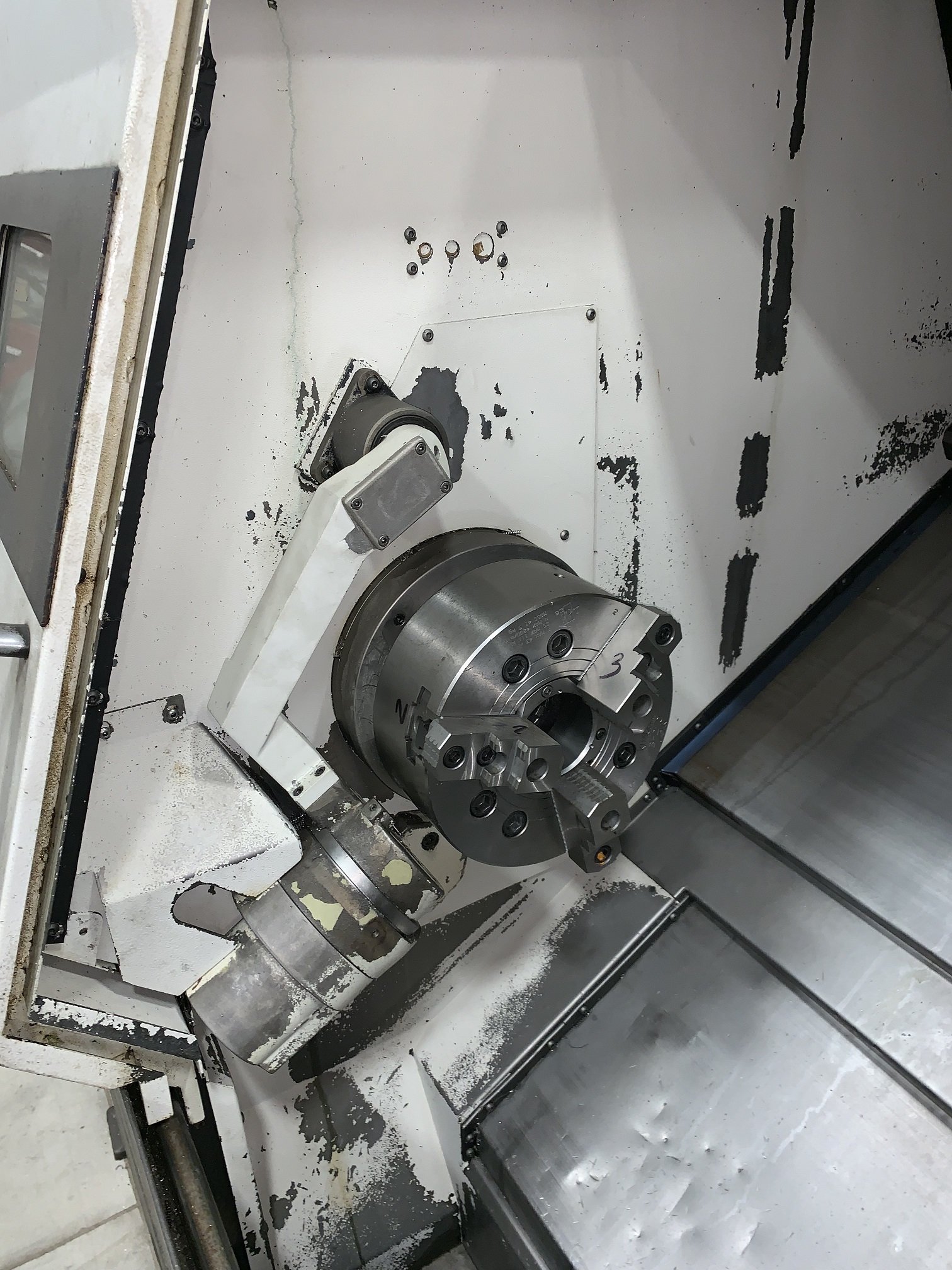

SIZE OF HYDRAULIC CHUCK............ 10"
MAXIMUM TURNING LENGTH............. 18.6"
RAPID TRAVERSE RATE ............... 1181 IPM
SPINDLE BORE....................... 3"
WORKABLE BAR DIAMETER.............. 2.875"
MAX. SPINDLE SPEED................. 4,000 RPM
SPINDLE MOTOR...................... 30 HP
WEIGHT APPROXIMATELY............... 11,000 LBS
EQUIPPED WITH:

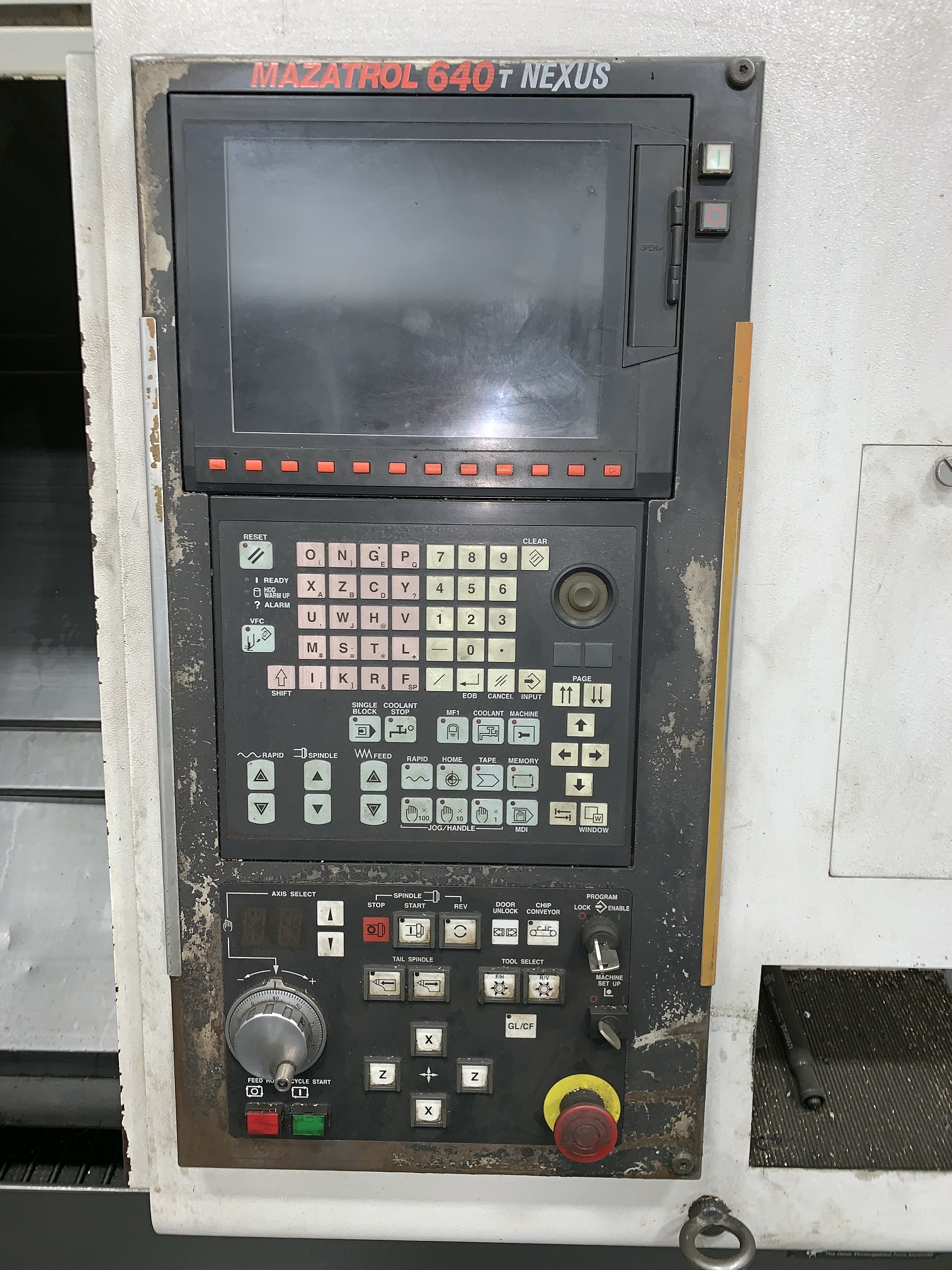

MAZATROL PC-FUSION 640T CONVERSATIONAL CNC CONTROL
TOOL PRESETTER
CHIP CONVEYOR
TAIL STOCK
TOOLING
AVAILABLE MANUALS
