Specifications
Equipped With
GENERAL SPECIFICATIONS:

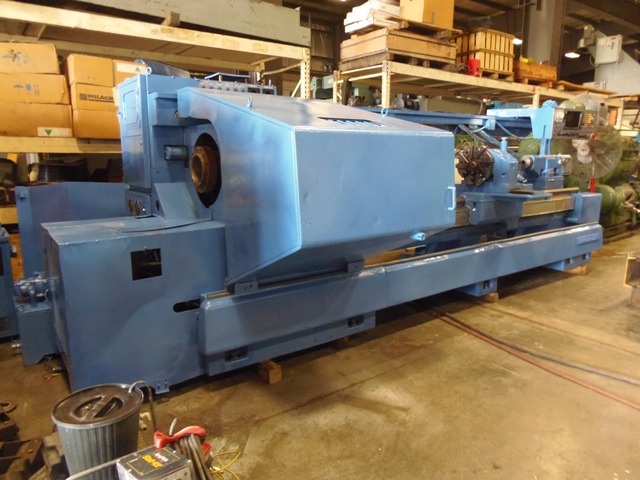

MANUFACTURER ............................ MAZAK
MODEL.................................... M-5
NEW (APPROX.) ........................... 1982
SERIAL NUMBER ........................... 9285
SWING.................................... 24"
CENTER DISTANCE ......................... 100"
MAX DIAMETER BETWEEN CENTERS............. 13"
SPINDLE SPEED (MAX.)..................... 1000 RPM

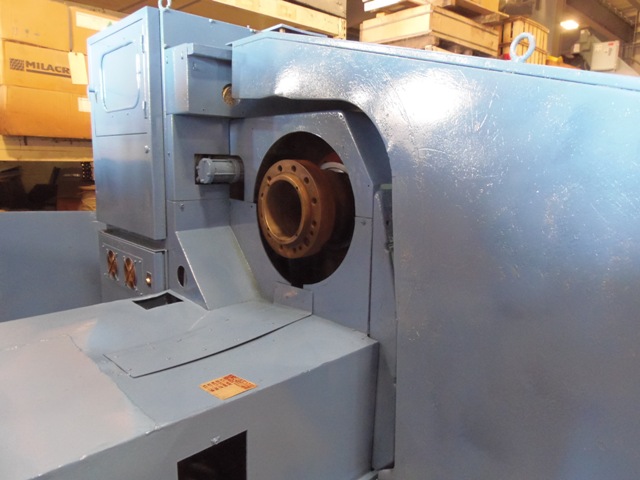

SPINDLE BORE ............................ 6.5"
STROKE (X-AXIS) ......................... 21-1/4"
STROKE (Z-AXIS) ......................... 101"
RAPIDS (X, Z) ........................... 400 IPM

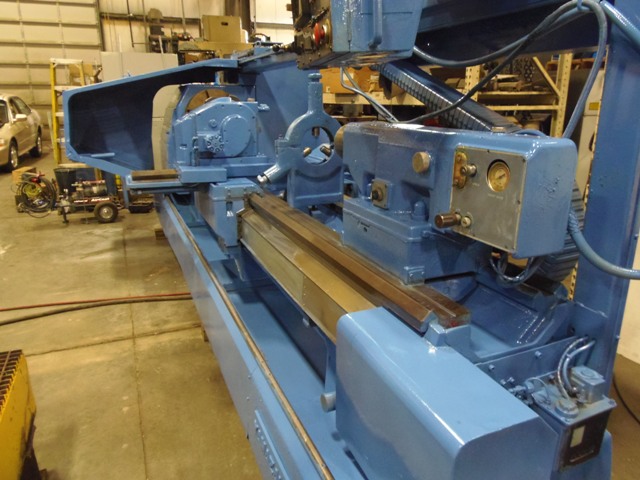

TAILSTOCK STROKE......................... 5"
TAILSTOCK DIAMETER....................... 3.94"
MAIN MOTOR............................... 30 HP
ELECTRICS................................ 220V/60HZ/3PH
WEIGHT (APPROX.)......................... 16,000 LBS.
EQUIPPED WITH:

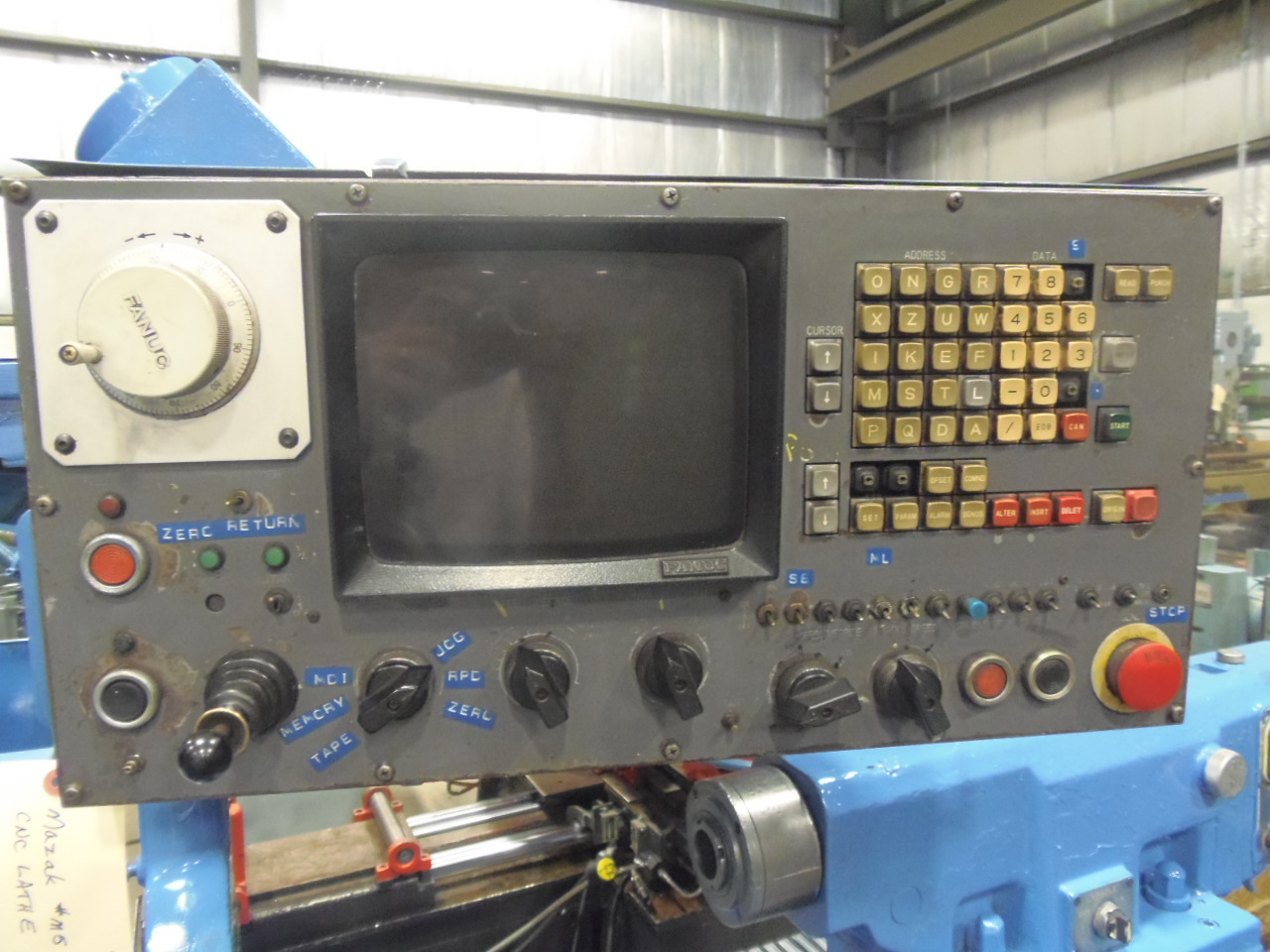

FANUC 6T WITH CRT

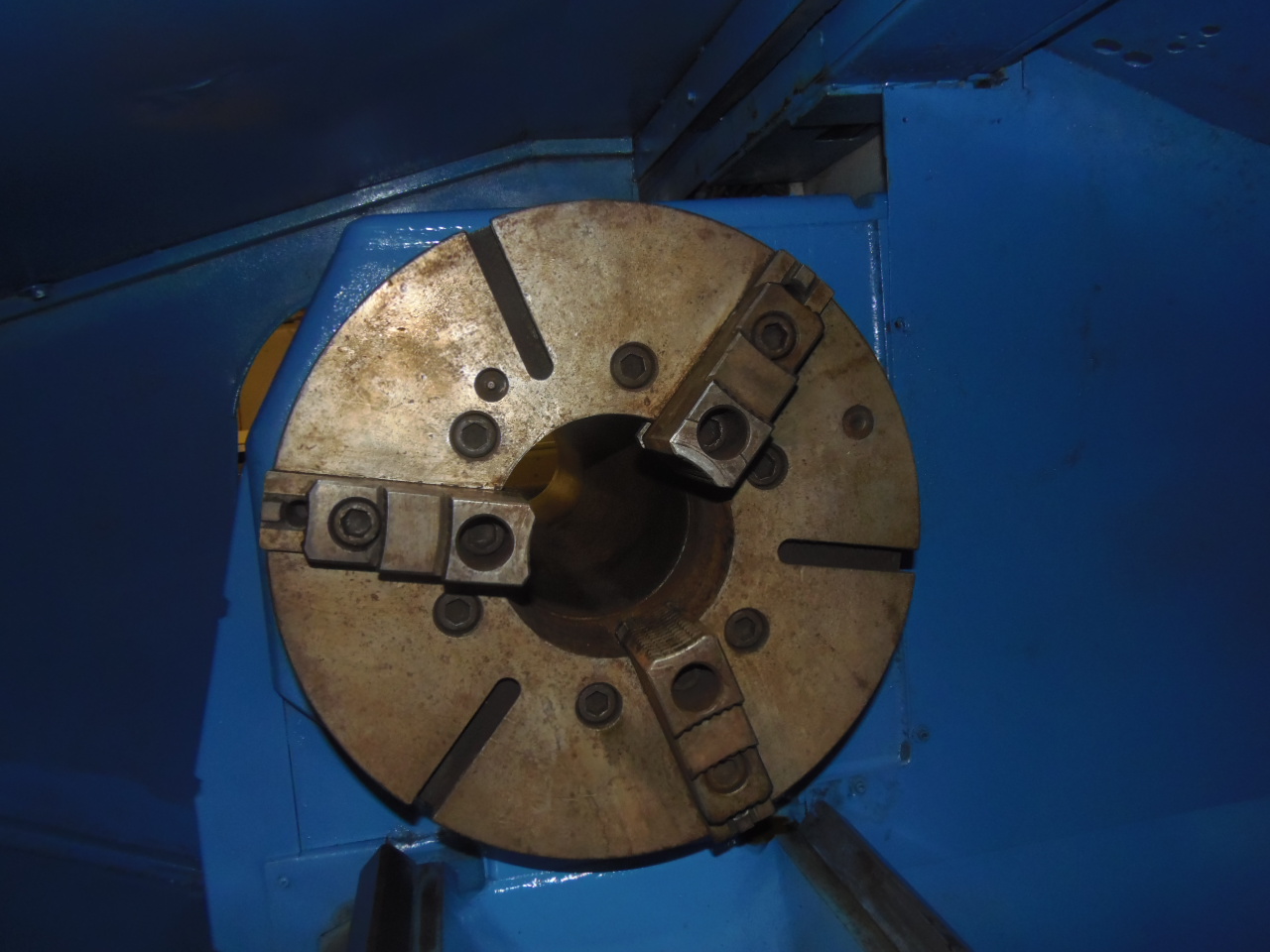

18" 3 JAW MANUAL CHUCK WITH 6.5" BORE

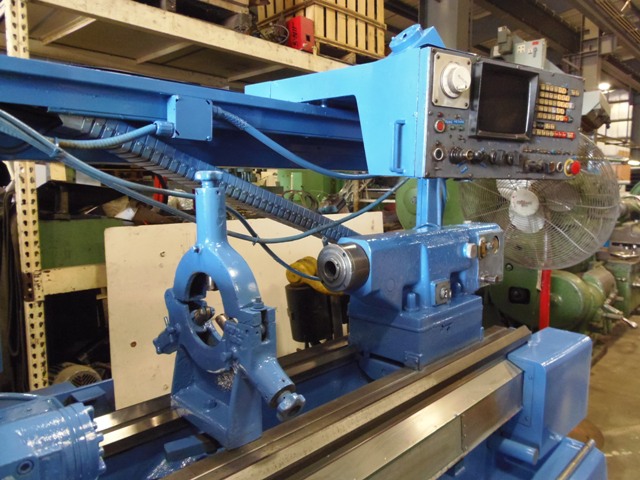

STEADY REST
8 STATION FRONT DISC TURRET
6 STATION REAR BORING TURRET
GUARDING
RS 232 INTERFACE
