Specifications
Equipped With
GENERAL SPECIFICATIONS:

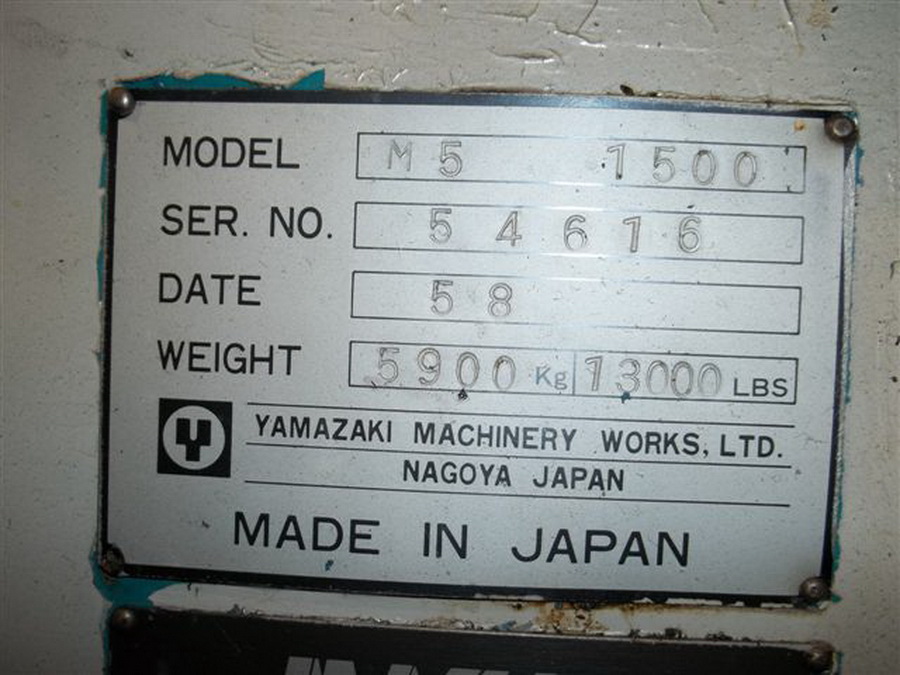

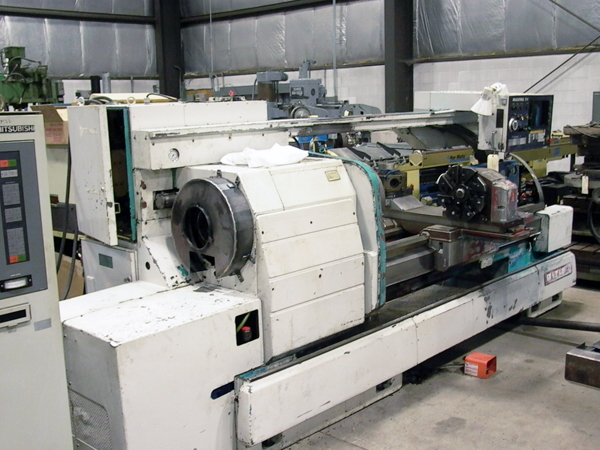

MANUFACTURER ............................ MAZAK
MODEL.................................... M-5
NEW (APPROX.) ........................... 1982
SERIAL NUMBER ........................... 54616
SWING.................................... 24"
CENTER DISTANCE ......................... 60"
MAX DIAMETER BETWEEN CENTERS............. 13"
SPINDLE SPEED (MAX.)..................... 1100 RPM

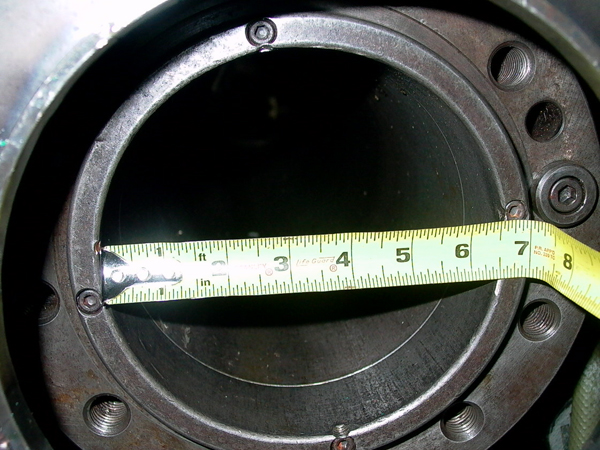

SPINDLE BORE ............................ 6"
STROKE (X-AXIS) ......................... 21-1/4"
STROKE (Z-AXIS) ......................... 61"
RAPIDS (X, Z) ........................... 400 IPM

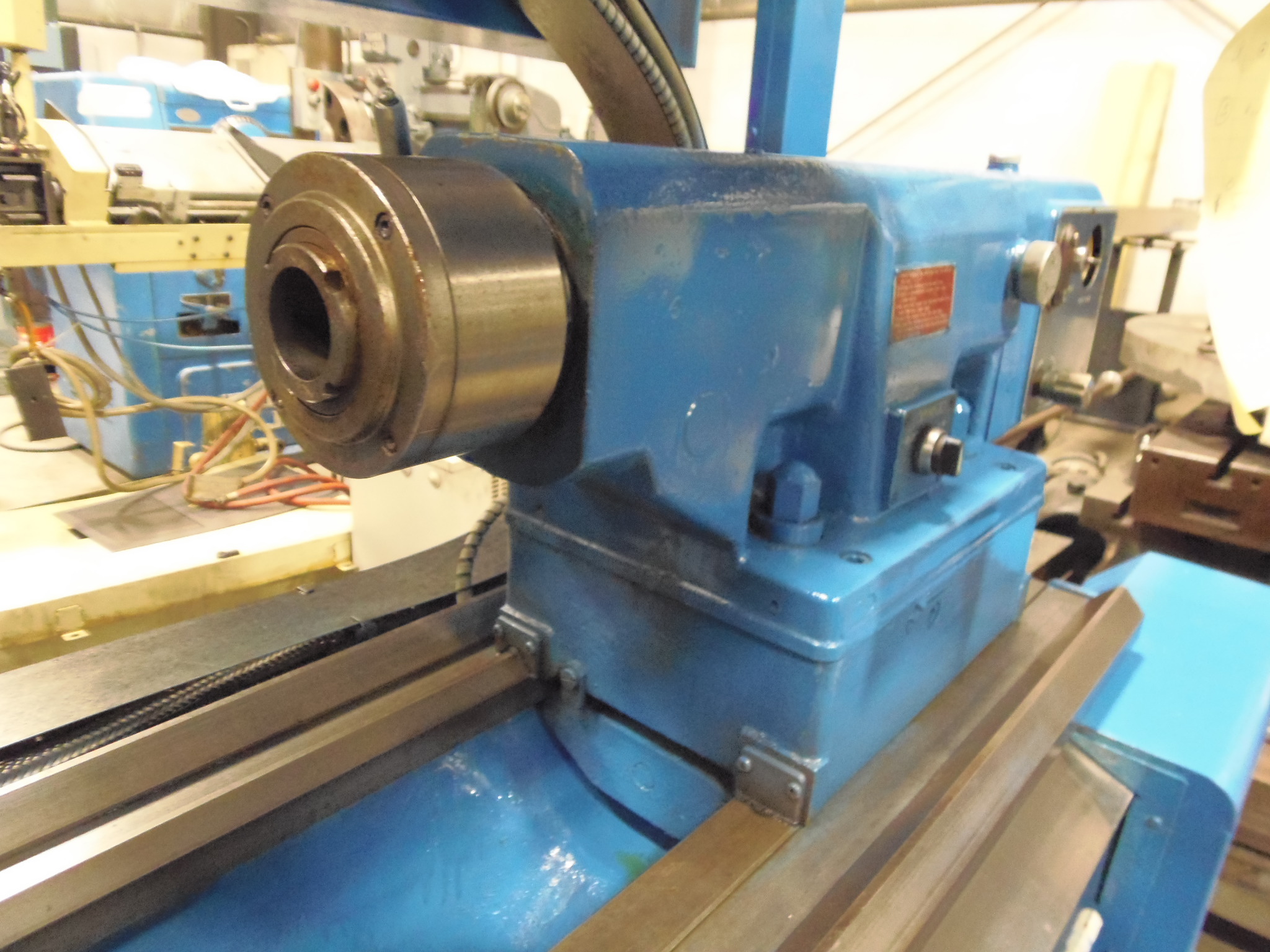

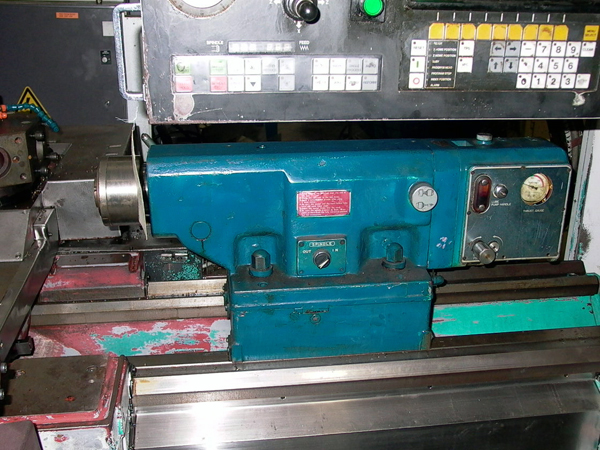

TAILSTOCK STROKE......................... 5"
TAILSTOCK DIAMETER....................... 3.94"
MAIN MOTOR............................... 30 HP
ELECTRICS................................ 220V/60HZ/3PH
WEIGHT (APPROX.)......................... 13,000 LBS.
EQUIPPED WITH:

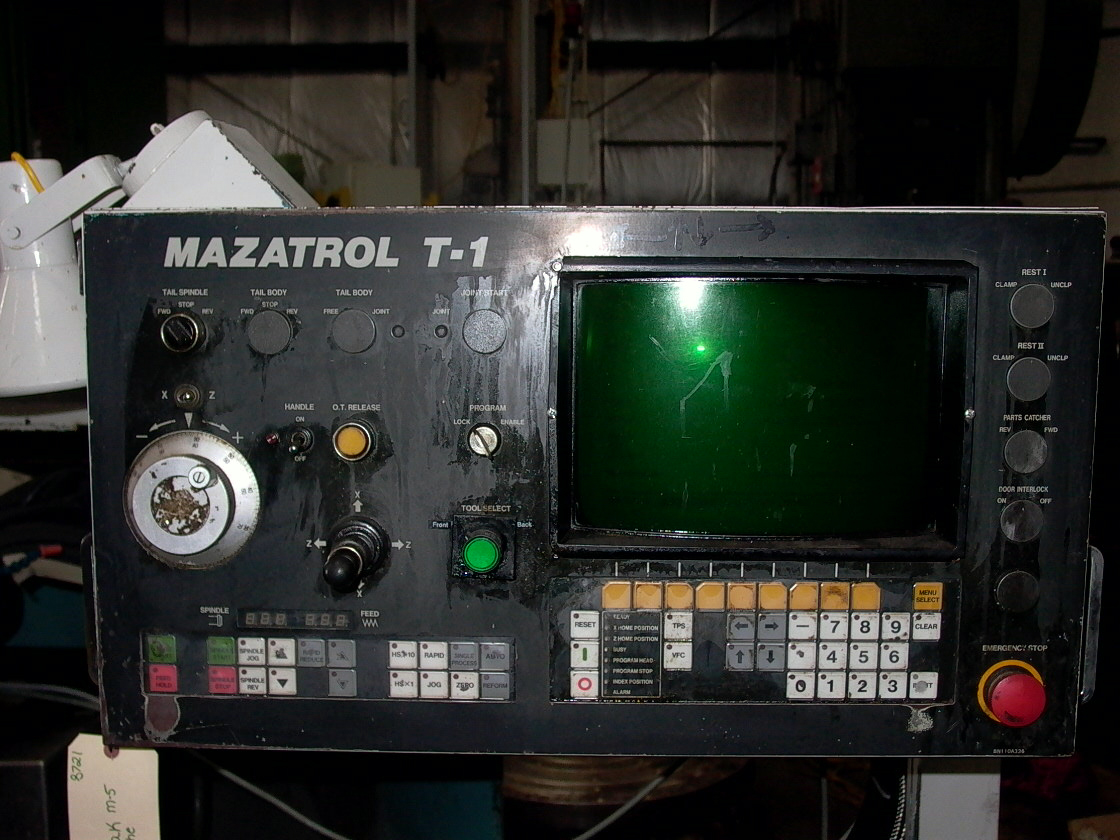

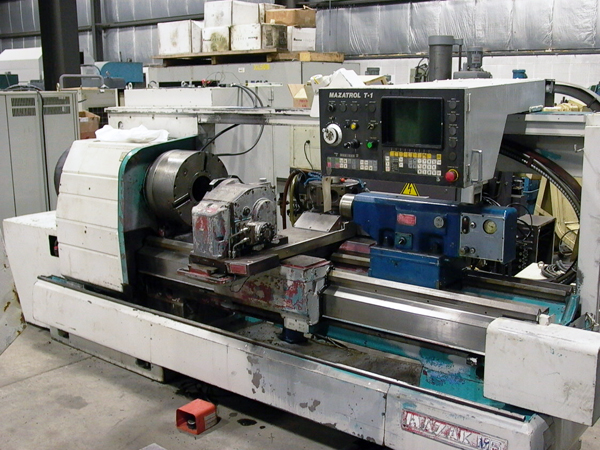

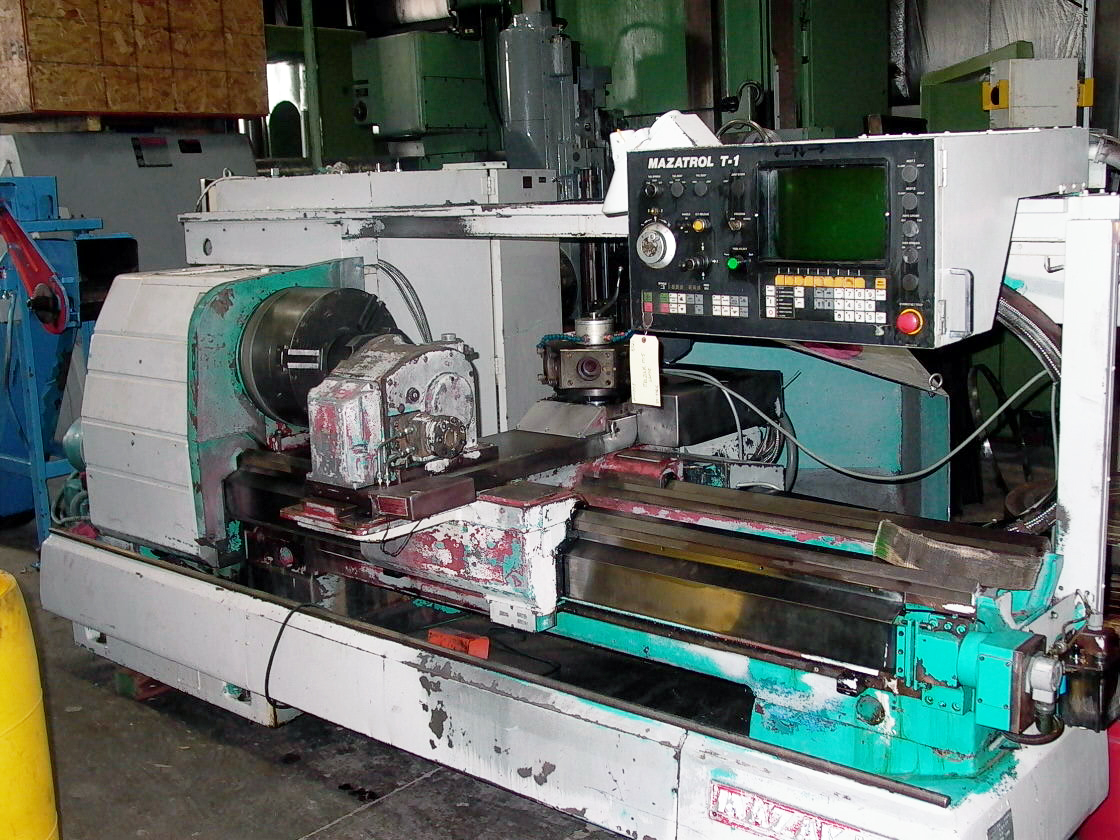

MAZATROL T-1

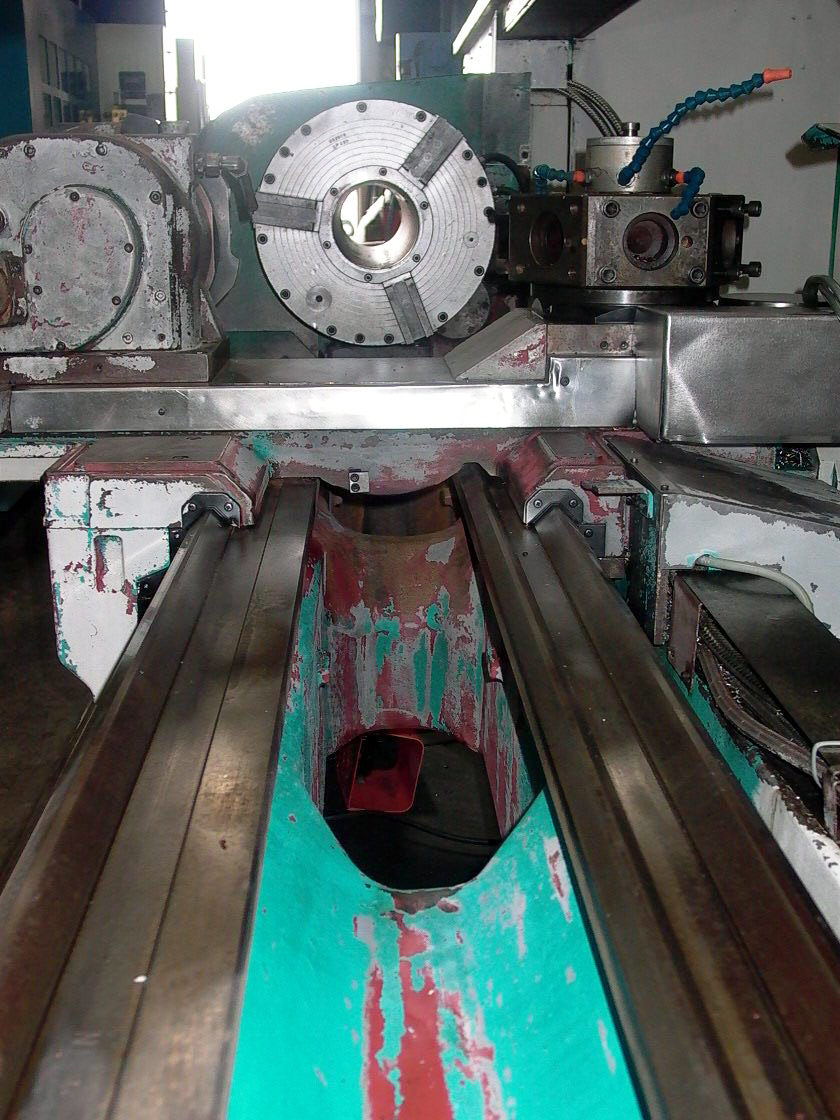

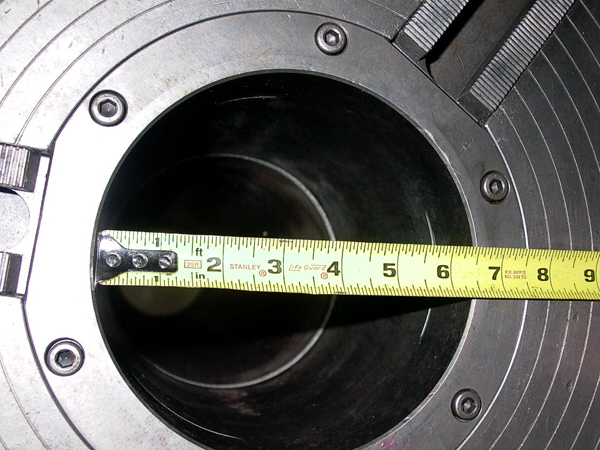

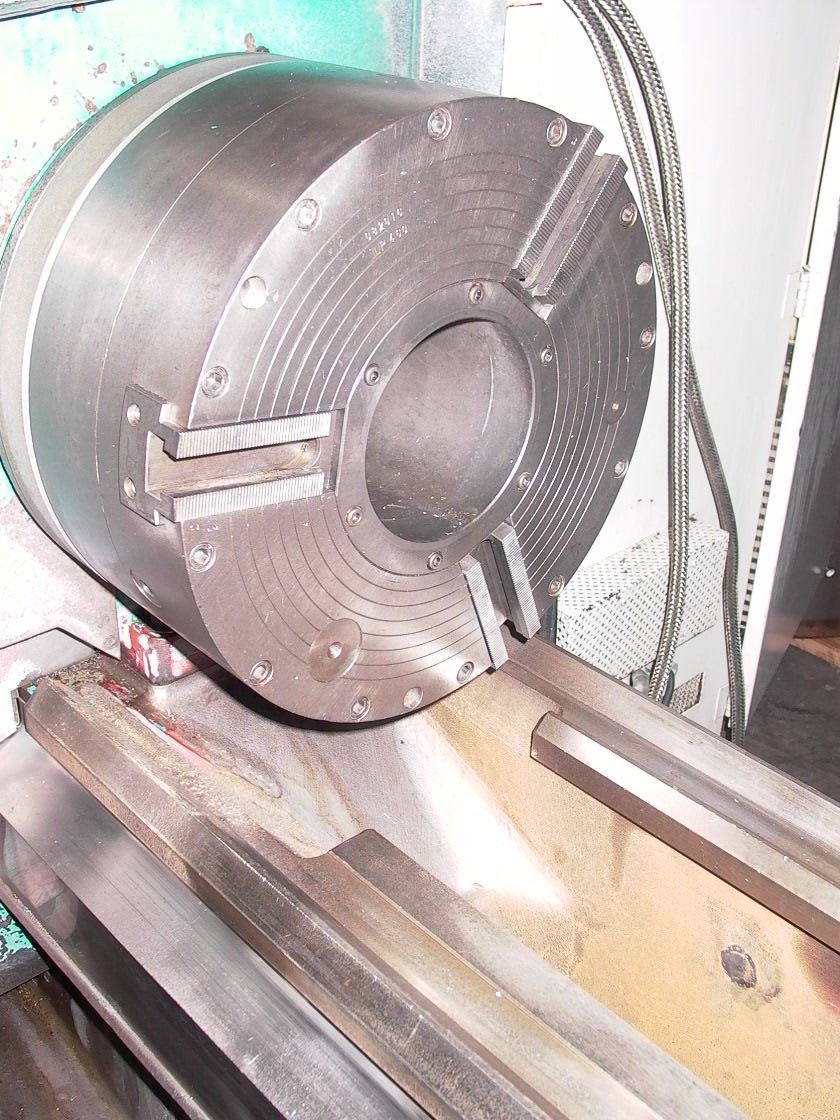

SMW 16" 3-JAW AIR CHUCK W/6" BORE

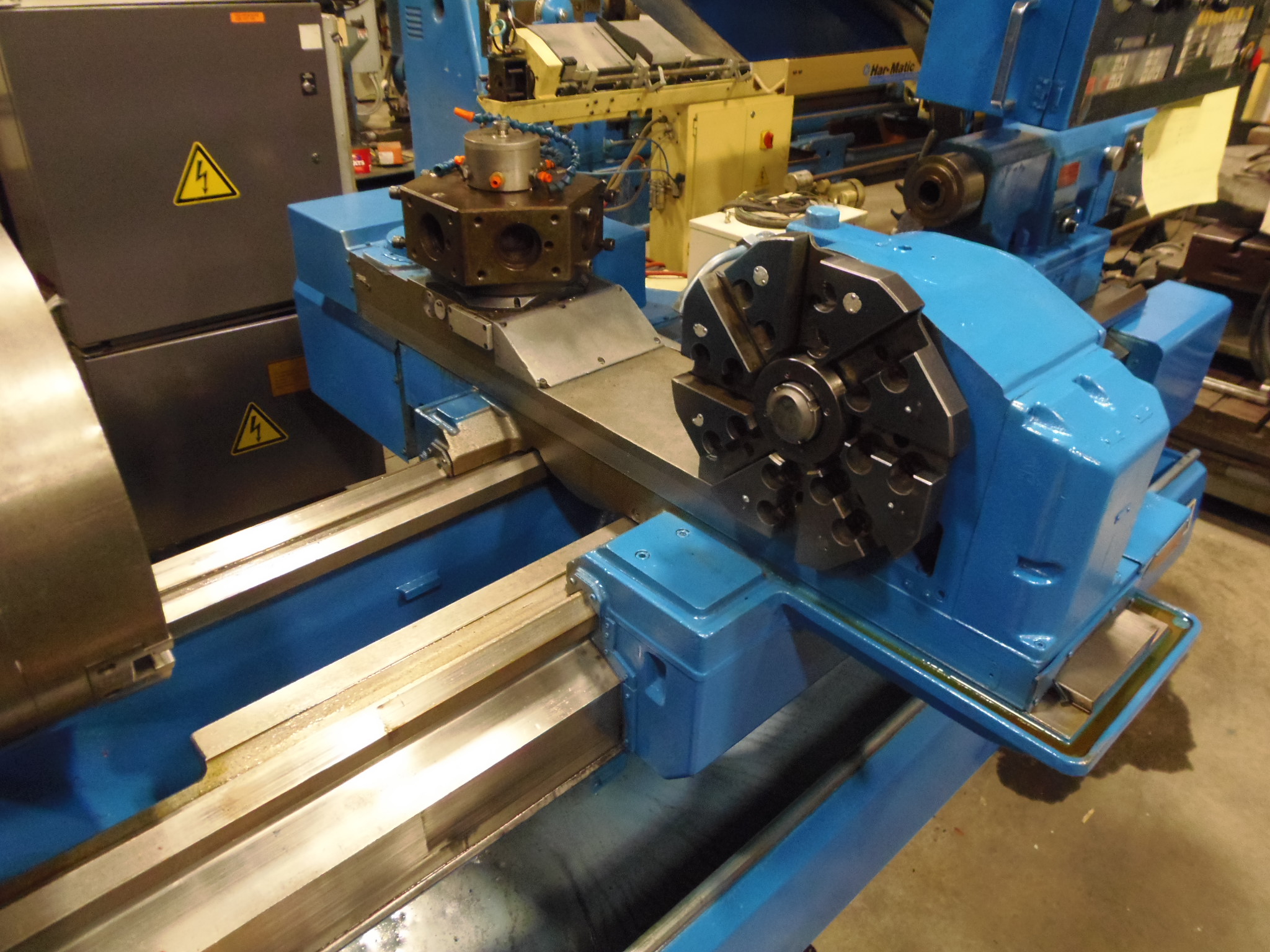

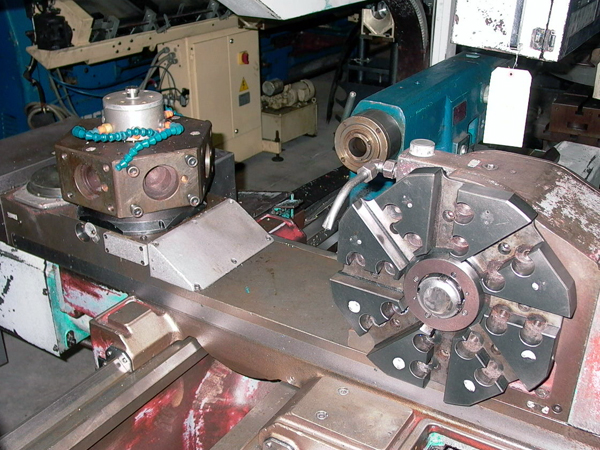

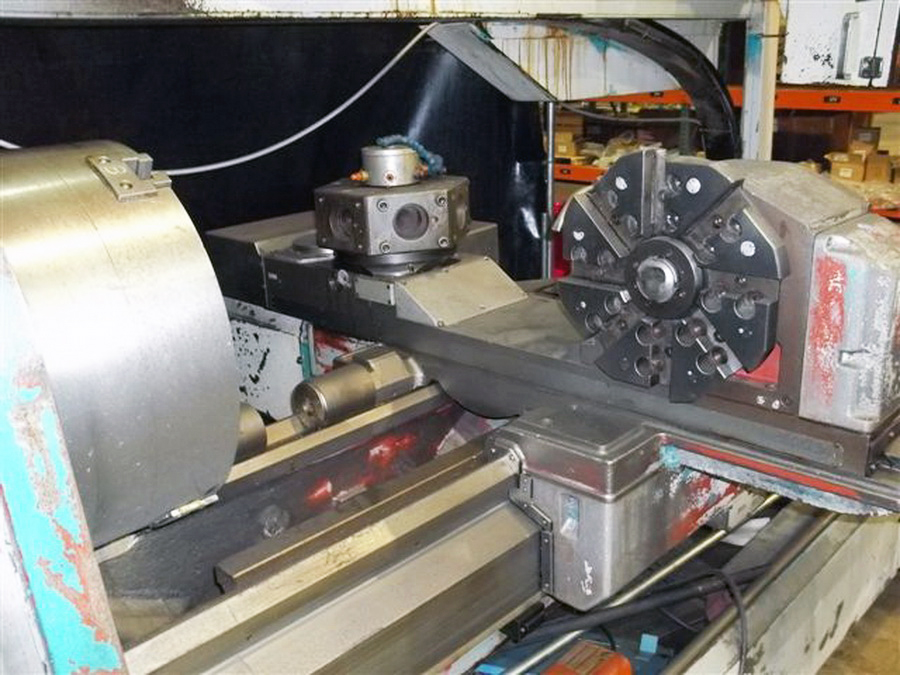

8 STATION FRONT DISC TURRET

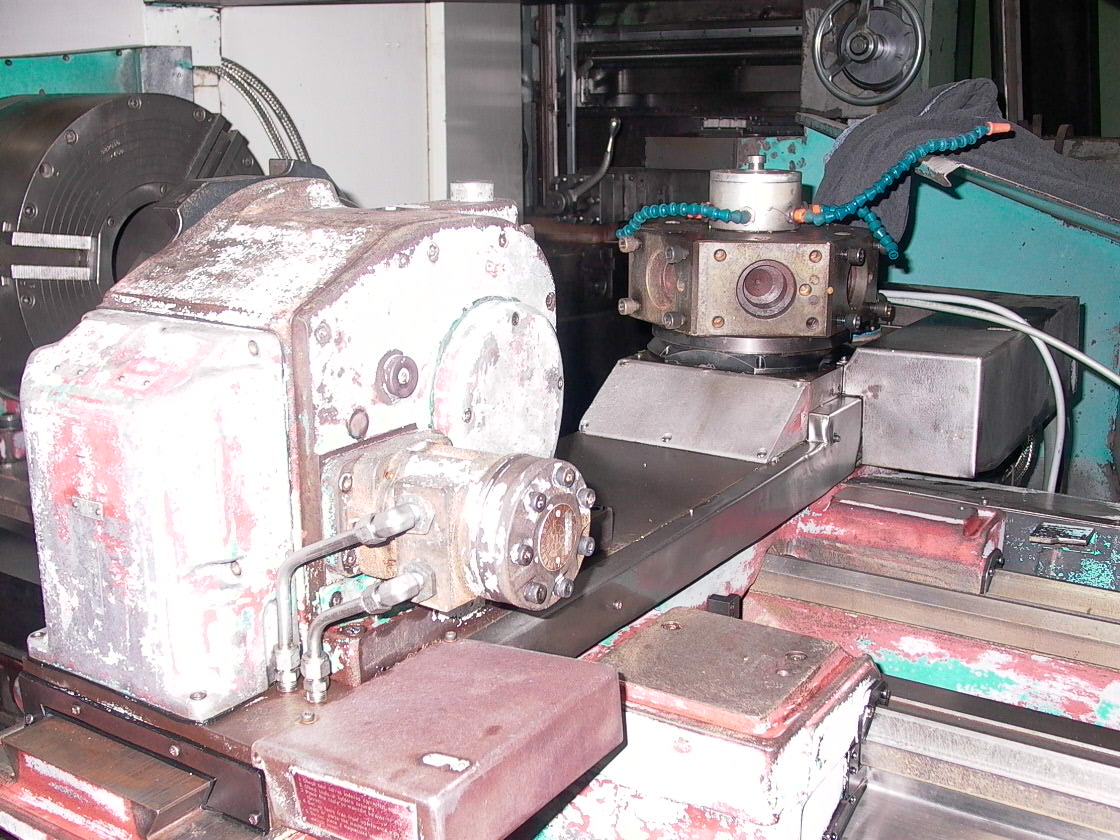

6 STATION REAR BORING TURRET

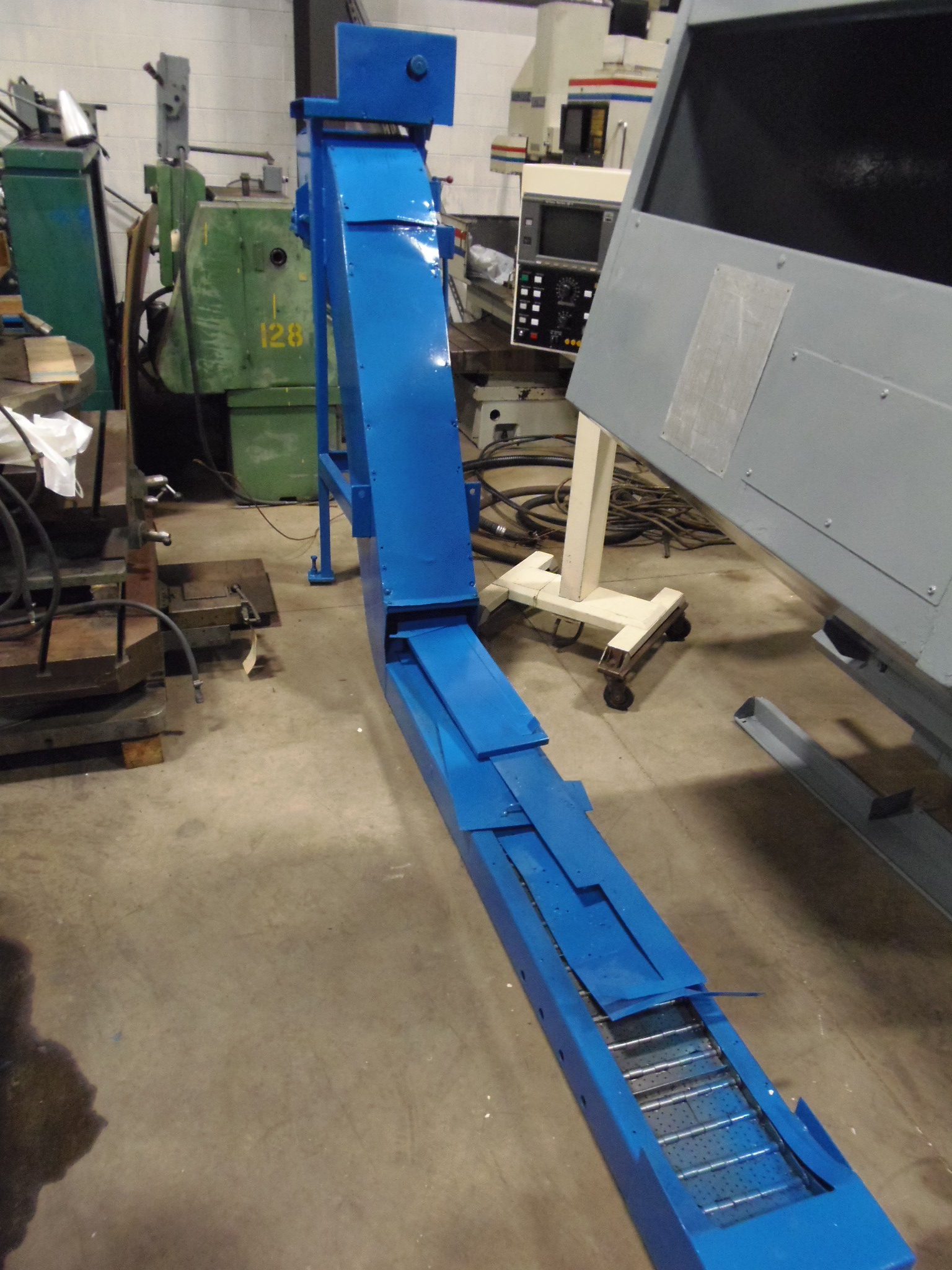

CHIP CONVEYOR
RS 232
