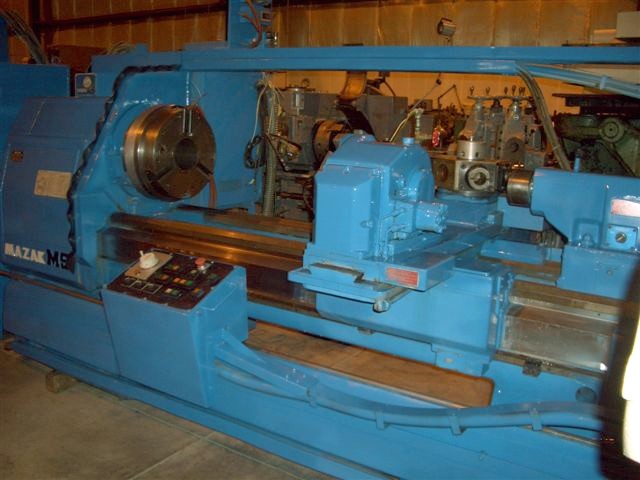

MAZAK M-5, 24" SW, 60" CC, 6" BORE, 400 IPM RAPIDS, FANUC OM CTRL 30 HP, 1983

GENERAL SPECIFICATIONS:
MANUFACTURER MAZAK
MODEL M-5
SERIAL # 12648
NEW (APPROX.) 1983
SWING 24"
CENTER DISTANCE 60"
SPINDLE SPEED (MAX.) 1100 RPM
SPINDLE BORE 6"
STROKE (X-AXIS) 21-1/4"
STROKE (Z-AXIS) 61"
RAPIDS (X, Z) 400 IPM

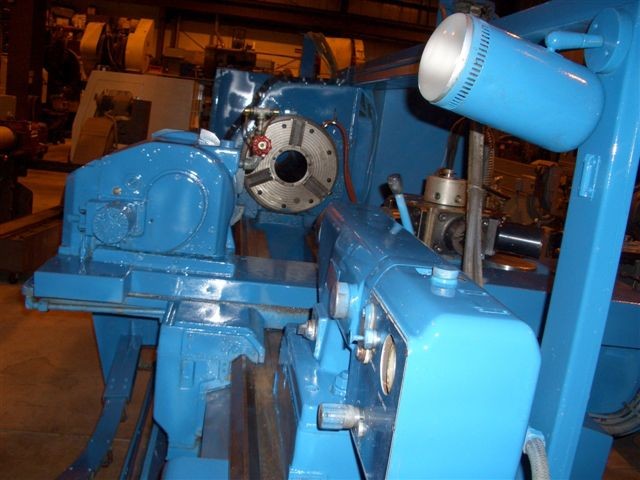

TAILSTOCK STROKE 5"
TAILSTOCK DIAMETER 3.94"
MAIN MOTOR 30 HP
ELECTRICS 220V/60HZ/3PH
WEIGHT (APPROX.) 13,000 LBS.

EQUIPPED WITH:

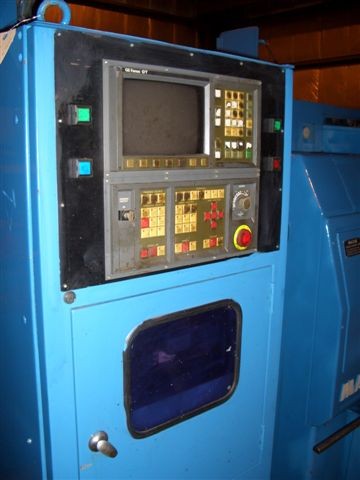

FANUC OT CONTROL RETROFFITED IN THE LATE 90'S

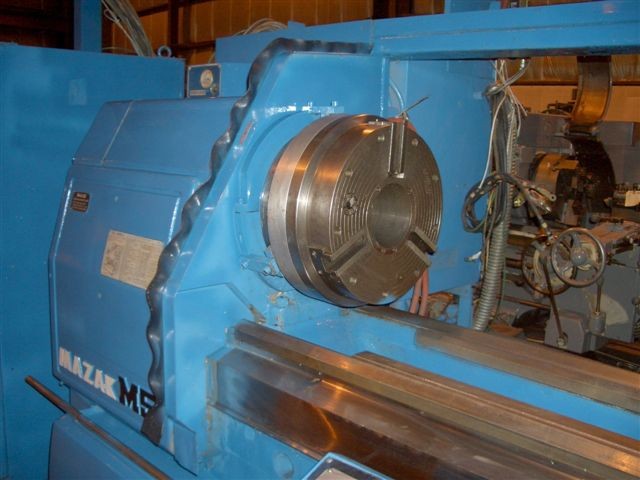

SMW 16" 3-JAW AIR CHUCK W/6" BORE

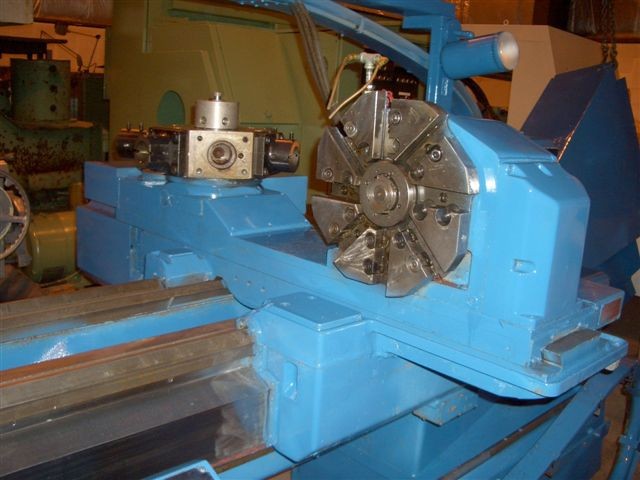

8 STATION FRONT DISC TURRET

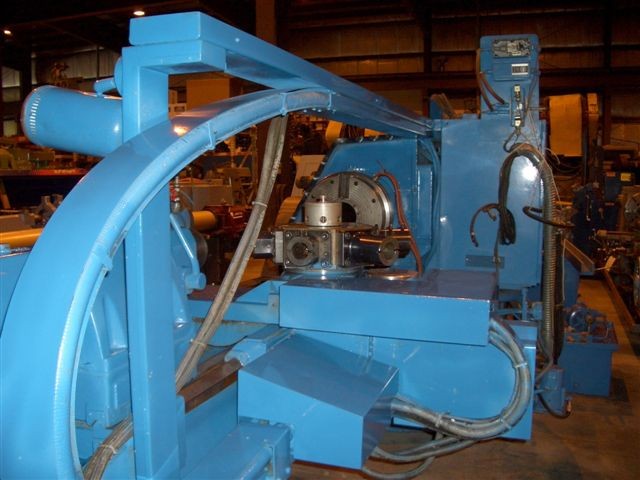

6 STATION REAR BORING TURRET
