GENERAL SPECIFICATIONS:'

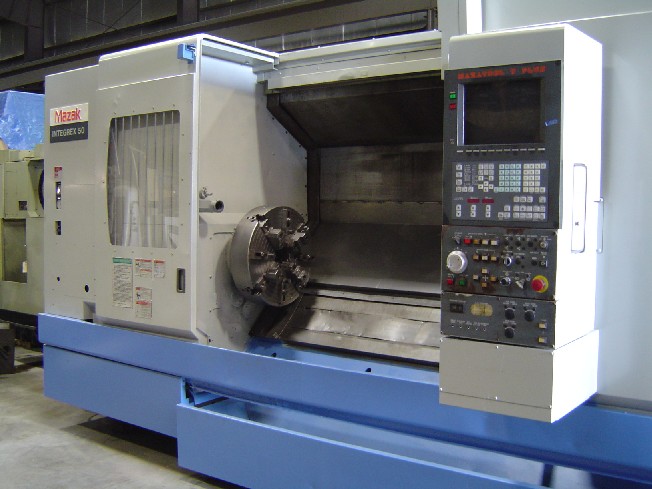

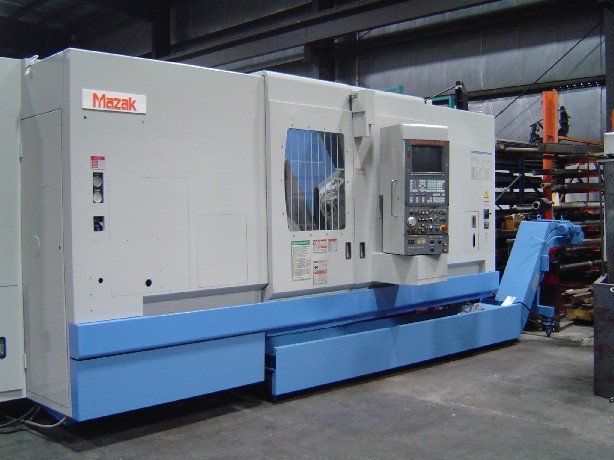

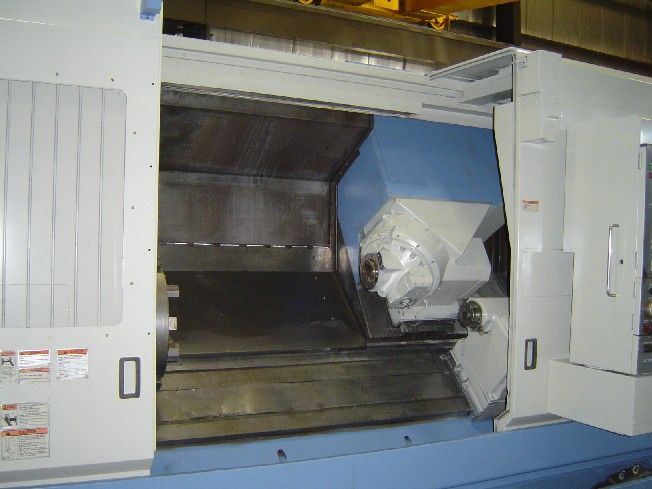

MANUFACTURER MAZAK
MODEL INTEGREX 50-Y
NEW (APPROX.) 1997
MAXIMUM SWING 27.95"
MAXIMUM BAR CAPACITY 2.71"
MAXIMUM MACHINING LENGTH 60.51"
MAXIMUM SWING UNDER TURRET 20.47"
X - AXIS TOOL STROKE 25.39"
Z - AXIS TOOL STROKE 63.46"
Y - AXIS TOOL STROKE 8.26"
SPINDLE NOSE A2-8"
SPINDLE BORE 3.14"
SPINDLE "C" AXIS/MINIMUM INDEXING REQUIREMENT 0.001 DEGREES

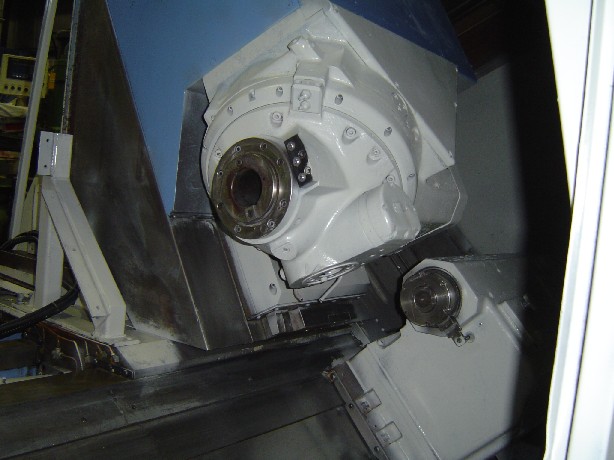

TURRET TYPE 2-POSITION WITH 80- POSITION ATC
TURRET TOOL SHANK 1" X 1"
BORING BAR SHANK DIAMETER 2"
CHUCK SPINDLE: 40 HP SPEED RANGE 2-2200 RPM
TURRET SPINDLE: 15 HP 18-3000 RPM
TOOL LIMITS:
LENGTH FROM GAUGE LINE 18.11"
DIAMETER (NEXT POCKET USED) 4.01"
MAXIMUM TOOL WEIGHT 44 POUNDS
DIAMETER ( NEXT POCKET EMPTY) 6.30"
MAXIMUM LENGTH FROM GAUGE LINE 18.11"
MAX. WEIGHT OF WORK PIECE 2,650 LBS.
ROTARY TOOL MACHINING CAPACITY:
FACE MILL DIAMETER 4"
END MILL DIAMETER 1.57"
DRILL DIAMETER 1.57"
TAP 1-1/8" 7UNC
RAPID TRAVERSE RATES:
X - AXIS 470 IPM
Y - AXIS 394 IPM
Z - AXIS 590 IPM
C - AXIS 15 RPM
JOG FEED RATE FOR X, Y, AND Z AXIS 0.04 - 78-74 IPM
AUTOMATIC TOOL CHANGE SYSTEM:
TOOL SHANK ROTARY: ROTARY TOOL CAT50
TURNING TOOL VDI TYPE
FLOOR SPACE REQUIREMENTS 260" X 121" X 113.5" H
APPROXIMATE WEIGHT 28,000 WEIGHT
EQUIPPED WITH:

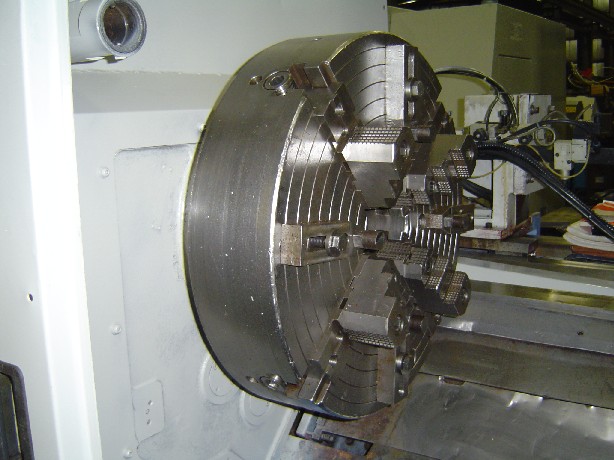

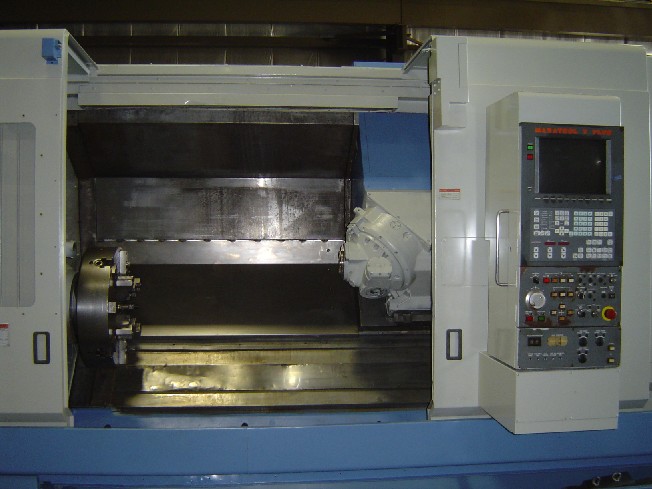

24" 4 JAW CHUCK
PROGRAM CONTROLLED TAILSTOCK, 56.30" STROKE WITH MT5 CENTER

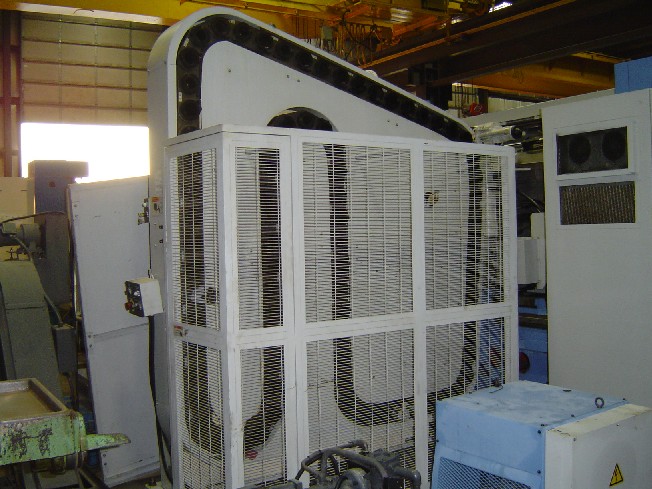

80 POCKET AUTOMATIC TOOL CHANGER
COOLANT THROUGH SPINDLE
COOLANT THROUGH SPINDLE OF MILLING HEAD
AUTOMATIC TOOL EYE CHECK WITH TOOL WEAR CONTROL SOFTWARE
CHIP CONVEYOR

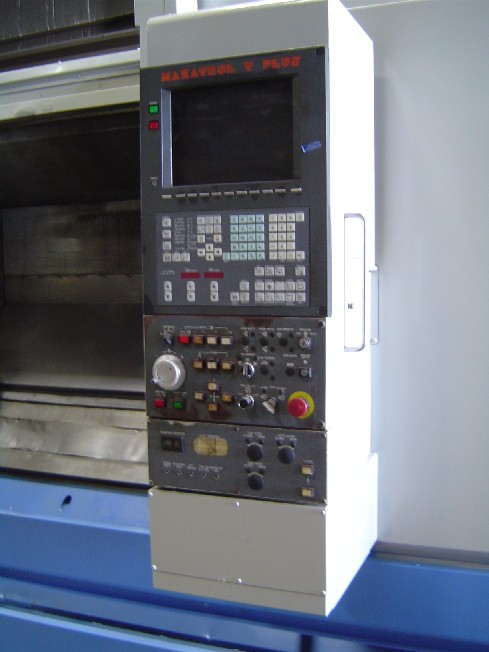

MAZATROL T-PLUS MACHINE CONTROL
C-AXIS MINIMUM ROTATION INCREMENT .001 DEGREES
JOB HOIST AT MACHINE 2 TONS
COOLANT TANK CAPACITY 84.5 GALLONS
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
