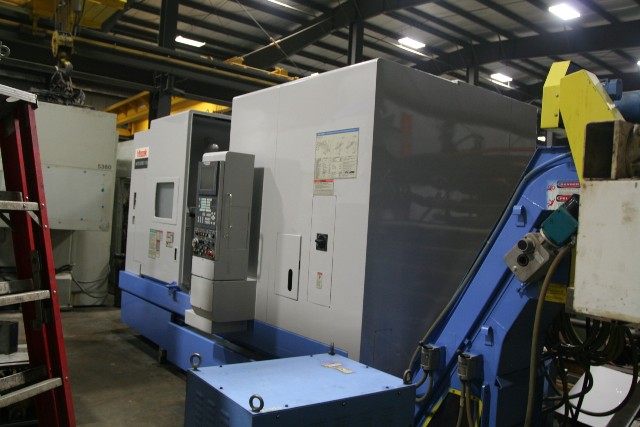

GENERAL SPECIFICATIONS:'
MANUFACTURER MAZAK
MODEL INTEGREX 50/800
NEW (APPROX.) 2000
MAXIMUM SWING 27.95"
MAXIMUM SWING UNDER TURRET 20.47"
X - AXIS TOOL STROKE 25.39"
Z - AXIS TOOL STROKE 31.4"
SPINDLE BORE 7.09"
TOOL CHANGER CAPACITY 60 ATC
ROTARY TOOL SHANK CAT V50
C-AXIS SPINDLE INDEXING .001 DEGREE
MAIN SPINDLE DRIVE MOTOR 30/40 HP
MILLING DRIVE MOTOR 9.3 HP
MAIN SPINDLE SPEED RANGE 2-1500 RPM
LIVE SPINDLE SPEED RANGE 18-3000 RPM
TOOL LIMITS:
LENGTH FROM GAUGE LINE 18.11"
DIAMETER (NEXT POCKET USED) 4.01"
MAXIMUM TOOL WEIGHT 44 POUNDS
DIAMETER ( NEXT POCKET EMPTY) 6.30"
MAXIMUM LENGTH FROM GAUGE LINE 18.11"
ROTARY TOOL MACHINING CAPACITY:
FACE MILL DIAMETER 4"
END MILL DIAMETER 1.57"
DRILL DIAMETER 1.57"
TAP 1-1/8" 7UNC
RAPID TRAVERSE RATES:
X - AXIS 470 IPM
Z - AXIS 590 IPM
C - AXIS 15 RPM
JOG FEED RATE FOR X AND Z AXIS 0.04 - 78-74 IPM
APPROXIMATE WEIGHT 28,000 WEIGHT
EQUIPPED WITH:

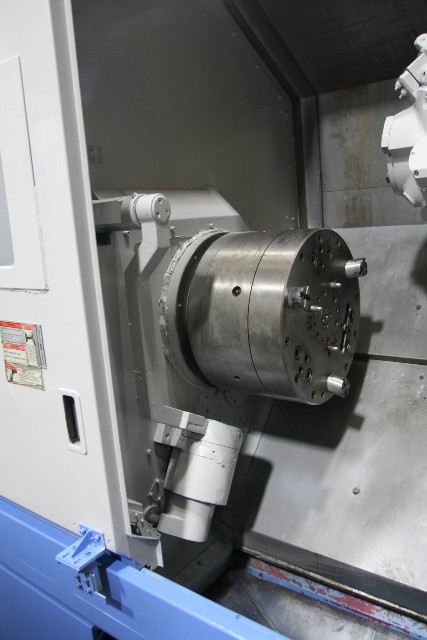

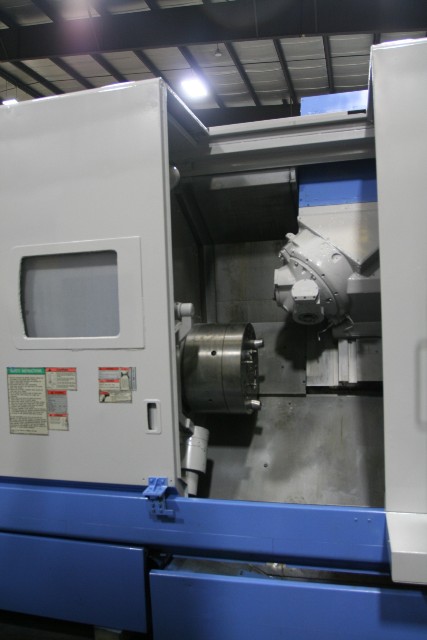

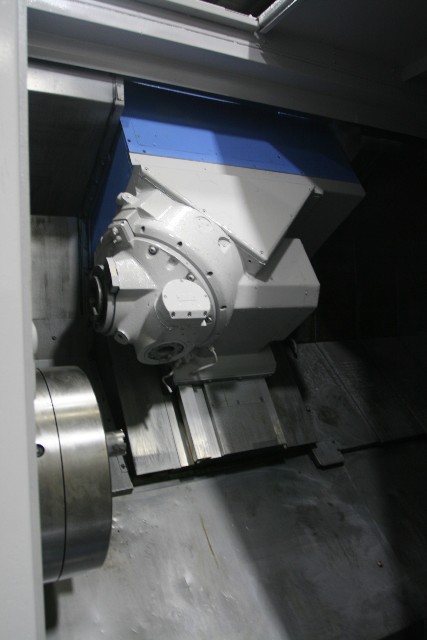

18" 3 JAW BALL LOCK HYDRAULIC CHUCK
60 POCKET AUTOMATIC TOOL CHANGER
COOLANT THROUGH SPINDLE
COOLANT THROUGH SPINDLE OF MILLING HEAD
AUTOMATIC TOOL EYE CHECK WITH TOOL WEAR CONTROL SOFTWARE
CHIP CONVEYOR

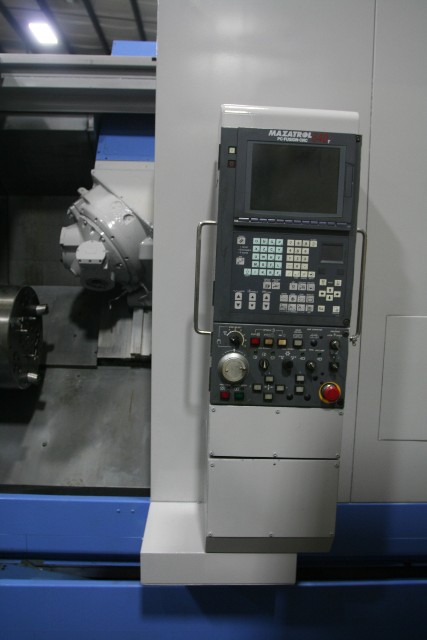

MAZAK PC FUSION 640T CONTROL
COOLANT SYSTEM
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
