Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 24.01"
MAXIMUM TURNING DIAMETER / LENGTH 24.01 / 60.2"
X AXIS TRAVEL 22.83"
Z AXIS TRAVEL 63.11"
C AXIS INDEXING (MAIN SPDINLE) 0.001 DEG.
Y AXIS TRAVEL +/- 4.13"
RAPID TRAVERSE RATE X & Z AXES 1181 IPM
RAPID TRAVERSE RATE Y AXIS 591 IPM
SPINDLE NOSE A2-8
SPINDLE BORE 3.46"
BAR CAPACITY 3.00"
SPINDLE SPEEDS 35 - 3,000 RPM
SPINDLE MOTOR 40 HP AC

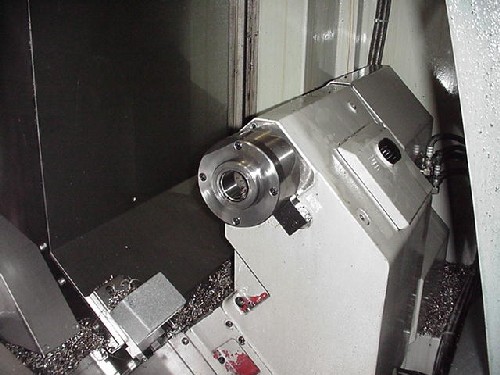

TURRET CAPACITY 2 POSITION TURRET

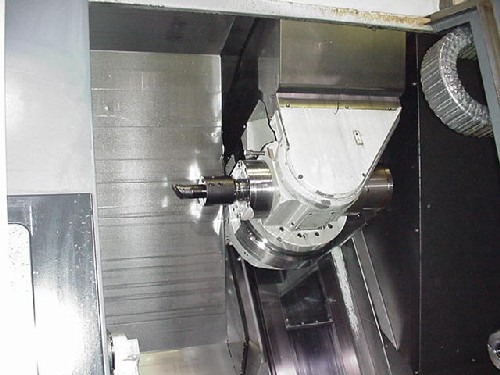

AUTO TOOL CHANGER CAPACITY 80 STATION ATC
LIVE TOOLING MOTOR 20 HP
LIVE TOOLING SPEEDS 100 - 6,000 RPM
EQUIPPED WITH:

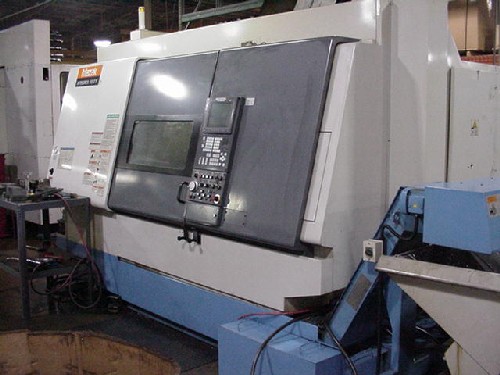

MAZATROL FUSION 640M FULL CONVERSATIONAL CNC CONTROL
RS-232C PORT FOR DNC OPERATION, TOOL EYE (TOOL PRESETTER)
TOOL LIFE MGMT, TOOL BREAKAGE DETECTION, BROKEN TOOL SENSOR

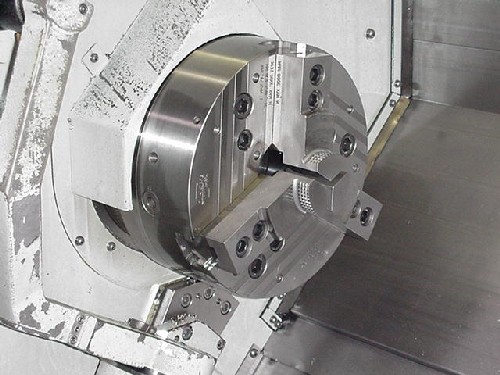

12" KITAGAWA 3-JAW HYDRAULIC CHUCK WITH JAWS, 3.5" FLOPPY
RIGID TAPPING (SYNCHRONIZED TAPPING / SOLID TAPPING)
HIGH PRESSURE COOLANT, OVERLOAD DETECTION, OPERATION END LITE
RIGHT HAND DISCHARGE LIFT-UP TYPE LINK BELT CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS & ALL AVAIALBLE MANUALS
