Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 19.7" x 19.7"
NUMBER OF PALLETS 6
MAXIMUM TABLE LOAD 2,200 LBS
SPINDLE NOSE TO PALLET CENTER 1.97" - 27.6"
SPINDLE CENTER TO PALLET SURFACE 5.9" - 31.5"
X AXIS TRAVEL 27.92"
Y AXIS TRAVEL 25.6"
Z AXIS TRAVEL 25.6"
B AXIS INDEXING 0.001 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 945 IPM
CUTTING FEED RATE 0.1 - 393 IPM
SPINDLE SPEEDS 35 - 6,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 20 HP AC
TOOL CHANGER CAPACITY 120 STATION ATC
MAXIMUM TOOL WEIGHT 33 LBS
EQUIPPED WITH:
MAZATROL M-32 CONVERSATIONAL CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI)
TOOL LIFE MONITORING, AUTO TOOL LENGTH MEASUREMENT

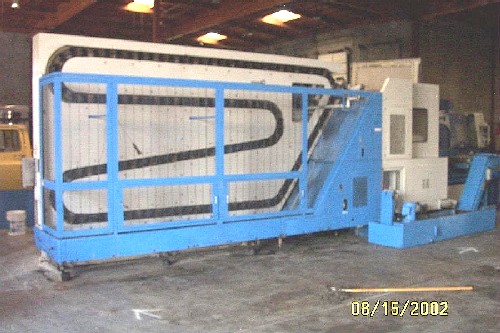

FACTORY INSTALLED 6 PALLET CHANGER, AIR BLAST
RIGHT HAND DISCHARGE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
