GENERAL SPECIFICATIONS:

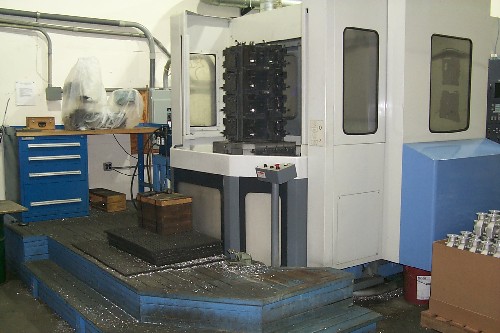

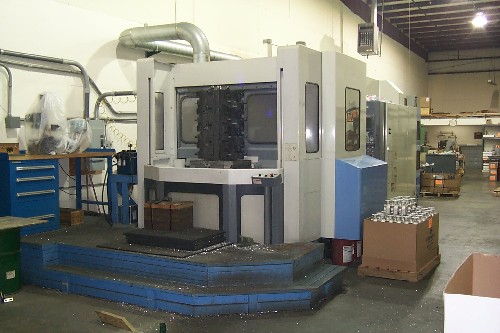

MODEL # FH-680X
NEW APPROXIMATELY 1999
TABLE SIZE 24.8" x 24.8"
MAXIMUM TABLE LOAD 3,300 LBS
SPINDLE NOSE TO PALLET CENTER 3.93" - 35.43"
SPINDLE CENTER TO PALLET SURFACE 5.9" - 40.55"
X AXIS TRAVEL 41.34"
Y AXIS TRAVEL 31.50"
Z AXIS TRAVEL 34.65"
RAPID TRAVERSE RATE X AXIS 1575 IPM
RAPID TRAVERSE RATE Y AXIS 1575 IPM
RAPID TRAVERSE RATE Z AXIS 1575 IPM
CUTTING FEED RATE 0.1 - 1575 IPM
SPINDLE SPEEDS 50 - 10,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 50 HP AC
TOOL CHANGER CAPACITY 40 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.8 SECONDS
EQUIPPED WITH:

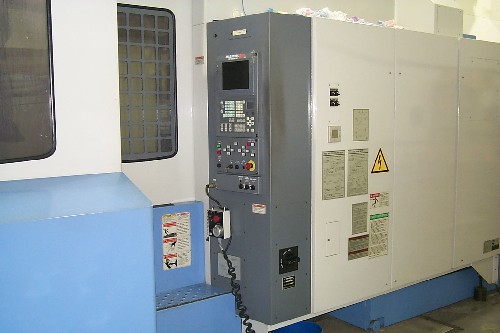

MAZATROL FUSION 640M CONVERSATIONAL CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI)
TOOL LIFE MONITORING, MULTITAP TRANSFORMER
AUTO TOOL LENGTH MEASUREMENT, TOOL BREAKAGE DETECTION
ADAPTIVE FEEDRATE CONTROL, 3.5" FLOPPY DRIVE

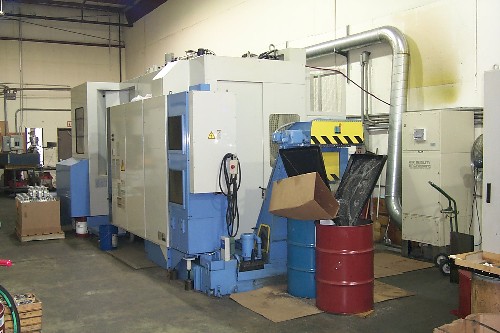

CONCEPT 2000 CHIP CONVEYOR FILTRATION SYSTEM
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
