Specifications
Equipped With
GENERAL SPECIFICATIONS:

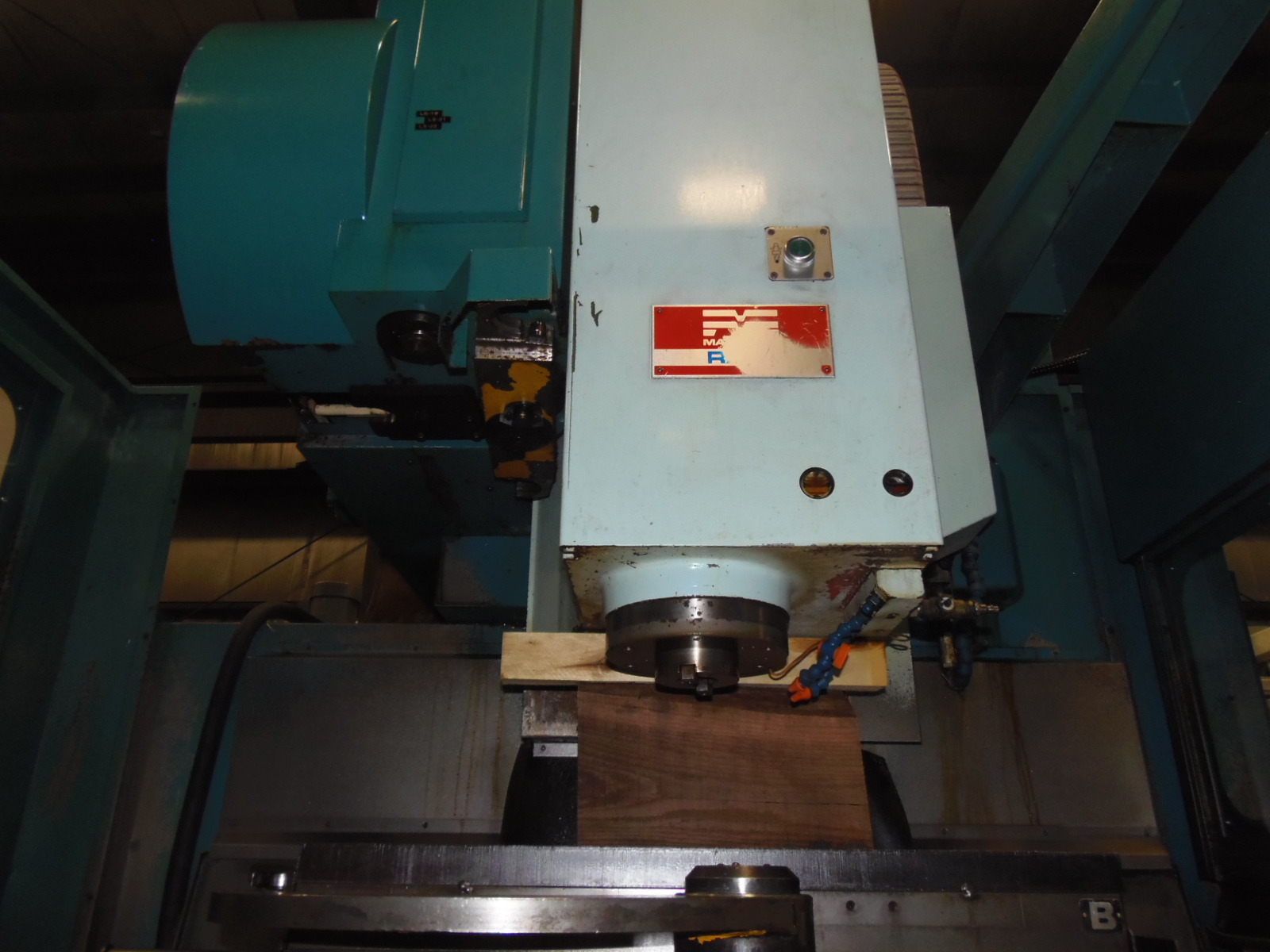

MAKE..................... MATSUURA
MODEL.................... MC-RA-3

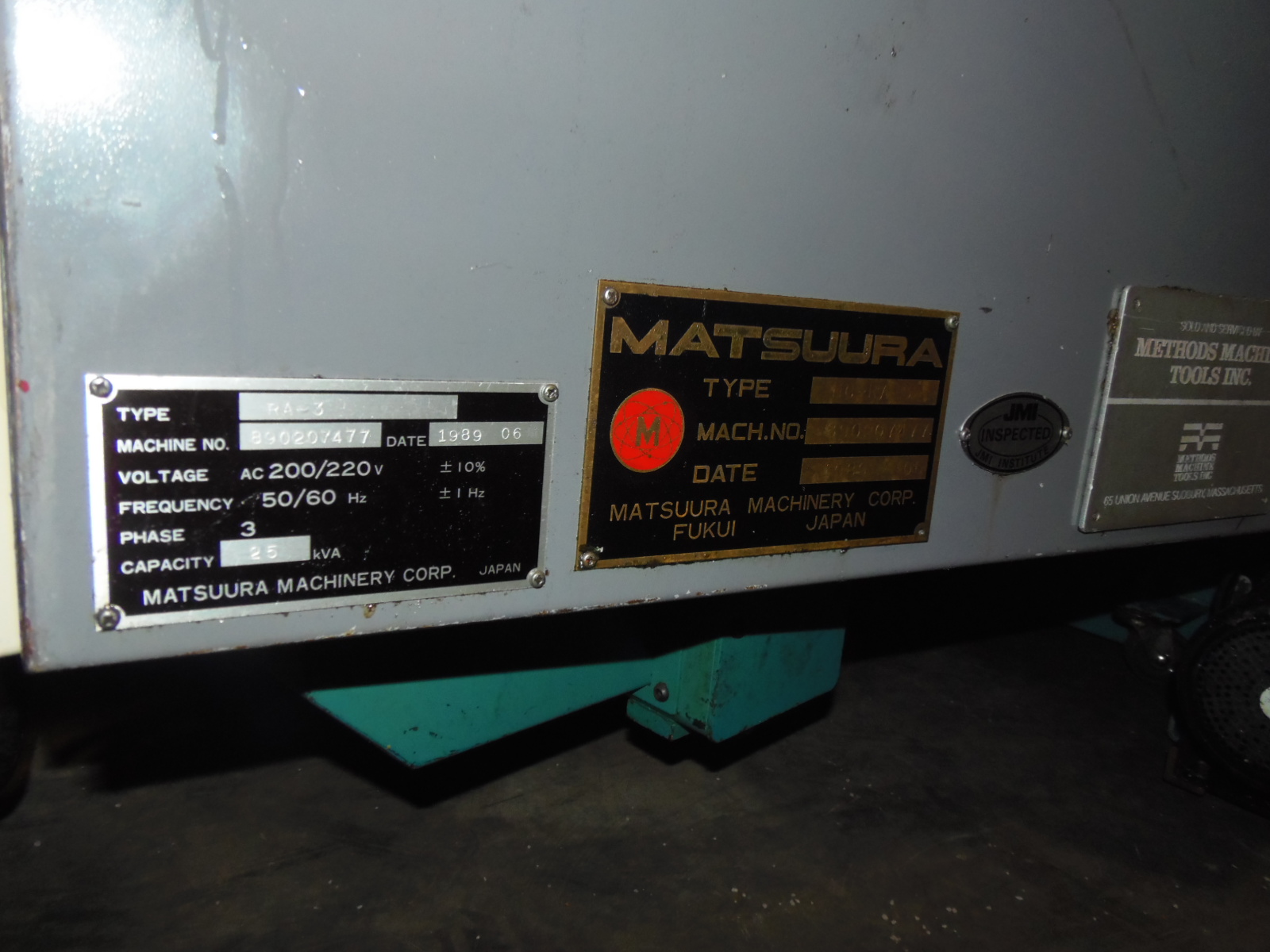

SERIAL NUMBER............ 890207477
AGE (YEAR)............... 1989
TRAVEL (X AXIS).......... 29.92" (760 mm)
TRAVEL (Y AXIS).......... 17.32" (440 mm)
TRAVEL (Z AXIS).......... 17.71" (450 mm)
RAPID FEED RATE.......... 590/590/472"/min
CUTTING FEED RATE........ .1" - 196" /min
PALLET TOP TO SPINDLE.... 9.84-27.16" (120-570 mm)
SPINDLE MOTOR............ 5.5/7.5 kW (cont. /30min)
SPINDLE SPEEDS........... 25-4500 RPM
SPINDLE TAPER............ BT 40

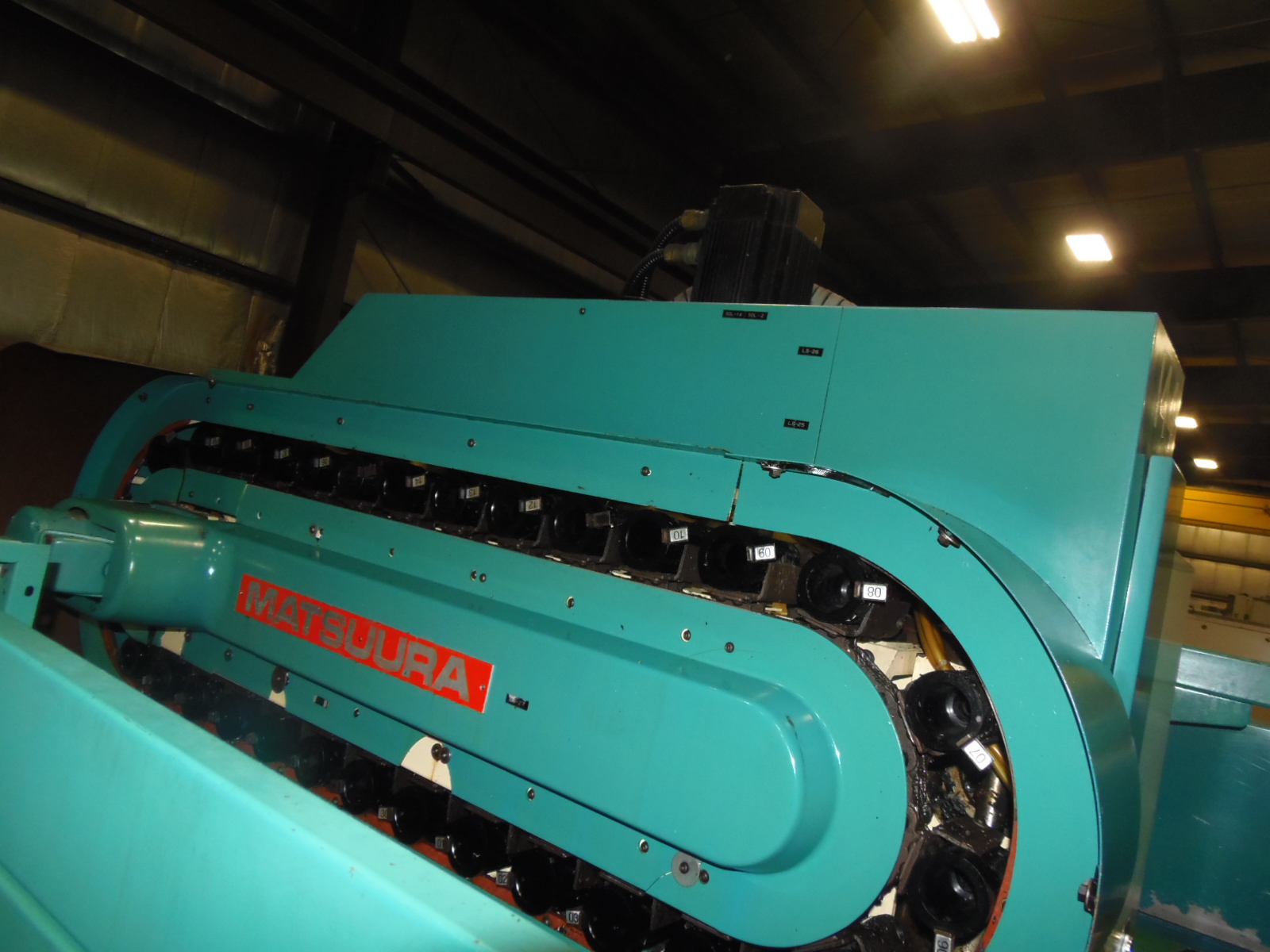

TOOL CHANGER............. 30 ATC

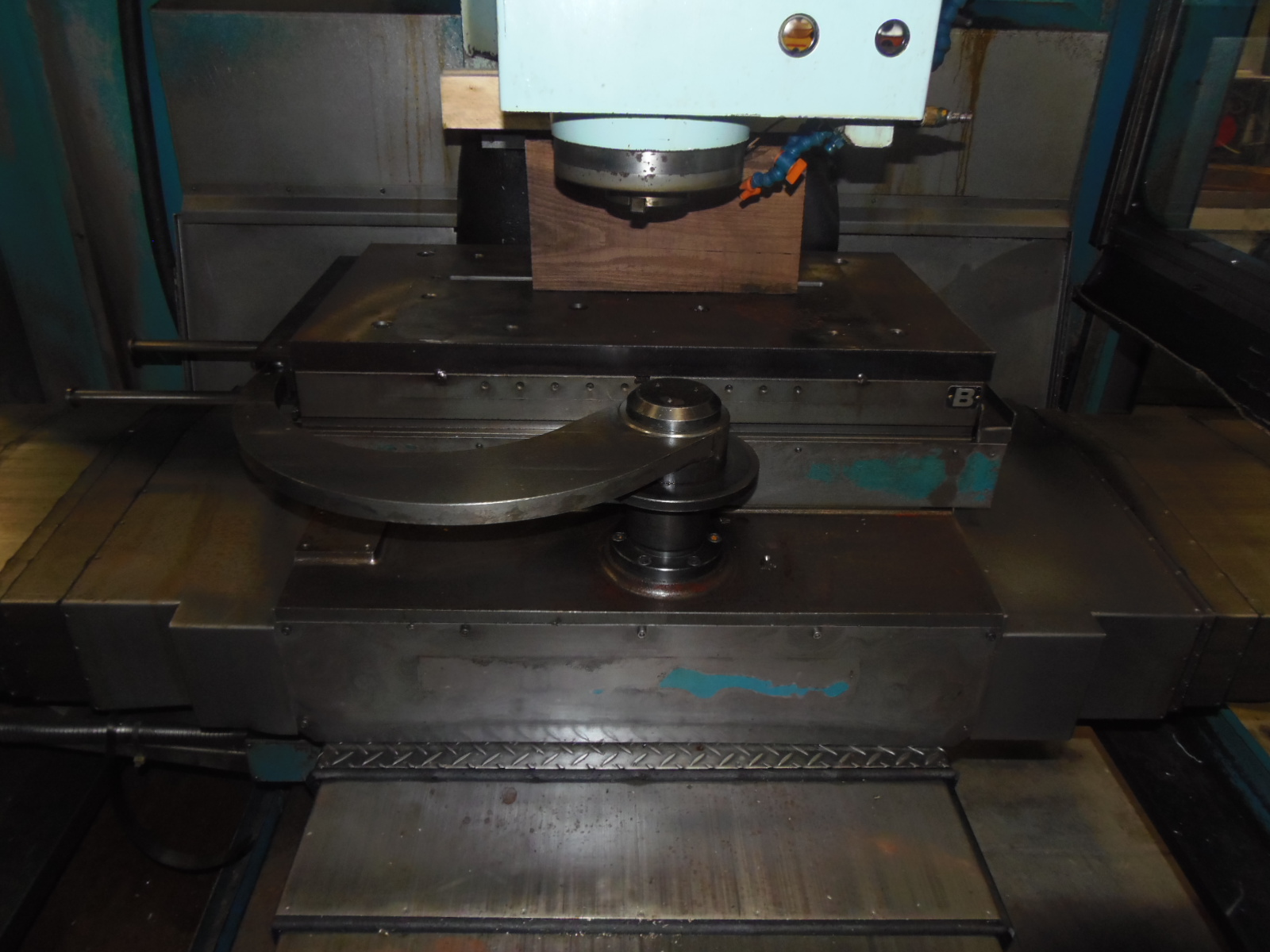

PALLET (TABLE) SIZE...... 31.5" X 16.5"
PALLET CAP. WEIGHT....... 550 LBS.
NUMBER OF PALLETS........ 2
ELECTRICS................ 220V/ 3PH /60Hz
DIMENSIONS............... 162" x 117" x 109" H
MACHINE WEIGHT (APPROX).. 12,500 LBS (5500 Kg)
EQUIPPED WITH:

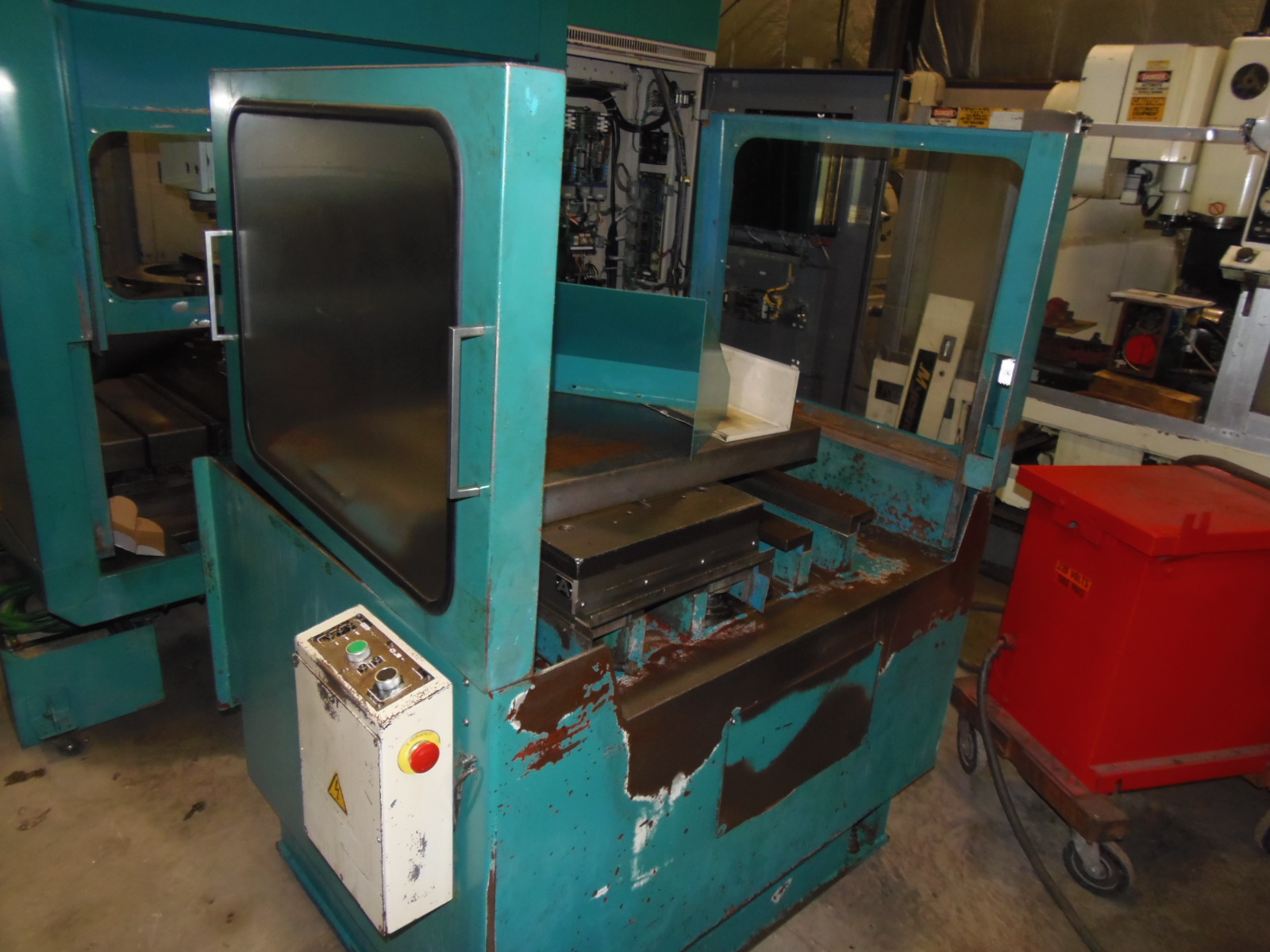

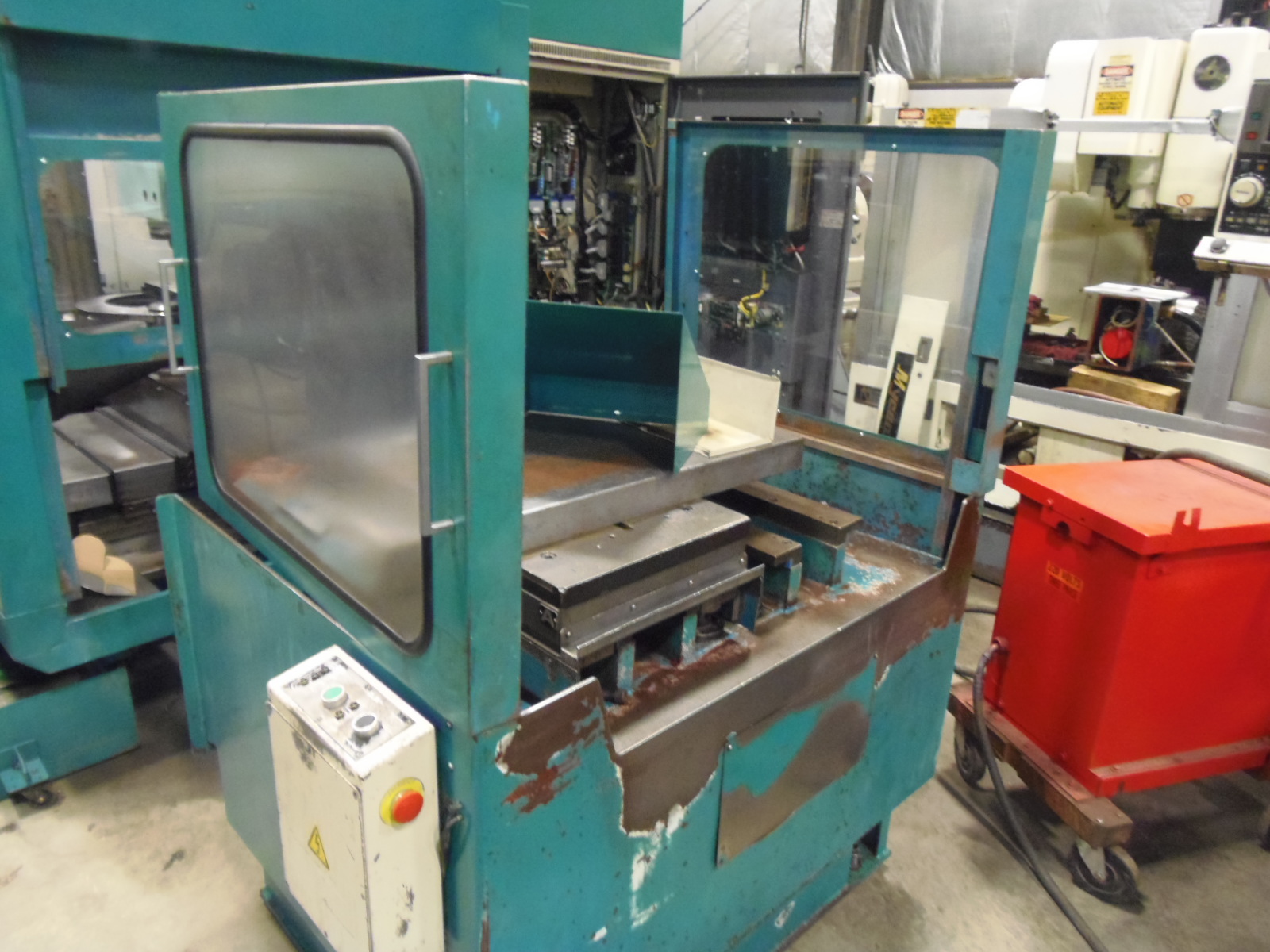

SHUTTLE TYPE PALLET CHANGER

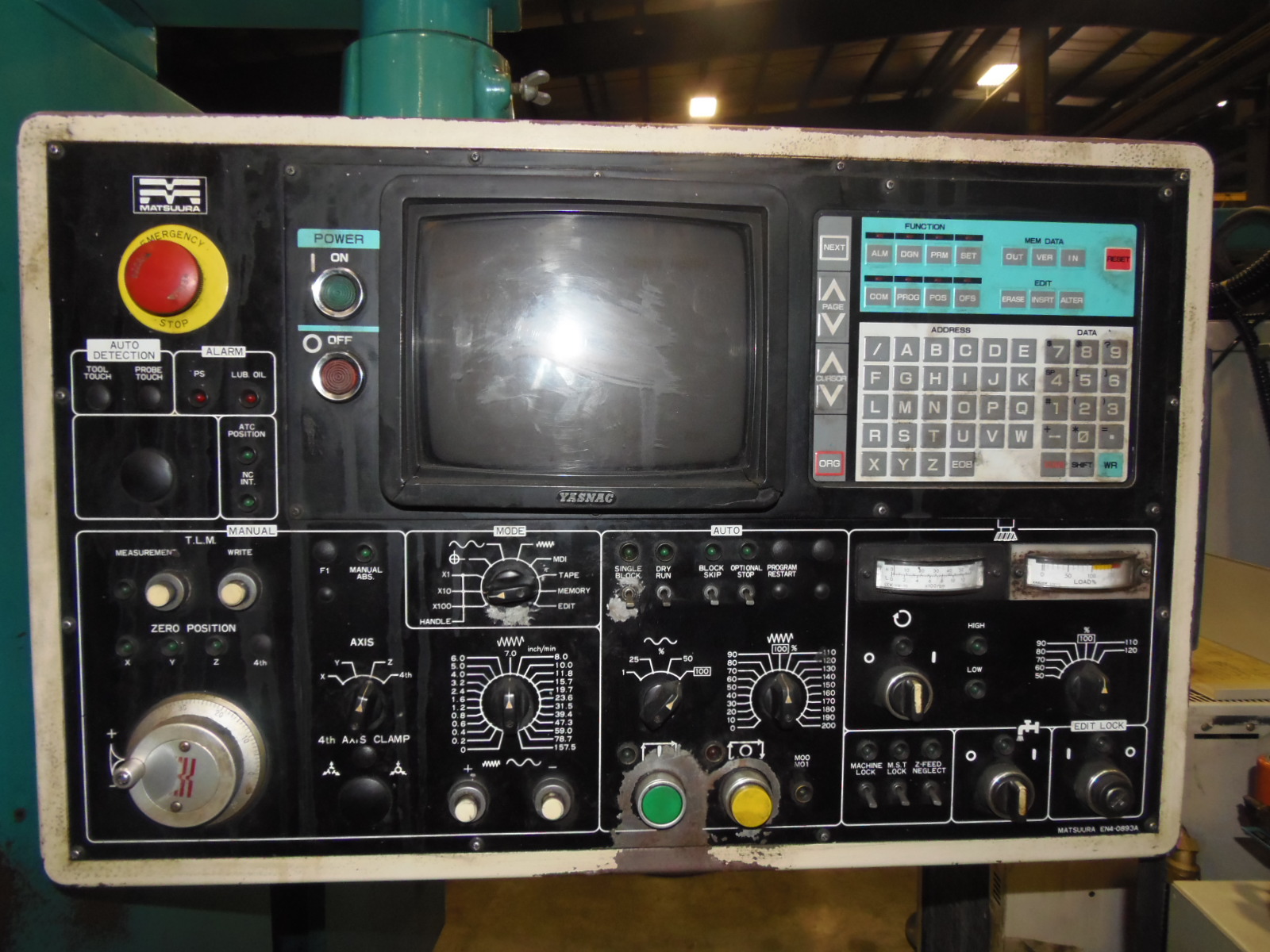

YASNAC MX3 CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
