Specifications
Equipped With
GENERAL SPECIFICATIONS

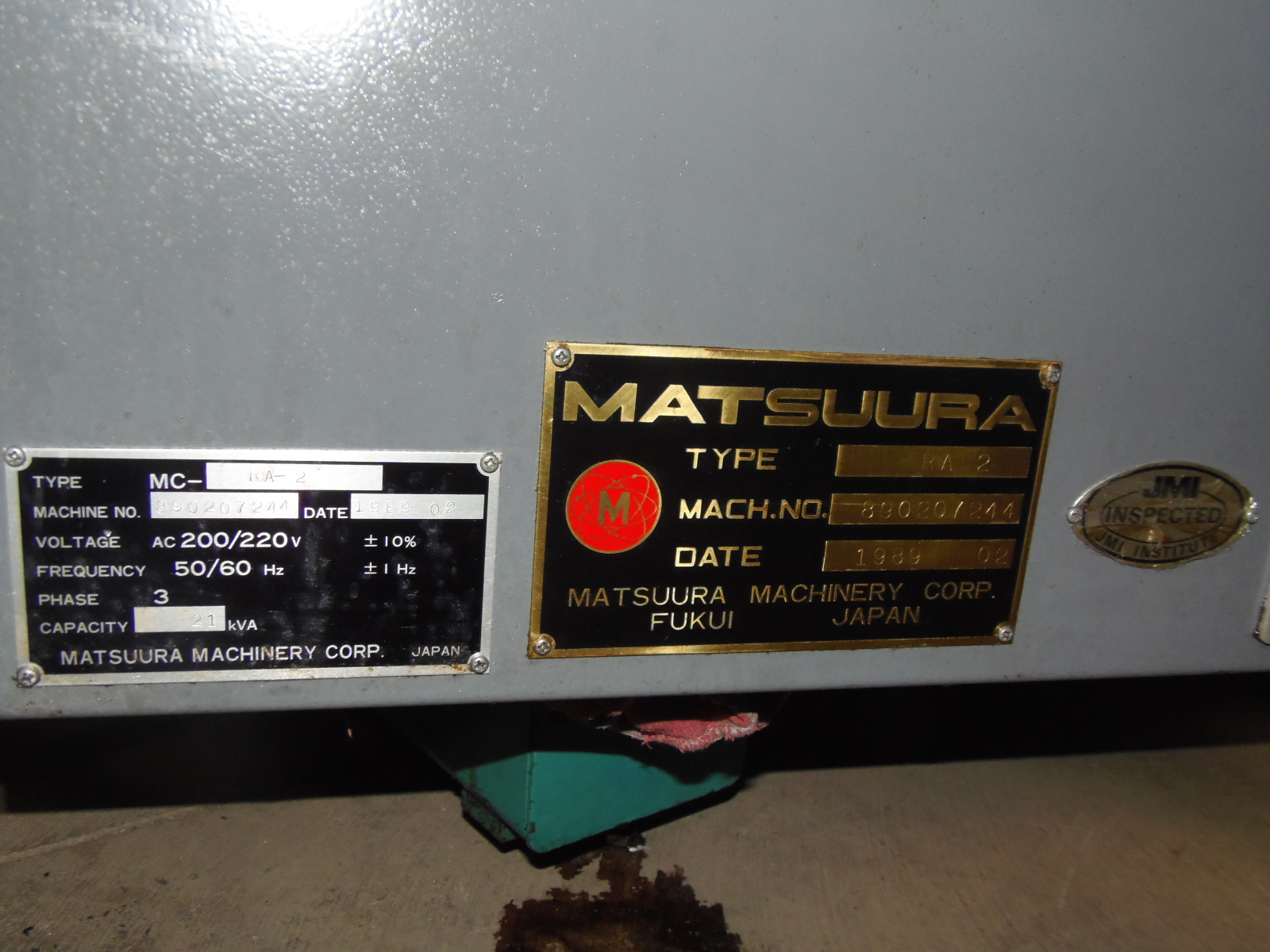

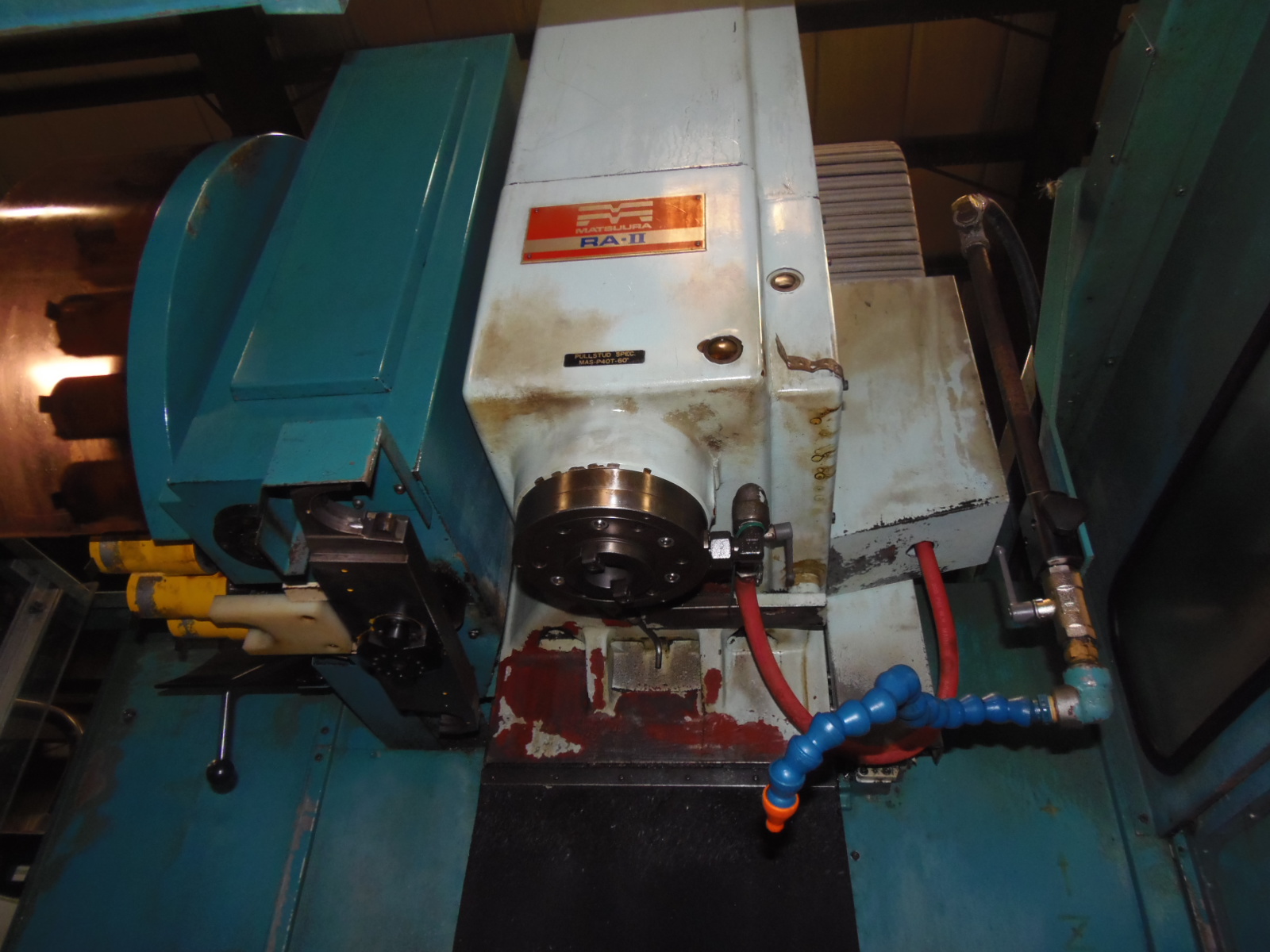

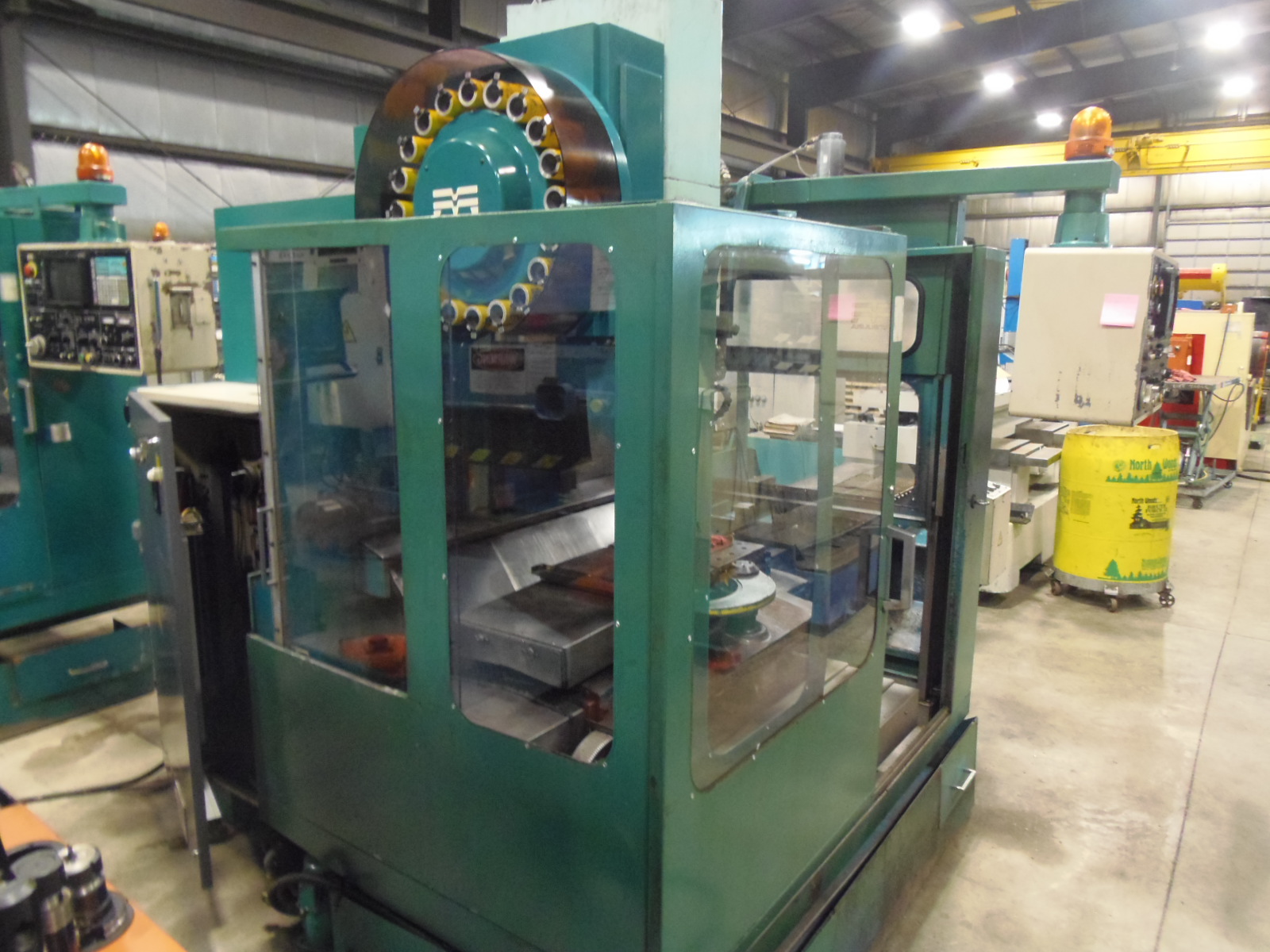

MAKE.................... MATSUURA
MODEL................... RA-2
SERIAL #................ 890207244
AGE (YEAR).............. 1989
TRAVEL (X AXIS)......... 23.62" (600MM)
TRAVEL (Y AXIS)......... 16.14" (410MM)
TRAVEL (Z AXIS)......... 18.5" (470MM)
RAPID FEED RATE......... 590(X)/590(Y)/472(Z)IN/MIN
CUTTING FEED RATE....... .1"-196"/MIN
PALLET TOP TO SPINDLE... 5.9" - 24.4" (150 -620)
SPINDLE MOTOR........... 5.5/7.5 KW (CONT./30 MIN)
SPINDLE SPEEDS.......... 30 - 6000 RPM (7000 BOOK)
SPINDLE TAPER........... BT 40

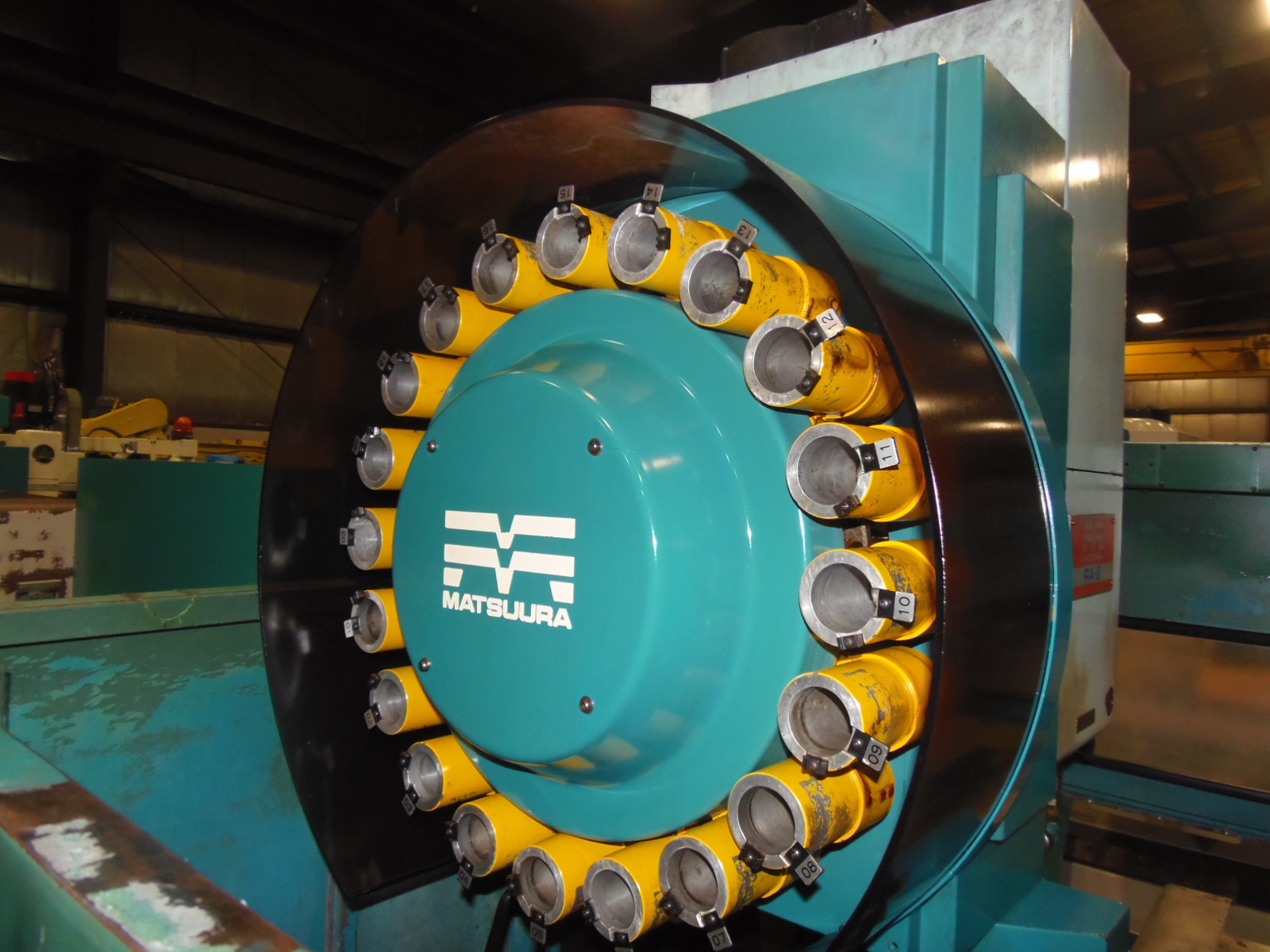

TOOL CHANGER............ 20 TOOLS
PALLET (TABLE) SIZE..... 23.6" X 14.9"
PALLET CAP. WEIGHT...... 550 LBS.
NUMBER OF PALLETS....... 2
ELECTRICS............... 230V/3PH/60HZ
DIMENSIONS.............. 145" X 111" X 106.5" H
MACHINE WEIGHT (APPROX). 10000 LBS.
EQUIPPED WITH:

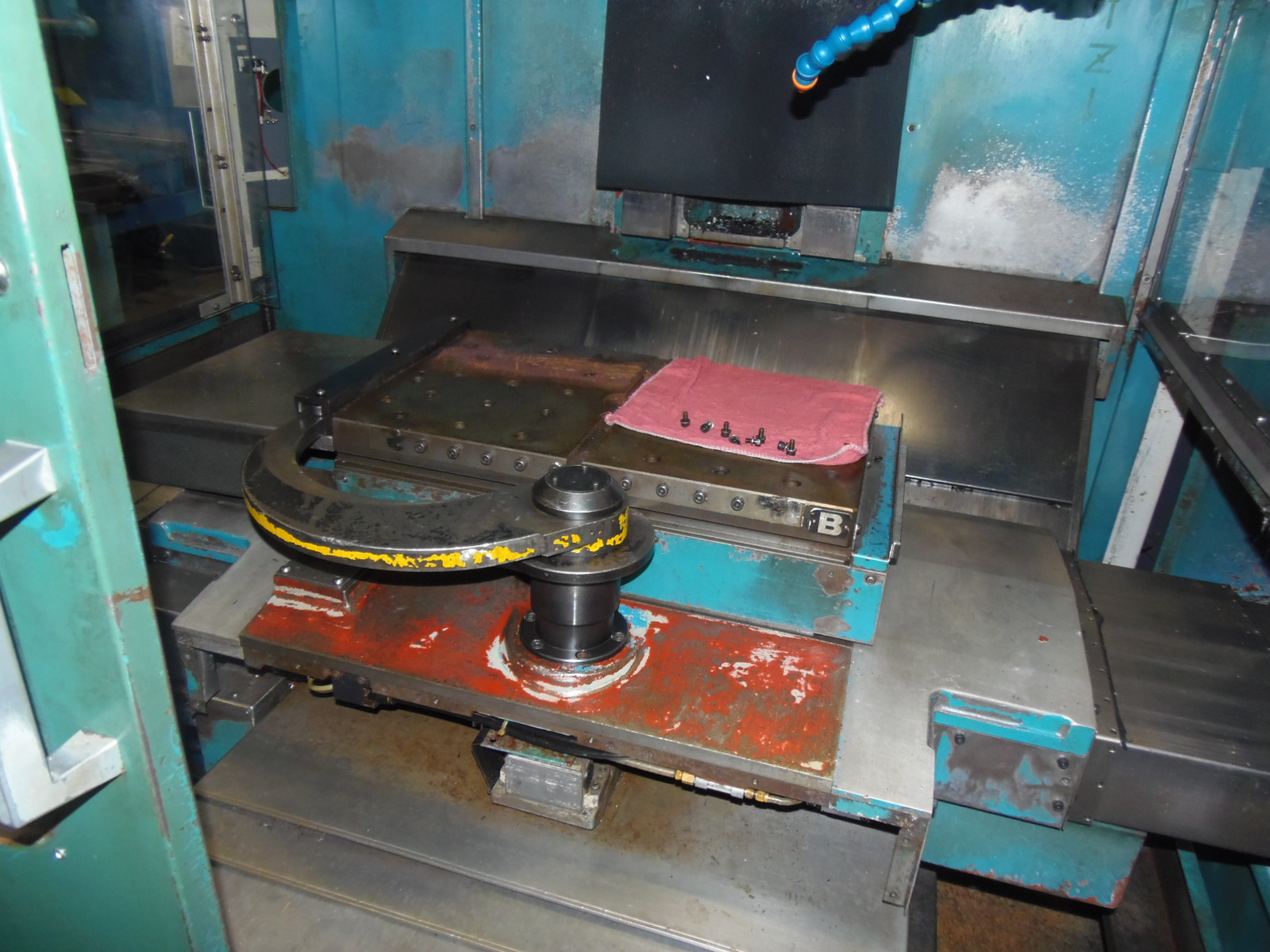

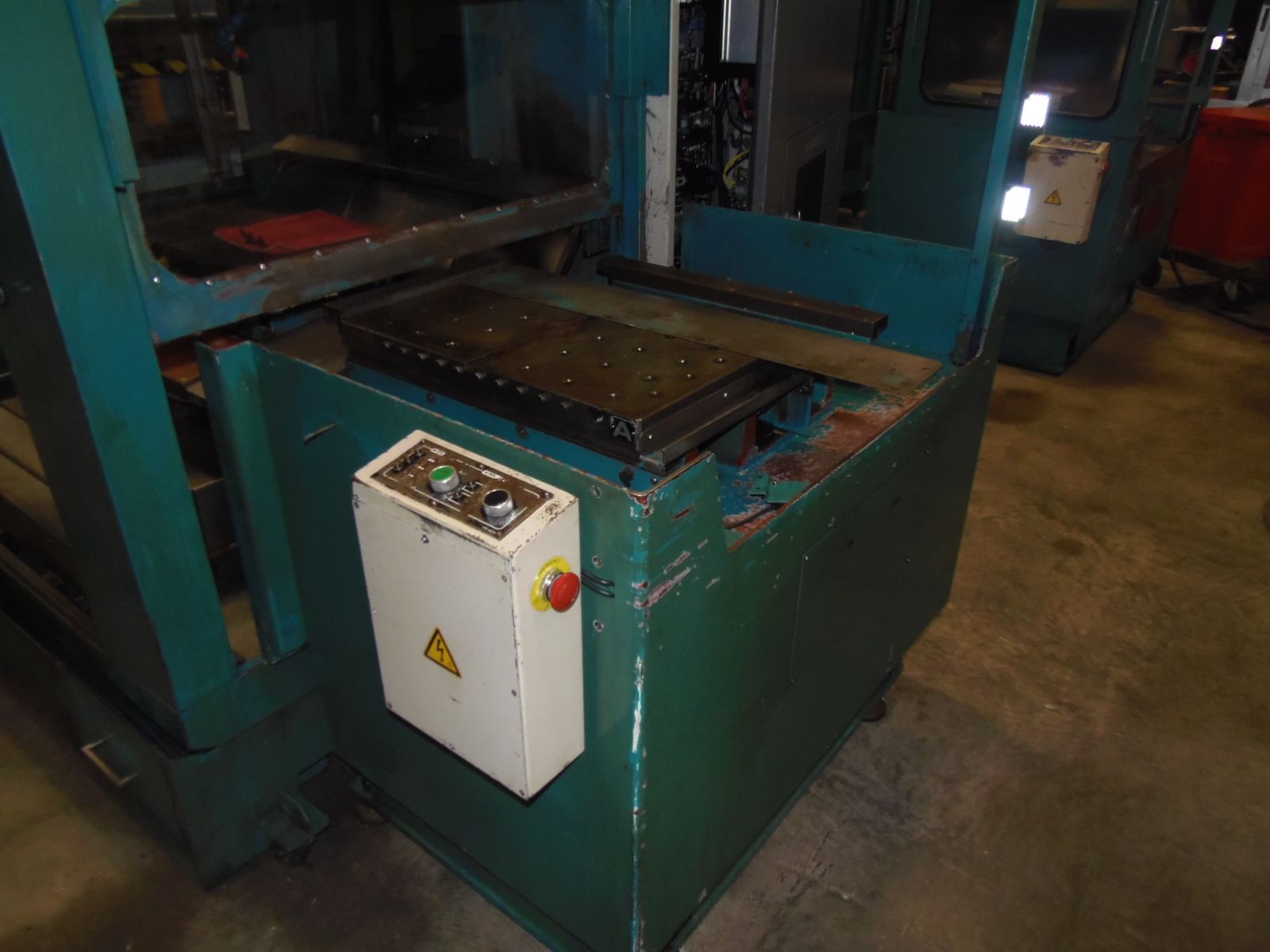

SHUTTLE TYPE PALLET CHANGER

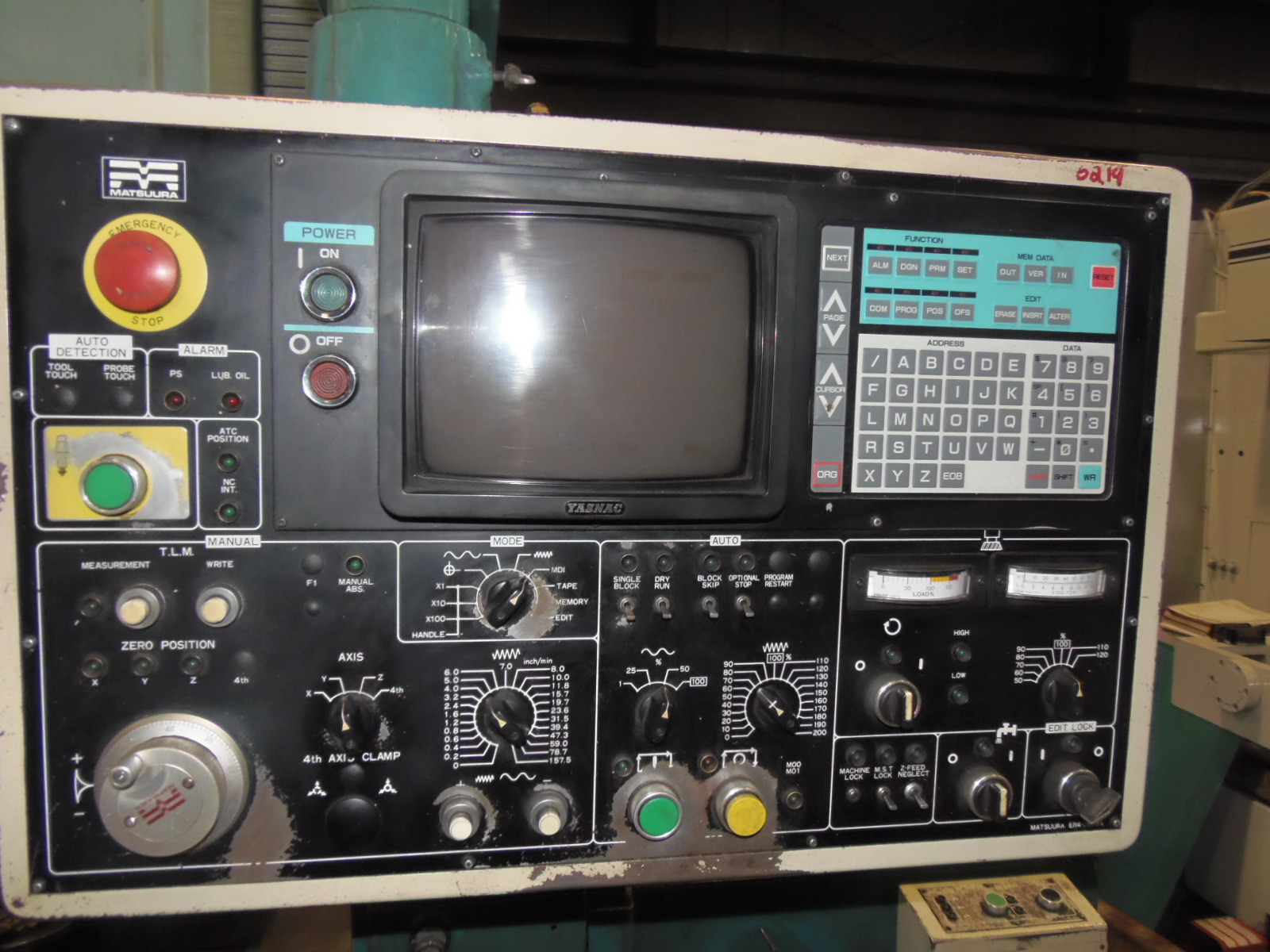

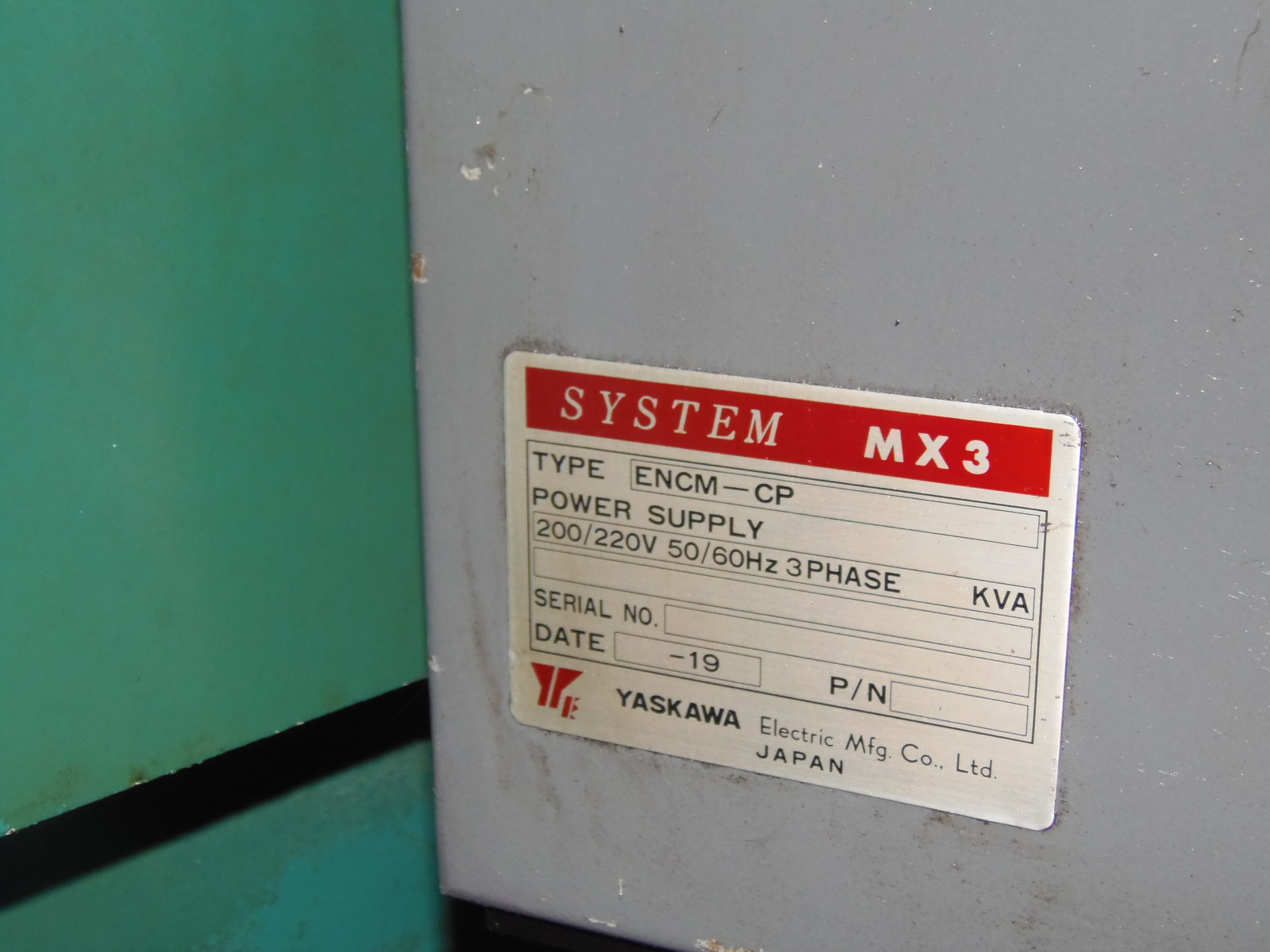

YASNAC MX3 CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
