Specifications
Equipped With

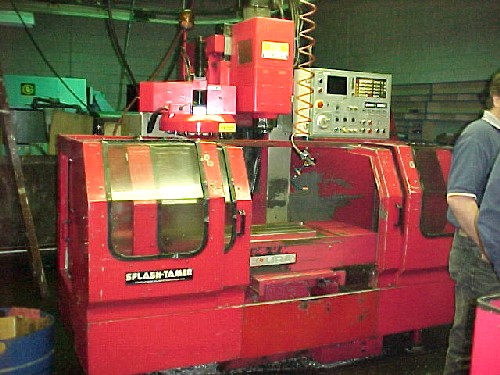

GENERAL SPECIFICATIONS:
TABLE SIZE 12.6" x 36.2"
MAXIMUM TABLE LOAD 550 LBS
SPINDLE NOSE TO TABLE TOP 5" - 23"
X AXIS TRAVEL 20"
Y AXIS TRAVEL 13"
Z AXIS TRAVEL 18"
RAPID TRAVERSE RATE X AXIS 472.4 IPM
RAPID TRAVERSE RATE Y AXIS 472.4 IPM
RAPID TRAVERSE RATE Z AXIS 393.7 IPM
SPINDLE SPEEDS 180 - 4,000 RPM
SPINDLE TAPER BT 35
SPINDLE MOTOR 7.5 HP
TOOL CHANGER CAPACITY 16 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 6 SECONDS
EQUIPPED WITH:
YASANC 3000G (MATSUURA M5G) CNC CONTROL WITH 6" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION, 20M MEMORY
STANDARD COOLANT SYSTEM WITH TANK & PUMP, AC SPINDLE MOTOR
FULLY ENCLOSED SPLASH GUARDING (FULL GUARDS TO TOP)
ALL AVAILABLE TOOLING (APPROX. 20), ALL AVAILABLE MANUALS
