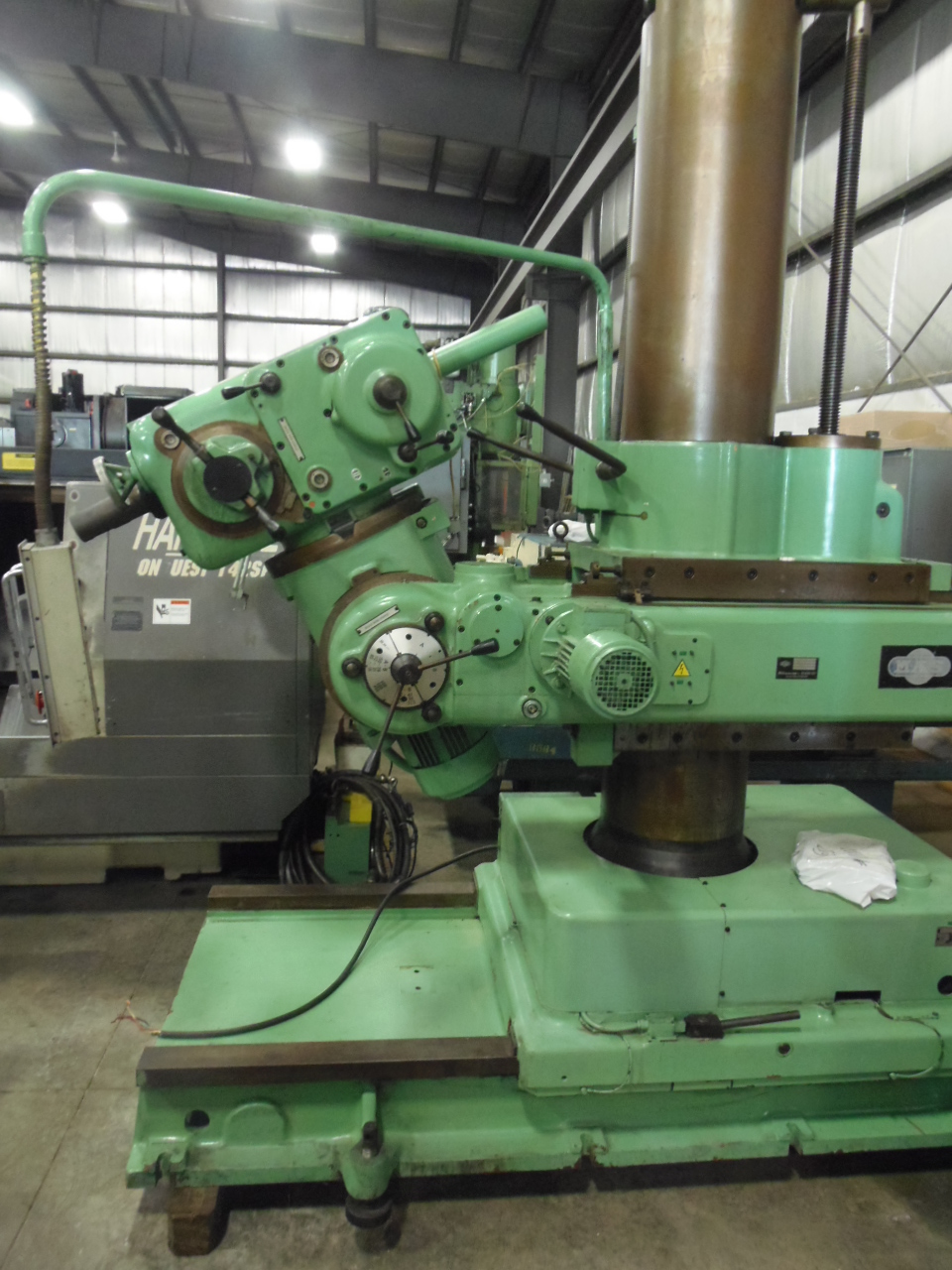

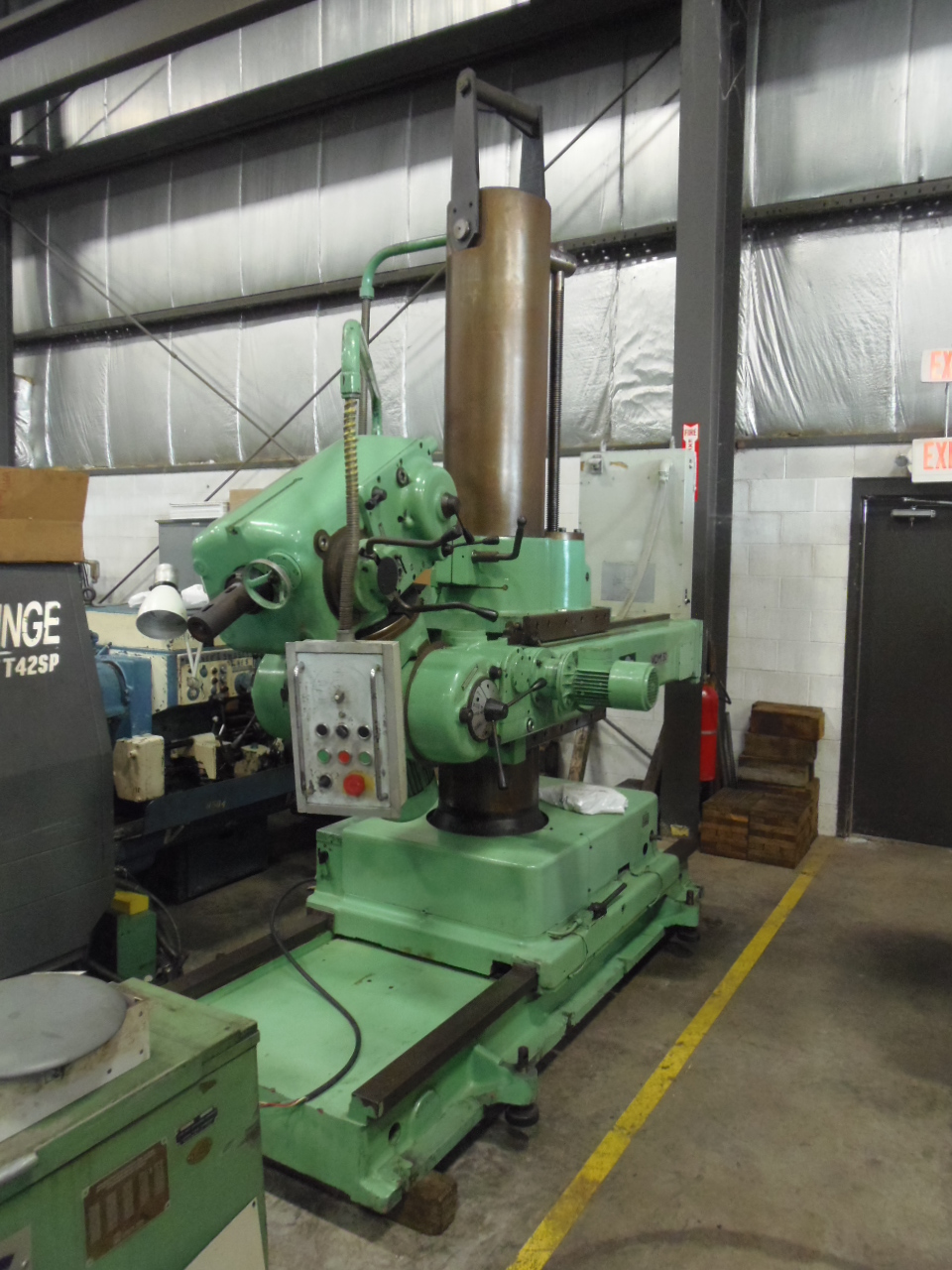

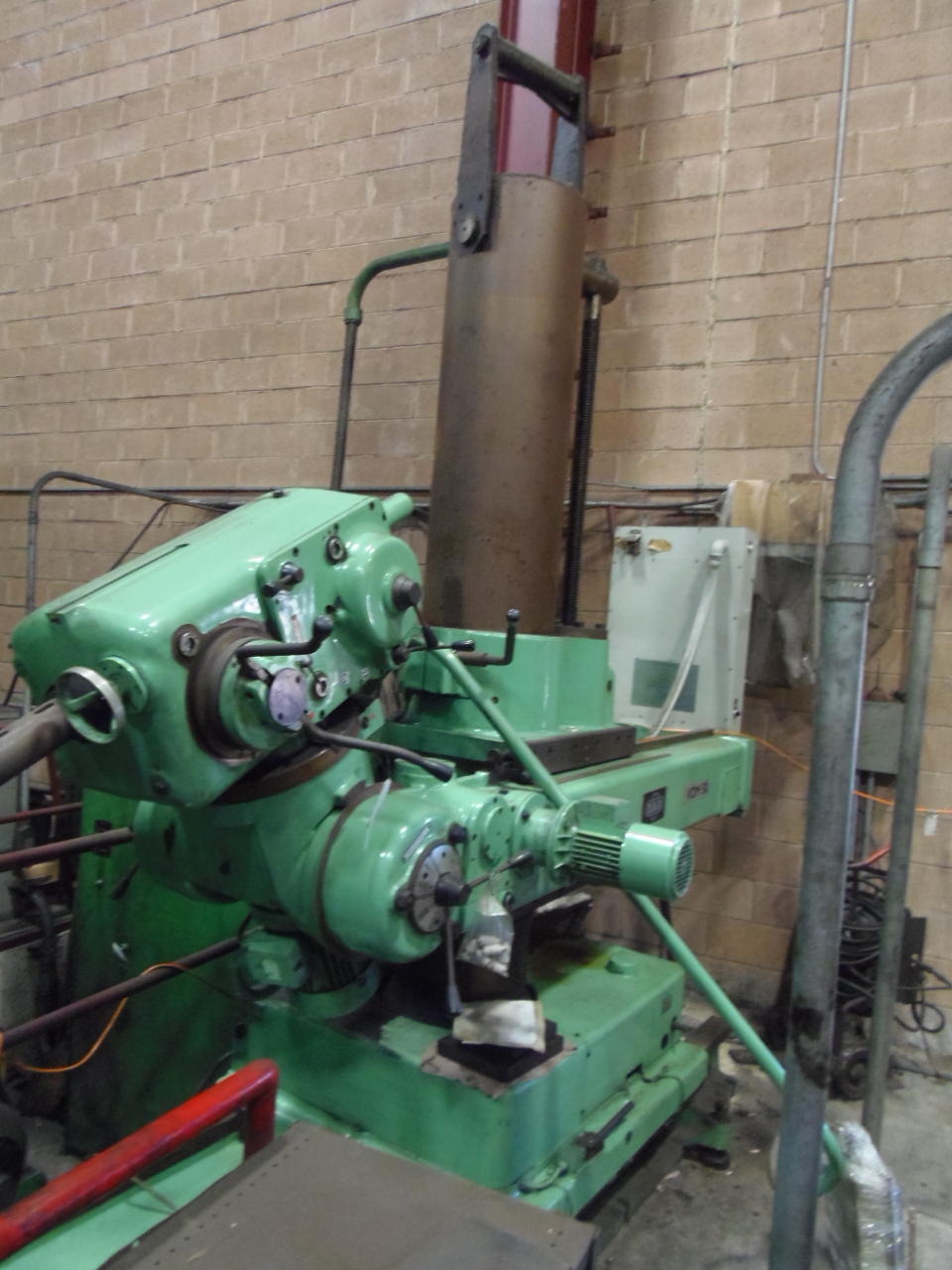

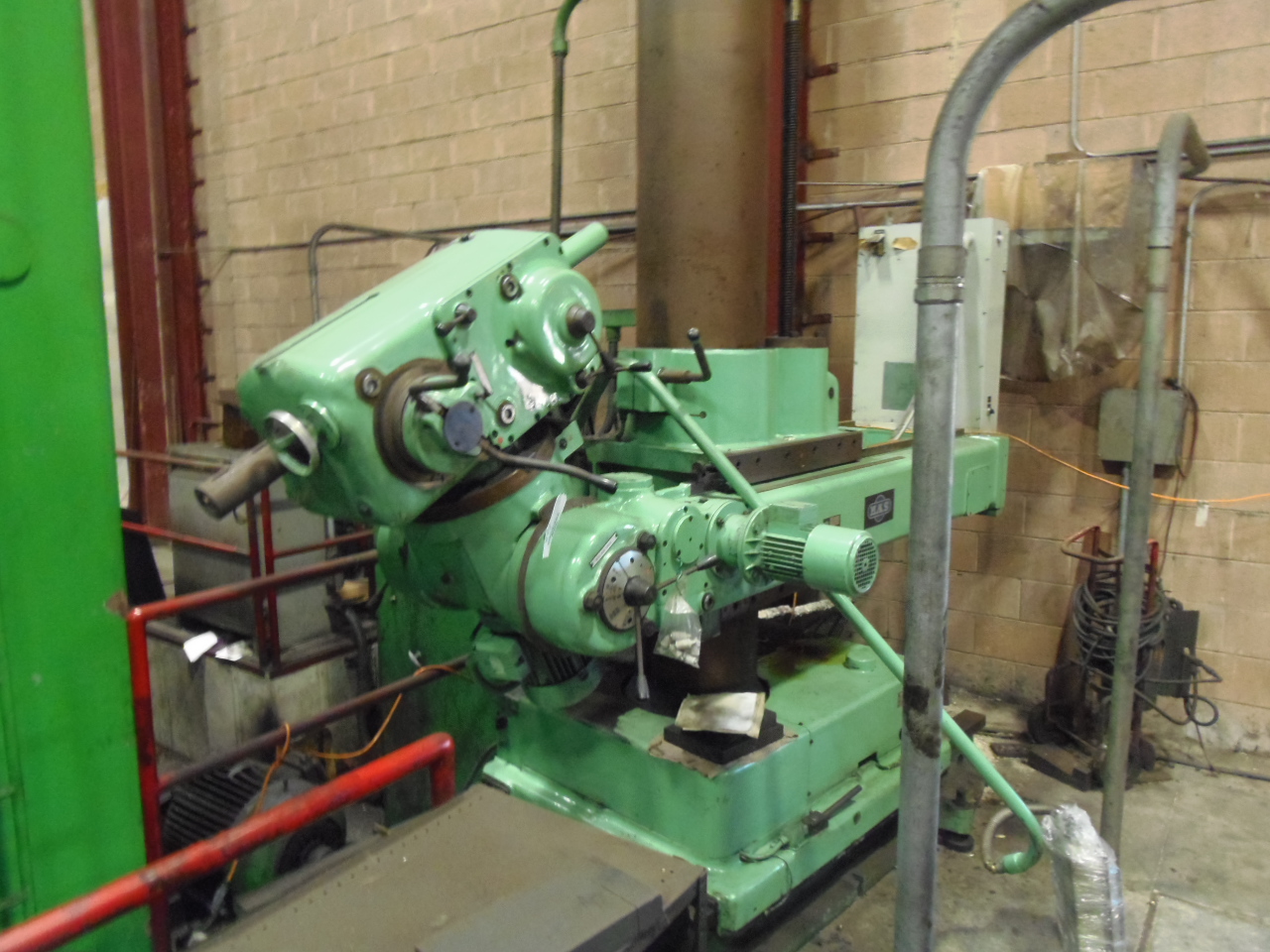

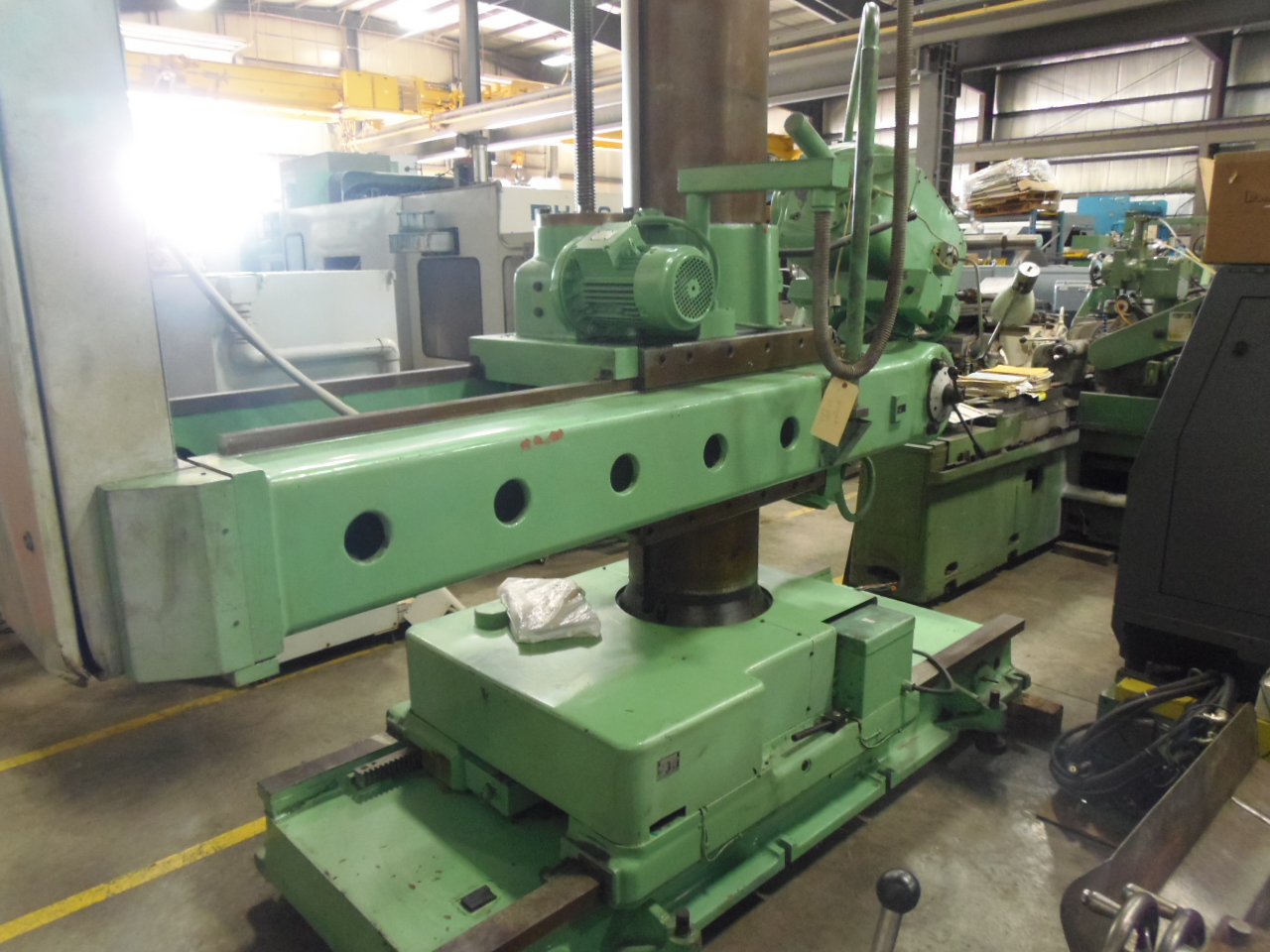

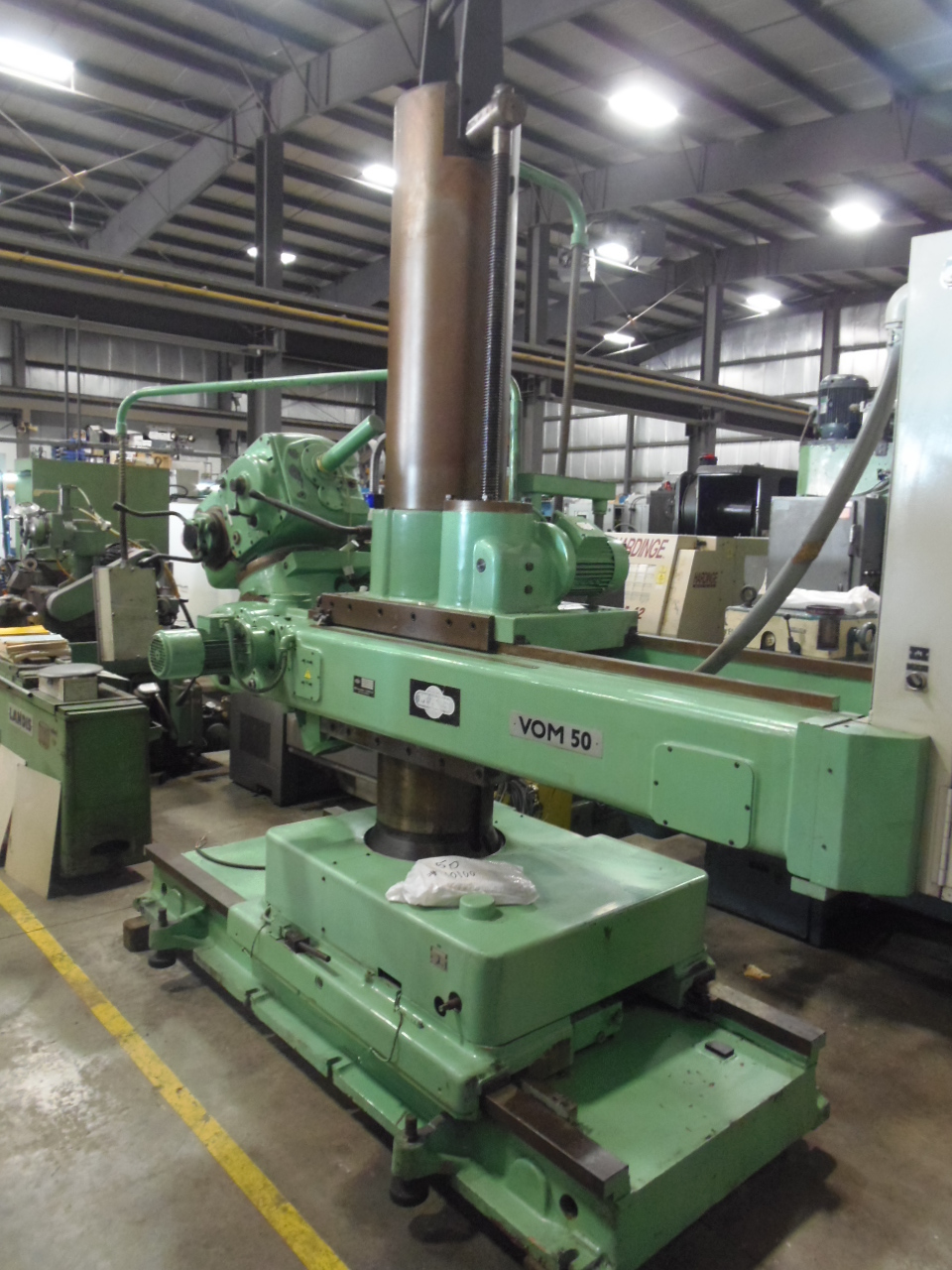

MAS VOM 50 PORTABLE RADIAL DRILLING MACHINE, MORSE 5 TAPER, 16-800 RPM, 360 DEGREE CROSSARM AND 360 DEGREE DRILLING HEAD ROTATION, SWIVEL, 1991

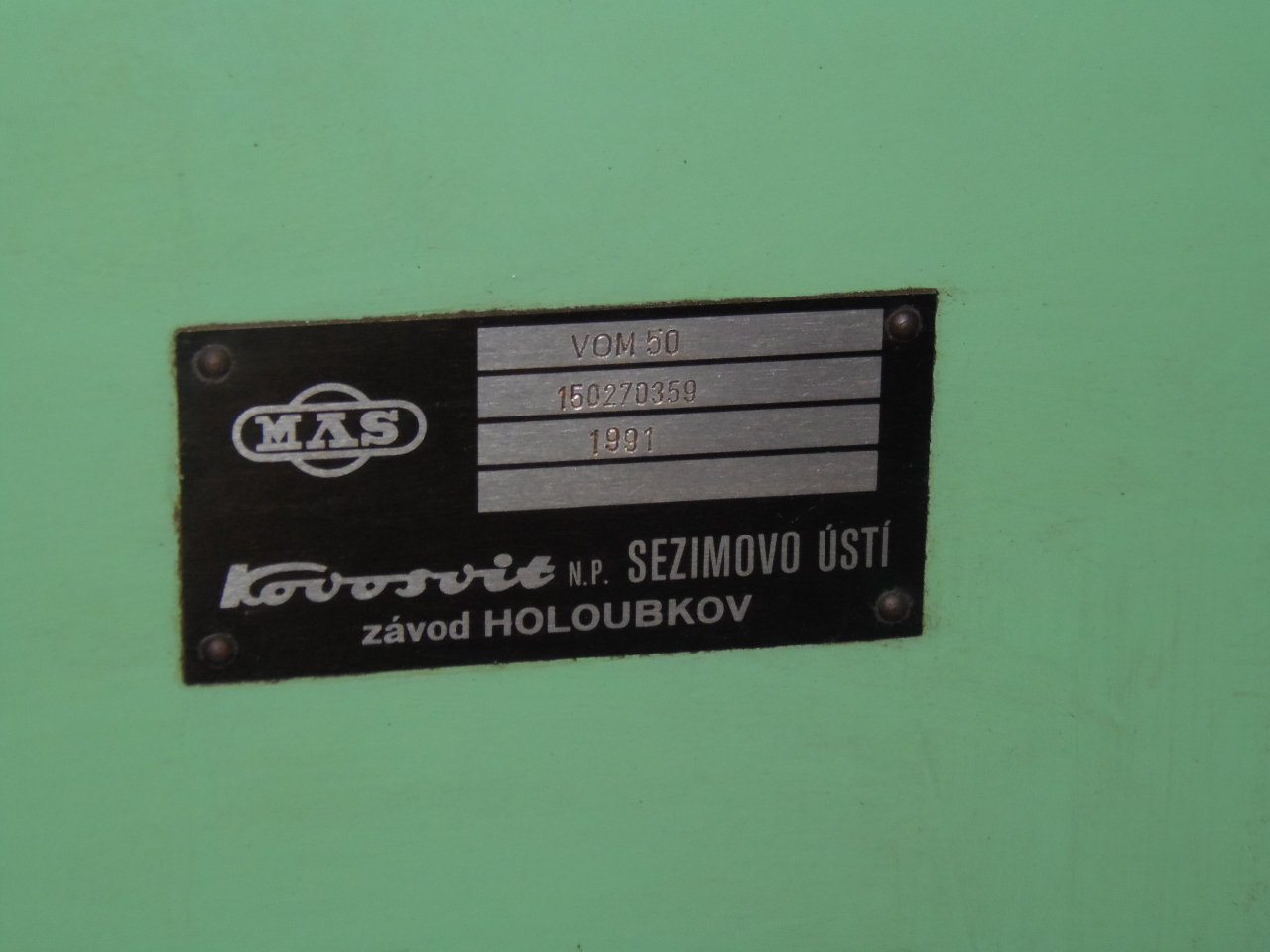

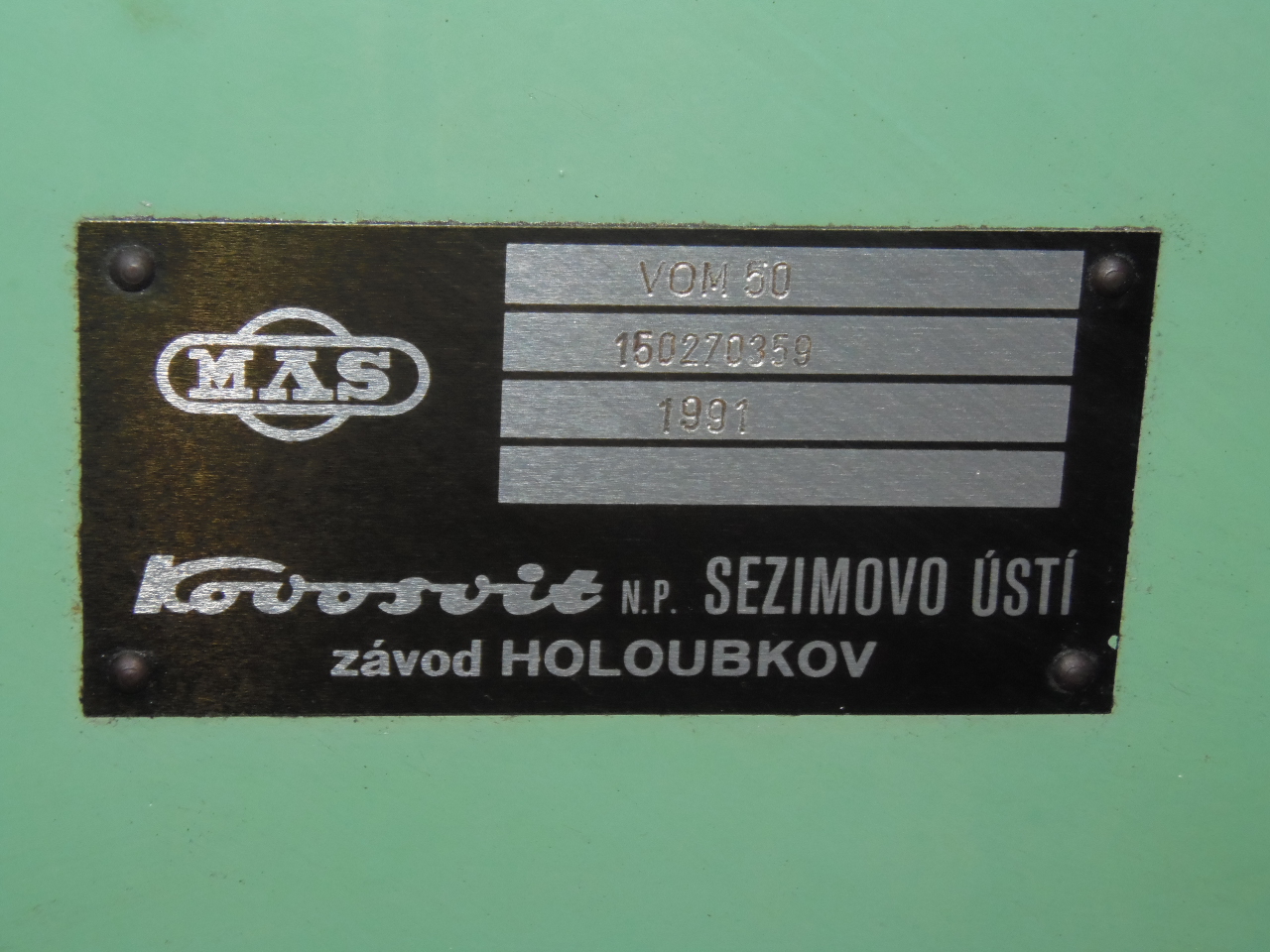

MAKE............................ MAS
MODEL........................... VOM 50
SERIAL NUMBER................... 150270359
AGE (YEAR)...................... 1991
SPINDLE DIAMETER................ 2.95" (75 MM)
SPINDLE TAPER................... MORSE 5
SPINDLE EXTENSION............... 13.7" (350 MM)

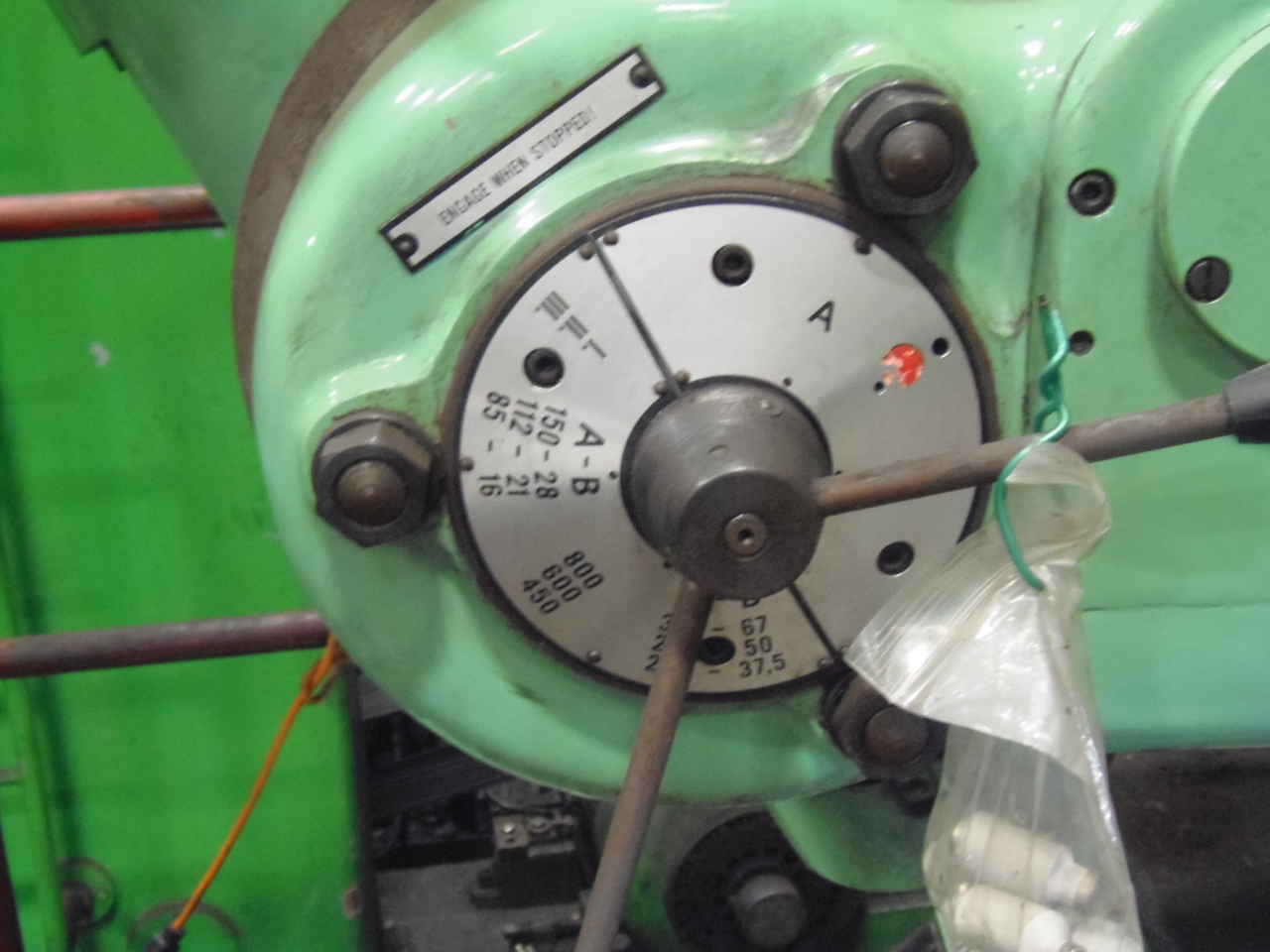

SPINDLE SPEEDS.................. 16-800 RPM
SPEED STEPS..................... 16
FEED RATE....................... .001"-.01" (.05-.5 MM)
FEED STEPS...................... 6
COLUMN DIAMETER................. 15" (400 MM)

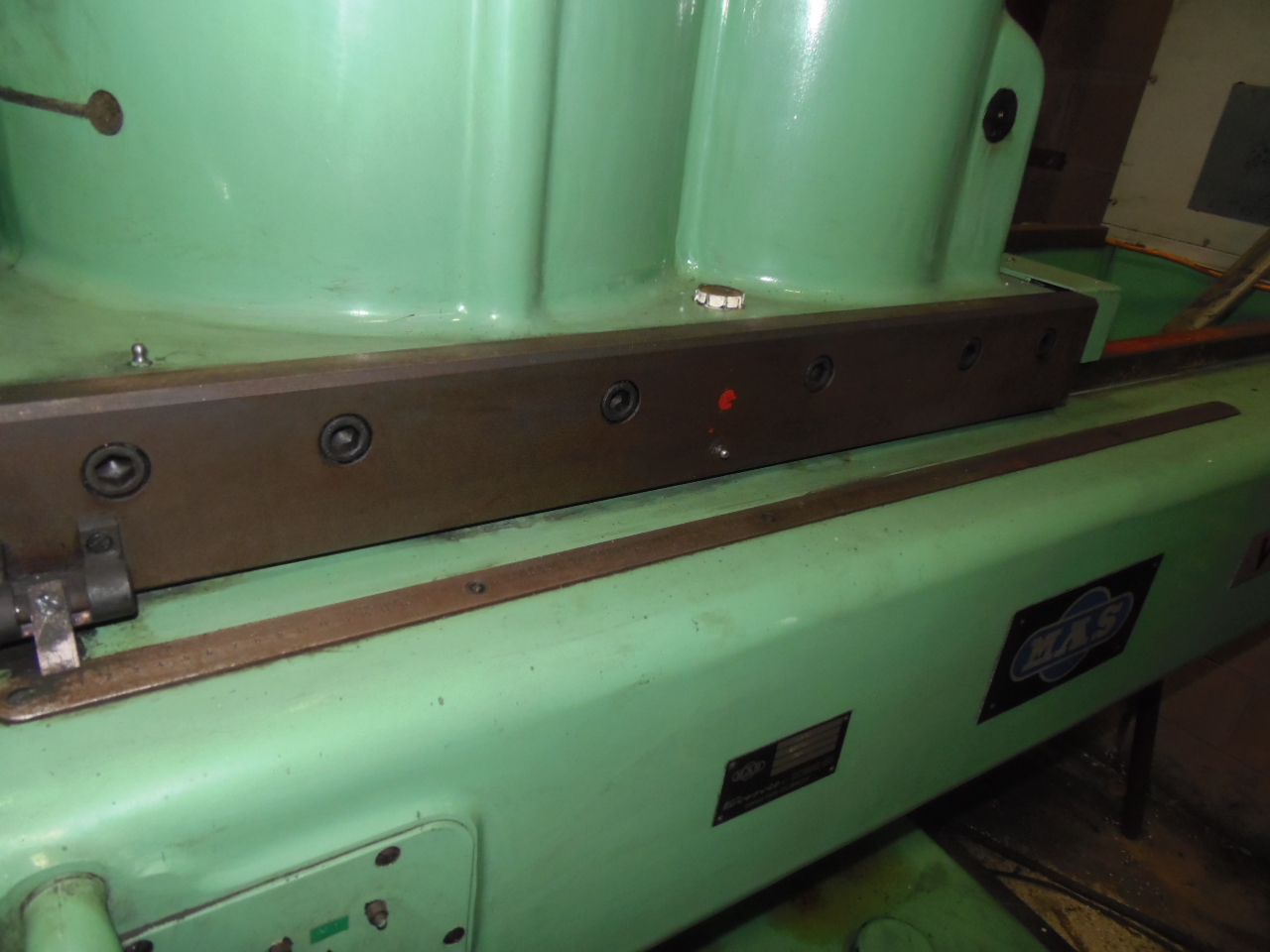

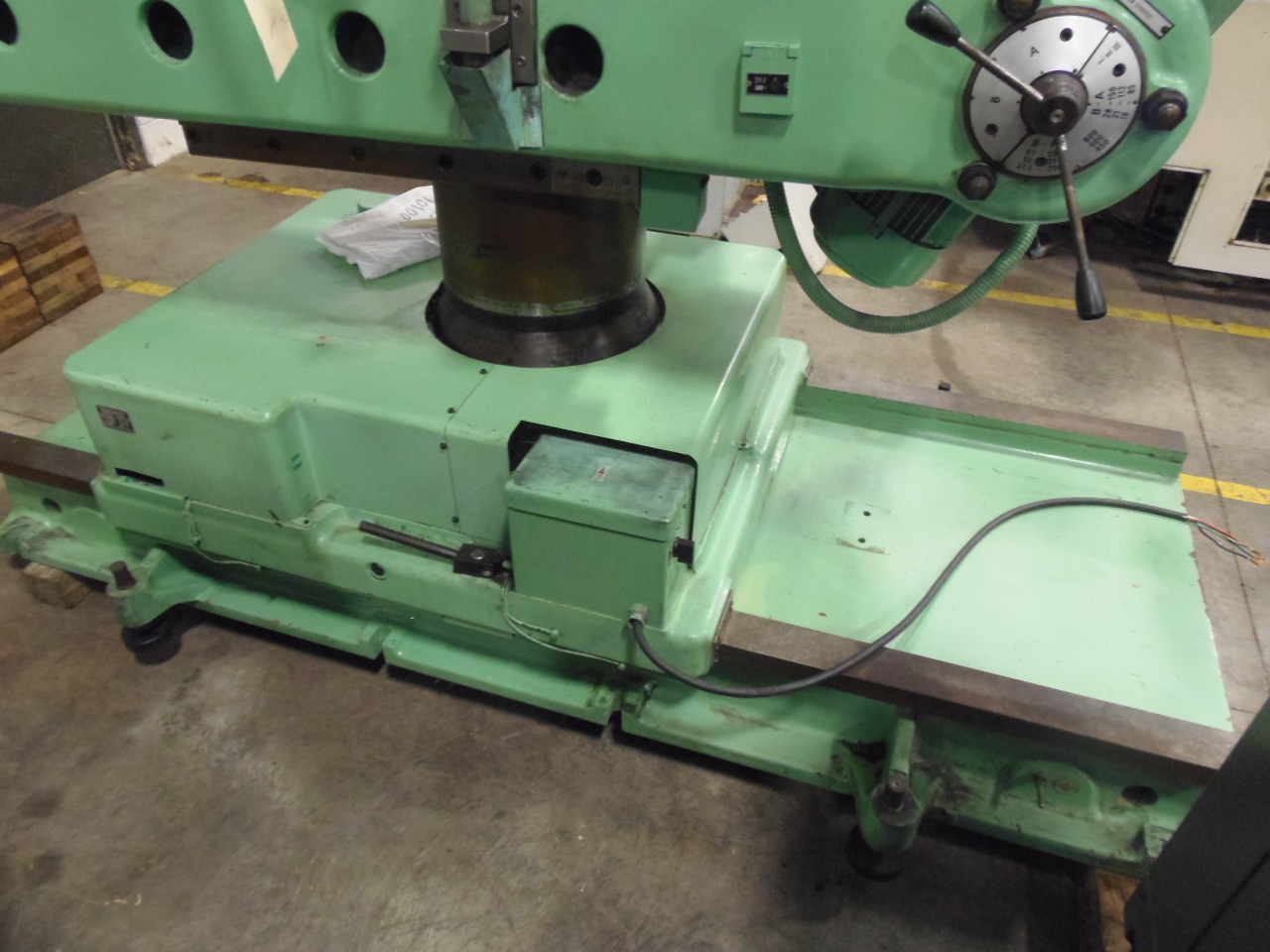

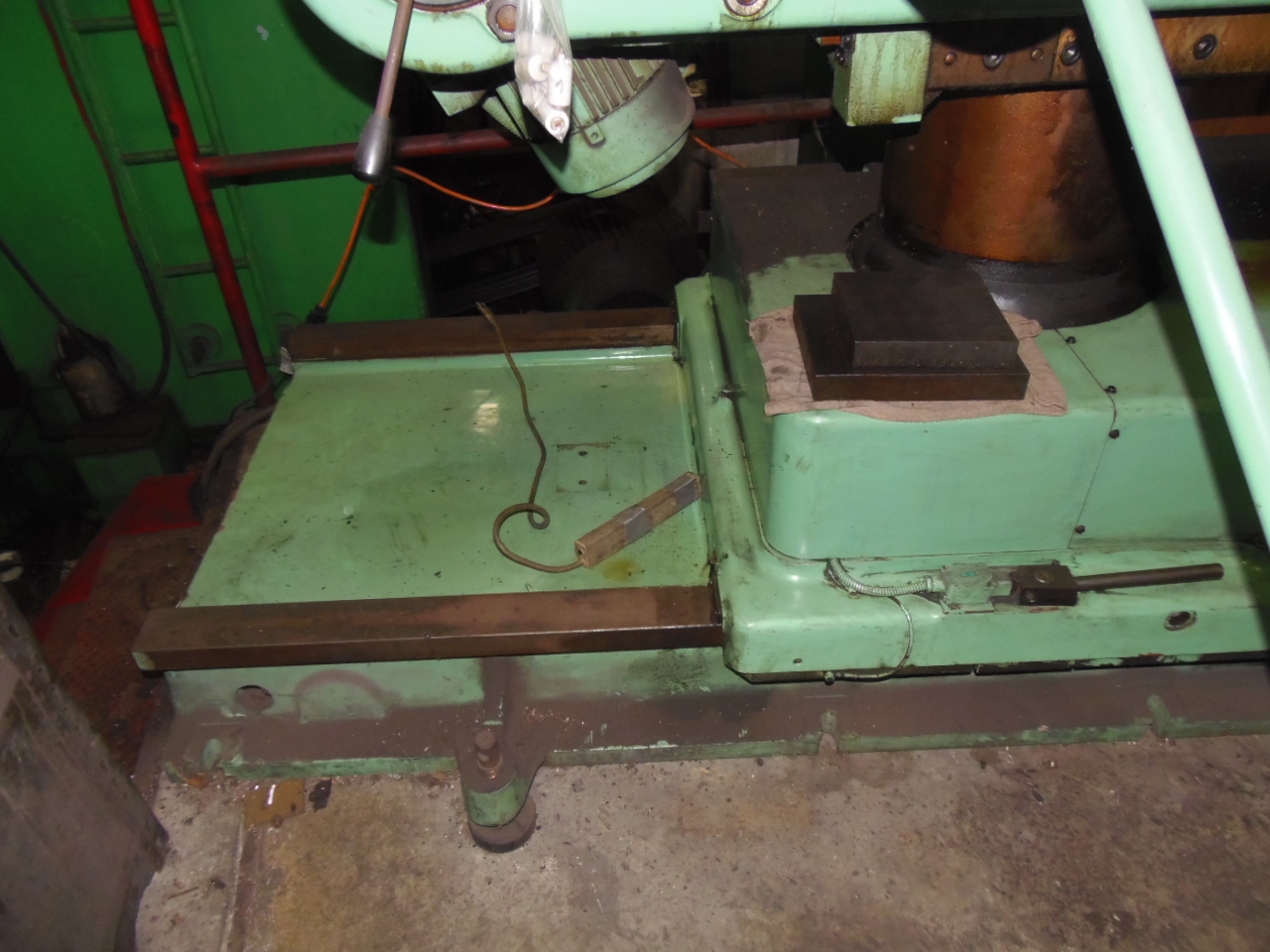

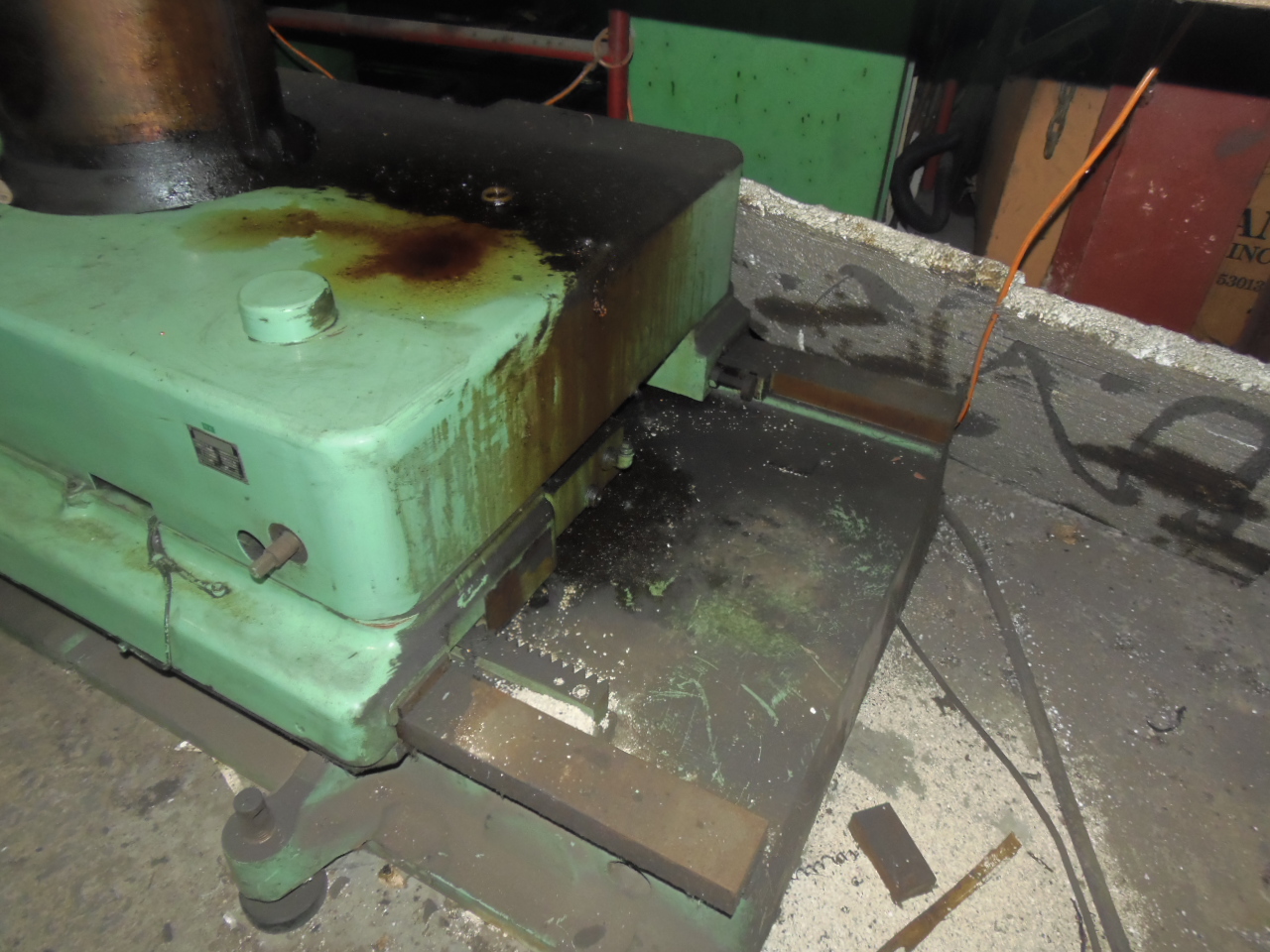

COLUMN SLIDE TRAVEL ALONG BED... 47.2" (1200 MM)
OVERHANG FROM SHELL SURFACE
TO SPINDLE CENTER LINE.......... 46-81" (1170-2070 MM)
RADIUS AT EXTREME DRILLING
SPINDLE POSITIONS............... 53-89" (1370-2270 MM)
DISTANCE BETWEEN DRILLING
HEAD IN VERT. AND FLOOR LEVEL... 12"-61" (305-1555 MM)
DISTANCE BETWEEN DRILLING
SPINDLE AXIS IN HORZ. POSITION
AND FLOOR LEVEL................. 11.61"-107" (295-2725 MM)
VERTICAL TRAVERSE OF CROSSARM... 49" (1250 MM)
HORIZONTAL EXTENSION OF CROSSARM 35" (900 MM)
ANGLE OF CROSSARM ROTATION...... 360 DEG.

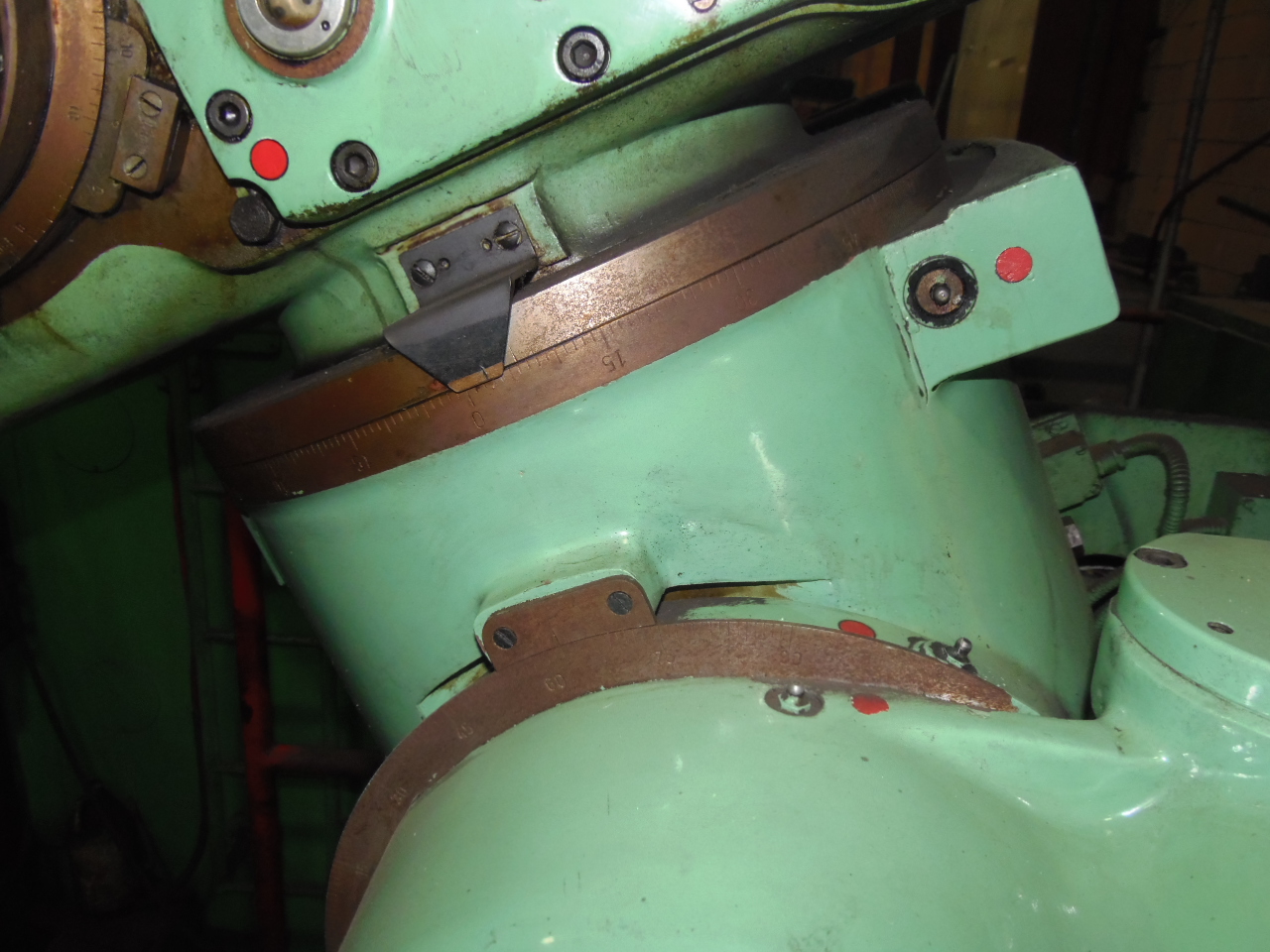

ANGLE OF DRILLING HEAD ROTATION. 360 DEG.
ANGLE OF MACHINE HEAD SWIVEL
FROM HORZ. UP AND DOWN.......... 90 DEG.
DRILLING CAP STEEL.............. 2" (50 MM)
DRILLING CAP CAST IRON.......... 2.5" (65 MM)
SPINDLE MOTOR................... 5.3 HP (4 KW)
COLLAR MOTOR.................... 4 HP (3 KW)
MACHINE NET WEIGHT.............. 15,000 LBS
MACHINE MAX WORKING DIMENSIONS.. 225" X 178" 135"
SHIPPING DIMENSIONS............. 144" x 60" x 140" H

EQUIPPED WITH:

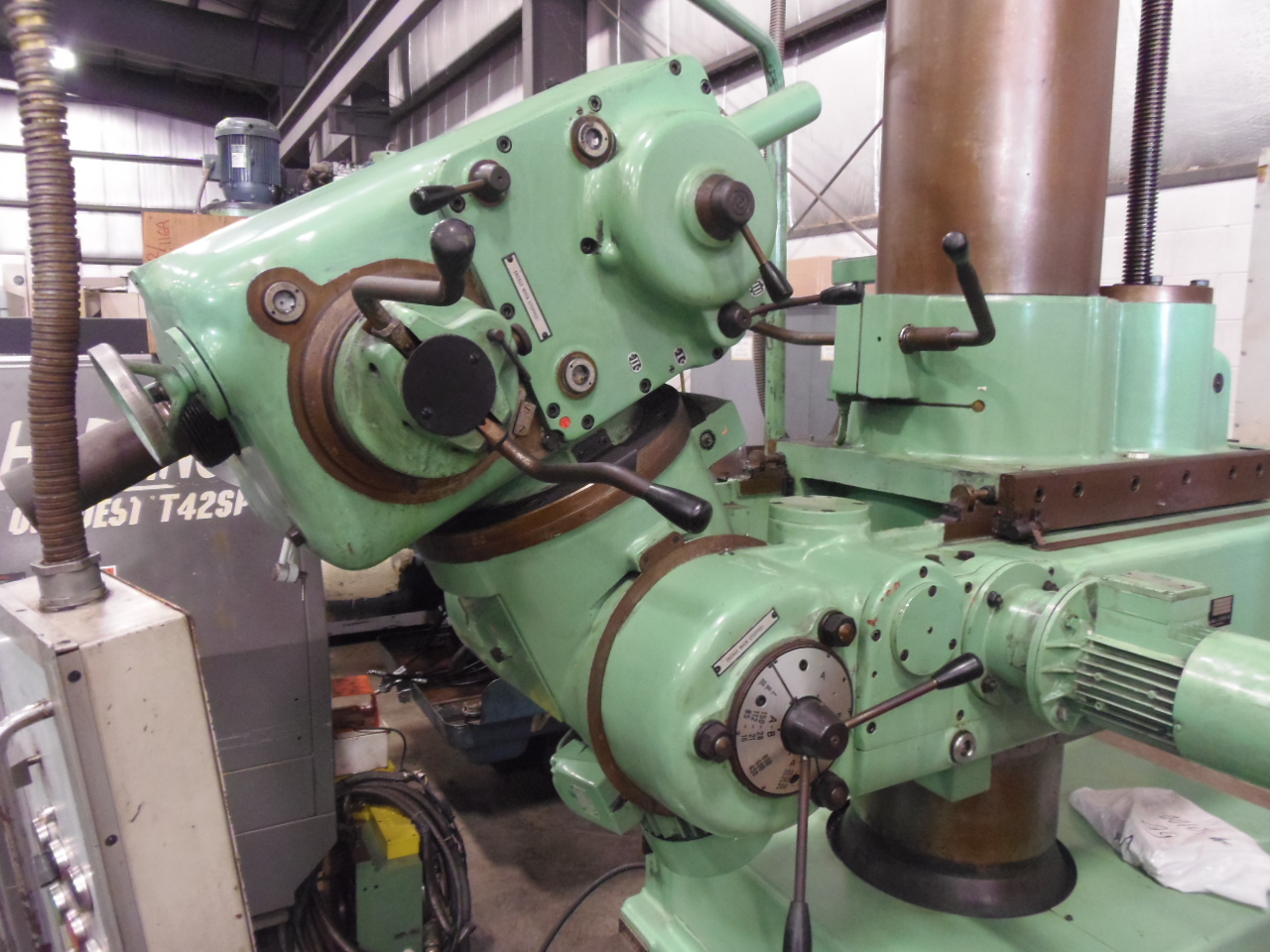

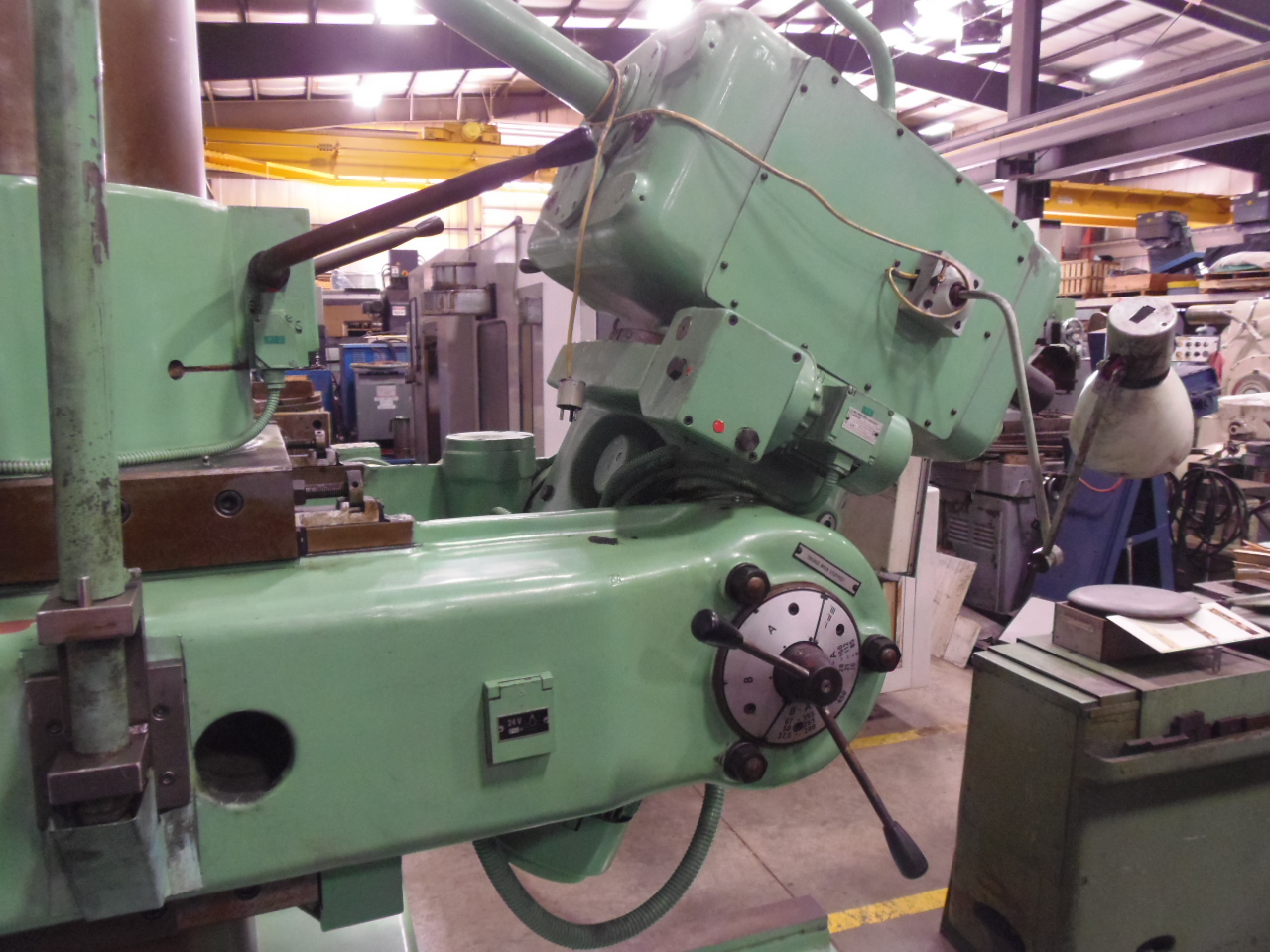

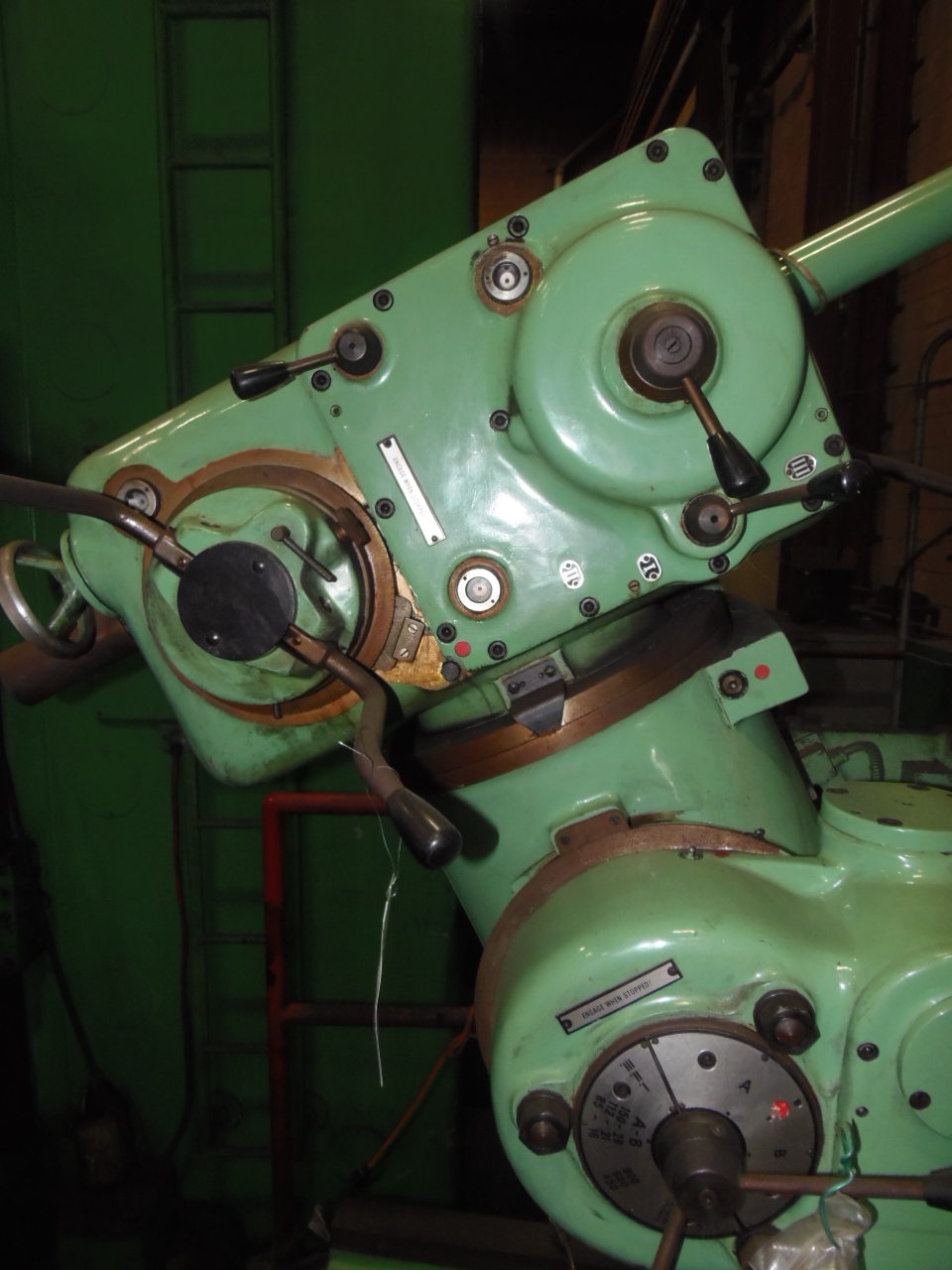

DRILLING HEAD CAN BE ROTATED, SWIVELLED, AND TRAVERSED

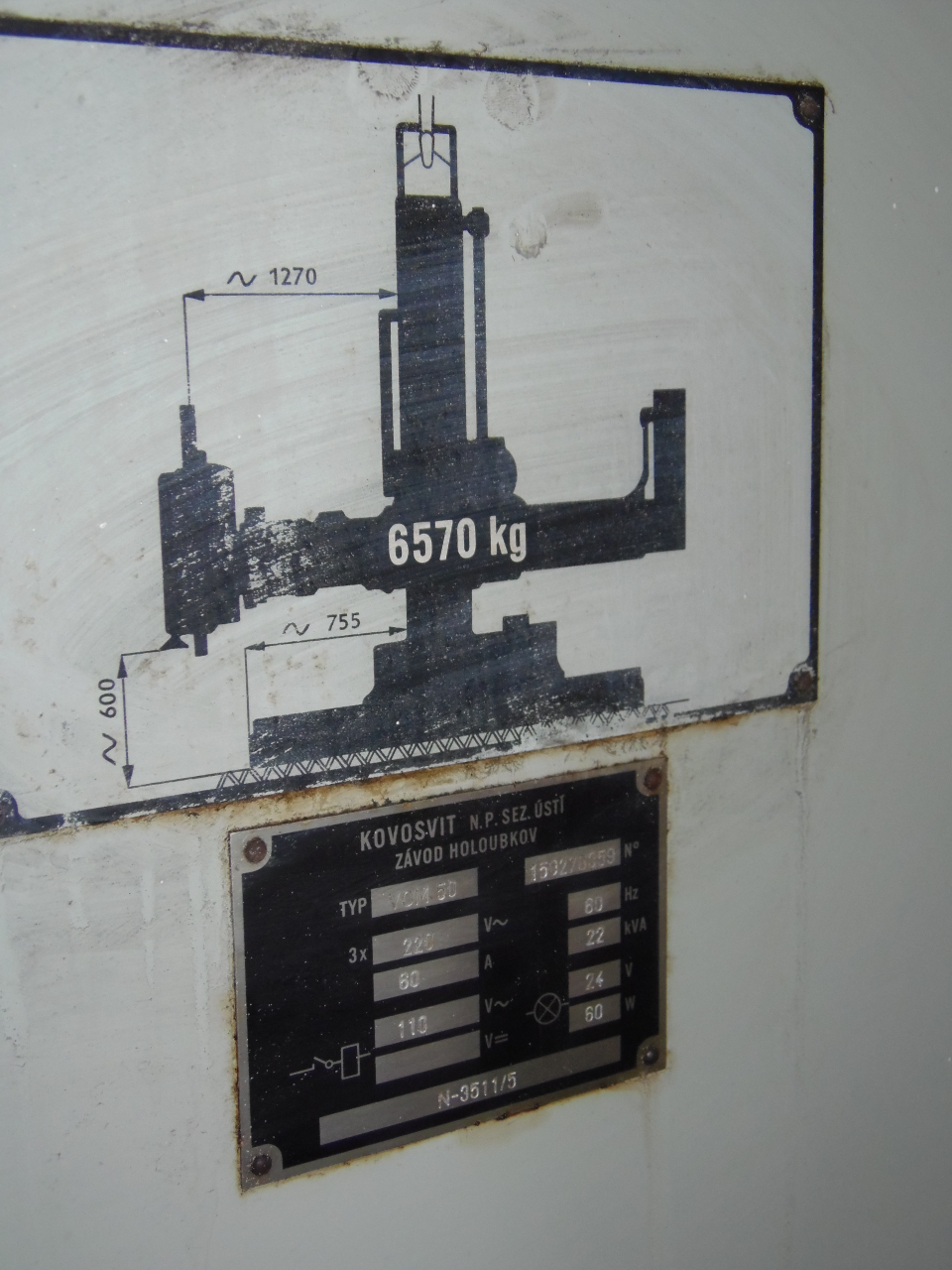

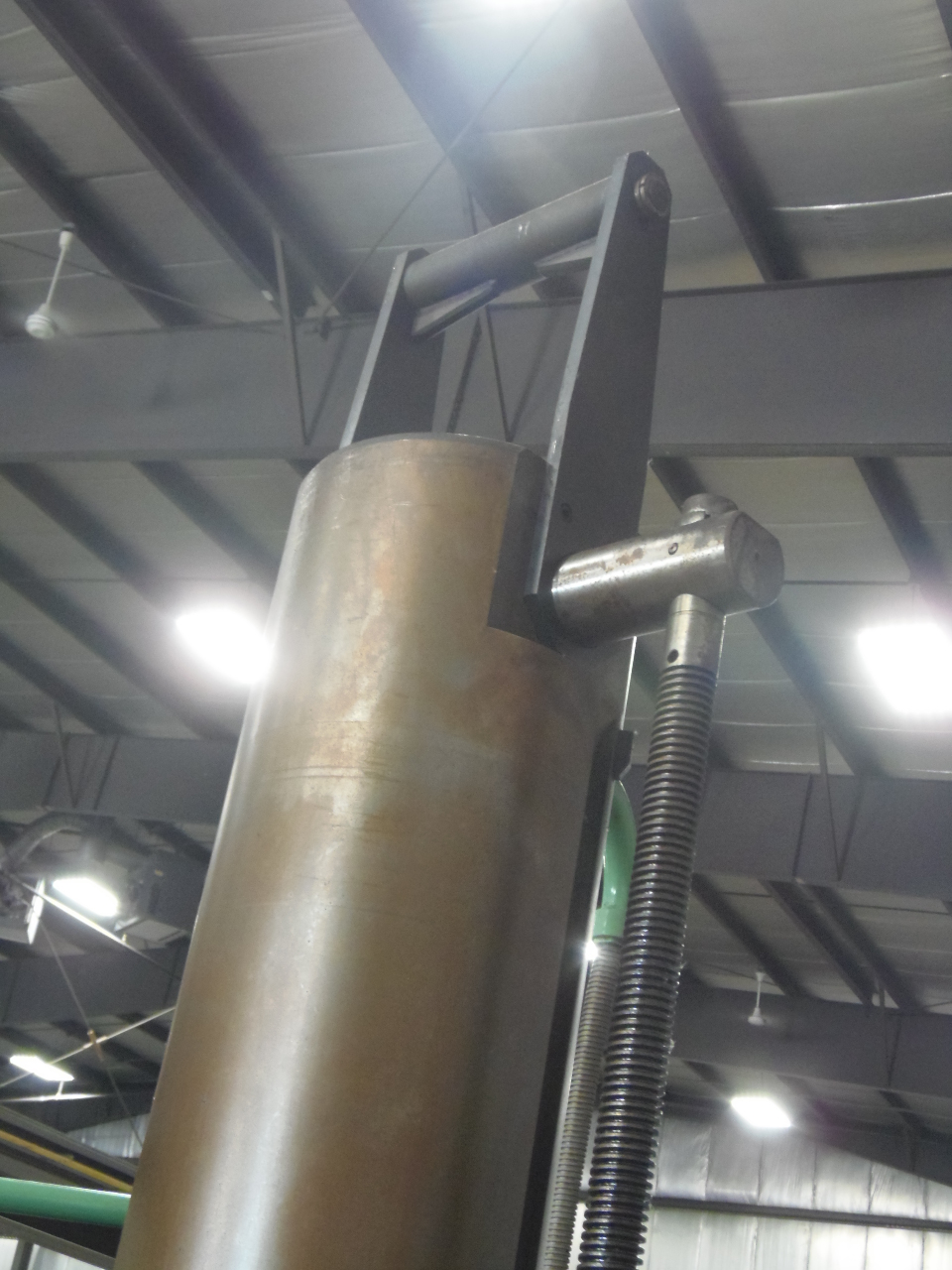

BUILT IN BAIL TO FACILITATE LIFTING OF MACHINE BY CRANE
90 DEGREE POWER SWIVEL IN BOTH DIRECTIONS
DRILL AND TAP

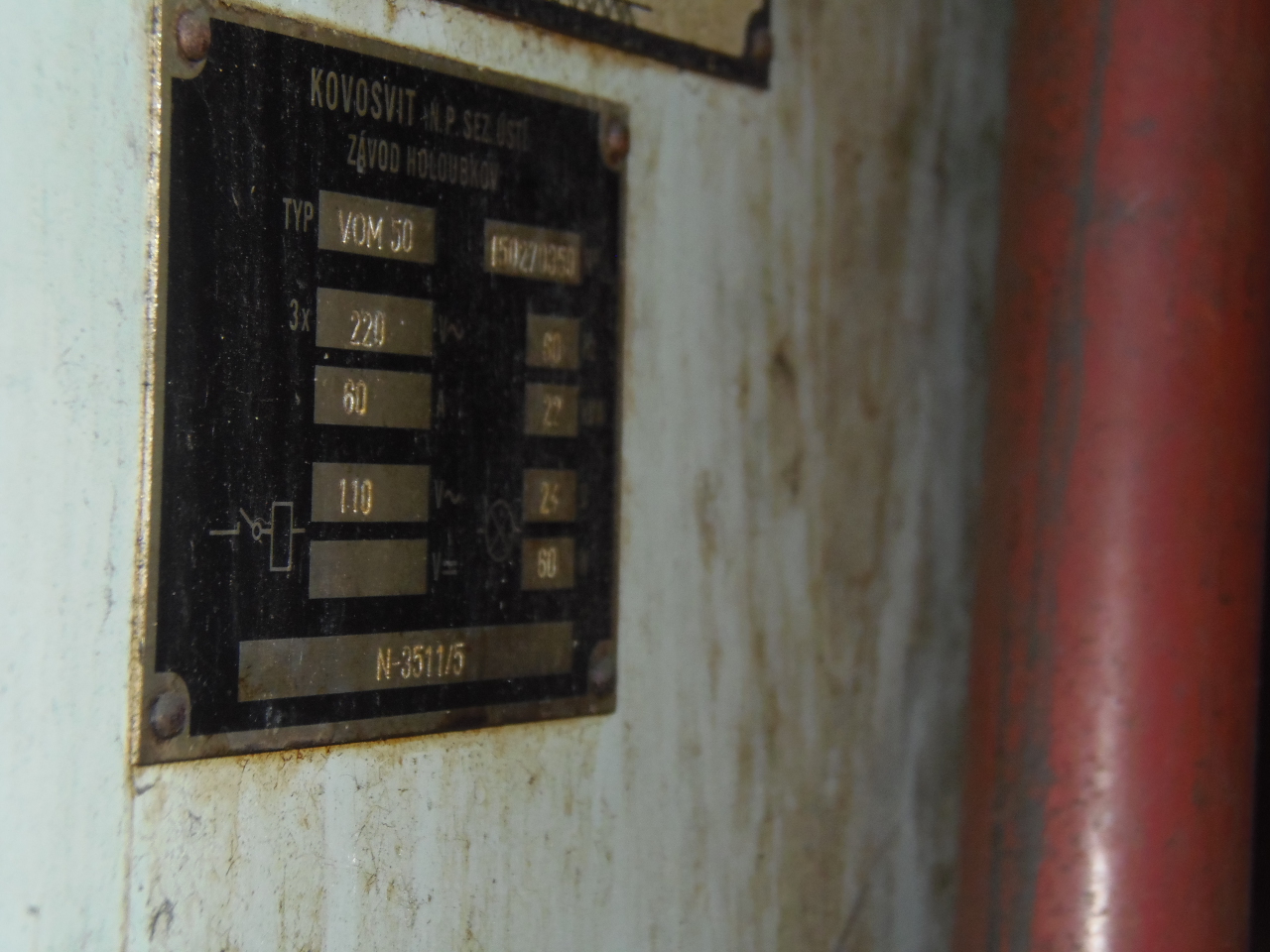

CURRENTLY RUNNING ON 240 VOLTS

SPECIFICATIONS SUBJECT TO VERIFICATION
