Specifications
Equipped With

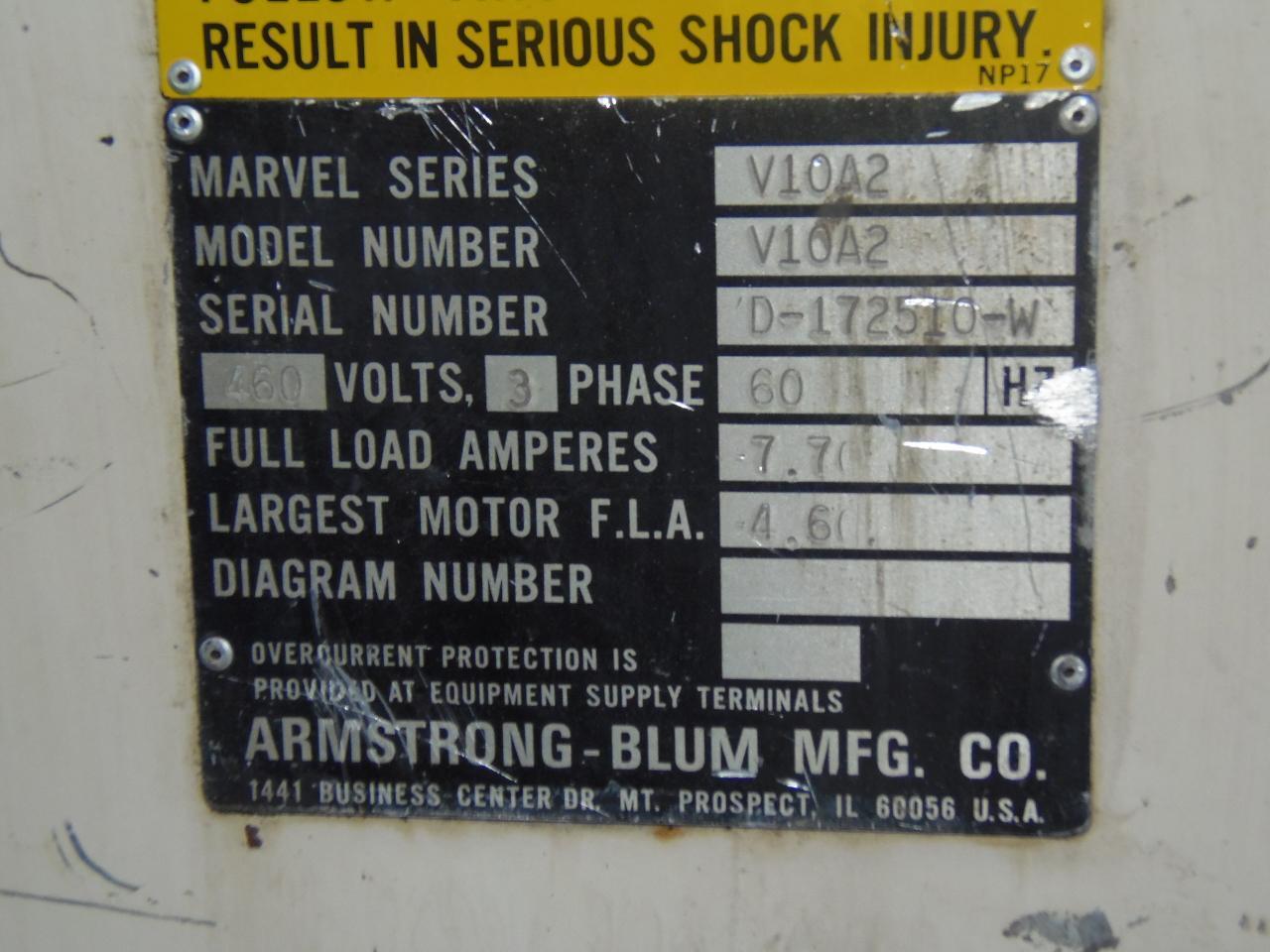

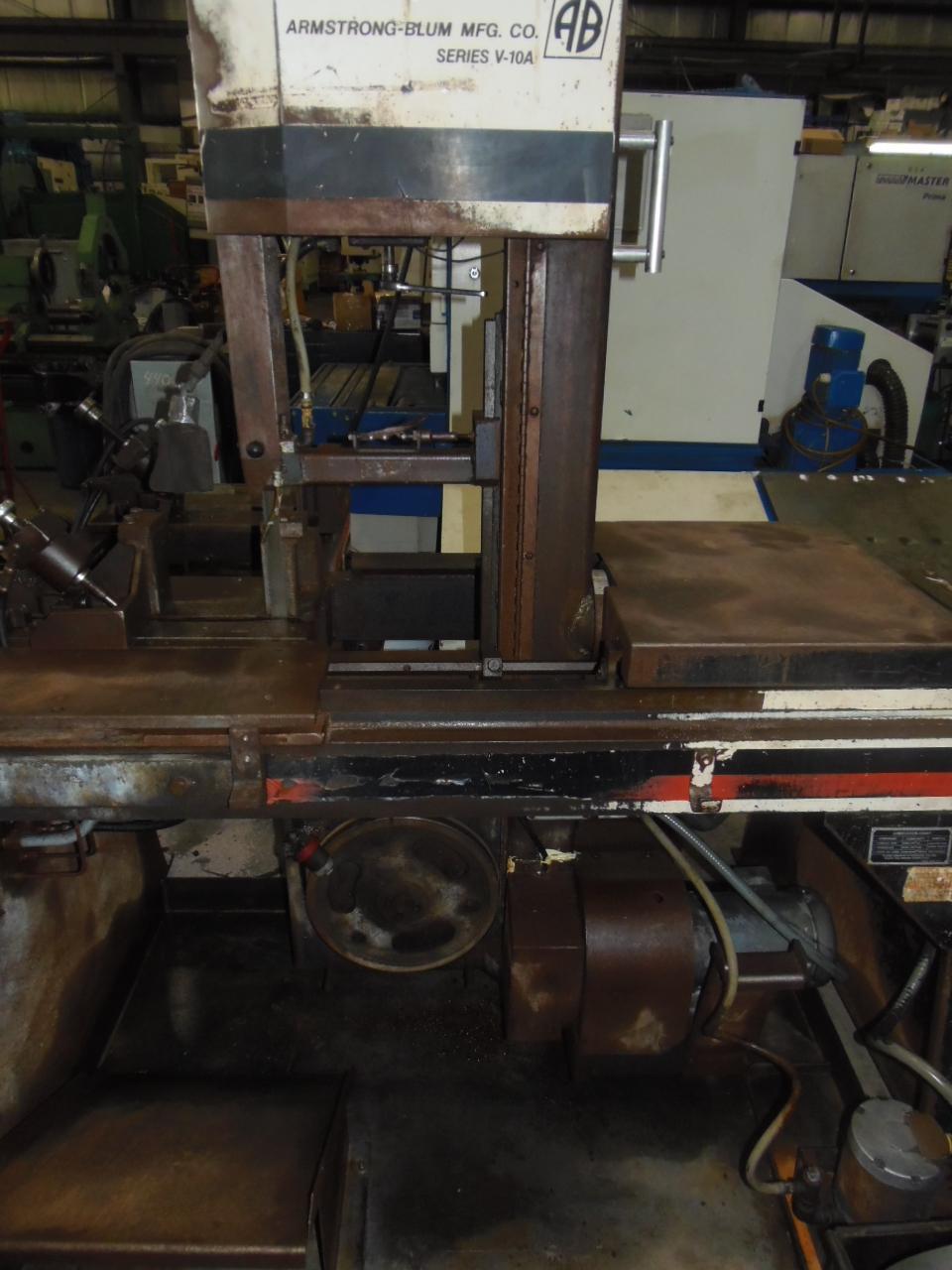

MANUFACTURER.................... MARVEL
MODEL........................... V-10A2
SERIAL NUMBER................... D-172510-W
CAPACITY........................ 10" X 14"
ROUND CAP. @ 90 DEGREES......... 10"
@ 45 DEGREES......... 9"
RECTANGLE CAP. @ 90 DEGREES..... 10" X 14"
@ 45 DEGREES..... 10" X 9"
TABLE LOAD CAPACITY............. 5000 LBS
MAX. VISE OPENING............... 10.5"
BLADE SPEED..................... 50 - 500 FPM
FEED FORCE...................... 0-250 LBS

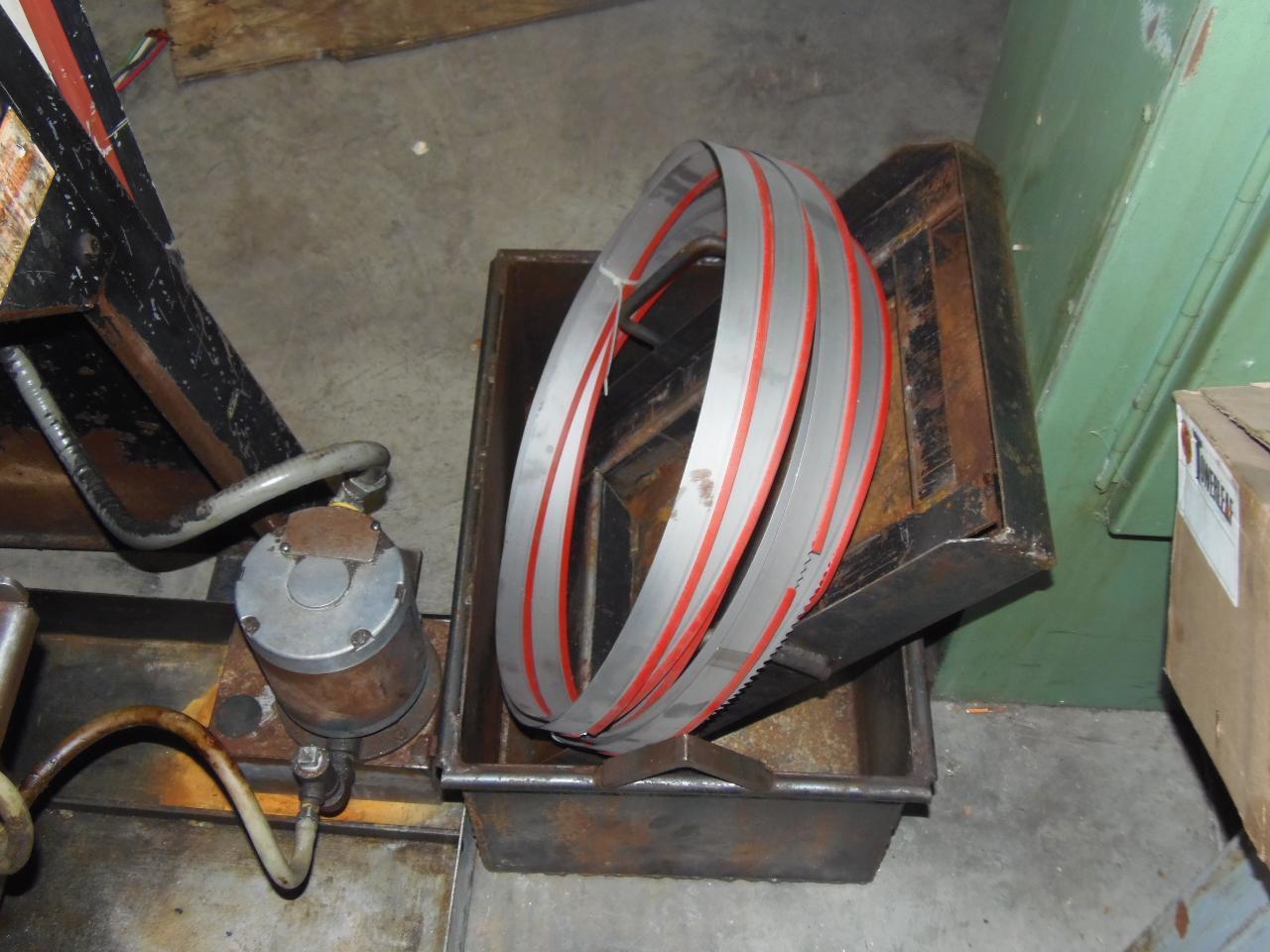

BLADE SIZE...................... 1.0" X 0.035" X 13'6"
APPROX. WEIGHT.................. 3,500 LBS
EQUIPPED WITH:
45 DEGREE TILTING HEAD (MANUAL)

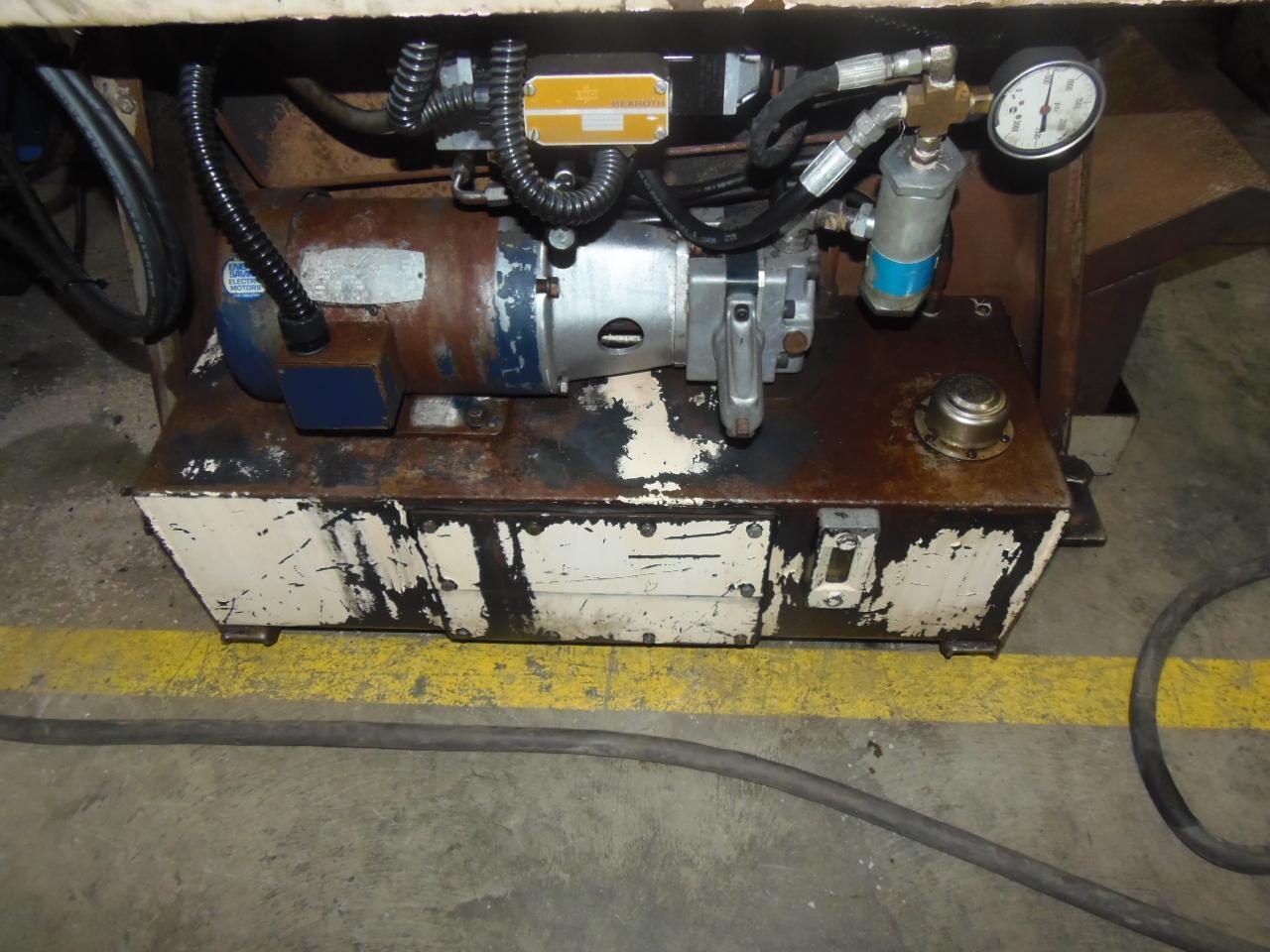

HYDRAULIC VISE
NOTE:MACHINE DOES NOT OPERATE IN AUTO PARTS FEED.
